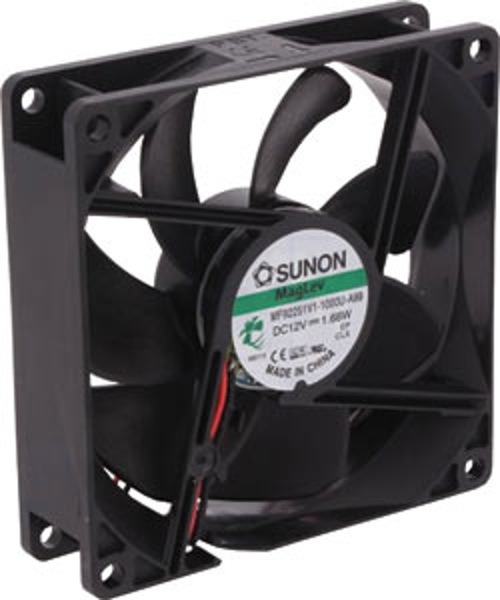

Sunon 92mm 12VDC Maglev Bearing Cooling Fan MF92251V1-10000-A99

A 12V DC 92mm Sunon Maglev/Vapo Bearing Cooling Fan with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon^® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

Mechanical Characteristics

• Motor Design: Single phase, 4 poles brushless DC motor
• Bearing System: Vapo bearing system
• Frame Material: Thermoplastic PBT of UL94V-0
• Blade Material: Thermoplastic PBT of UL94V-0
• Direction of Rotation: Counter clockwise viewed from the front of the fan blade
• Mounting Holes: 8x 4.3mm holes
• Weight: 92g
• Dimensions: 92 x 92 x 25mm

Electrical Characteristics

• Rated Voltage: 12V DC
• Rated Current: 140mA (161mA max)
• Rated Power Consumption: 1.68W (1.94W max)
• Operating Voltage Range: 4.5~13.8V DC
• Starting Voltage: 4.5V DC (25°C Power On/Off)
• Operating Temperature: -10°C ~ +70°C
• Storage Temperature: -40°C ~ +70°C

Performance Characteristics

• Rated Speed: 3000 RPM ±10% at rated power
• Air Flow: 51.5 CFM
• Static Pressure: 0.15 Inch-H2O
• Noise Level: 34.0dB(A)
• Insulation Class: UL Class A
• Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
• Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
• Life Expectancy: 60,000 hours at 40°C, 65% RH, 90% CL
• Protection:  Automatic restart, polarity protection
