Rtu AT Command RS232(TTL)PLC Module PC UART IO Control Switch Board-12V no Pin

Rtu AT Command RS232(TTL)PLC Module PC UART IO Control Switch Board-12V no Pin

Be the first to review this product

Price	$27.38
	Collect 81 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Size	Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 28/11/2024. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code KMVGM

Quantity

Add to wishlist

Description:

1 Working voltage: DC 6-24V (12V version)
2 Working current: 8-13MA

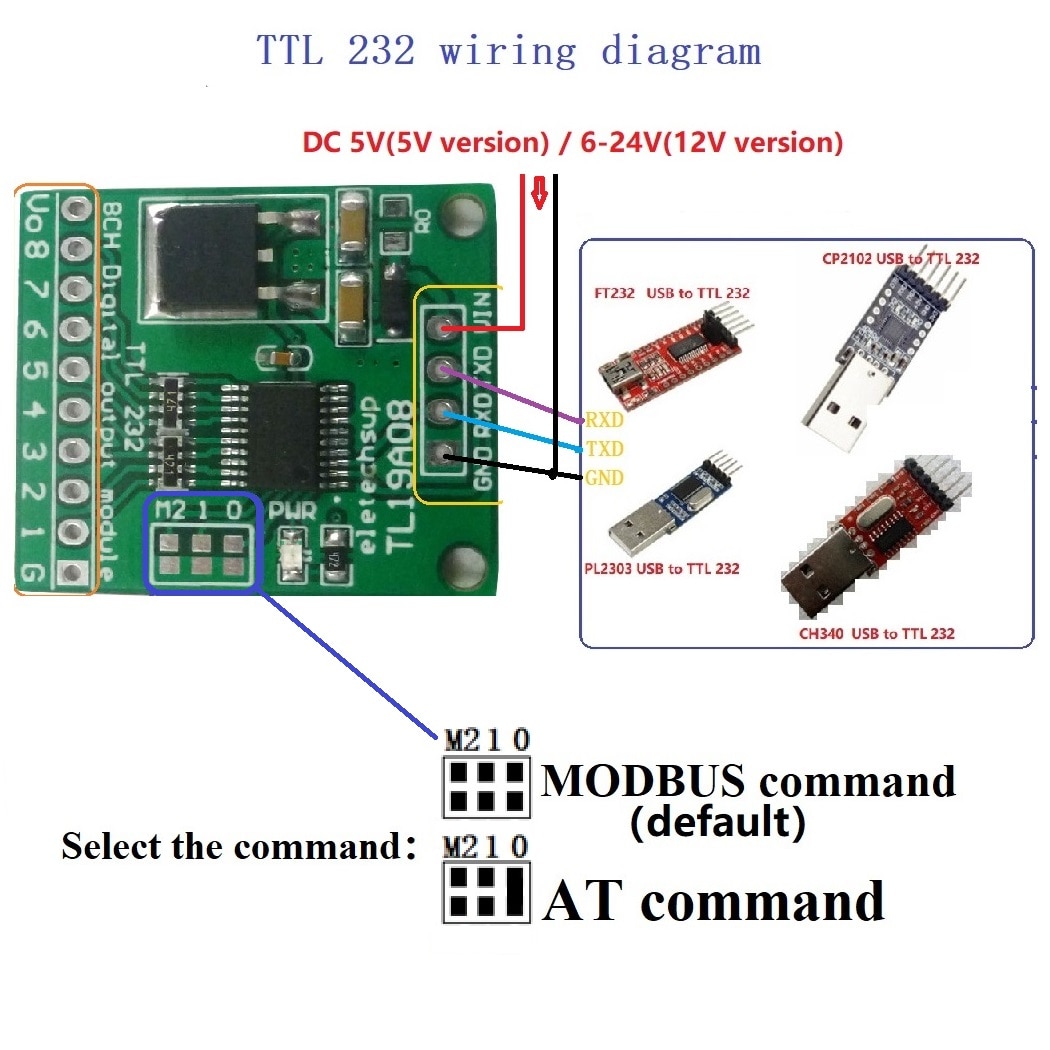

3 Two command control modes: AT command and MODBUS command
4 The maximum delay under the AT command is 9999 seconds, and the maximum delay under the MODBUS command is 255 seconds
5 AT commands can be input by the serial port super terminal (serial assistant);MODBUS commands can also be input by ''Modbus Poll'' in addition to the serial port super terminal input
6 RS232 (TTL level) input interface
7 8 output control pins, 5V TTL level, low level (default)/high level output

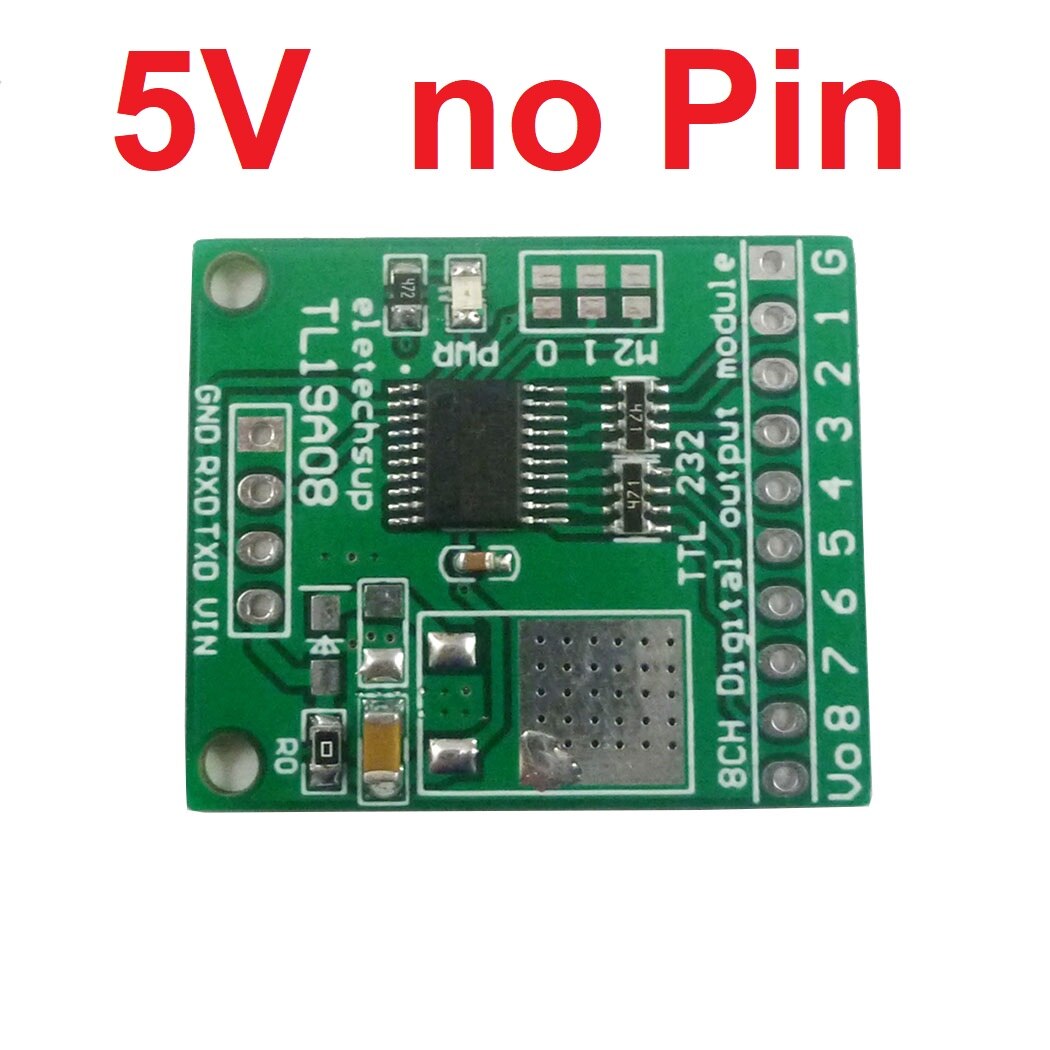

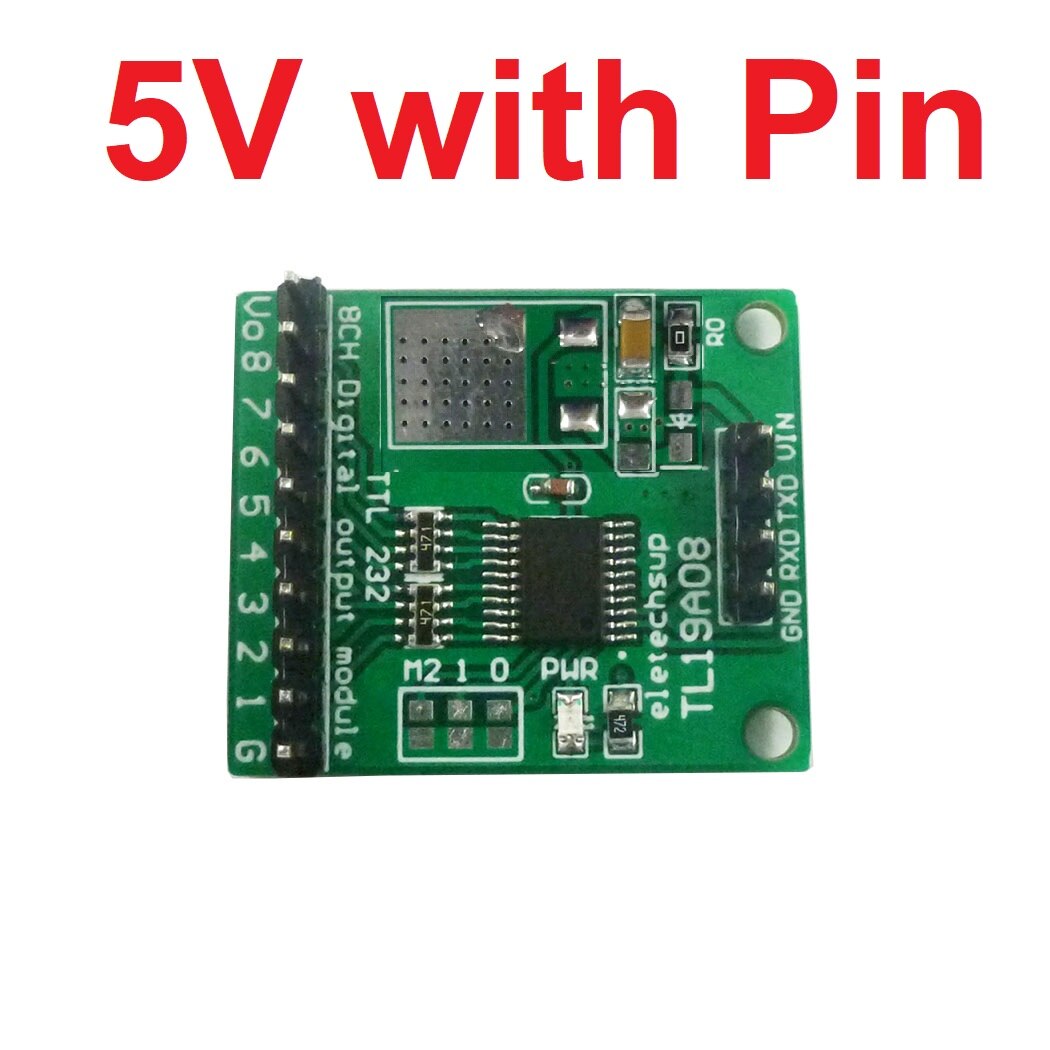

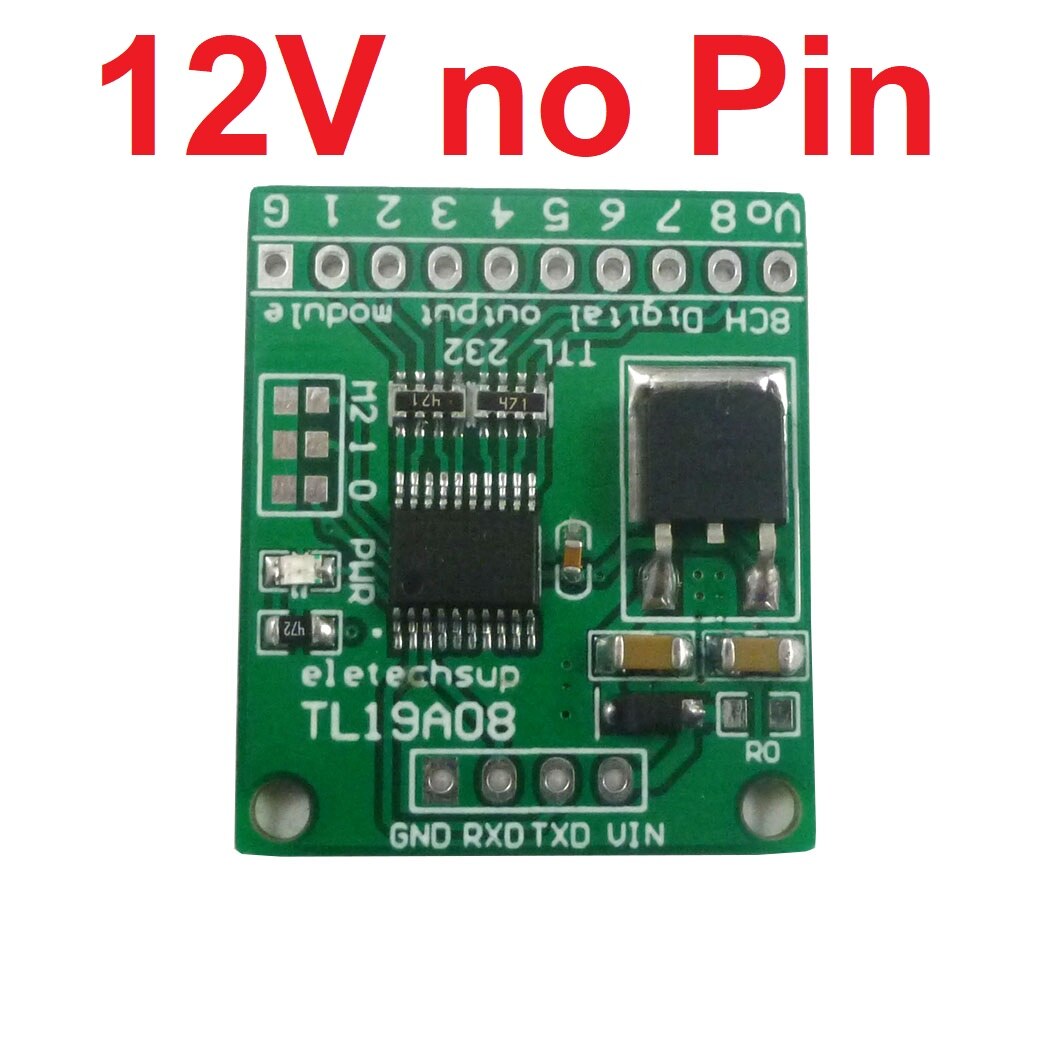

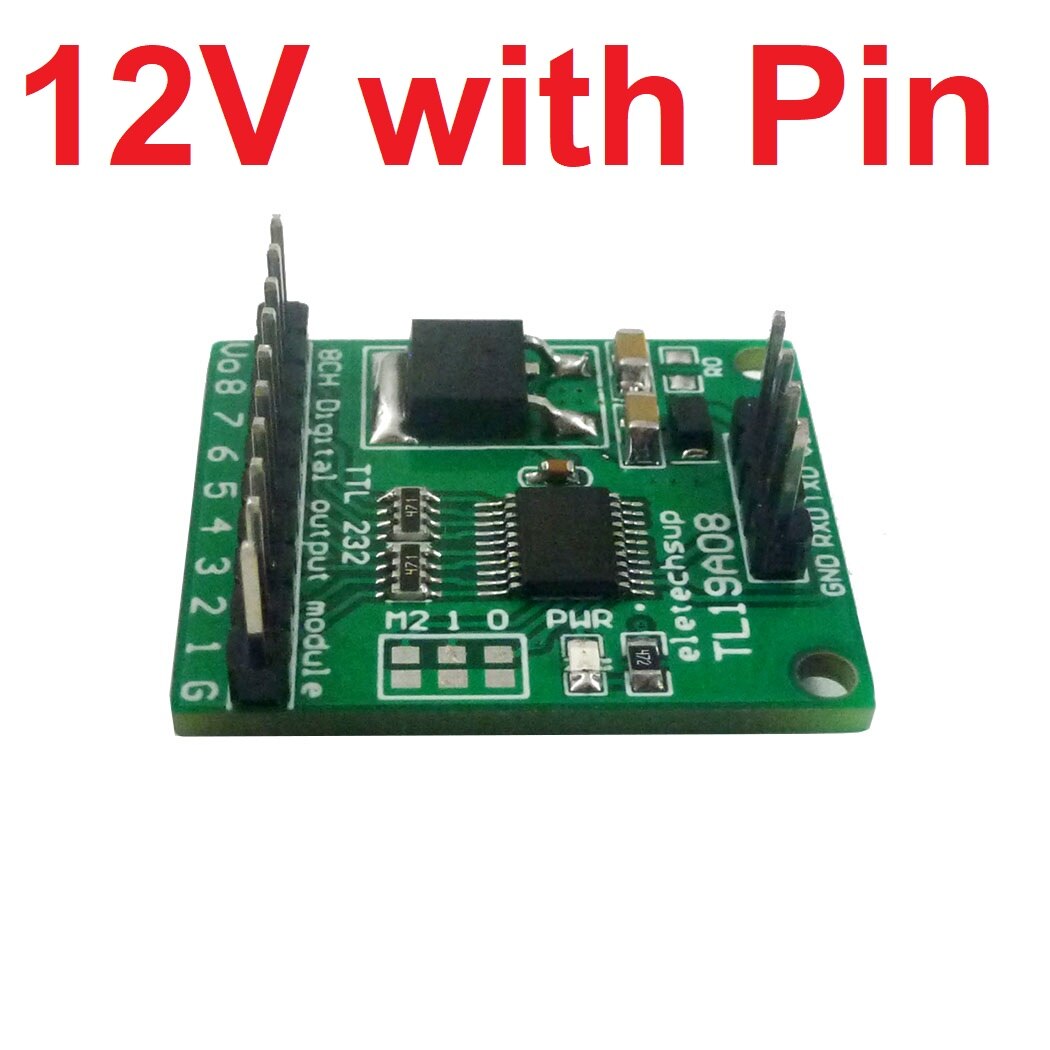

8 Four versions: 12V with needle/12V without needle/5V with needle/5V without needle
9 Size: 30*25.4*2MM
10 Weight: 3.5g no Pin

Application

Automated industry PLC

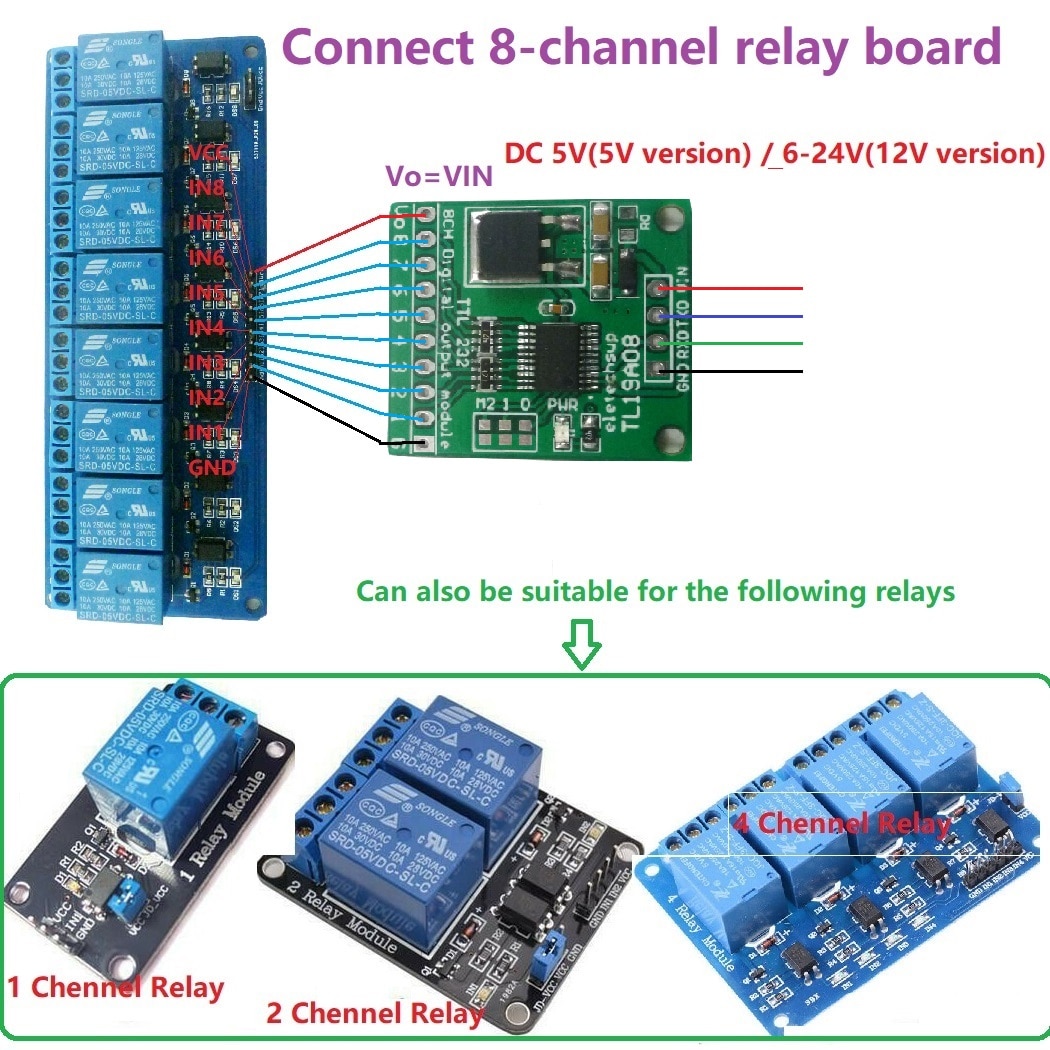

Relay Module
Smart Home,Home Automation ;
Identification system;
Motor FW & BW;
CCTV Camera PTZ Control;
Security system;
LED dot matrix screen;
RS232 RS485 remote control;

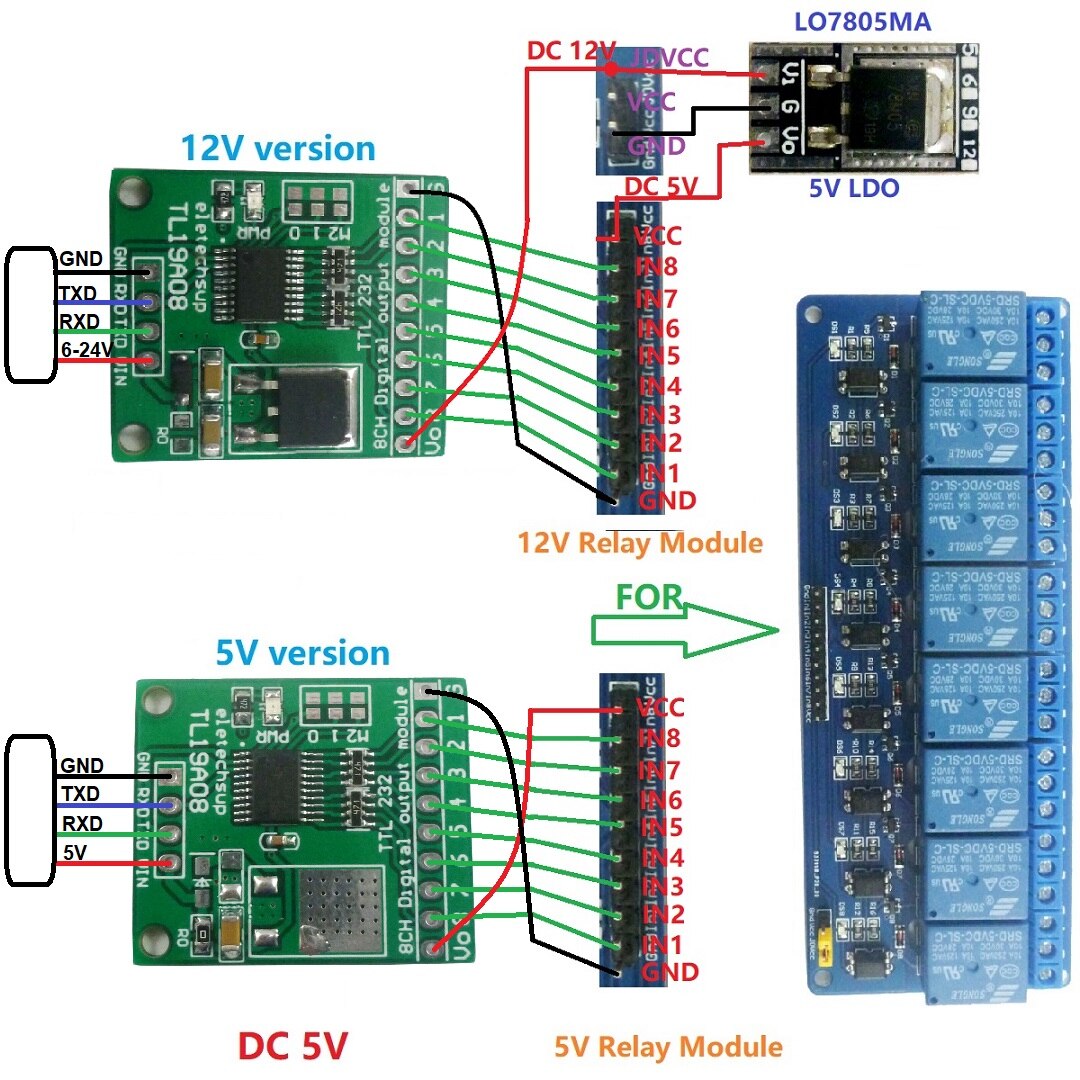

Package inlcuded:1 x 12V 8 Channel Multifunction TTL 232 Control Board for 1-8 CH Relay Module
