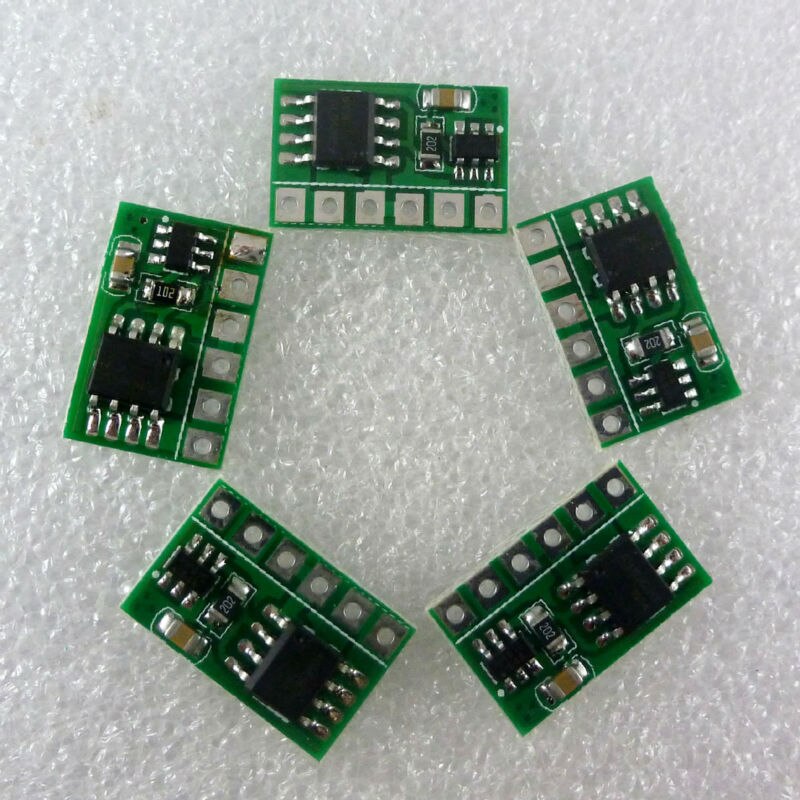

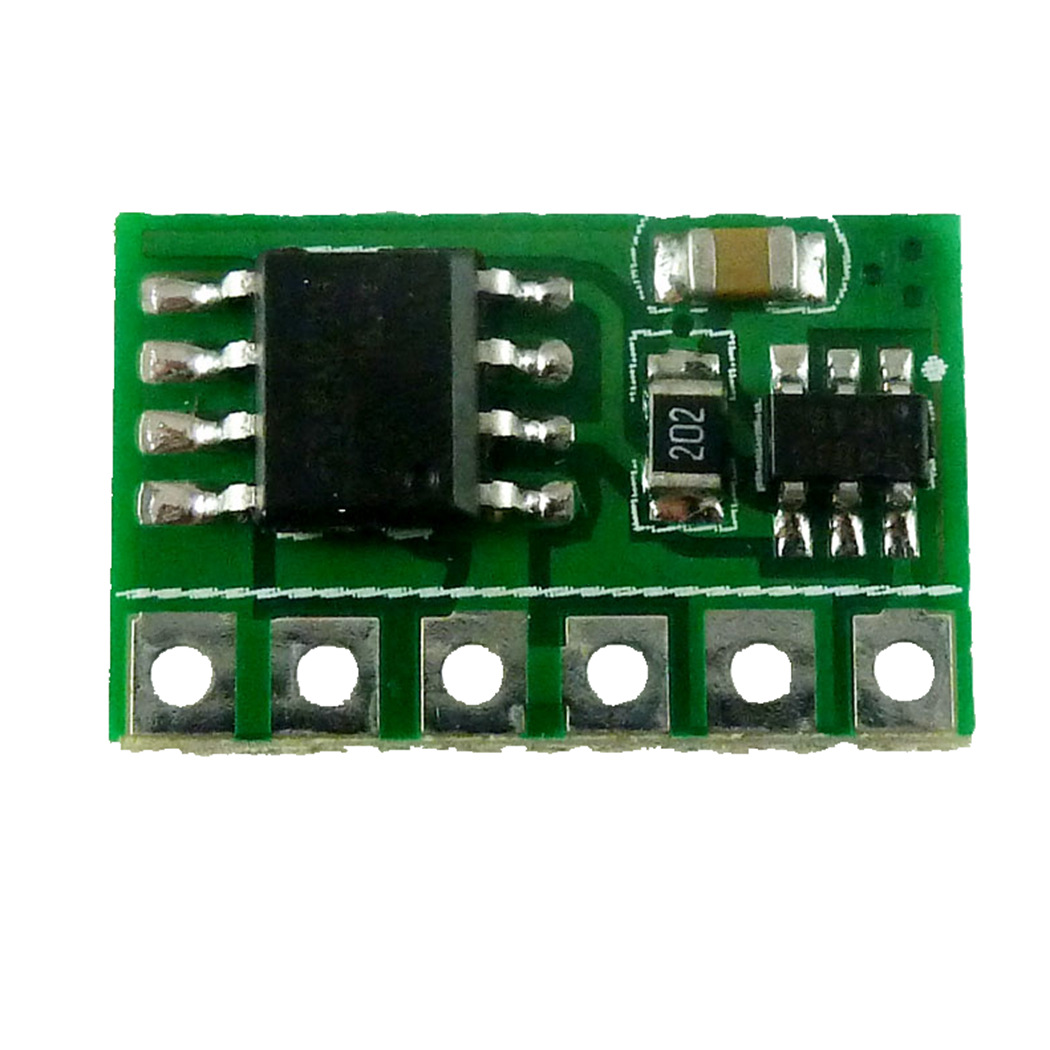

5PCS 3V-6V DC Electronic Switch Module Flip-Flop Latch Bistable for Solar Panel

5PCS 3V-6V DC Electronic Switch Module Flip-Flop Latch Bistable for Solar Panel

Price	$36.19
	Collect 36 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:

Falling edge - triggered. Initial state after power no voltage output, once triggered, output terminal output the power supply votage, after once again trigger the output terminal no voltaged output, and so on.
Low standby power consumption, high output power.
?
Electrical parameters:
Power supply voltage:DC 2.5V-6V
Standby current:less than 10uA
Driver IC is Dual P-channel MOSFET MEM2313,Maximum drive current is 6A
?
Allowing continuous output current:
5A(5V-6V)
4A(3.7V-5V)
2A(2.5V-3.7V)
?
Pin pitch 2.54mm.

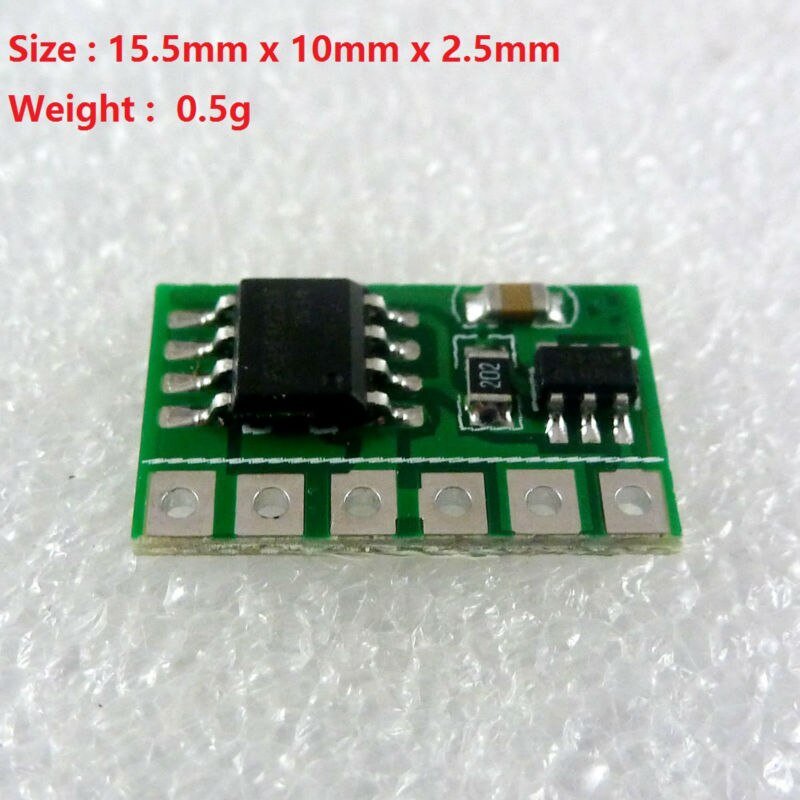

Size:5.5mm x 10mm x 2.5mm.
Weight : 0.5g

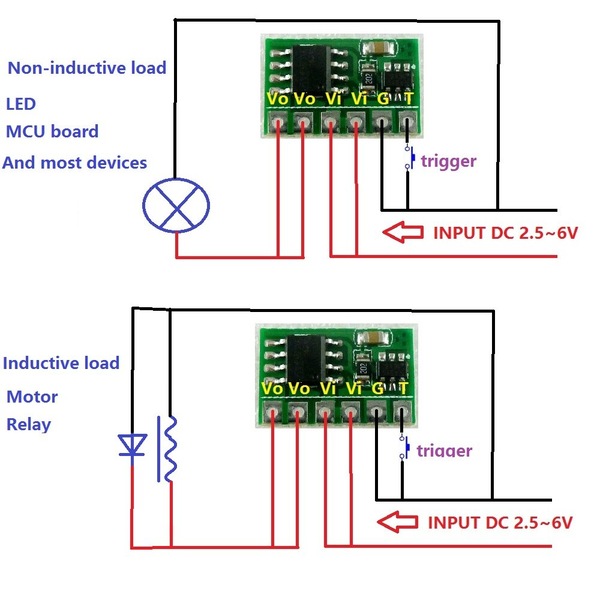

Note:inductive load, the load to the appropriate freewheeling diode in parallel to avoid damaged to the switching elements of the circuit.
?

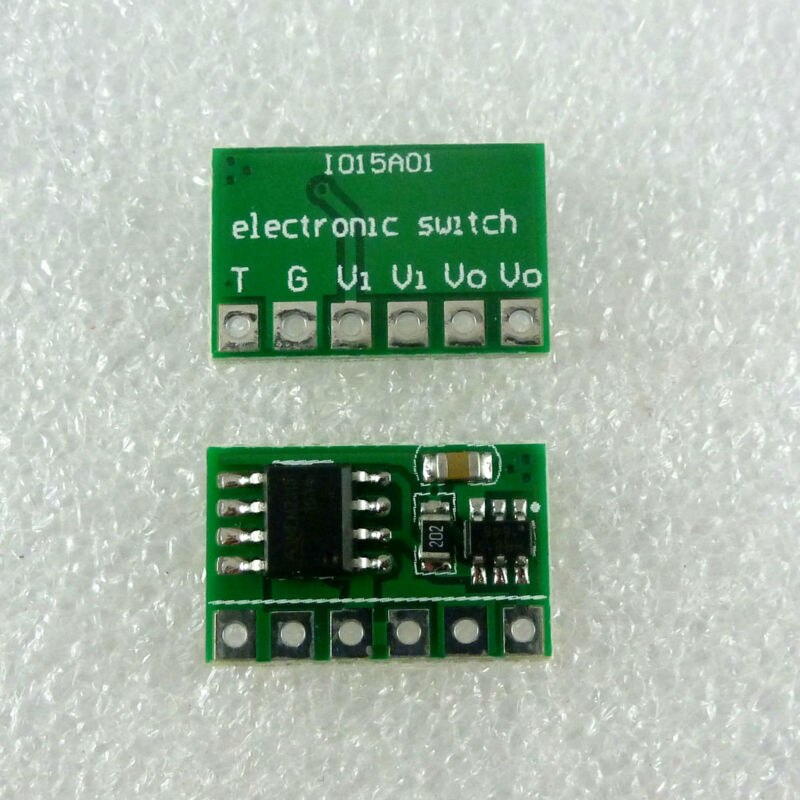

Pin description:
Vo:output;
Vi:power supply;
G:power ground.
T:trigger signal input terminal;
?
Applications:
MCU Development Board
Motor
mobile power
LED Lighting
5V Relay
esp8266 WIFI MODULE
mobile power
Solar battery

Packing list:5 PCS?? 2.5-6V 6A Bistable Self-locking Trigger Switch
