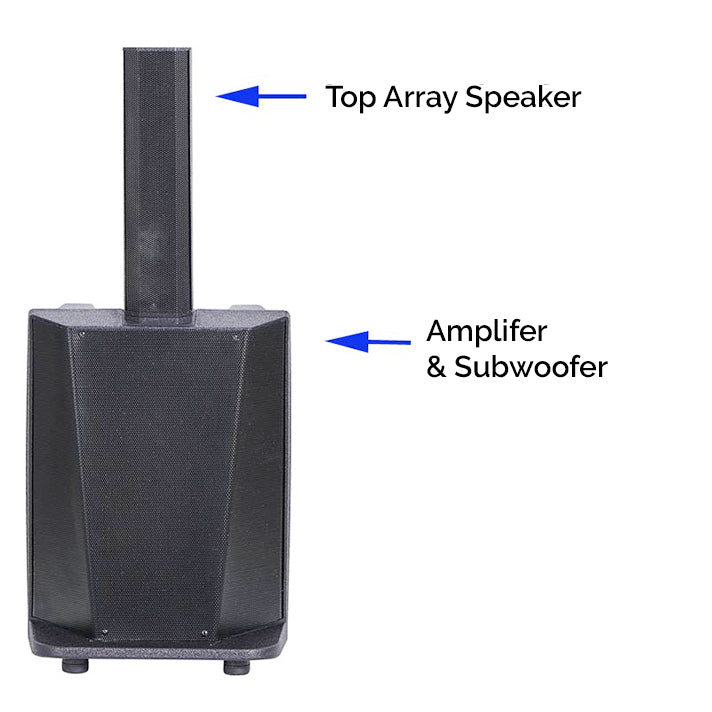

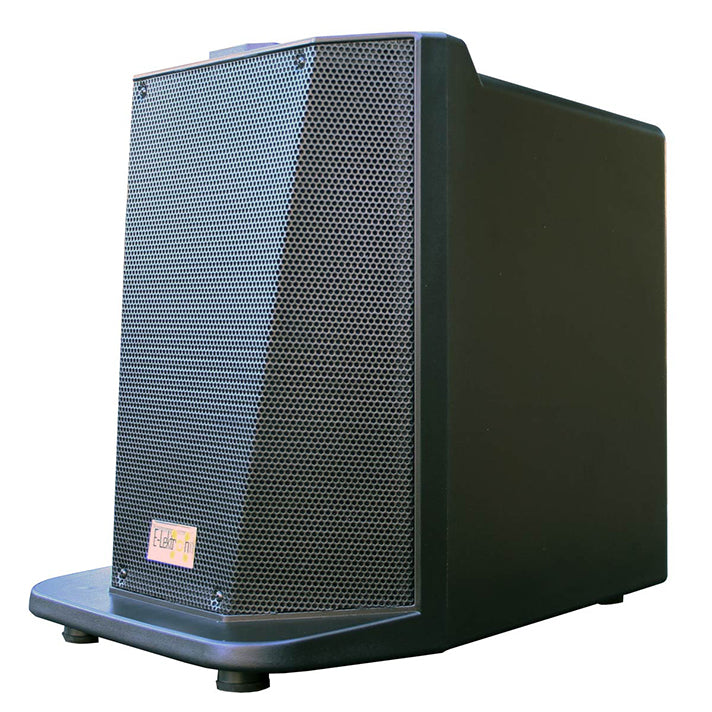

- The system with subwoofer in the base and column with 8 mid / tweeters
- The amplifier and controller are located in the base
- Bluetooth interface for streaming music from mobile phones or tablets
- DSP with 5 presets: Normal / DJ / Voice / Live / Flat

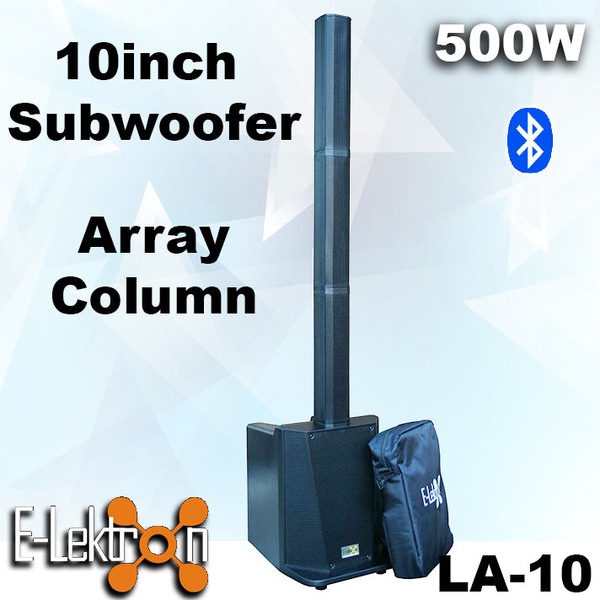

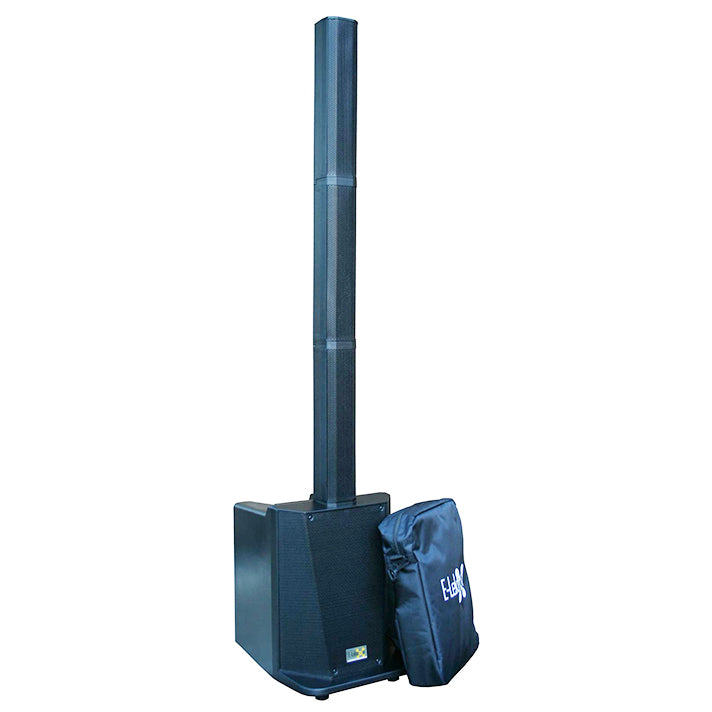

Portable plug-and-play column system for monitor and PA sound systems. In addition to the subwoofer, there are 2 powerful Class-D amplifiers in the base: 300W RMS for the subwoofer and 50W RMS for the column. The column can be placed on the subwoofer with 3 elements.

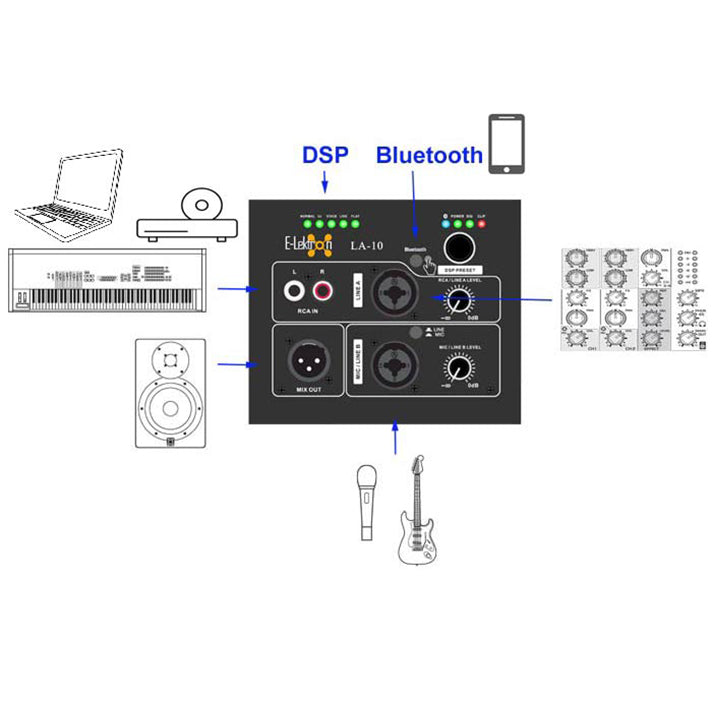

The controller and the connections are also located in the base. The integrated 2-channel mixer has a LINE channel and a switchable microphone / LINE channel. With the DSP with 5 presets, the system can be easily adapted to different operating conditions.

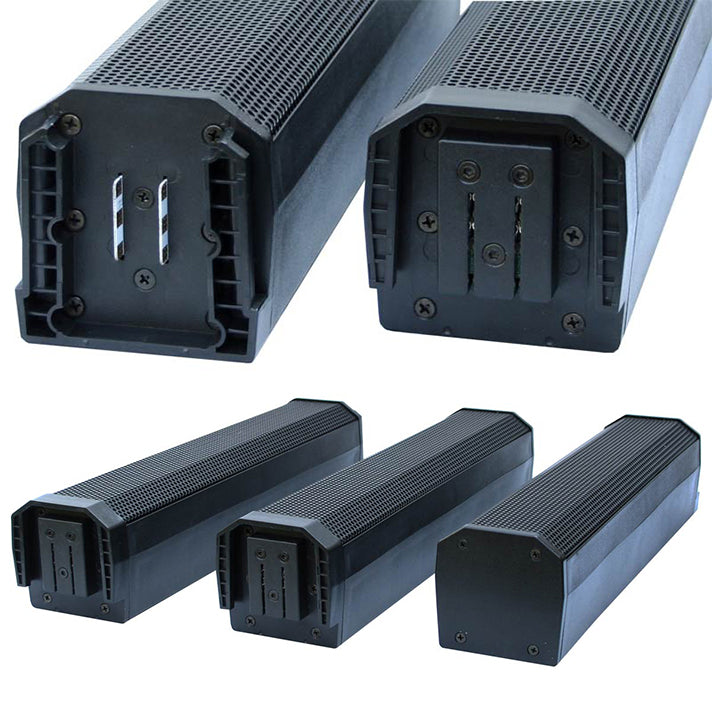

The system can be set up quickly and with little effort. The elements of the column are equipped with electrical contacts to set up the column without cables, speaker stands are superfluous.
Room-filling sound distribution. Widely applicable, ideal for mobile DJs, live music, presentations, performances, etc.
Characteristics:
- The system with subwoofer in the base and column with 8 mid / tweeters
- Slim design, compact and easy to transport

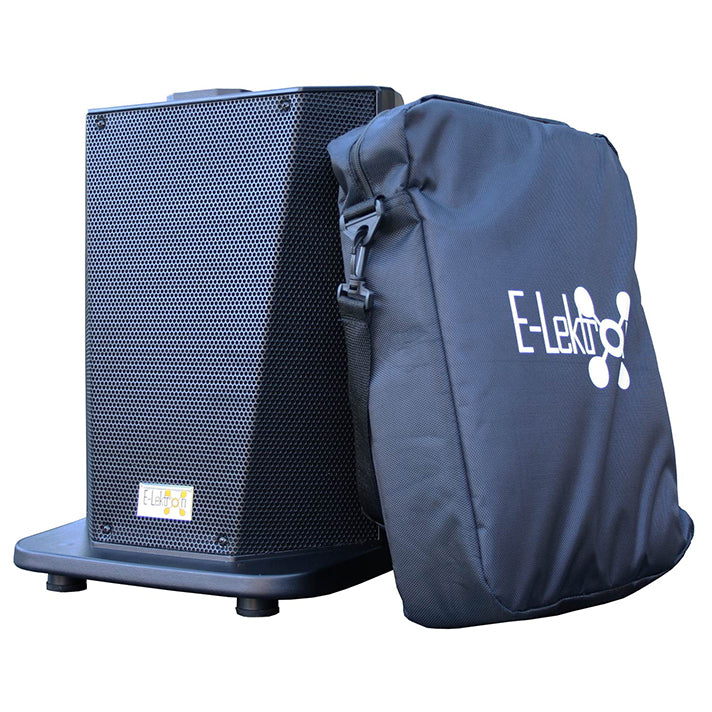

- Carrying bag for the elements of the column

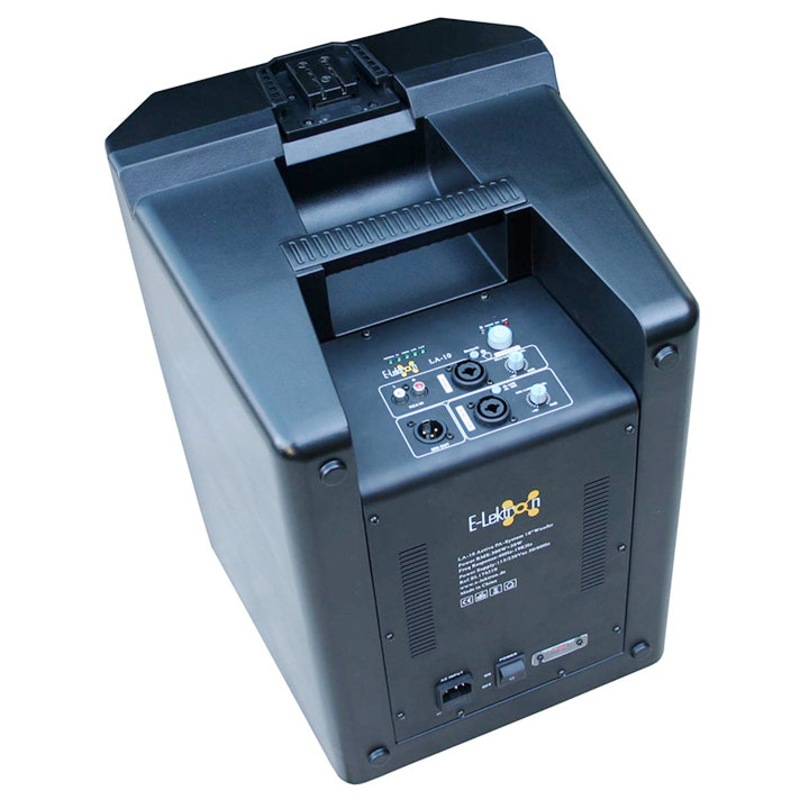

- The amplifier and controller are located in the base
- Bluetooth interface for streaming music from mobile phones or tablets
- Switchable LINE / MIC channel with combi socket for jack and XLR
- LINE channel with cinch sockets, combi socket, and Bluetooth
- MIX OUT socket for additional active speakers or as a link to a PA
- DSP with 5 presets: Normal / DJ / Voice / Live / Flat
- 2 integrated amplifiers: 300W RMS for the sub, 50W RMS for the column
- The column is equipped with 8 3.5 “mid / tweeters
- Even sound distribution thanks to large beam angles of over 120 °
- Speaker cables and speaker stands are superfluous

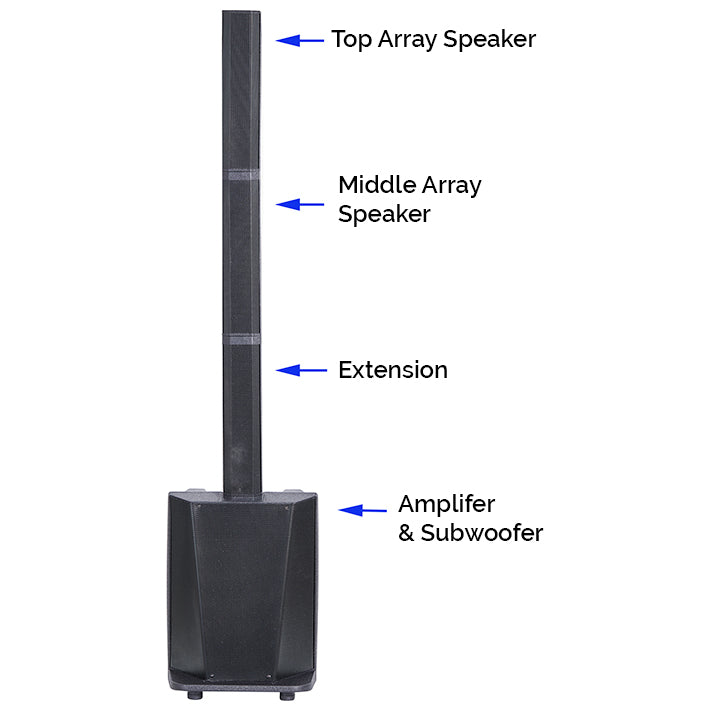

Package of delivery:
1 pc LA-10 stand/subwoofer
1 extension pillar (empty)
1 pc center speaker column
1 speaker column above
1 pc carrying case for the column
1 pc power cord
Operating instructions German / English
Technical specifications:
EAN:4260393841208
Item Number: EL174510
Model Number: LA-10
Power supply: 115Vac / 230Vac - 50 / 60Hz - 500W
backup: T3.15A 250V
System: 2-way full-range line array system
Amplifier: Class D with DSP
Performance RMS: Sub 300W / array 50W
SPL: 120dB max.
Subwoofer: 10 "/ 25cm with 2" coil / 40OZ magnet
Array column: 2x 4 x 3.5 "mid / tweeters, 1x extension
Mid / High: 3.5 "neodymium broadband
Angle: ≥120 °
Frequency response: 40Hz-19kHz
Sensitivity: 97dB (1W / 1M)
Entrance: Combi-sockets 6.3mm jack unbalanced / XLR balanced
Dimensions foot: 46.5 (H) x 35 (W) x 47.5 (D) cm
Dimensions: Array each 41 (H) x 9 (W) x 9 (D) cm height completely constructed approx. 1m70
Weight foot: approx.12.5kg
Weight array: approx.1.6kg each
