4K HDMI 4 Input 2 Output Matrix Switcher Splitter w/ Audio Splitter & EDID

4K HDMI 4 Input 2 Output Matrix Switcher Splitter w/ Audio Splitter & EDID

Limited Stock!

Price	$99
	Collect 99 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

4K HDMI 4 Input 2 Output Matrix Switcher Splitter w/ Audio Splitter & EDID

4 x 2 HDMI True Matrix with Audio Splitter & EDID

This true 4K HDMI Matrix Switcher is capable of switching between 4 HDMI inputs and displaying or splitting the signal to 2 LCD Displays or TV. It has a built-in Audio Splitter for connecting the Digital Toslink (fibre optic) Audio output or Analogue Line Level via 3.5mm Stereo socket to an Amplifier/Receiver or Soundbar. It also has an EDID management support to ensure that the highest resolution and setting can be selected.

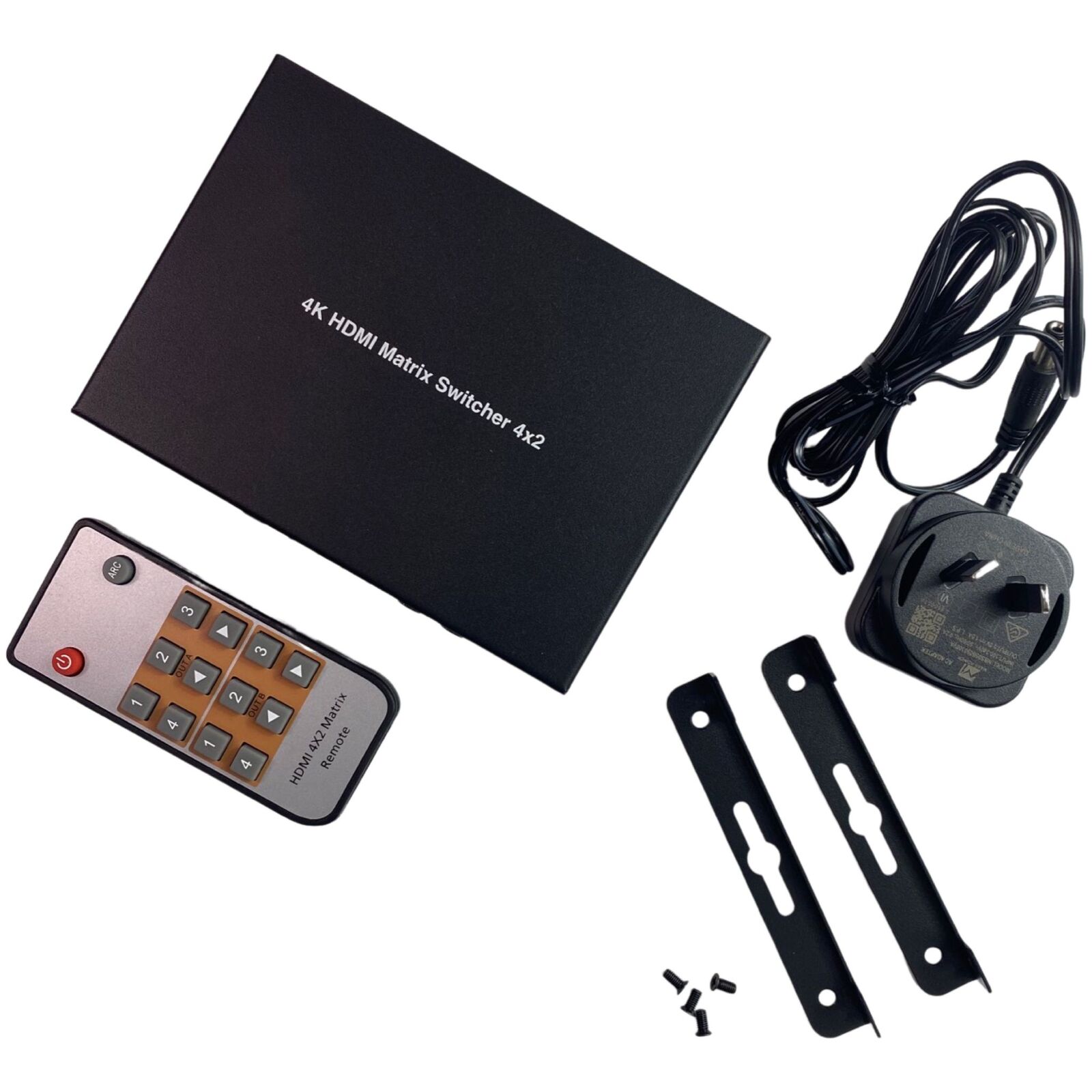

Comes with a remote controller for ease of use. Suitable for newer 4K HDMI devices such as PS4 Pro, XBOX S One, Foxtel IQ4, etc.

Features:

HDCP2.2/HDCP1.4 and DVI 1.0 compliant.
Supports HDMI resolution the maximum up to 4K2K@50/60Hz (4:2:0).
Supports digital and analog audio extract output from output A or output B.
EDID can be selected AUTO, COPY and STD mode via

Technical
HDCP Compliance   HDCP 2.2 and HDCP 1.4
Video Bandwidth   297Mbps
Video Resolutions   480P@60Hz, 720P@60Hz, 1080P@60Hz, 1080P 3D@60Hz, 4K24/30Hz, 4K2K@50/60Hz (4:2:0)
Color Depth   8-bit, 10-bit, 12-bit
Color Space   RGB/YCbCr 4:2:0, YCbCr 4:4:4, YCbCr 4:2:2
HDMI Audio Formats   PCM2.0/5.1/7.1CH, Dolby 5.1, DTS5.1, Dolby-TrueHD, DTS-HD
L/R Audio Formats   Analog stereo 2CH
Optical Audio Formats   LPCM[2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS
5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
ESD Protection   Human-body Model：
±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connections
Input ports   4×HDMI Type A [19-pin female]
1×IR Receiver Window
Output ports   2×HDMI Type A [19-pin female]
1×L/R Audio out [3.5mm Stereo Mini-jack]
1×Optical out [S/PDIF]
Mechanical
Housing   Metal Enclosure
Color   Black
Dimensions   200mm(W)×80mm(D)×16mm(H)
Weight   328g
Power Supply   Input: AC100~240V 50/60Hz, Output: DC5V/1A
(US/EU standards, CE/FCC/UL certified)
Power Consumption   2W (max)
Operating
Temperature   0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature   -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity   20~90% RH (non-condensing)

Specifications:

12 Month Warranty
