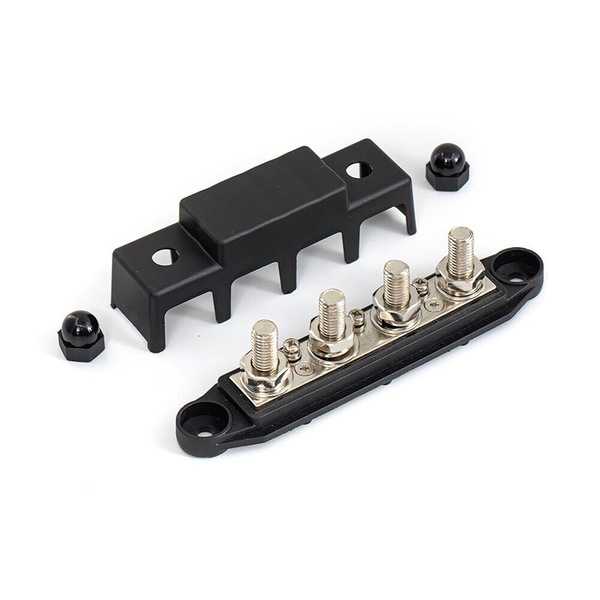

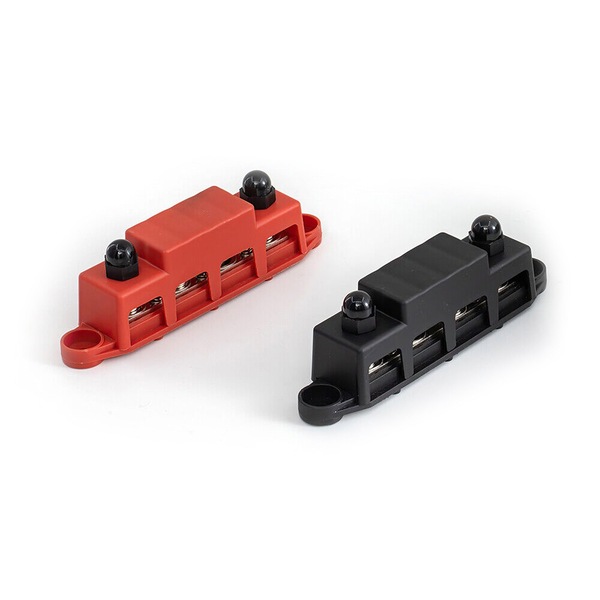

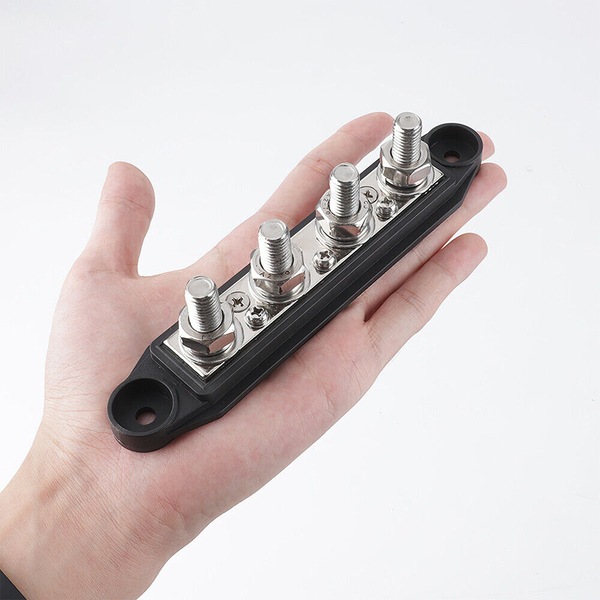

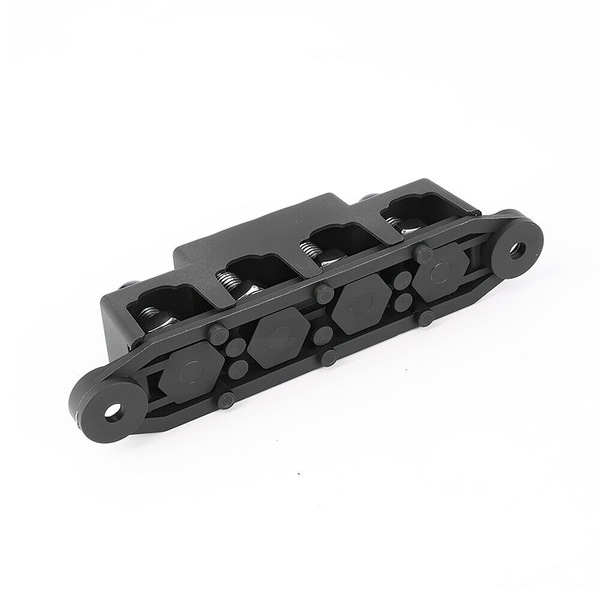

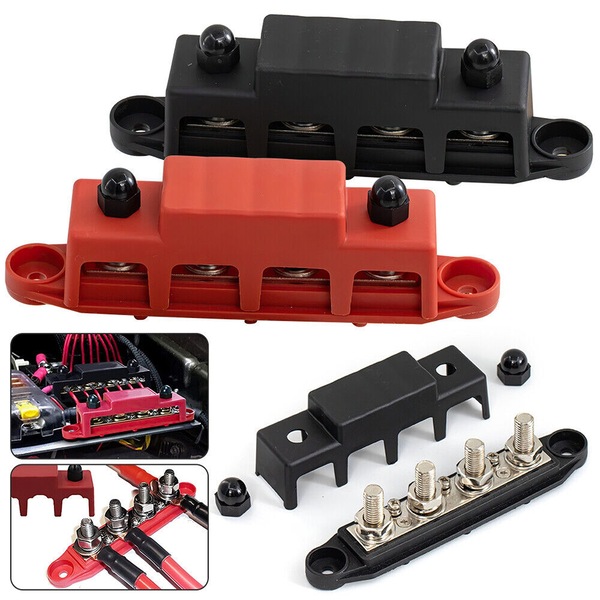

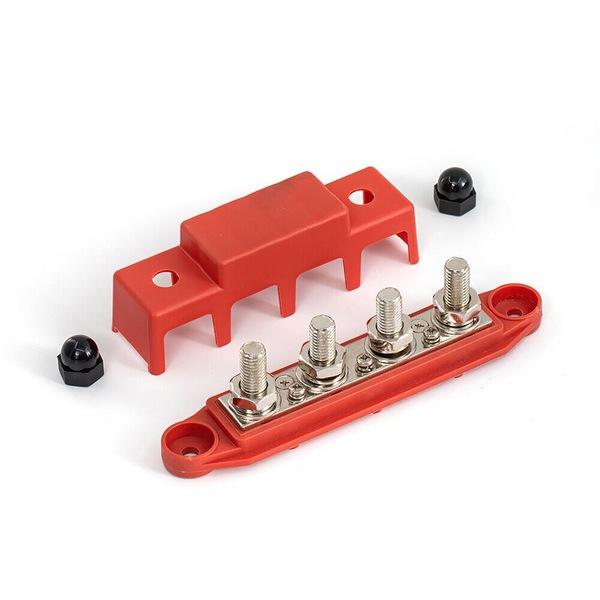

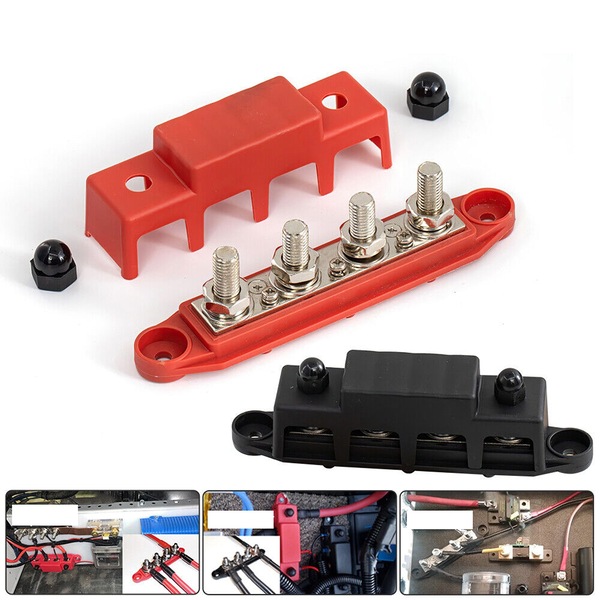

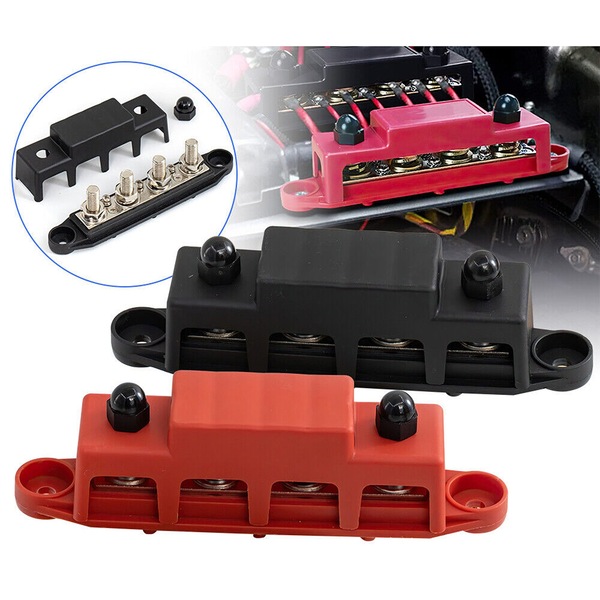

4 Post Power Distribution Block Terminal Screw Bus Bar 250A 12V-48V DC M8 - 2pcs

4 Post Power Distribution Block Terminal Screw Bus Bar 250A 12V-48V DC M8 - 2pcs

Hurry! 8 items left!

Price	$73.18
	Collect 73 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $30

Exclusive to HLT products only. Expires 11.59pm 24/02/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code NAMXP

Quantity

Add to wishlist

Features:
-Max Voltage: 48VDC. Max continuous amperage: 250ADC. Max intermittent: 20A per connection less than 1 minute. So whether your working on a boat, a car, or an RV.
-Low resistance, maximum conductivity and corrosion protection. The nylon nuts connect to two external studs to prevent accidental short circuits.
-A removable Nylon cover keeps metal components from making contact with anything. The insulated nylon base is flame-retardant.
-Provides several large gauge connections for running a dedicated ground to the battery and offers more minor gauge connections for lower voltage.
-The bus bar is an excellent circuit collection wire Harness in the car, RV, yacht, caravan, and ship power system. The busbar holds wide cables securely to keep the wires neat.

Specifications:
-Material: ABS, Zinc Alloy, Brass
-Colour: Black, Red
-Type: M8 5 16in Stud
-Maximum Voltage: 48V DC
-Current Rating Per Stud: 62.5A
-Rated current of the whole electric block: 250A
-Auxiliary Terminal Screw Current: 20A
-Length: Approx. 17cm

Package Inclusions:
-2 x Power Distribution Block

Notes:
-Actual colors may vary due to computer monitors displaying colors differently.
-Due to the nature of the manufacturing process and manual measurement, product sizing may vary slightly.

GTIN: 738060235482
