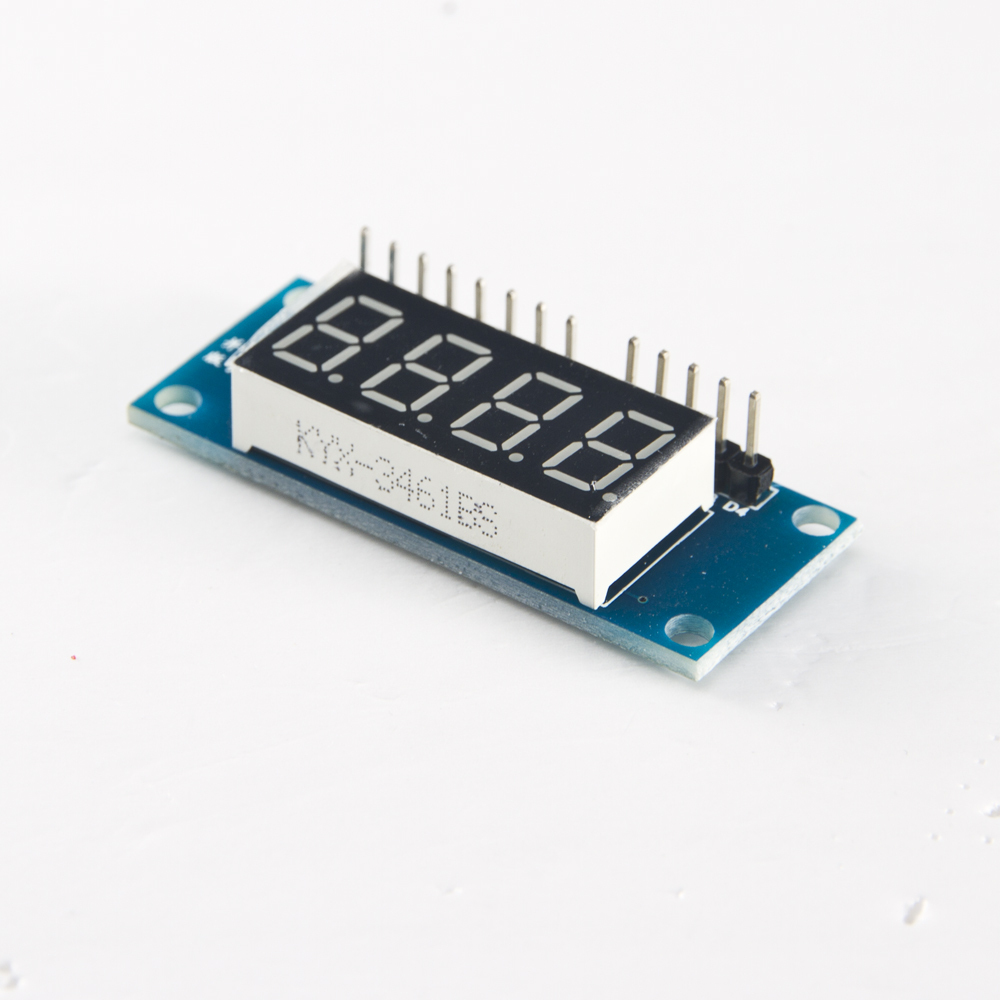

0.36" 4 Bits Common Anode LED Display Board Parallel Digital Tube Display Module Â
Module description

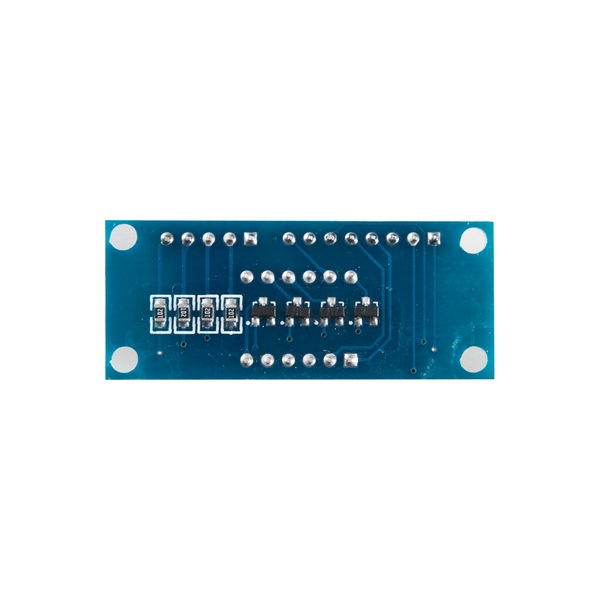

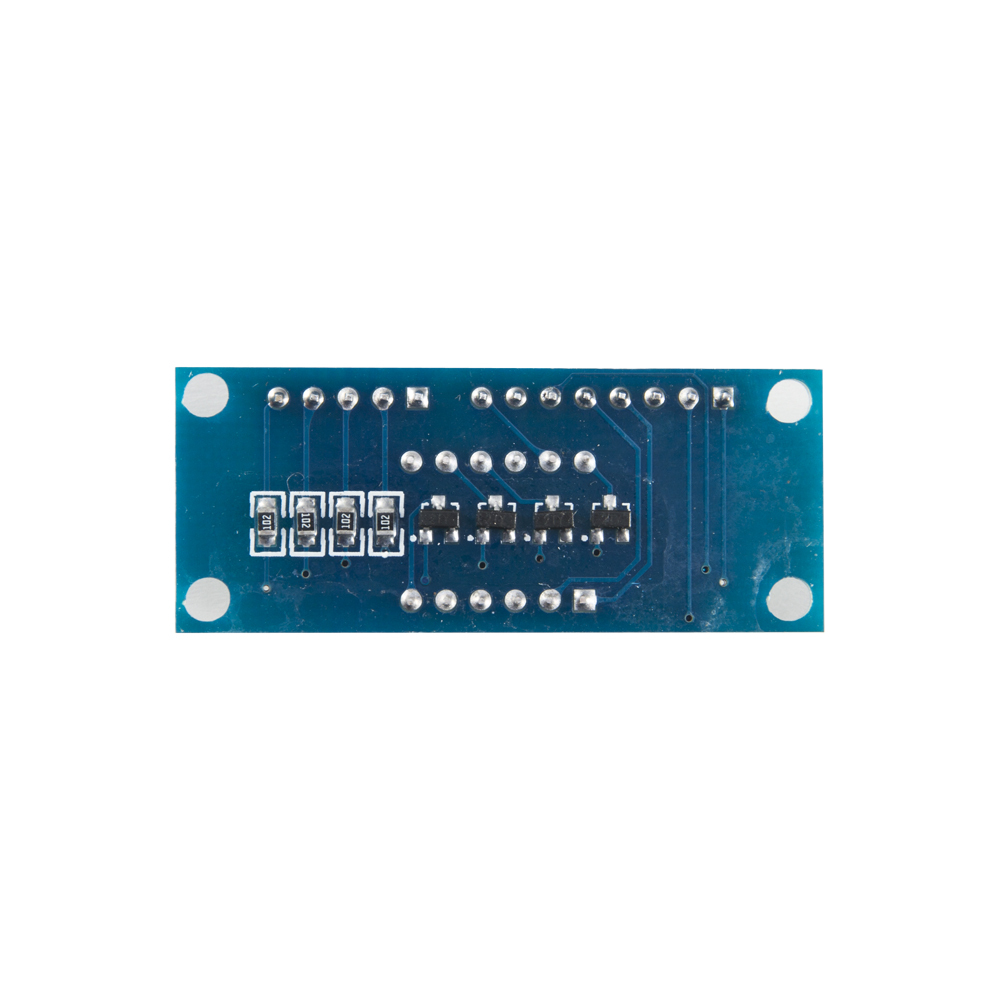

1 name: 4-bit digital tube display module, 8550 triode and parallel drive
2 digital tube type: 0.36 inches, Yang digital tube
3 working voltage: 3.3V to 5V
4 Equipped with fixing bolt hole, convenient for installation
5 size (board) : 4.8 cm * 2.0 cm

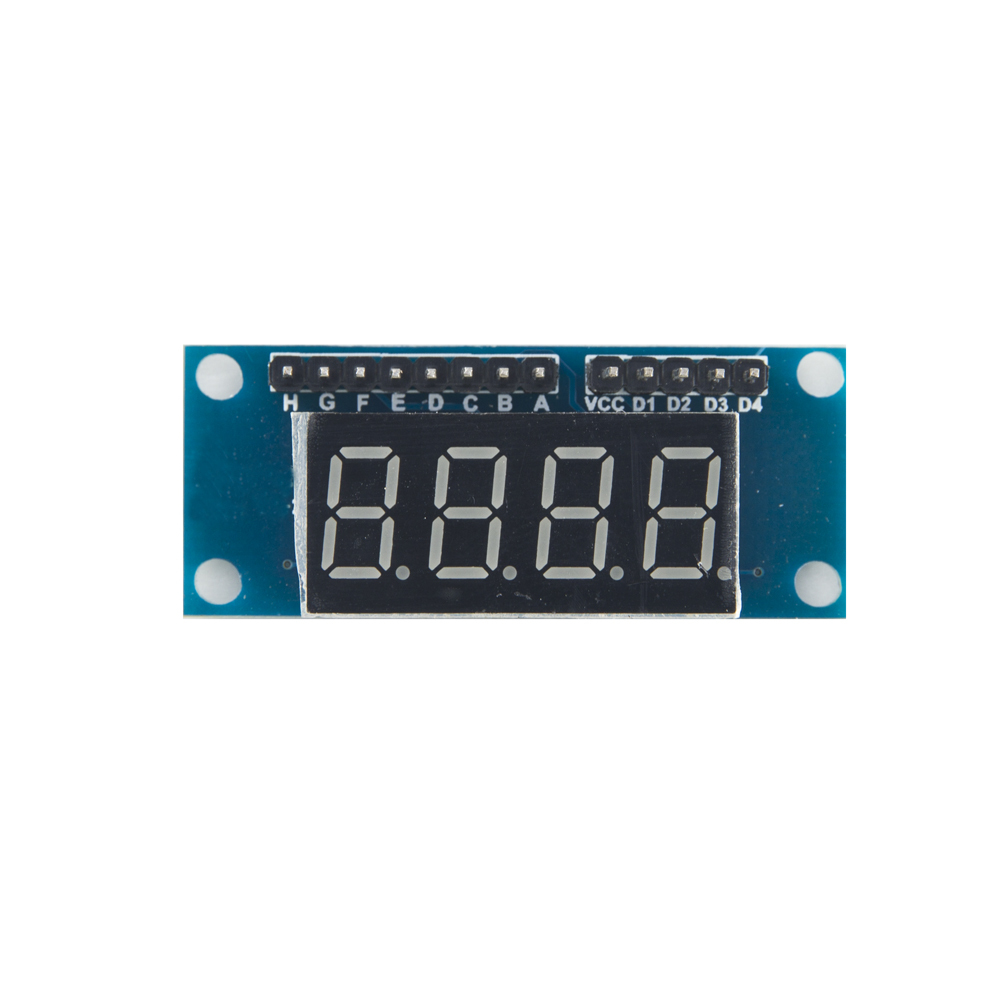

Module interface specification
1 VCC: external 3.3V to 5V voltage (can be directly connected to 5V and 3.3 V MCU)
2 driver A B C D E F G, H can be directly connected to the IO port of MCU
3 driver D1, D2 D3 D4 can be directly connected to the IO port of MCU
4 equipped with fixing bolt hole, convenient for installation
Note: the module can be directly connected to the IO port of MCU (need 12 IO ports), to achieve the purpose of controlling 4-bit digital tube display, no need for any other driver and buffer register
