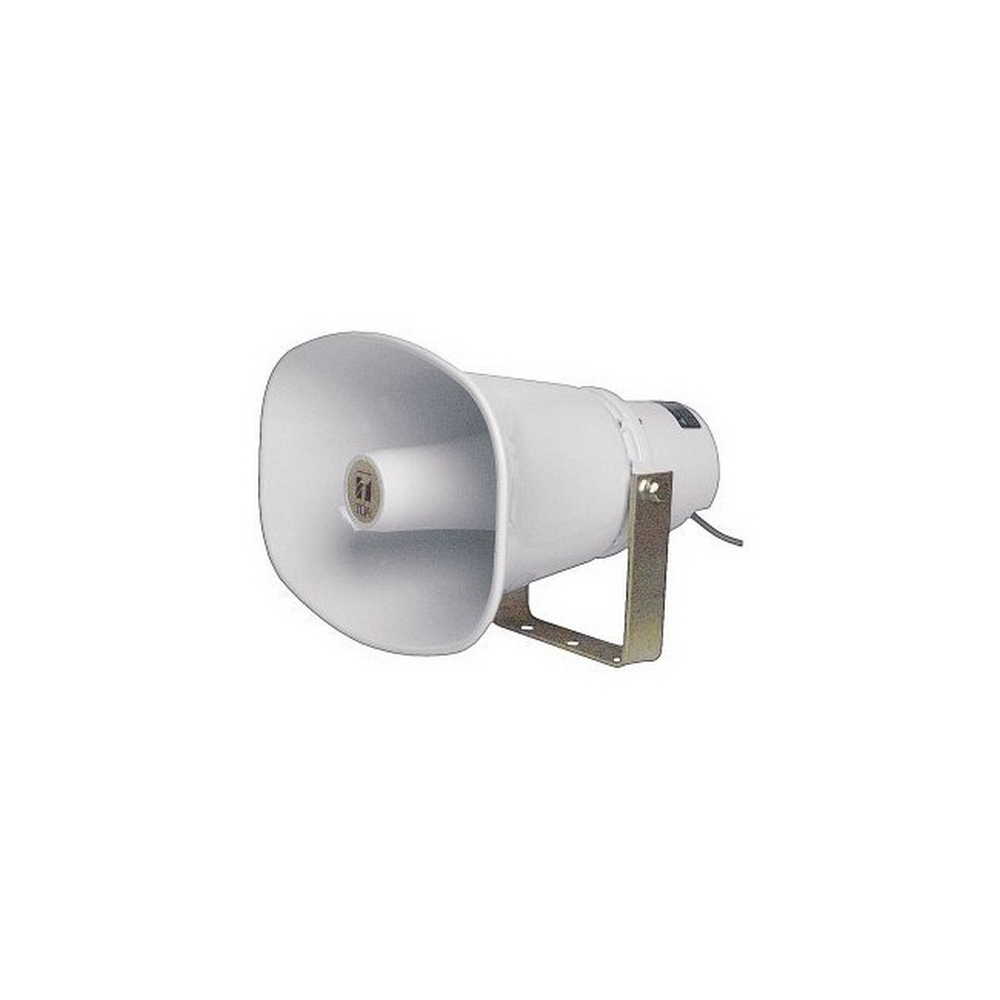

30W 70V/ 100V Horn Speaker 285X 205mm 113DB

30W 70V/ 100V Horn Speaker 285X 205mm 113DB

Hurry! 1 items left!
Price
$169
Collect 169 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Free Shipping

Quantity
Maximum item limit (1) has been reached.

SC SERIES TOA HORN SPEAKERS

TOA's SC series paging horn speakers are a compact aluminium reflex horn speaker designed for general applications.

The SC series benefits from the flexibility of highor low impedance connections and is available in 10W, 15W,and 30W models.

  • TOA's SC Series Paging Horn Speakers are designed for both indoor and outdoor applications. The lineup includes six models rated at 10W (SC-610 and SC-610M), 15W (SC-615 and SC-615M) and 30W (SC-630 and SC-630M). The "M"- type models are designed for use in high-impedance (70V/100V lines) systems and standard models for low impedance (8Ω) systems. This wide product lineup permits selection of the ideal speaker for most applications.
  • SC Series speakers feature newly developed diaphragms employing special heat-resistant fibers impregnated with phenolic resin to prevent the diaphragm from absorbing moisture and changing shape. High speaker efficiency has also been realized by minimizing the gap produced when the diaphragm bobbin is installed in the magnetic circuitry slit. The aluminum foil bobbin also features excellent heat dissipation properties to resist high power inputs and ensure high speaker durability.
  • All speakers feature TOA's unique oval shape, which enhances excellent speech clarity.
  • The mounting brackets and all external hardware (screws, bolts) are made of stainless steel. The horn itself is treated with 50-micron thick powder paint coating, which is about three times thicker than that of the conventional horns.All of these factors combine to ensure the speaker's excellent weatherproofing and corrosion resistance. In addition, the external horn flare is made of aluminum which is more shockresistant than resin. High-impedance models are equipped with an input impedance selector switch (4 steps for 100V line, and 5 steps for 70V line) which facilitates impedance settings without requiring disassembly. The switch is also equipped with an OFF position to prevent speaker damage resulting from incorrect impedance settings.
FEATURES:
  • Both high-impedance (70V/100V lines) models and low impedance (8Ω) models available.
  • Three power ratings: 10W, 15W and 30W.
  • Stainless steel brackets and hardware (screws, bolts), and powder-coated horn ensure superb weatherproofing and corrosion-resistance.
  • Shock-resistant aluminum oval horn.
  • Panel-mounted input impedance selector on high impedance models facilitates input impedance matching.
  • Unobtrusive off-white color (corresponding to RAL 9010) helps speakers blend in with surroundings.
  • Compliance with IP65.
SPECIFICATIONS:
  SC-610 SC-610M
Rated Input 10 W (Mobile Mount use: 5W) 10 W
Line Voltage N/A 100 V line or 70 V line
Rated Impedance 8 Ω 100V line: 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W),
70 V line: 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sound Pressure Level 110 dB (1 W, 1 m at 500 to 2,500 Hz peaklevel)
Frequency Response 315 – 12,500 Hz
Sensitivity when used as Microphone
(0 dB = 1 mW/10 dynes/cm2)
 -24 dB at 1 kHz
IP Code IP 65
Polarity Hot: Black, Com: White
Operating Temperature -20°C to +55°C (must be free from dew condensation)
Finish Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, Screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm in diameter, 600 mm in length)
Dimensions 172 (W) x 161 (H) x 188 (D) mm
Weight 1 kg 1.2 kg
Option Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)



  SC-615 SC-615M
Rated Input 15 W (Mobile Mount use: 10W) 15 W
Line Voltage N/A 100 V line or 70 V line
Rated Impedance 8 Ω 100V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W)
70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W)
Sound Pressure Level 112 dB (1 W, 1 m at 500 to 2,500 Hz peaklevel)
Frequency Response 280 – 12,500 Hz
Sensitivity when used as Microphone
(0 dB = 1 mW/10 dynes/cm2)
 -22 dB at 1 kHz
IP Code IP 65
Polarity Hot: Black, Com: White
Operating Temperature -20°C to +55°C (must be free from dew condensation)
Finish Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, Screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm in diameter, 600 mm in length)
Dimensions 222 (W) x 179 (H) x 234 (D) mm
Weight 1.1 kg 1.3 kg
Option Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)



  SC-630 SC-630M
Rated Input 30 W (Mobile Mount use: 15W 30 W
Line Voltage N/A 100 V line or 70 V line
Rated Impedance 8 Ω 100V line: 330 Ω (30 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
70 V line: 170 Ω (30 W), 330 Ω (15 W), 670Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W)
Sound Pressure Level 113 dB (1 W, 1 m at 500 to 2,500 Hz peaklevel)
Frequency Response 250 – 10,000 Hz
Sensitivity when used as Microphone
(0 dB = 1 mW/10 dynes/cm2)
-20 dB at 1 kHz
IP Code IP 65
Polarity Hot: Black, Com: White
Operating Temperature -20°C to +55°C (must be free from dew condensation)
Finish Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, Screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable
(6 mm in diameter, 600 mm in length)
Dimensions 285 (W) x 227 (H) x 277 (D) mm
Weight 1.7 kg 2 kg
Option Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)

Specifications:

12 Months

MPN: 487334
