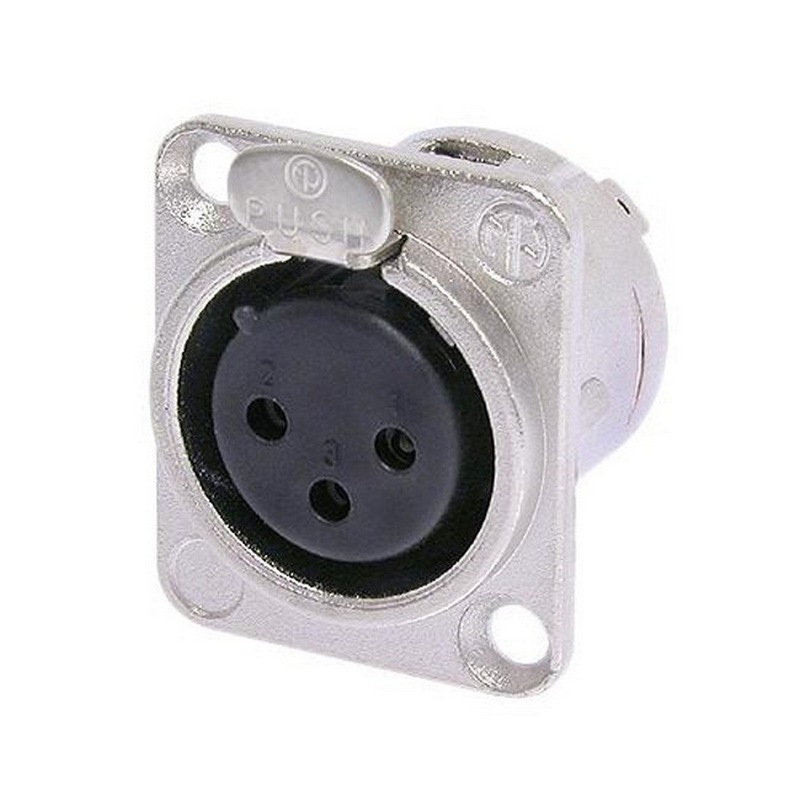

NEUTRIK 3 Pin Panel XLR Socket

NEUTRIK 3 Pin Panel XLR Socket

Price	$26.95
	Collect 78 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

3 pole female receptacle, solder cups, Nickel housing, silver contacts

Universal D-size metal body XLR panel mount series. UL recognized component.

Features & Benefits

Robust "D" metal shell
Standardized D sized 24 mm panel cutout
Soldercups on 3 - 7 pole version

Technical Information

Products
Title	NC3MDM3-L-1
Connection Type	XLR
Electrical
Capacitance between contacts	= 4 pF
Dielectric strength	1,5 kVdc
Contact resistance	= 5 mO (inner)
Insulation resistance	> 2 GO (initial)
Rated current per contact	16 A
Rated voltage	50 V
Mechanical
Insertion force	= 20 N
Withdrawal force	= 20 N
Lifetime	> 1000 mating cycles
Mounting direction	front &rear
Chassis shape	D
Wiresize	max. 14 AWG
Wiresize	max. 2.5 mm²
Wiring	Solder contacts
Locking device	latch lock
Material
Contact plating	2 µm Ag over 2 µm Ni
Contacts	Bronze (CuSn8)
Insert	Polyamide (PA 6.6 30 % GR)
Shell	Zinc diecast (ZnAl4Cu1)
Shell Plating	Nickel
Locking element	Steel Ck67
Environmental
Approval	UL
Flammability	UL 94 HB
Standard compliance	IEC 61076-2-103
Protection class	IP 40
Solderability	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C

Specifications:

12 Months

MPN: NC3FD-L-1
