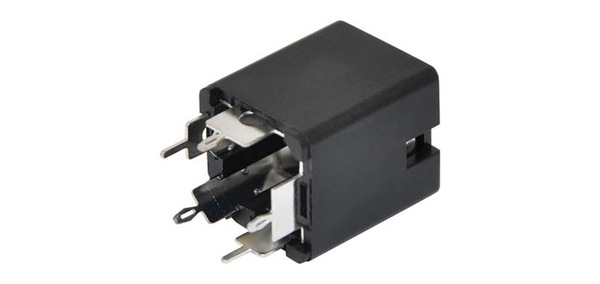

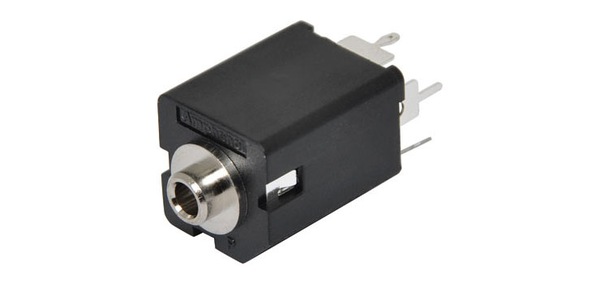

3.5mm Stereo PCB Jack Socket

3.5mm Stereo PCB Jack Socket

Hurry! 10 items left!

Price	$23.84
	Collect 23 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

3.5mm Stereo PCB Jack Socket

Specifications

General Characteristics
Number of Contacts: 2 Pole (Mono), 3 Pole Tip Ring Sleeve (Stereo)
Termination: Solder, PCB or Combo
Flammability rating of insulating plastics: UL94V-0
Solder ability, complies with: IEC 68-2-20
Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
Electrical Characteristics
Current Carrying Capacity: 10A (Depends on Mating Connector and Cable)
Typical Contact Resistance: ≤10mΩ
Insulation resistance (initial) After Damp Heat Test: >2GΩ ≥103 Meg Ω
Rated Voltage: Test Voltage AC RMS: Dielectric Strength: 34V, 500V
Climatic Characteristics
Protection Class: IP40
Operating Temperature: -25°C to +70°C
Mechanical Characteristics
Insertion and Withdrawal Force: ≥10N - ≤30N
Mating Cycles: Min. of 1000 cycles without any physical damage
Weight: Straight (18g), Right Angle (25g)
Materials
Connector Shell Material: Nylon PA66 30% Glass Filled
Insulators: UL94 V-0 PBT Resin or Modified PPE Resin and fibreglass laminate
Metal Nut: Brass
Plastic Nut: Nylon PA66 30% Glass Filled
Washer: Fiber / Brass / Nylon PA66 30% Glass Filled
Contact Plating: Tin - 4μm Min. over 2μm Min.Cu (Copper) Silver - 0.3μm Min. over 2μm Min.Cu (Copper) Nickel - 2μm Min. over 2μm Min.Cu (Copper) Gold Flash - 0.05μm Min. over 2μm Min.Cu (Copper)
Contacts: Brass / Sn (Tin) over Cu (Copper)

SKU: 49.1131.Q0089_Bmuspojdt
