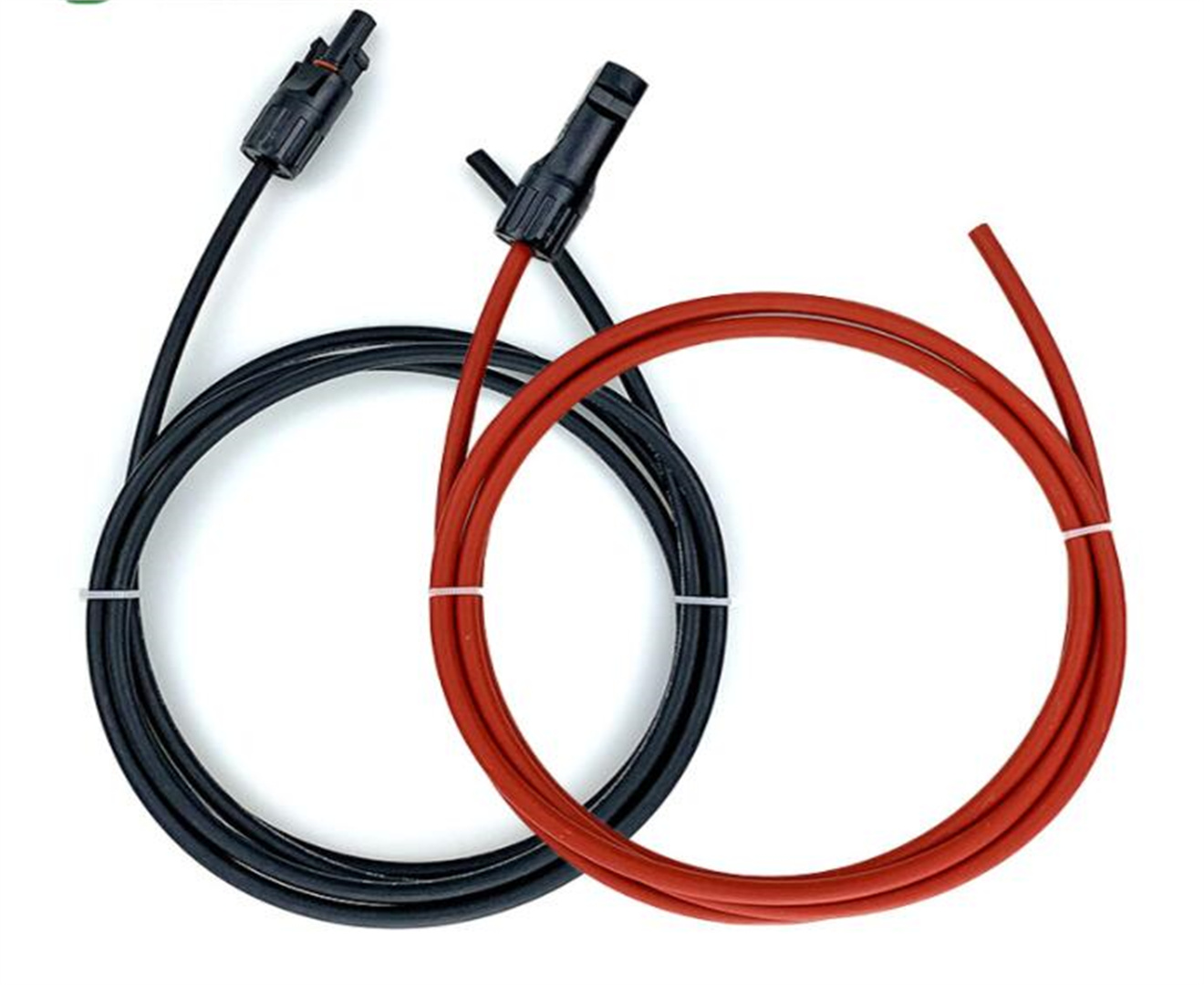

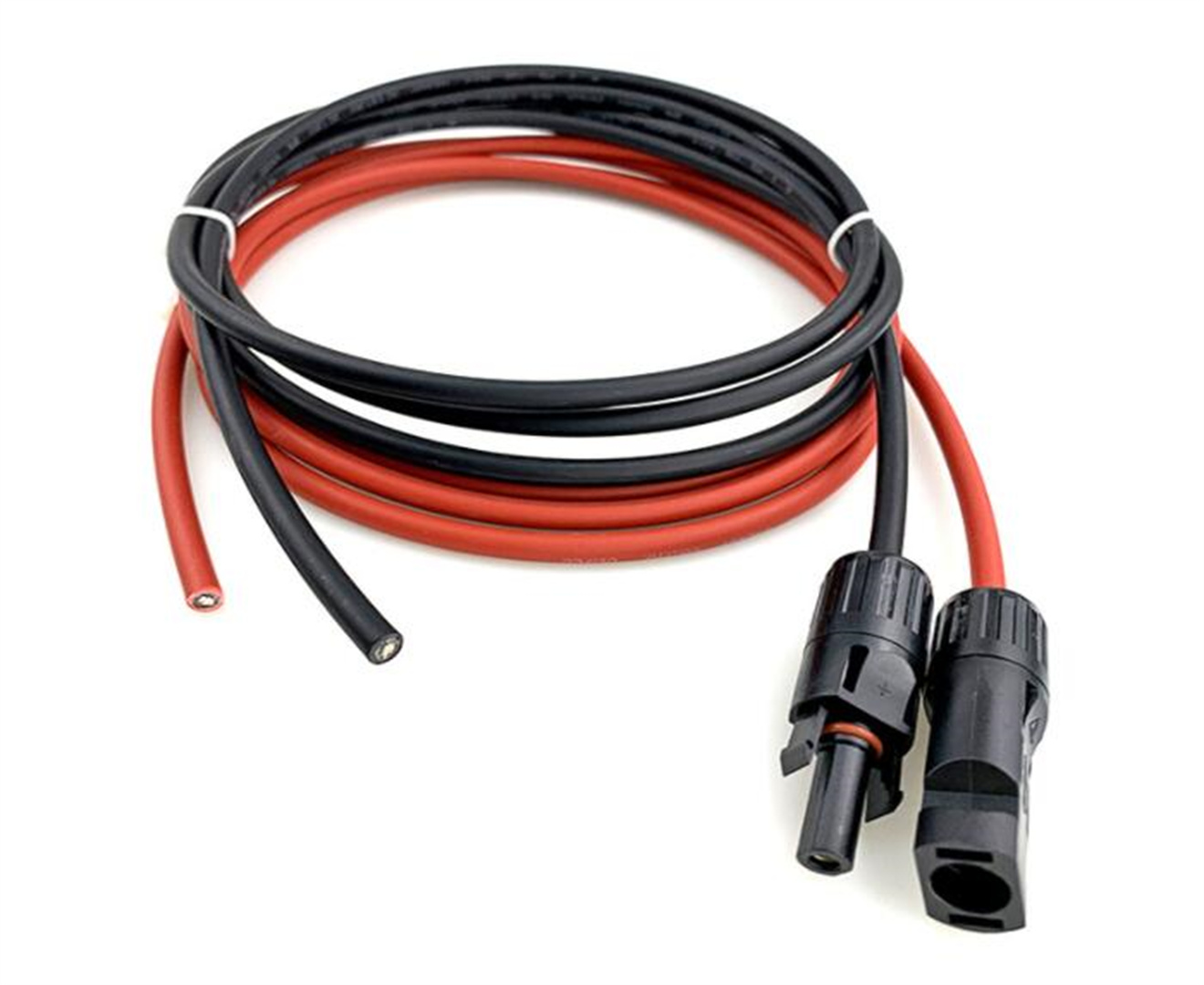

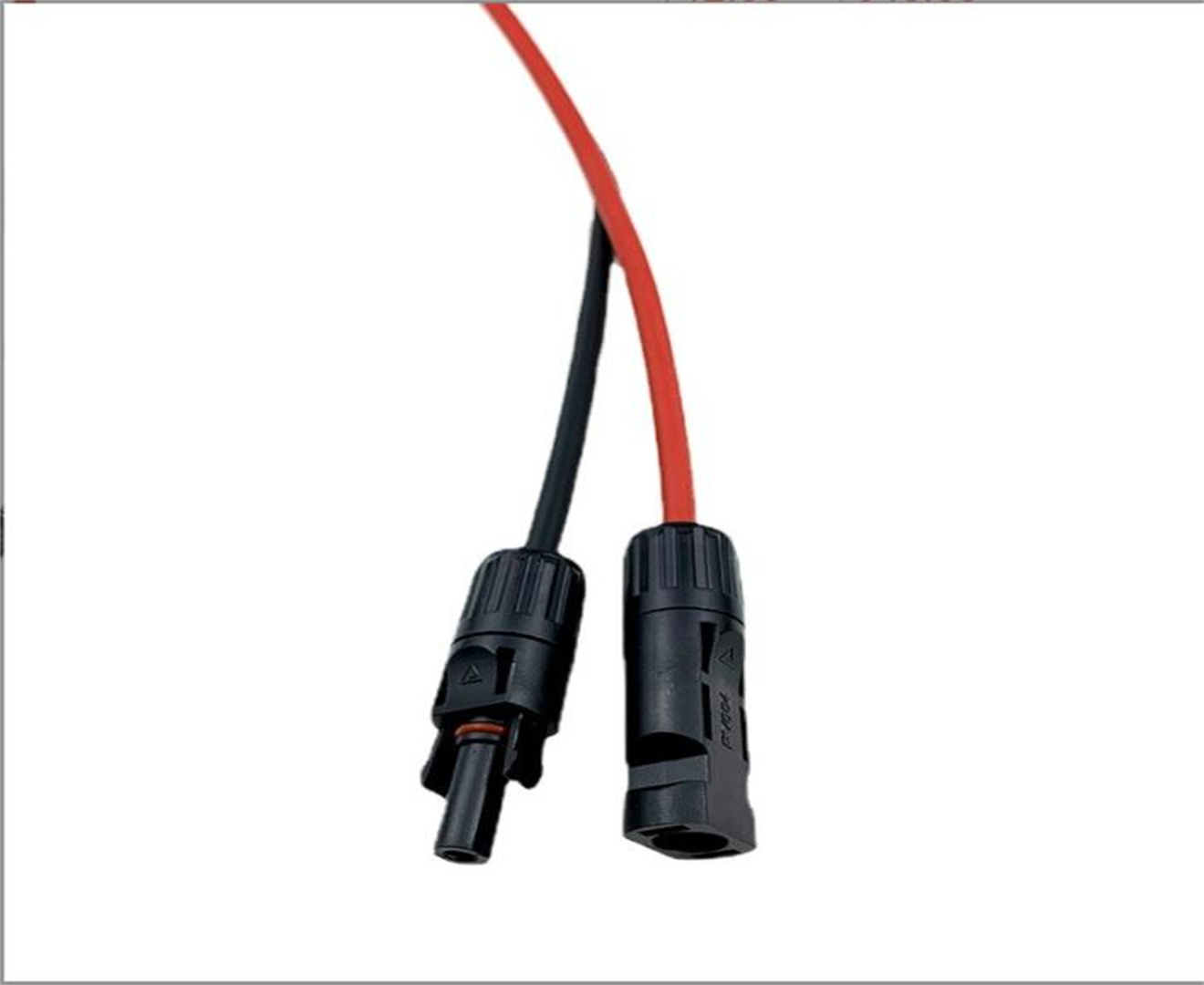

2X 5m Extension Cable Solar Connectors IP68 Solar Panel to Regulator Wire 4mm2

Features

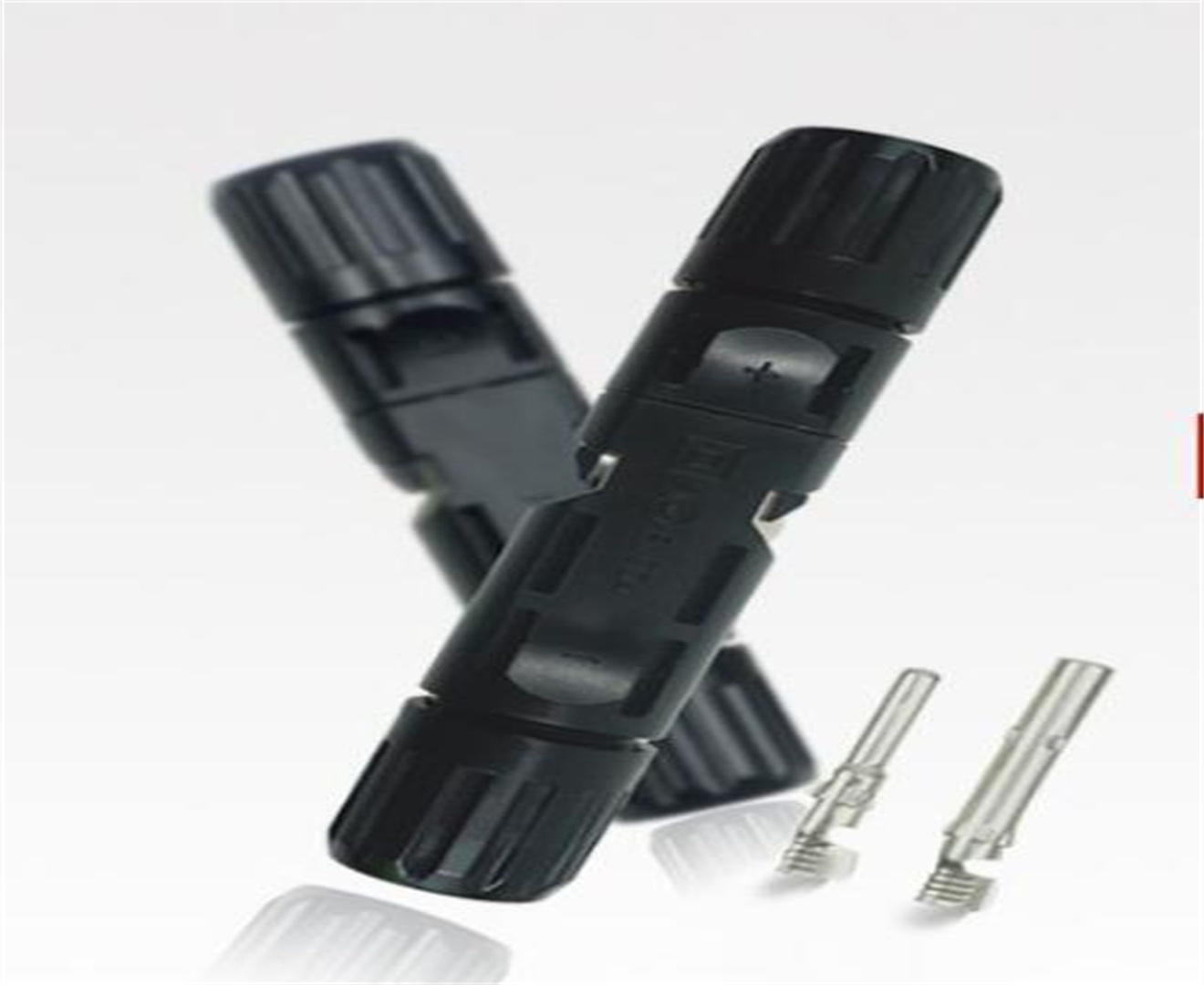

Compatible with MC4 connector.

Dual wall insulation, electron beam cross-linked.

Simple on-site processing ensures safety and high efficiency.

Multiple plugging and unplugging cycles, mating safety provided by keyed housings.

High current 50Amp carrying capacity.

Excellent resistance to UV, water, ozone, fluids, salt, general weathering.

The highest waterproof level IP68 with abrasion resistance silicone O type ring.

Lock design to avoid connector loosing and prevent electric shock when mis-open under working state to provide safety assurance.

Specifications

• Electrical Characteristics
  (1) Rated voltage�� 1000V/1500V DC
  (2) Rated current�� 50A
  (3) Max.conductor temperature�� +120��
  (4) Ambient temperature�� -40~+90��
  (5) Conductor Resistance(max.)�� 4.0mm²:5.09Ω/km@20��
  (6) Dielectric Strength(AC)�� 6.5 KV/5Min.
• Physical properties
  (1) The Flame test: EN60332-1-22
  (2) Smoke density: EN61034-2
  (3) Halogen free: EN50525-1
  (4) Ozone resistance: EN50396
  (5) Oil resistance: EN60811
  (6) UV resistant: EN60811-501
  Color: Red + Black
• Length: 5 m
• Package:2x 5M Solar Cable (Red+Black) + Solar Connectors
