Description:

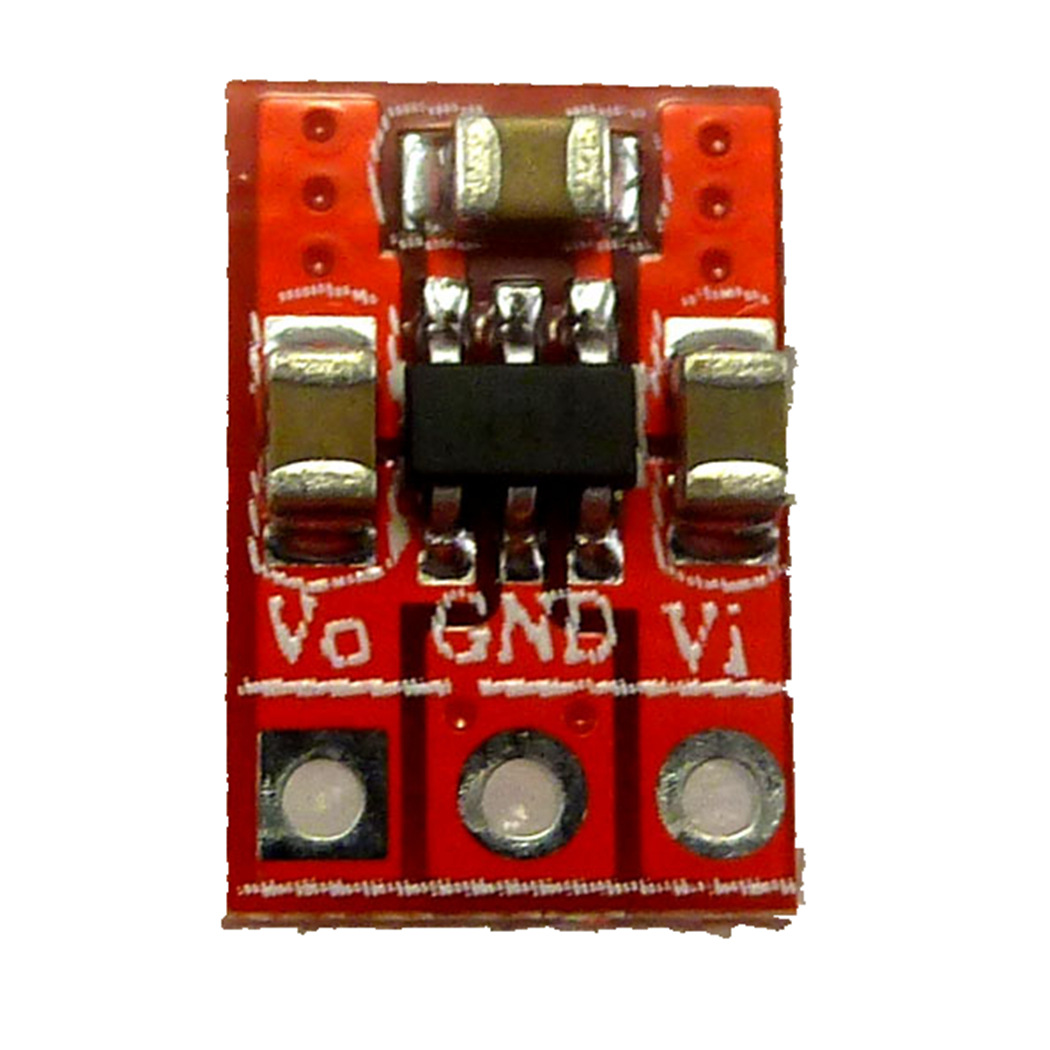

Low Noise, Regulated Charge Pump DC/DC Converter
It produce a regulated output voltage from a 2.8V to 4.5V input with up to 250mA of output current
Fixed 5V+-4% Output

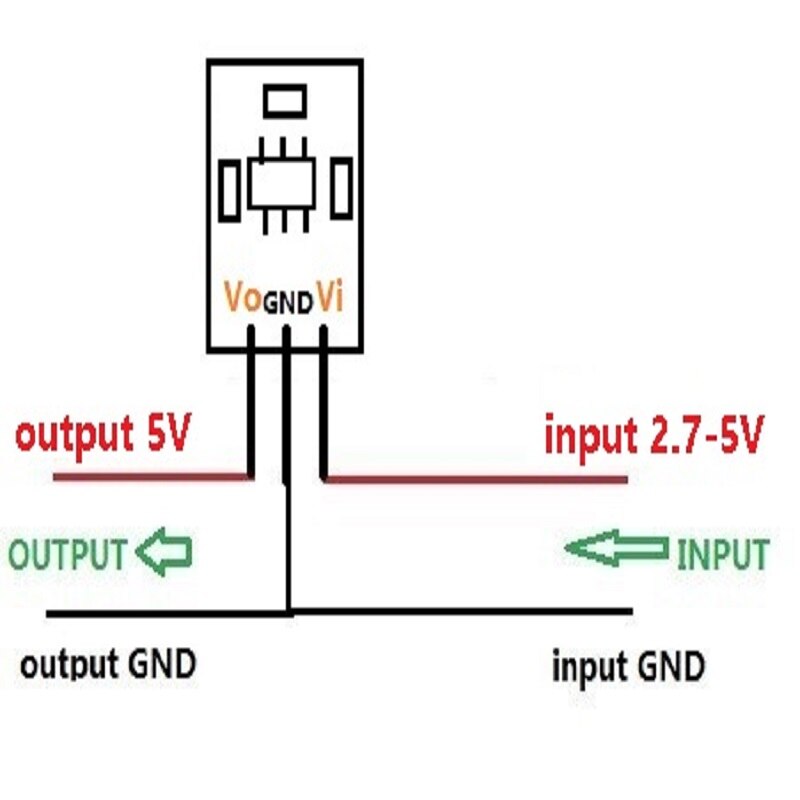

Voltage Input Range: 2.7~5V
Long time maximum output current 200mA
Short time maximum output current 250mA
working frequency 1.2MHz.
Short-Circuit Protection
No load input current : 1.8mA
2.54mm pin pitch, Arduiuo Breadboard MCU Development Board friendly

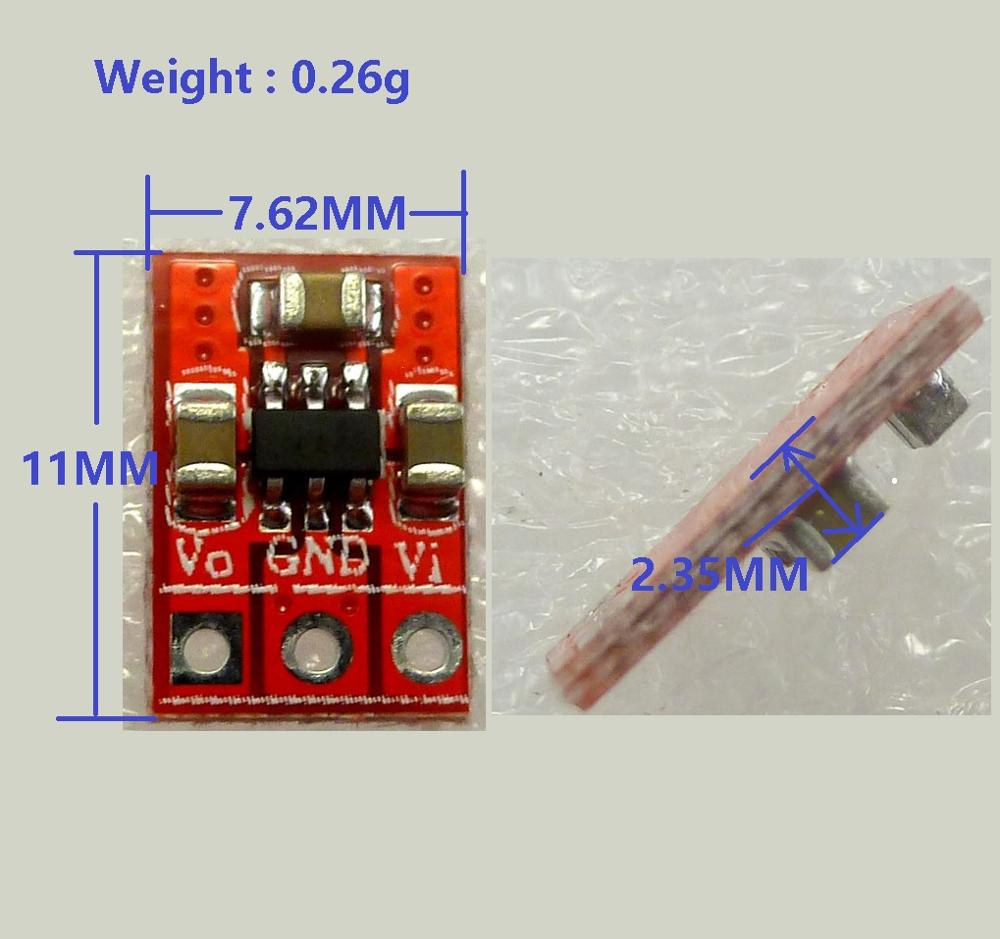

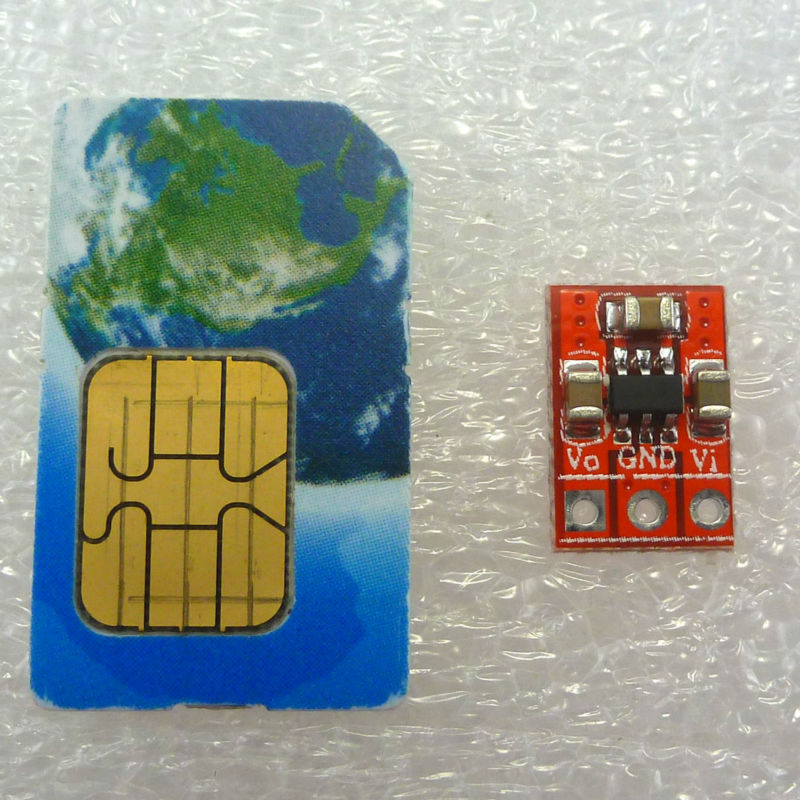

Size 11mm x 7.62mm x 2.4mm(Very very small)
Weight : about 0.26g(Very very light)

Attention :

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Packing list:2 PCS DD0505MD SMD 250MA 2.8V-5V to 5V DC DC Boost Converter
