2pcs DD0503MB tiny DC Converter Step Down Buck for Cameras

2pcs DD0503MB tiny DC Converter Step Down Buck for Cameras

Price	$26.11
	Collect 26 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:

Input voltage 3.3-6V, output 3.3V (deviation +-5%)
Long time maximum output current 500mA
Short time maximum output current 700mA
Conversion efficiency : 80-93%
The maximum input voltage can not exceed 6.5V
INPUT 3.7V/600MA; OUTPUT 3.3V/550MA
INPUT 4V/600MA; OUTPUT 3.3V/610MA
INPUT 4.2V/580MA; OUTPUT 3.3V/600MA
INPUT 4.5V/550MA; OUTPUT 3.3V/620MA
INPUT 5V/470MA; OUTPUT 3.3V/590MA
INPUT 6V/370MA; OUTPUT 3.3V/550MA
DC-DC Buck Step-down module working frequency 1.2MHZ.
Operating ambient temperature : -40~+85 Degrees Celsius

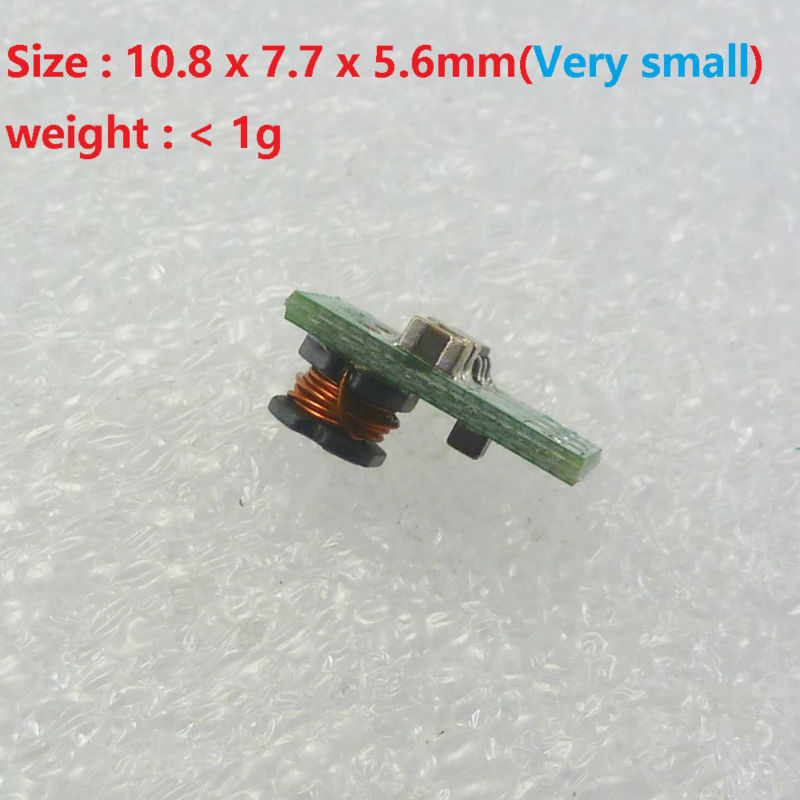

Size 10.8mm x 7.7mm x 5.6mm(Very small)
Weight : <1g(Very light)

Applications:

Wifi Module:ESP8266
Bluetooth module : HC-05 HC-06
Wireless UART module : HC-11 HC-12
wireless module : CC1101 CC2500 Nrf24l01+
3-3.5V led lights
Model aircraft

Attention :

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Packing list:2 PCS DD0503MB Tiny 500mA DC DC Converter Step Down 3.3V-6V to 3.3V
