Description:

-12V :

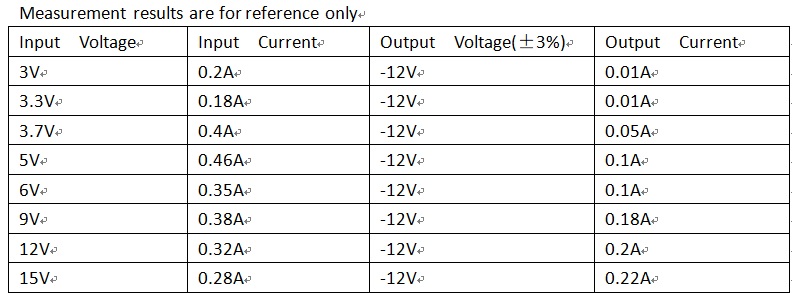

Input voltage DC +3~+15V,output DC -12V(Deviation is ��3%)
Maximum input current 500mA
Maximum output current : 220mA
Quiescent current: 8-18mA

DC DC Boost Converter Module working frequency 100kHz.
Operating temperature range : 0~+70 Degrees Celsius
Storage temperature range : -65~+150 Degrees Celsius
2.54mm pin pitch,for MCU Development Board Breadboard friendly.

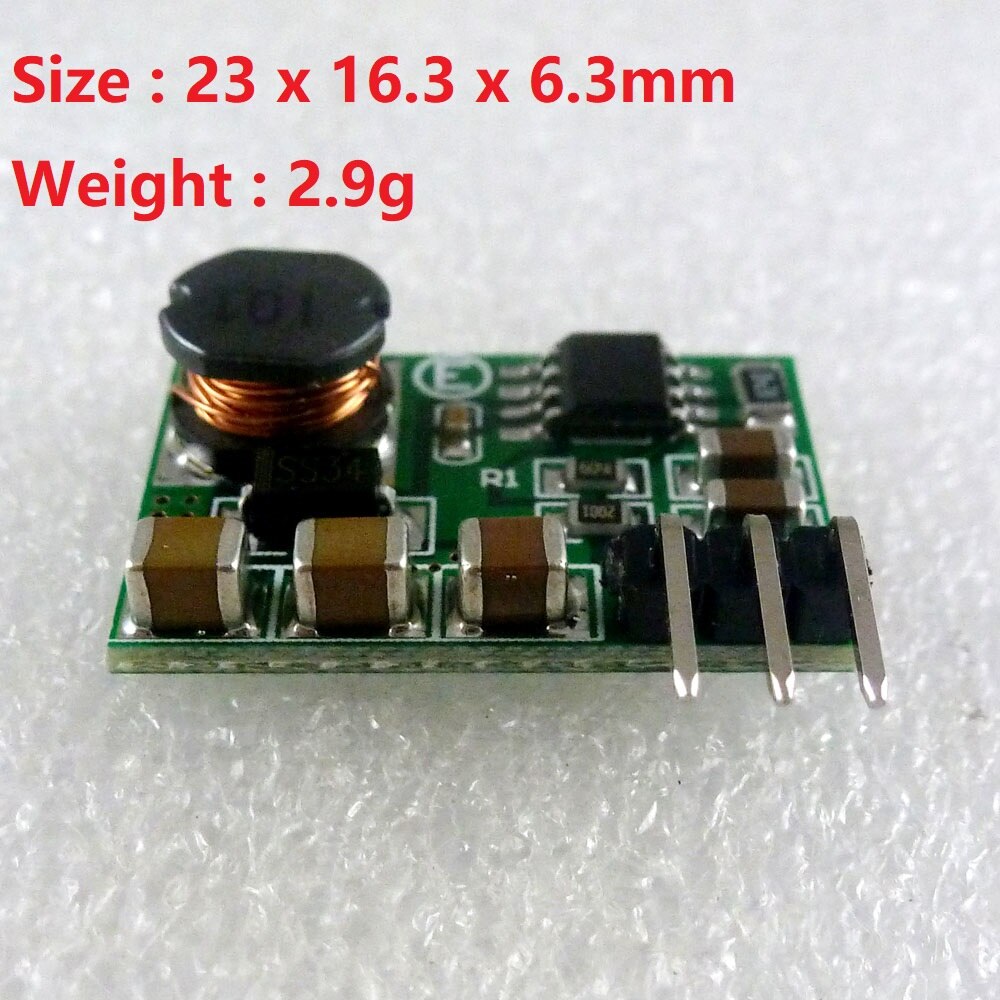

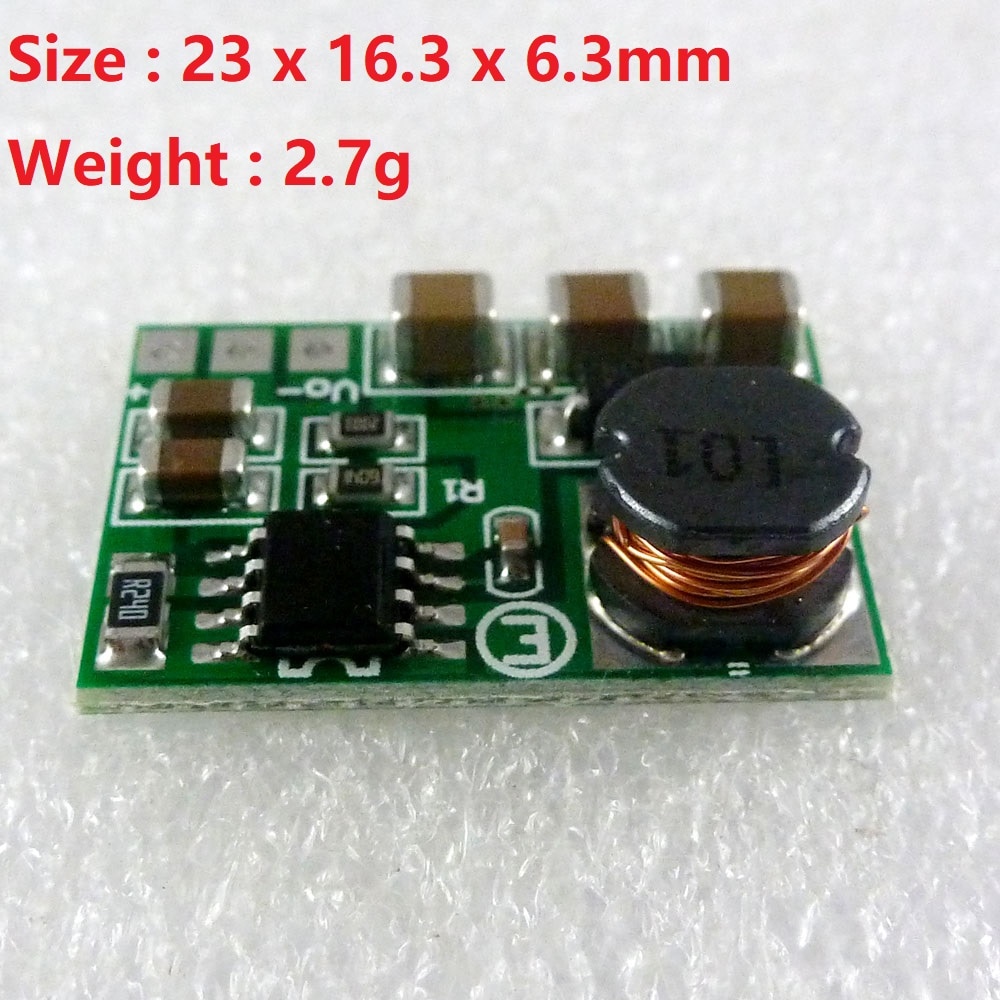

Size : 23 x 16.3 x 6.3mm
Weight :no pin 2.7g

Applications??

ADC/DAC/Operational Amplifier
RS232 RS485 RS422 Bus
Audio equipment
LCD power supply
Instrumentation equipment
MCU Board
Motor Power
Instrumentation multimeter
Wifi/Router/Ethernet devices

Attention :

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low

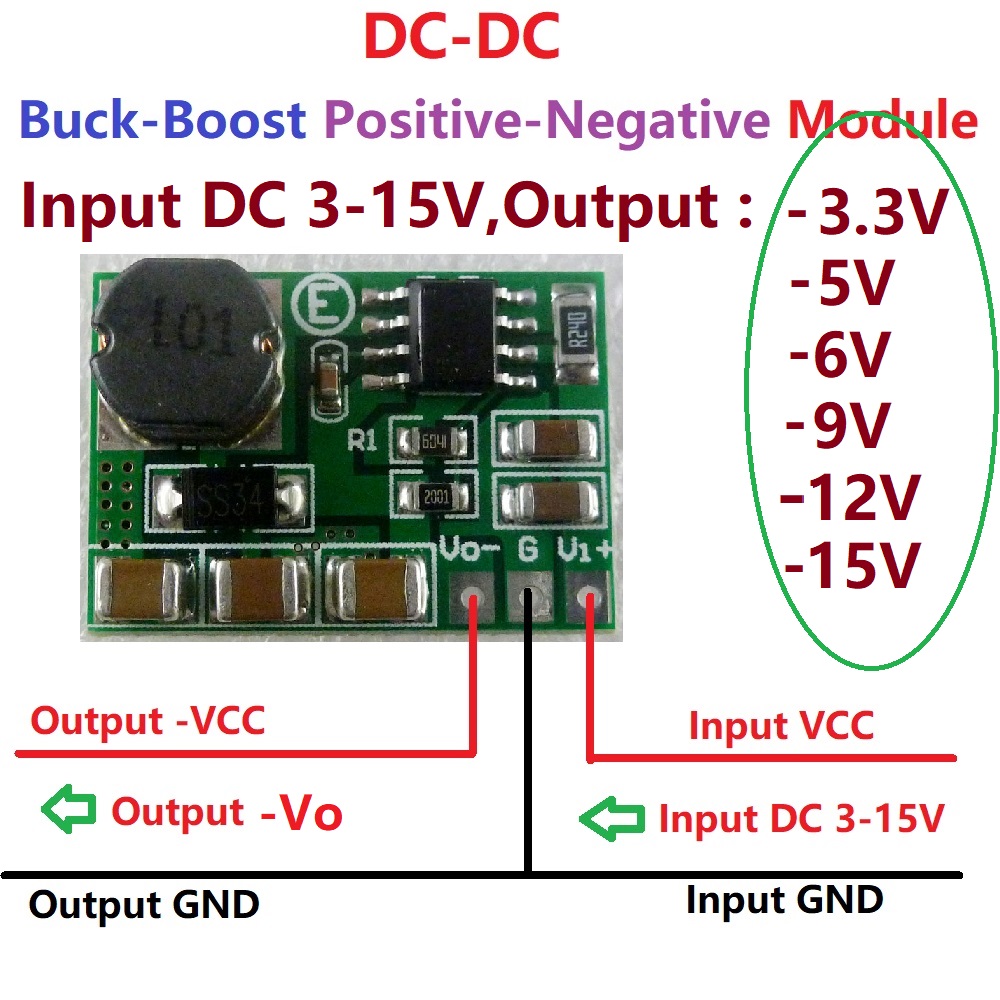

Packing list:1 PCS 3V-15V TO -12V Boost-Buck Positive to Negative voltage Module
