2 Way HDMI 2.0 18GBPS UHD Splitter
2 Way HDMI Splitter with HDCP and EDID Settings

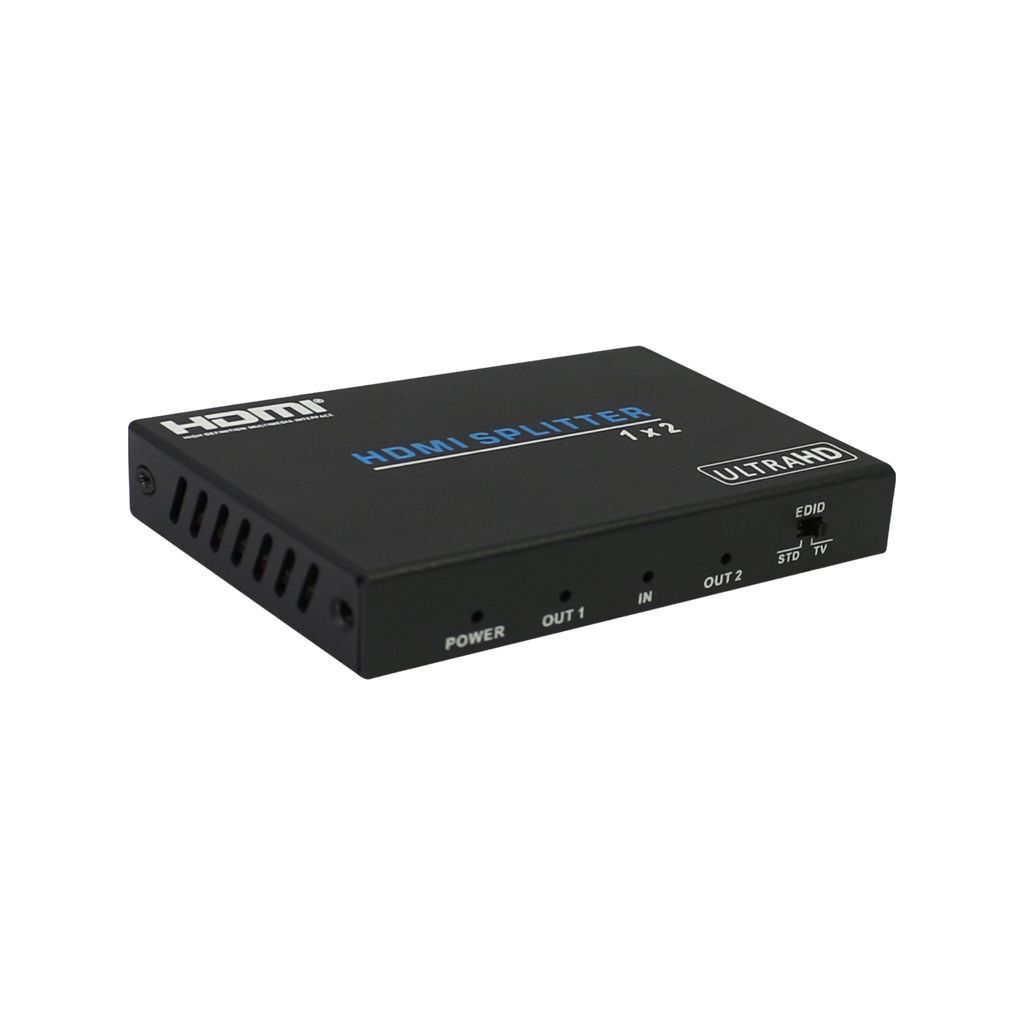

This 2 output HDMI high bandwidth Splitter is an advanced solution for splitting a HDMI signal to two HDMI displays. It provides high performance audio and video output through HDMI cables up to 4K2K@60Hz (YUV4:4:4) and is capable of receiving and transmitting up to 18Gbps of bandwidth with no data loss. Perfect for new 4K video sources such as Playstation 4 Pro or Xbox S One and other devices that require 4K2K@60Hz with 24bit RGB/YCBCR 4:4:4 / YCBCR 4:2:2 specifications.

Features:
• HDMI 2.0b, HDCP 2.2 compliant
• Supports High Definition resolutions up to 4K2K @ 60Hz with 24bit RGB / YCBCR 4:4:4 / YCBCR 4:2:2
• Supports 3D frame sequential video format up to 4K2K@30Hz
• Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio

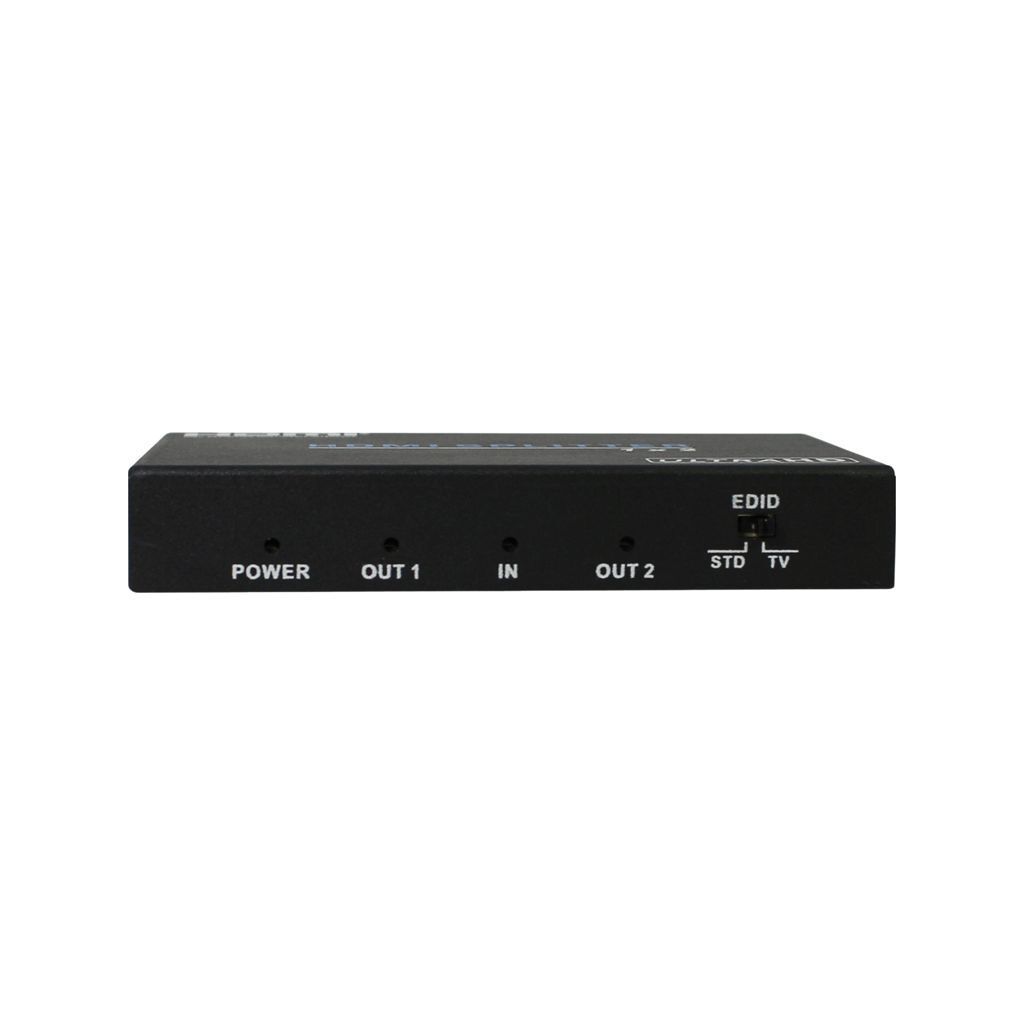

• HDMI input supports 'Standard' mode and 'TV' mode EDID settings
• Compact design for an easy and flexible installation


Technical

HDMI Compliance : HDMI 2.0b
HDCP Compliance : HDCP 2.2
Video Bandwidth : 18 Gbps
Video Resolutions : up to 4K2K @ 60Hz(4:4:4), 4K2K @ 30Hz, 1080P @ 120Hz, and 1080P 3D @ 60Hz
Supports HDR: Yes
Color Space : RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth : 10-bit, 12-bit
Audio Formats : PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby   Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection  : Human body model — ±8kV (air-gap discharge) & ±4kV (contact   discharge)

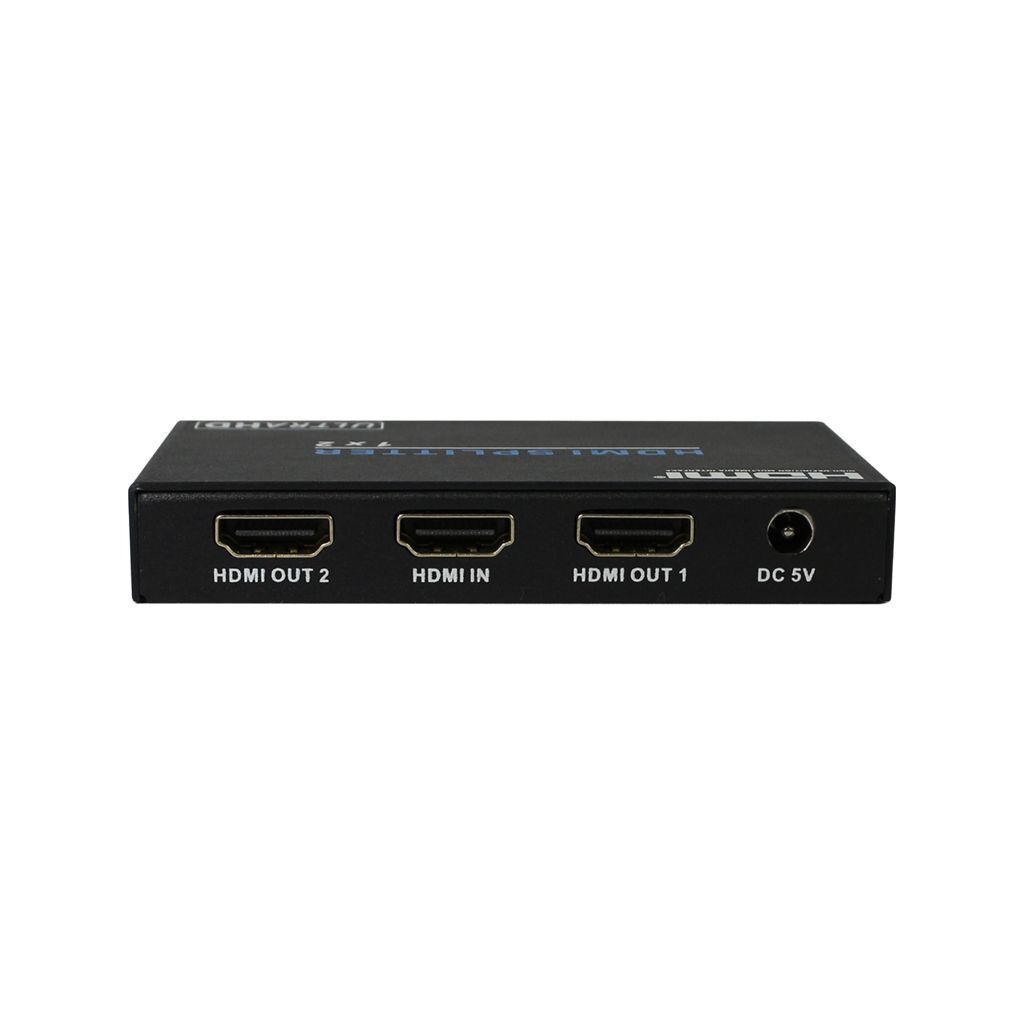

Connections
Inputs : 1x HDMI Type A [19-pin female]
Outputs : 2x HDMI Type A [19-pin female]

Mechanical
Housing : Metal Enclosure
Dimensions : 56mm [W] x 96mm [D] x 17mm [H]
Net Weight : 100g
Power Supply : DC 5V/1A
Power Consumption (Max) : 3W
Operation Temperature : 32 - 104°F / 0 - 40°C
Storage temperature : -4 - 140°F / -20 - 60°C
Relative Humidity : 20 - 90% RH (no condensation)

Specifications:

12 Month Warranty

GTIN: 9351634008285
