This SMART 6-15AH 12V 24V 4A 8A LEAD ACID BATTERY CHARGER is the ideal accessory for charging your vehicle's Lead acid battery including Calcium, Gel, AGM, EFB, SLA, Wet batteries in a safe and easy way. This charger uses a 3 stage charging system of constant current, constant voltage, then trickle charge. A constant current with less heat protects the battery and stay safe when leaving it to charge. An integrated gauge allows you to fully see how much power is being used and a special safety protection feature ensures your peace of mind.
Features:
- This is a fully automatic battery charger with 3 charge stages.
- Microprocessor Control (CPU).
- The charging current is automatically adjusted according to the battery capacity.
- Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.
- Simple and lightweight design is easy to carry.
- One-click switching, LCD display current voltage; current charge; inside temperature, ect.
- Multi-stage charging mode, low voltage start, low standby power consumption, energy saving and environmental protection.
- The battery repair circuit effectively extends battery life.
- Fully automatic charging operation is convenient for floating digital display interface, intuitive and generous.
- Charging voltage 12, or 24 volts, charging current 4 amperes, and 8 amperes.
- Desulfurization function for older batteries - the charger can improved the desulfurization of lead plates.
- Winter mode for use at low temperatures, protective functions such as reverse polarity protection and short-circuit protection, trickle charge up to 6-15Ah battery size.
- This battery charger uses micro MCU controller to automatically identify 12V or 24V battery.
- Great work rate fan mute good effect.
- 9 protections: Overcurrent protection, overvoltage protection, short circuit protection, overcharge protection, temperature control, intelligent repair, reverse protection, Ultra low standby power consumption, Flow LCD display, One-click wake-up, etc.
Specification:
- Input Voltage: 1-24V AC @ 5/6HZ
- Output Voltage: 12V/24V DC, auto detection
- Output Current Rating: 12V/24V DC @ 4A, 8A
- Charger Current: 4A, 8A
- Working Temperature: ~+4 䋀
- AC Cable Length: 11cm
- DC Cable Length: 65cm

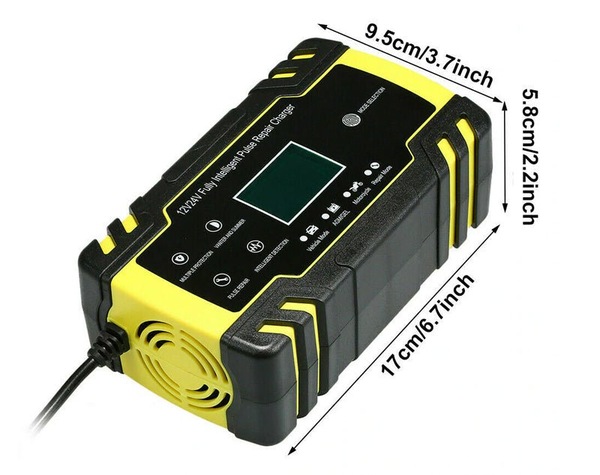

- Dimension (LÌÑWÌÑH): 17ÌÑ98ÌÑ58mm
- Weight: 64g
- Battery Range: 6-15Ah
- Efficiency: App. 85%
- Compliant Standards: CB, CE, IEC6335, EN61, EN5514
- Fit for: Most types of lead acid batteries including Calcium, GEL and AGM, Wet, EFB, etc.
Three-Phase Charging Mode:
1. Constant current mode:
When the voltage of the battery is lower than the value set by the charger, the charger will work under the constant current mode and supply the constant current for the battery.
2. Constant voltage mode:
Using the pulse width modulation(PWM) tech to control the charging current and output voltage of the charger which ensures the battery is fully charged and avoids over charging.
3. Floating charge mode:
When the voltage of the battery is approaching the value of the constant voltage mode, and the current will cut down to the given current gradually, that means the battery power is full, then the pilot lamp will turn green and the fan will stop working. The charger will turn the mode into floating charge mode automatically. At this moment, the battery can be stopped charging or keep on floating charge for half an hour.
Operating Setting:

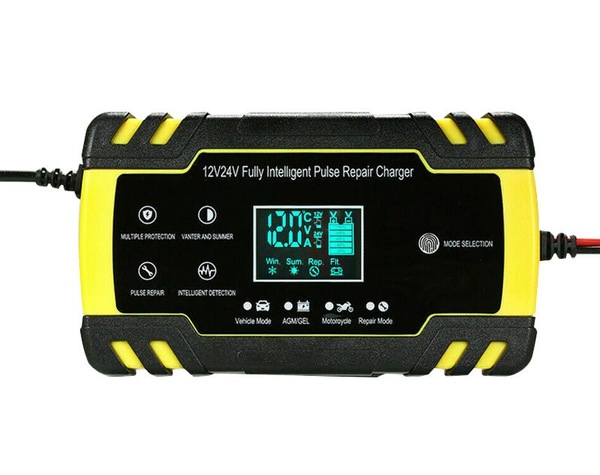

1. LCD Display: Charge Voltage; Charge Current; Inside Temperature (allowed tolerance); Reverse connection protection display: ERO Output short-circuit protection display: ERO
2. Repair Mode (Time: 13hours): An advanced battery recovery mode for repairing and storing, old, idle, damaged, stratified or sulfated.
3. Battery Connection Indicator.
4. Automatic Charging Mode.
5. Aborted Charge.
6. Completion Of Charge.
7. Maintain Mode.
Package :

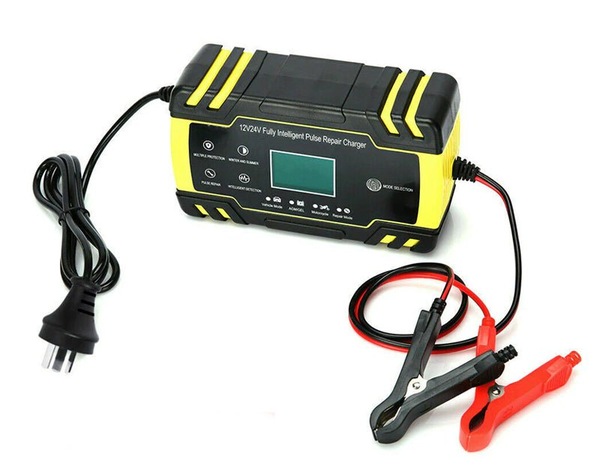

- 1 X 12/24V Pulse Repair LCD Charger
EESS: E276
