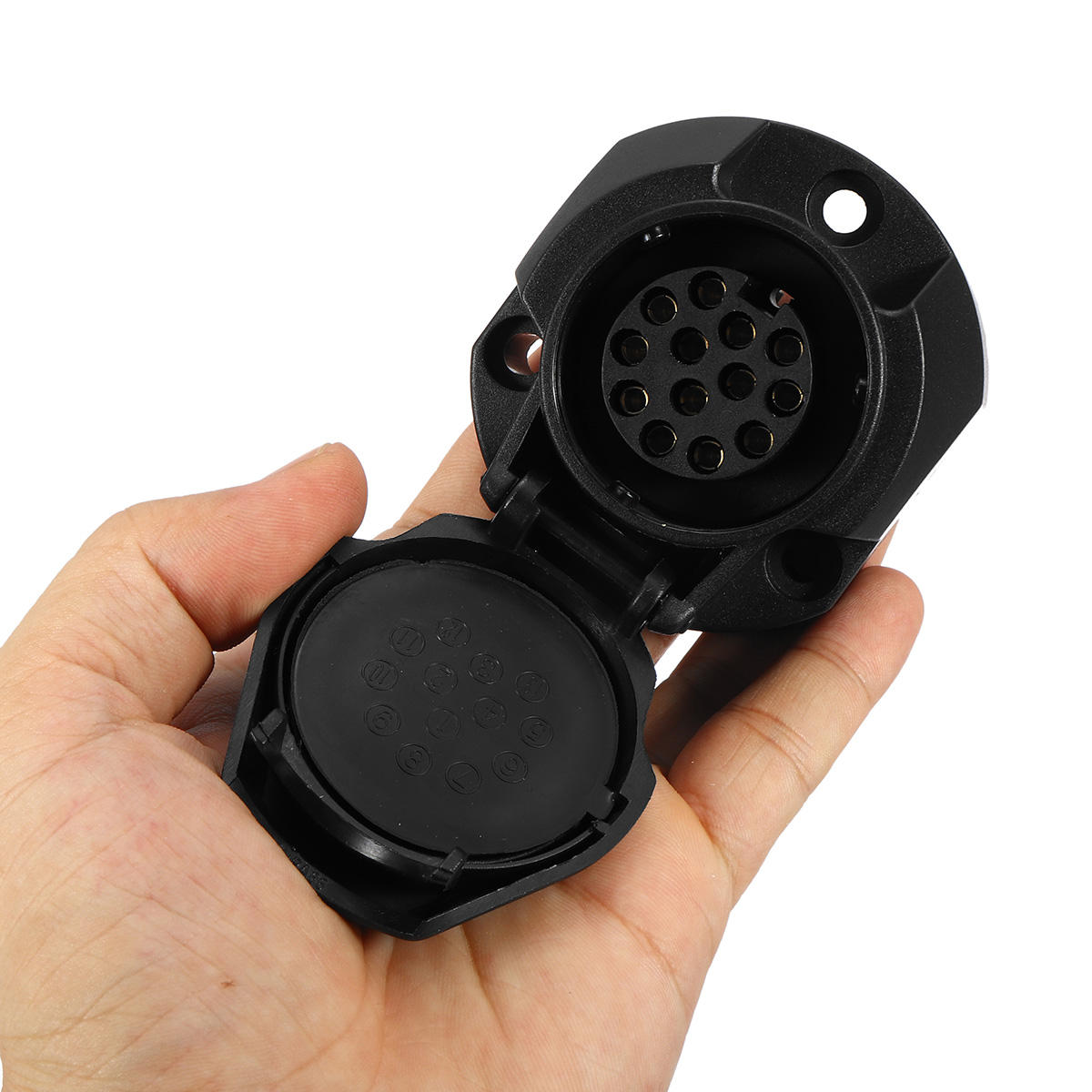

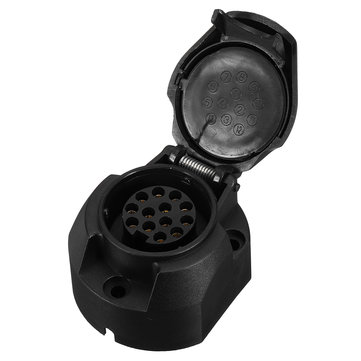

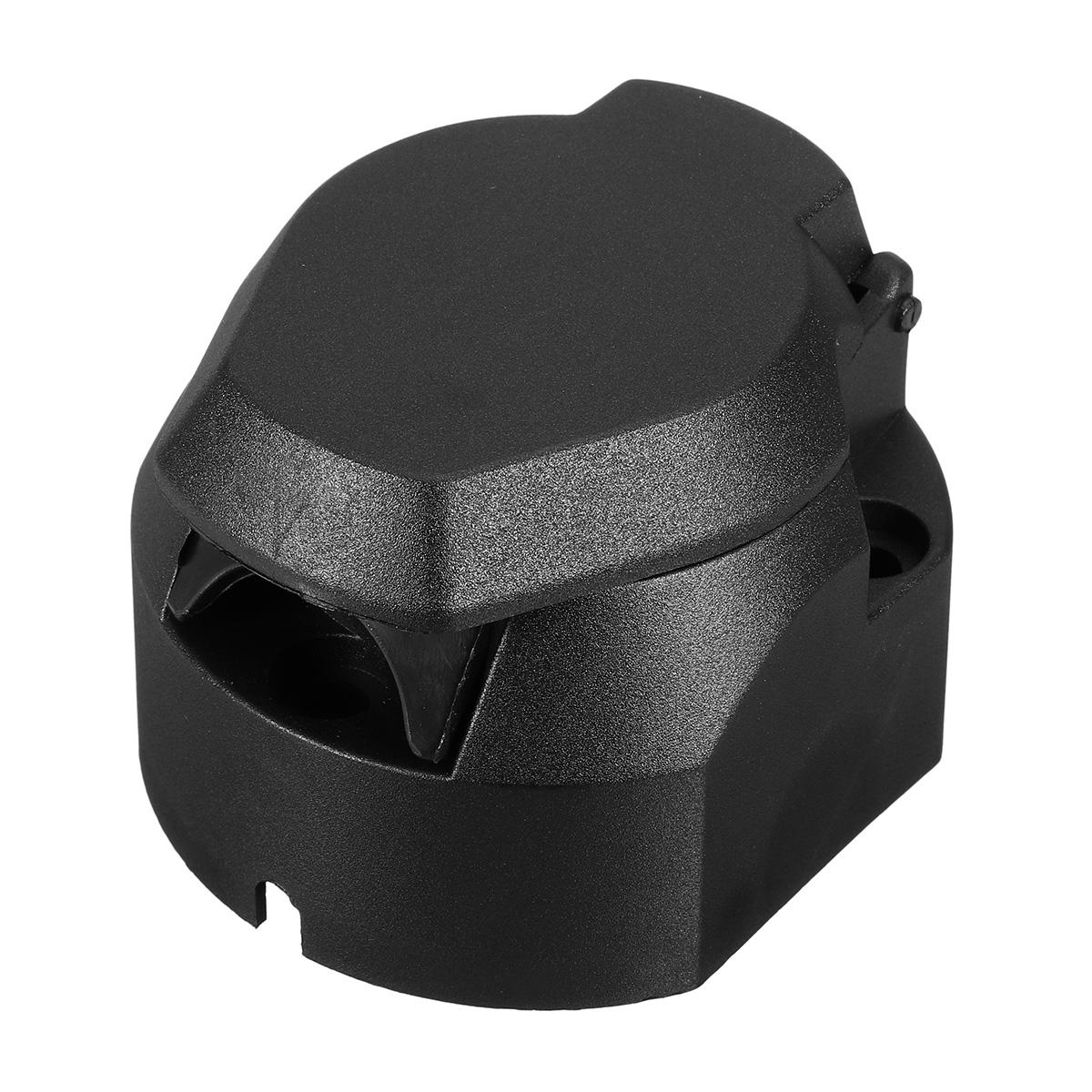

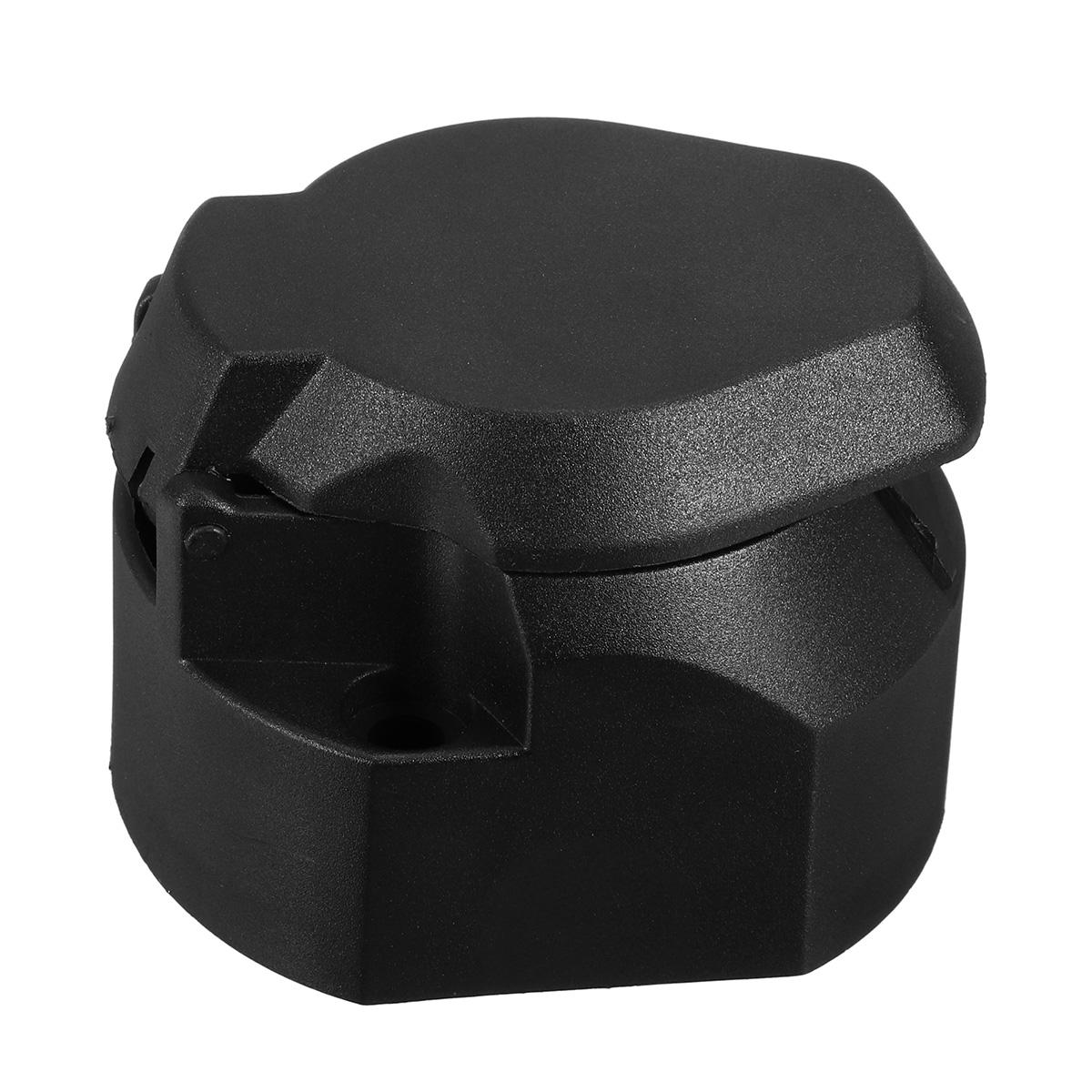

Package Included:
1 x Socket
Specifications:
Model: TM3008 (for European cars)
Shape: Oblate
Material: Plastic
Color: Black
Contact Material: Copper
Size: Approx. 6x7x5cm/2.36x2.76x1.97"
Features: Waterproof

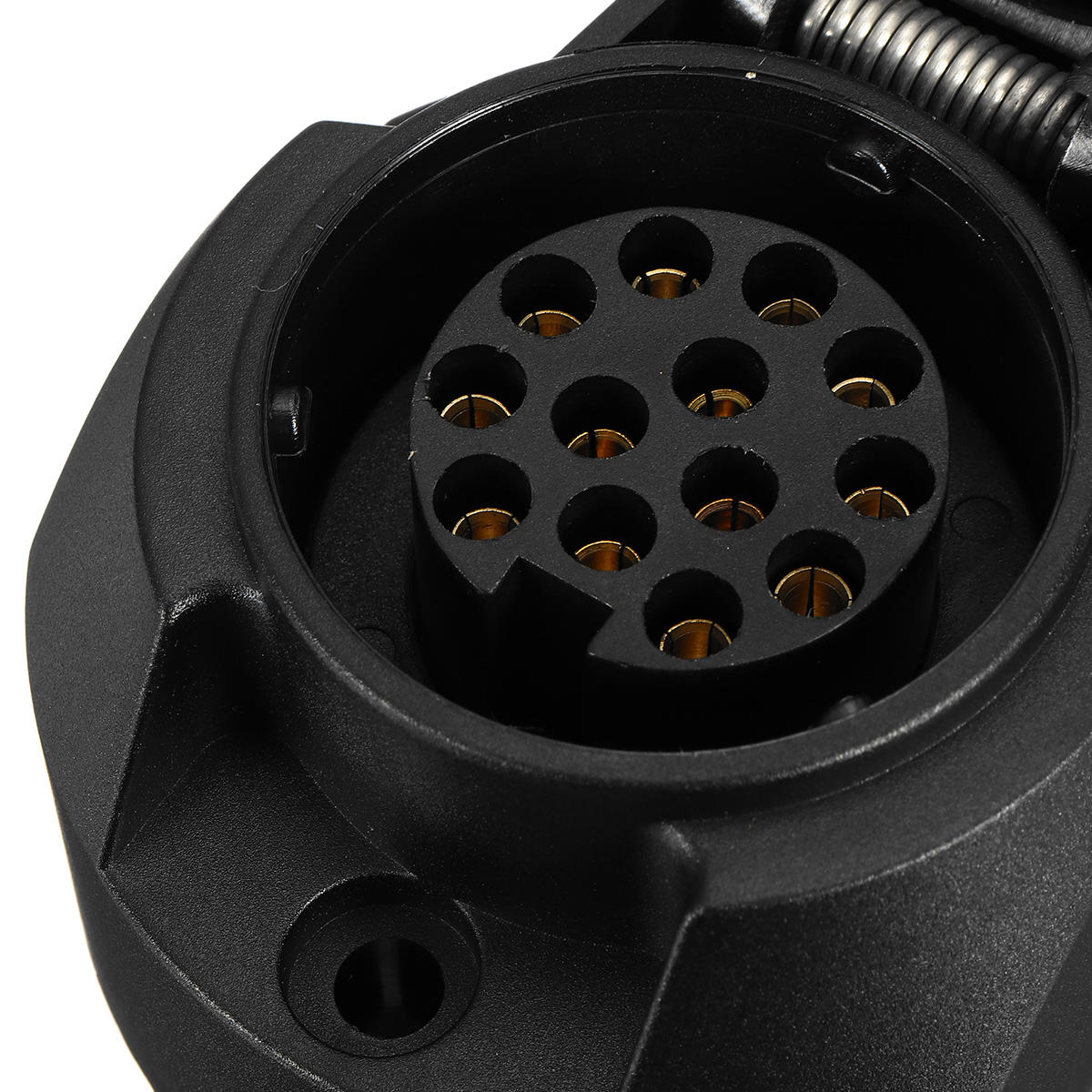

Number of Cores: 13
Number of Stitches: 13
Voltage Output: 12V
Main Function: Connect trailer and power supply, suitable for trailer lights display
Applications: Commercial vehicles / trailers / RVs / cars / ships and so on

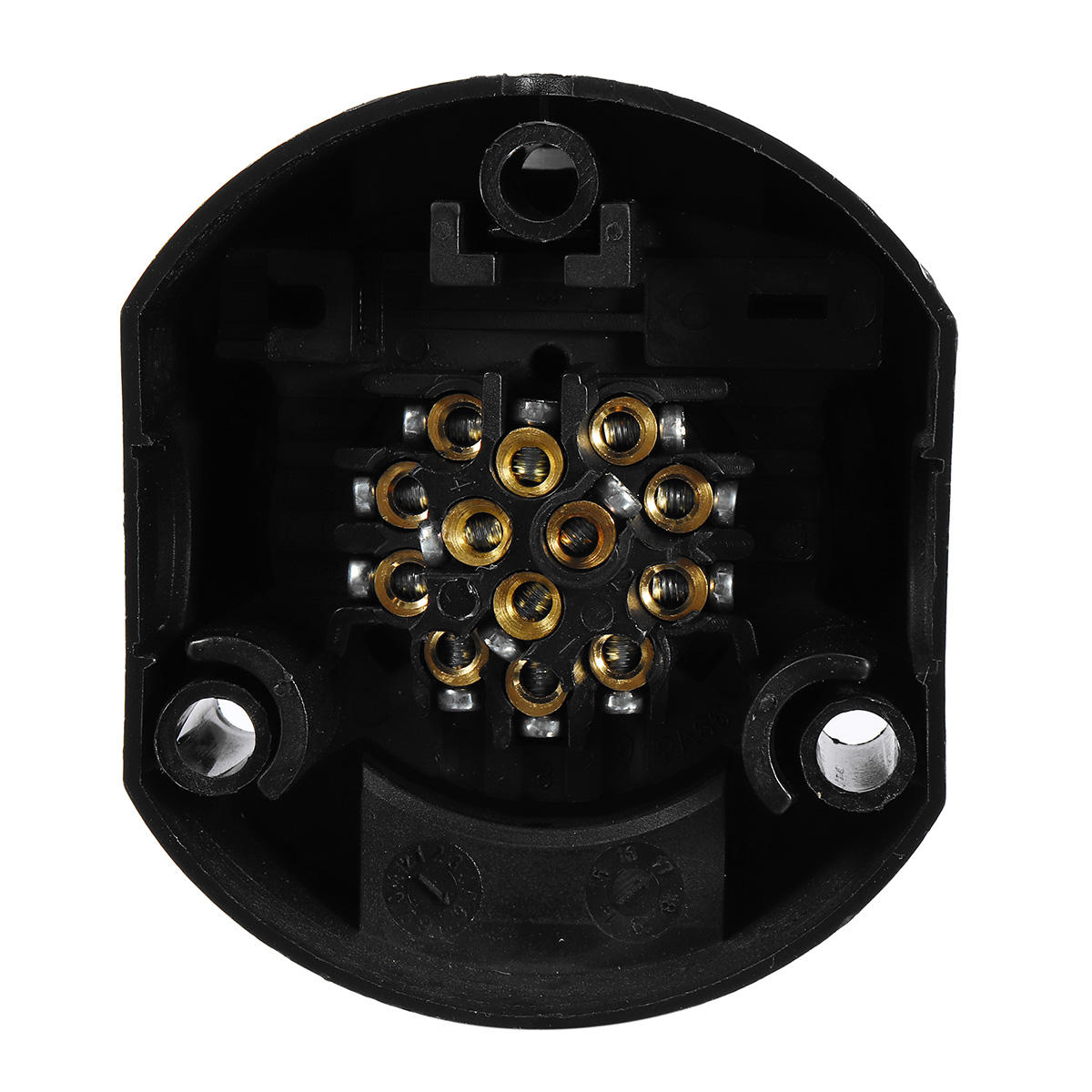

Wiring Configuration:
13 Pin Lighting Connections – Cable Function
Pin1 - Yellow Wire (Left Direction Indicator)
Pin2 - Blue Wire (Fog Light)
Pin3 - White Wire (Earth Return)
Pin4 - Green Wire (Right Direction Indicator)
Pin5 - Brown Wire (Right Tail & No. Plate Light)
Pin6 - Red Wire (Stop Light)
Pin7 - Black Wire (Left Tail & No. Plate Light)
Pin8 - Pink Wire (Reversing Light)
Pin9 - Orange Wire (12V Permanent power from battery)
Pin10 - Grey Wire (12V Ignition on ( Battery charging or Fridge)
Pin11 - White / Black Wire (Earth for Terminal 10)
Pin 12 - White / Blue Wire (NOT usually used)
Pin 13 - White / Red Wire (Earth for Terminal 9)
