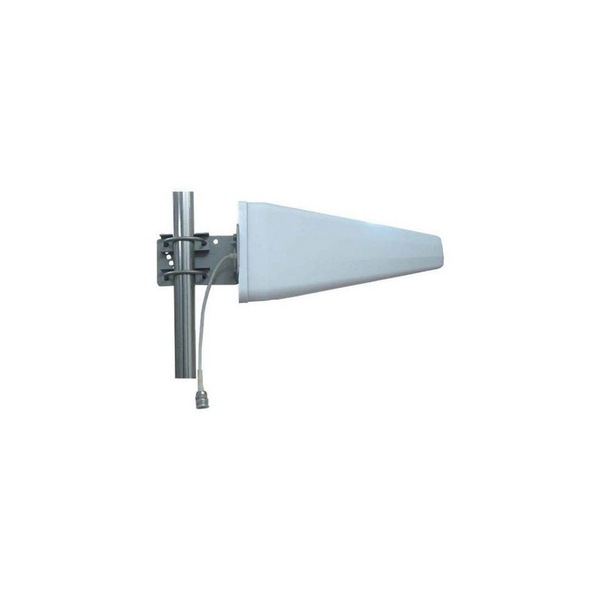

11dB LOG-PERIODIC ANTENNA - CELLULAR & WIFI 698-3800MHZ
3x

11dB LOG-PERIODIC ANTENNA - CELLULAR & WIFI 698-3800MHZ

Limited Stock!
Price
$299.95
Collect 897 Everyday Rewards points
Score 3x points on every order
Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Shipping
Free Shipping

Quantity
Maximum item limit (29) has been reached.


698-3800MHZ

Kit includes pole mount bracket. 65x210x405mm N Female Plug

Encased11dB yagi directional Tri-band. Pole mount brackets included. Premium UV protected ABS. Weather proof outdoor. Terminates to N Female

  • 11dBi 698-960MHz
  • 11dBi 1710-2700MHz
  • 11dBi 3300-3800MHz
  • 65x210x405mm
  • Bracket hardware inc.
  • Pole required (1"O)
  • Low-loss tail to N Female


Electrical Specifications
Frequency Range 690-960MHz, 1710-2700MHz, 3300-3800MHz
VSWR 2.0, 1.5, 2.2
Gain 11dBi
Horizontal beam width 90o
Vertical beam width 60o
Front-to-back ratio 15dB
Polarization Vertical
Intermodulation IM3 (2x33dBm) -150dBc
Input Impedance 50Ohm
Maximum input power 50W
Lightning protection DC Ground
Mechanical Specifications
Input connector type N-K
Installation Pole-holding
Dimensions 405x210x65mm
Antenna weight 1.2kg
Radiating Element Material AI
Code ANT557
Benelec 02485
Colour White
Dimensions 65x210x405mm
Freq. 698-960, 1710-2700, 3300-3800MHz
Gain 11dBi
Impedance 50 ohm nom.
Plug N Female
Type 3G/4G/5G
Manufacturer Benelec
MPN: ANT557
