10PCS RFID Tag Card ISO14443A 13.56mhz Fudan F08 Chip Compatible with Original Mifare Classic 1K

10PCS RFID Tag Card ISO14443A 13.56mhz Fudan F08 Chip Compatible with Original Mifare Classic 1K

Price	$30.32
	Collect 30 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Supperstore (Direct Import) products only. Expires 11.59pm 29/04/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 3LARN

Quantity

Add to wishlist

Features :

1. FM11RF08 is the contactless card IC according to ISO14443 Type A ,This device has 1K×8bits EEPROM organization. The maximum communication rage between the reader antenna and contactless card is approximately 10cm.

2. FM11RF08 also has a very high security performance with the encryption and communication circuit, and is a true multi-application smart card with the functionality of a processor card realized with hardware logic. So FM11RF08 can be especially tailored to meet the requirements of a payment card which can be used for ticketing systems in public transport and comparable application.

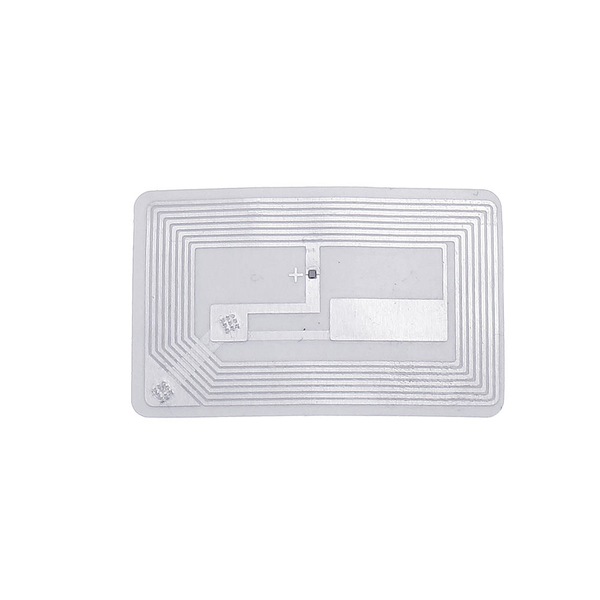

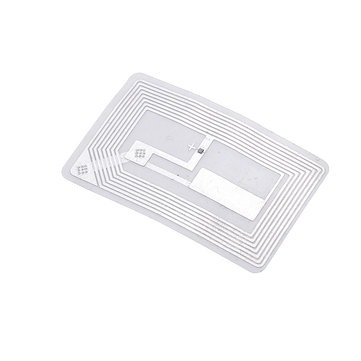

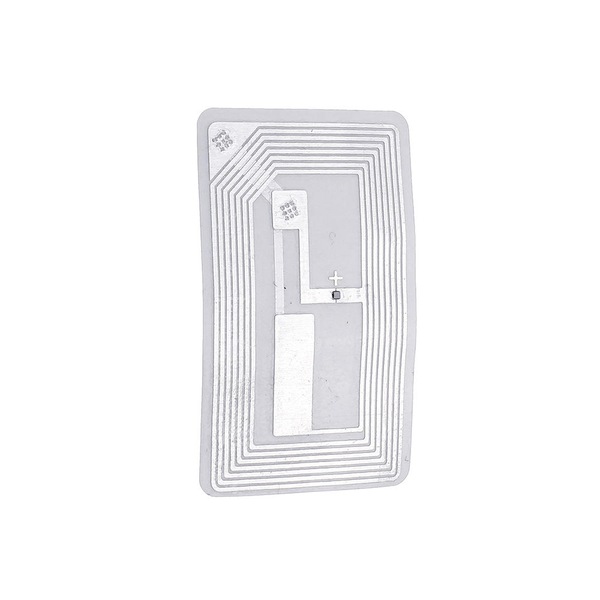

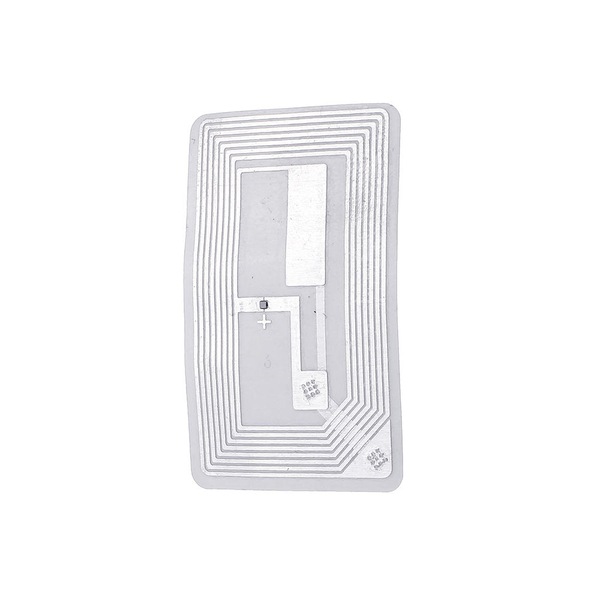

3. The Contactless smart card contains three components: FM11RF08 chip, antenna and the card base with PVC(or PET) material. No battery is needed. When the chip is positioned in proxmity of the coupling device antenna, the high speed RF communication interface allows transmitting data with 106-Kbit/s.

4. Contactless transmission of data and supply energy (no battery needed).
?

Specification :

Operating distance: Up to 100mm (depending on antenna geometry)

Operating frequency: 13.56 MHz.

Data transfer: 106 kbit/s.

Data integrity: 16 Bit CRC, parity, bit coding, bit counting.

Anticollision.

Typical ticketing transaction: < 100 ms (including backup management).

Eeprom:1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each (one block consists of 16 byte).

User definable access conditions for each memory block.

Data retention of 10 years.

Write endurance 100.000 cycles.

Printing Options: Full color offset printing

Colour:white

Optional craft:Magnetic stripe
?

Package includeds :

10 x?Fudan F08 Chip tag cards
?

GTIN: 4151093698097
