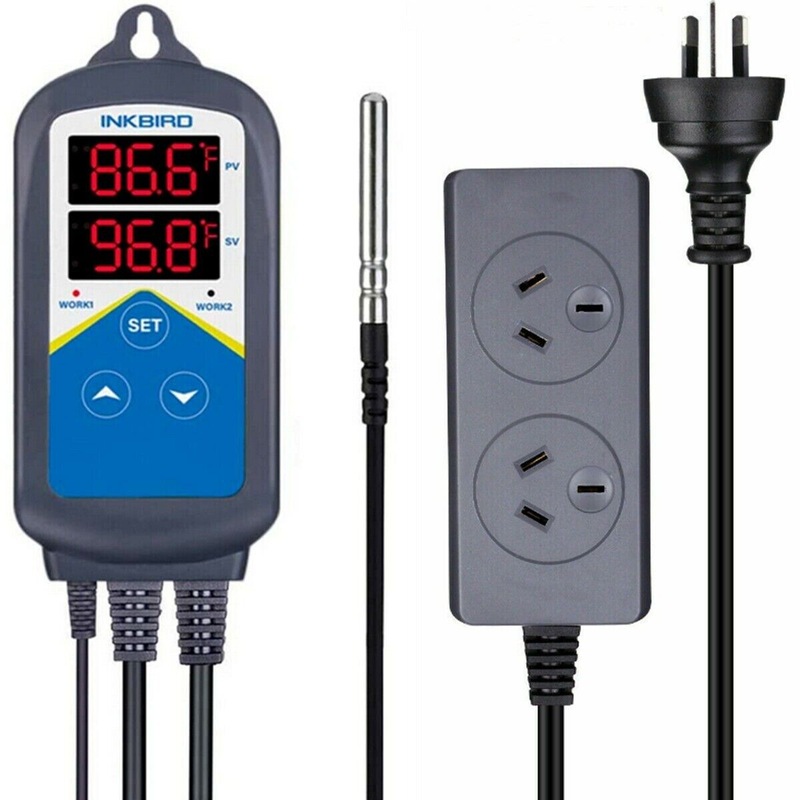

10A Heating Temperature Controller 240V Cycle Timer Pre-wired Thermostat

-ITC-306 (HEATING ONLY) is a pre-wired heating output temperature controller with time function specifically for breeding and planting.

-Can be set to two different temperatures with its function of dual time cycle setting during 24 hours according to the day and night can more suitable for the physiological needs of animals and plants.

-Can be widely use in over-heat protection and automatic temperature control system of all sorts of electrical equipment for aquarium, pets breeding, hatching, fungus fermenting, and seed germination accelerating, etc.

-This plug and play product is designed with dual LCD display, and offers the optional display of Centigrade or Fahrenheit, makes it more humanized temperature control.

• Plug and play design, easy to use;
• Dual time cycle setting during 24 hours, can be set different temperature from day and night on the basis of the physical needs of animals and plants.
• Support Centigrade or Fahrenheit unit reading modes.
• Maximum output load: 2400W.
• Dual display window, be able to display measured temperature and set temperature at the same time;
• Temperature calibration;
• Over-temperature and sensor fault alarm

• Temperature Control Range : -50~99 °C / -58~210 ° F
• Temperature Resolution: 0.1 ° C / 0.1° F
• Temperature Accuracy: ±1°C (-50 ~ 70°C) / ±1°F (-50 ~ 160° F)
• Temperature Control Mode :On/Off Control, Heating(only)
• Input Power: 100 ~240VAC, 50Hz/60Hz
• Temperature Control Output: Max.10A, 100V ~240V AC
• Sensor Type: NTC sensor (Including)
• Sensor Length: 2m / 6.56ft
• Input Power Cable Length: 1.5m (5ft)
• Output Power Cable Length: 30cm (1ft)
• Dimension: Body: 140x68x33mm (5.5x2.7x1.3inch) Socket: 85x42x24mm (3.3x1.7x1inch)
• NET Weight: About 0.35kg (0.77lb)
• Ambient Temperature: -30~ 75 ° C / -22~ 167 ° F
• Storage: Temperature: -20~ 60 ° C / -4~ 140 ° F Humidity: 20~85% (No Condensate)
• Warranty: 1 Year

• 1 x ITC-306 temperature controller;
• 1 x Manual

• Relay Contact Capacity: Heating (10A, 100-240VAC)
• Temperature Resolution: 0.1 ° C / 0.1° F
• Temperature Accuracy: ±1°C (-50 ~ 70°C) / ±1°F (-50 ~ 160° F)
• Ambient Temperature: -30~ 75 ° C / -22~ 167 ° F
• Socket (UK Version): 140x51x27mm (5.5x2.0x1.0 inch)
• Storage Temperature: -20~ 60 ° C / -4~ 140 ° F
• Storage Humidity: 20~85% (No Condensate)

There will be 2 situations when you use this reptile thermostat:

1. If you only need to control one temperature range the whole day:
   • Your ideal temperature range: is 22~25C, the settings are as follow: TS1=25, DS1=3, CA=0, CF=C, TR=0
   • With this setting, when the PV actual temperature is lower than TS1-DS1=25-3=22C, the work light will turn on and your heaters will start outputting until the temperature reaches 25C (TS1/SV), and it will stop.
2. If you need to control different temperature ranges during day and night:
   • Your ideal temperature range: during 8:00~18:00, keep the temperature within 22~25C, during 18:00~8:00, keep the temperature within 27~25C
   • TS1=25, DS1=3, CA=0, CF=C, TR=1, TS2=27, DS2=2, TA=8, TB=18, TH=the hour of the current time when you set, TM= The minute of the current time when you set
   • During (8:00~18:00) TA~TB, the thermostat will work with TS1 and DS1. During (18:00~8:00) TB~TA, the thermostat will work with TS2 and DS2
