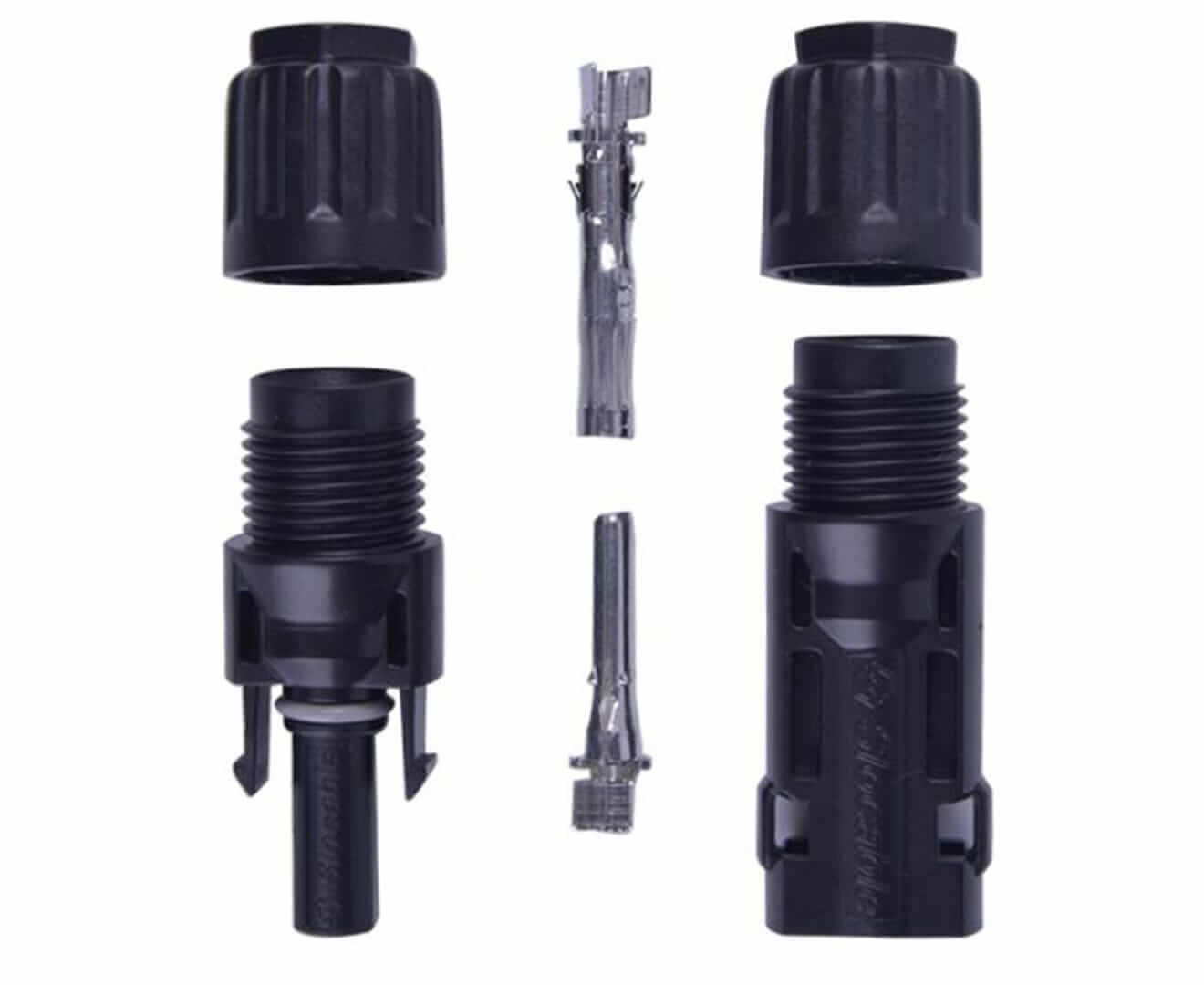

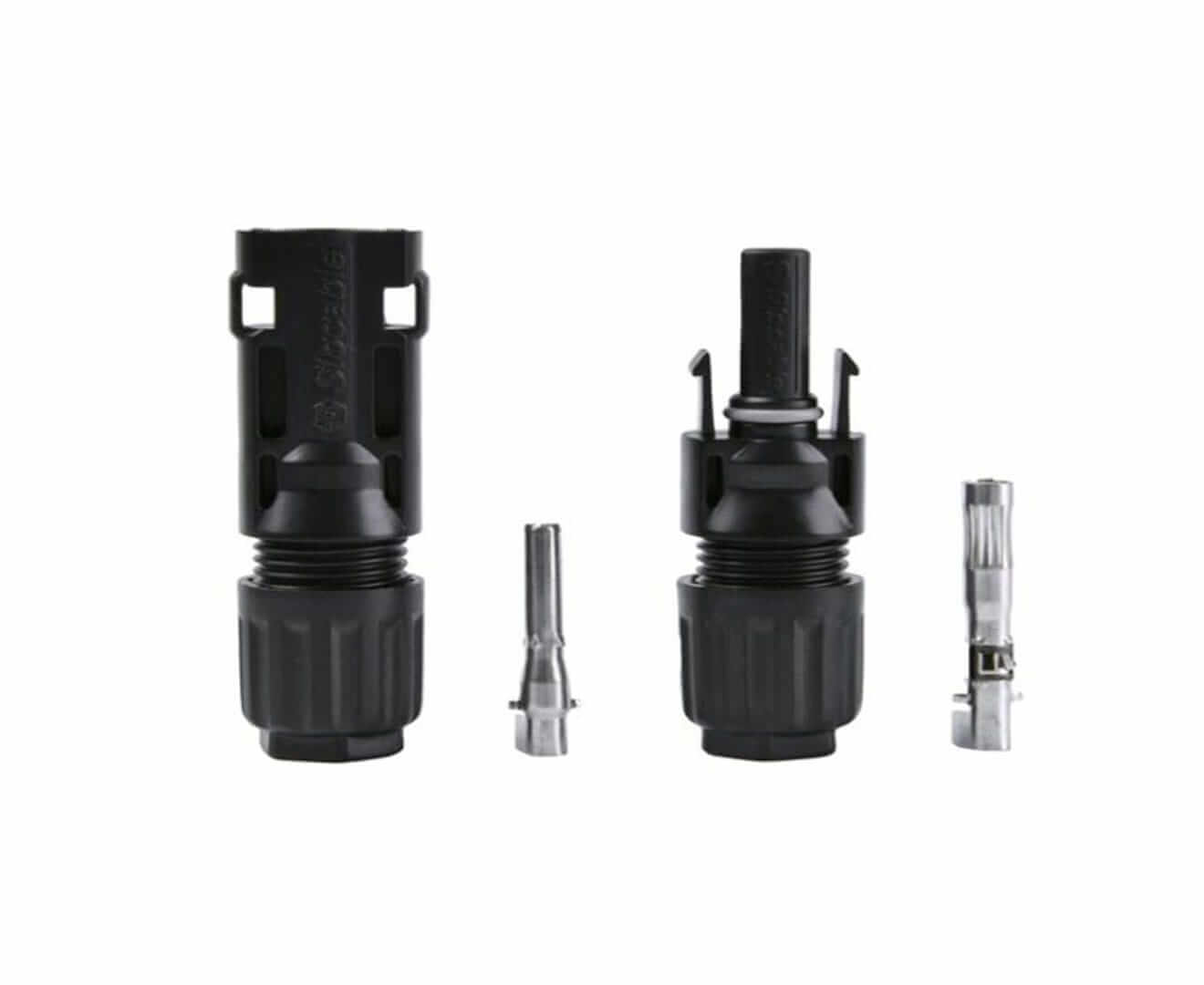

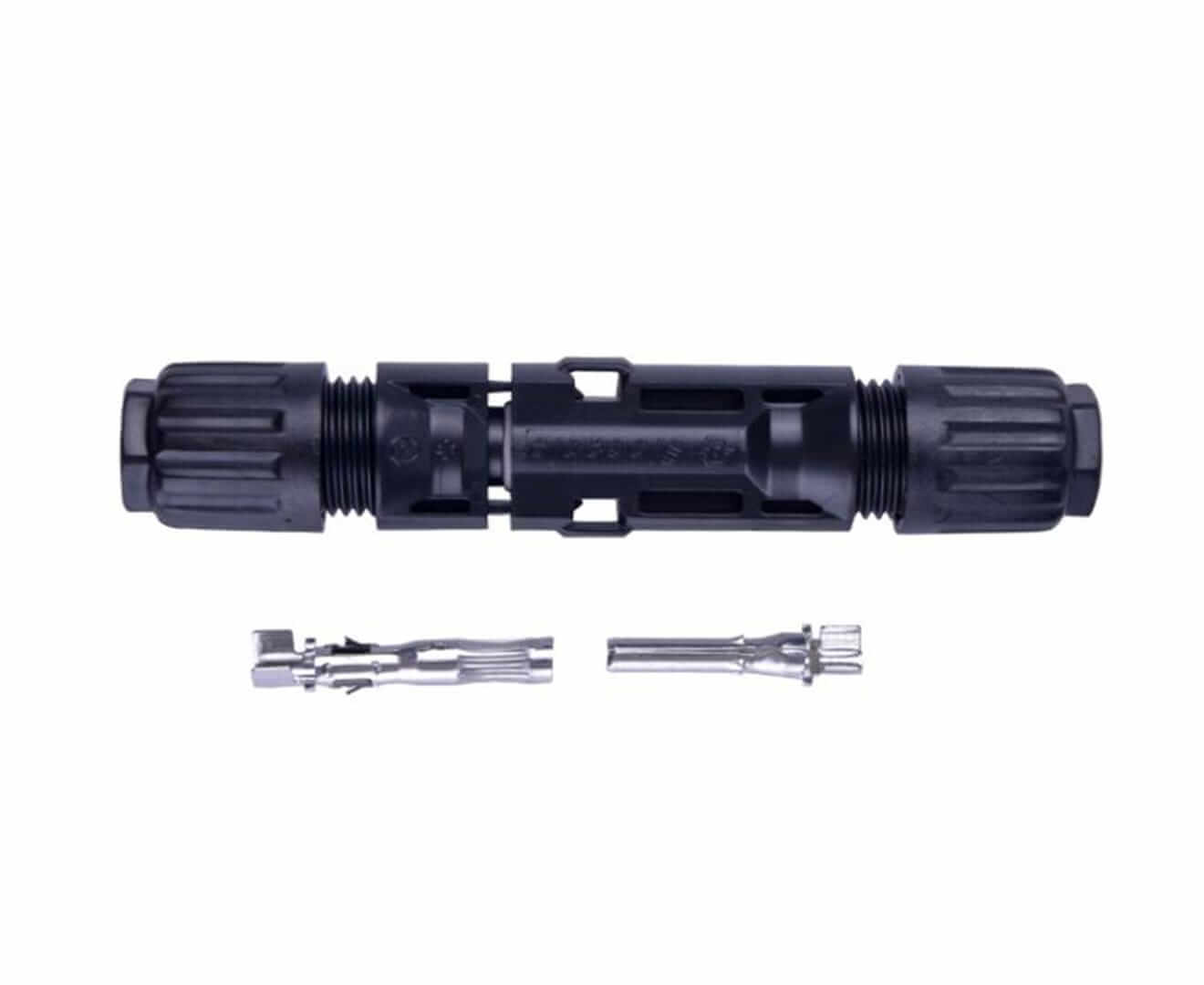

10 Pairs Solar Connectors Bar Pins 50A IP68 for PV Solar Panel Cable & Plug M/F

Features:

High Protection and Safety in Use.

Compatible for all kinds of MC4 connector.

Simply assembly and quick operation.

Safe lock design according to customer reques.

Standard thickness 0.4 terminals.

Simple on-site processing.

Mating safety provided by keyed housings.

Multiple plugging and unplugging cycles.

Accommodates PV cables with different insulation diameters.

High current carrying capacity.

Specifications:

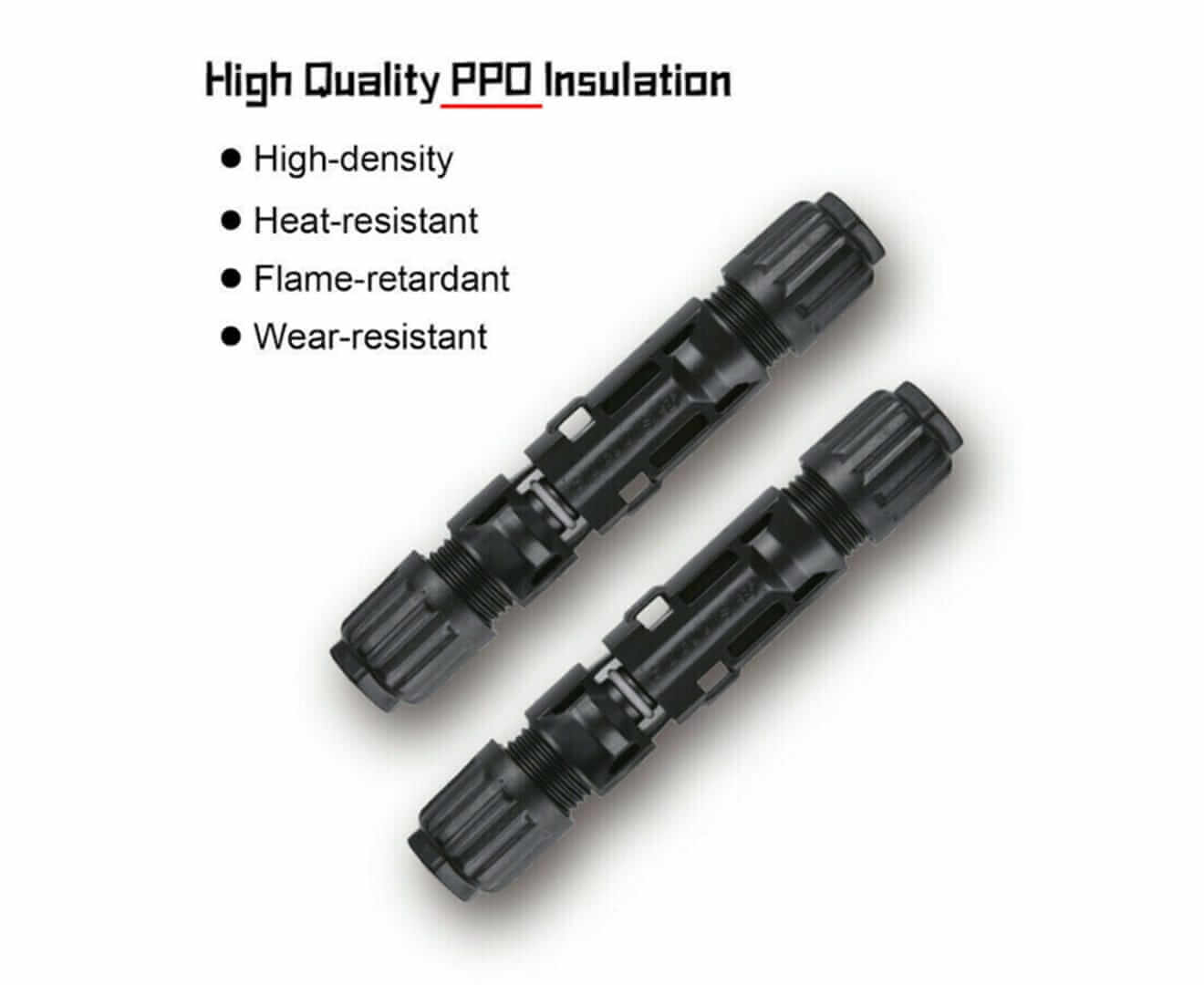

• Insulation material:PPO
• Size:4 mm² (12AWG)
• Rated current:50A(Copper Bar terminals)
• Rated voltage:1500V DC
• Test voltage:8kV (50Hz, 1min)
• Contact resistance:5m
• Contact material:CopperTin plated
• Degree of protection:IP68
• Safety class:II
• Overvoltage category:CATIII/ 2
• Flame class:UL94-V0
• Insertion force:Max.50N
• Withdrawal force:Min.50N
• Ambient temperature range:-40°C~ +85°C?IEC
• Suitable cable cross sections:2.5/4.0/6.0/10.0mm² 14/12/10AWG
• Connecting system:Crimp Connection
• Only plugs of the same type can be connected.

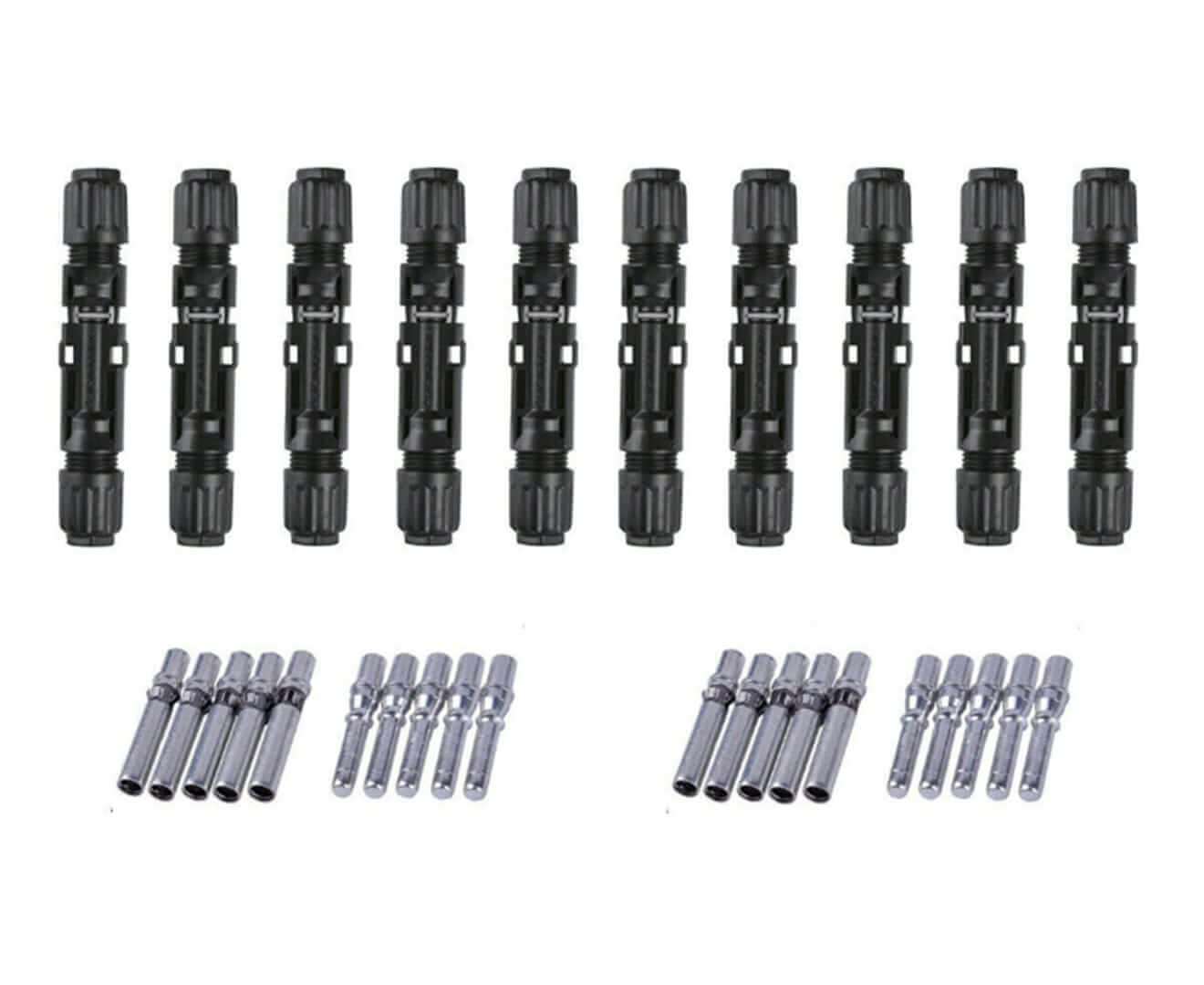

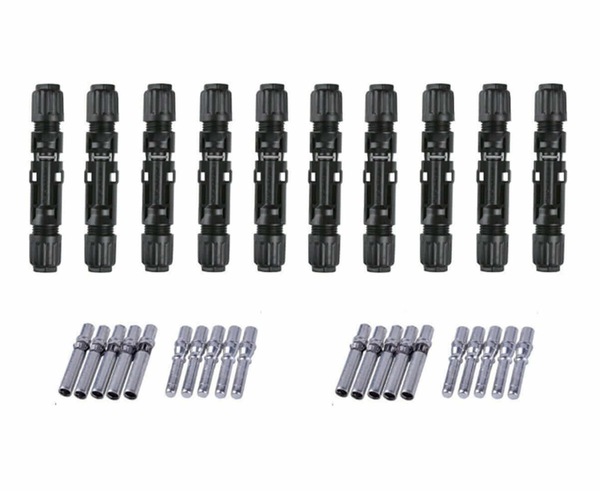

• Package included:Option A: 10 Pairs Solar Connectors with Copper Bar Terminals(10x Male and 10x Female)
