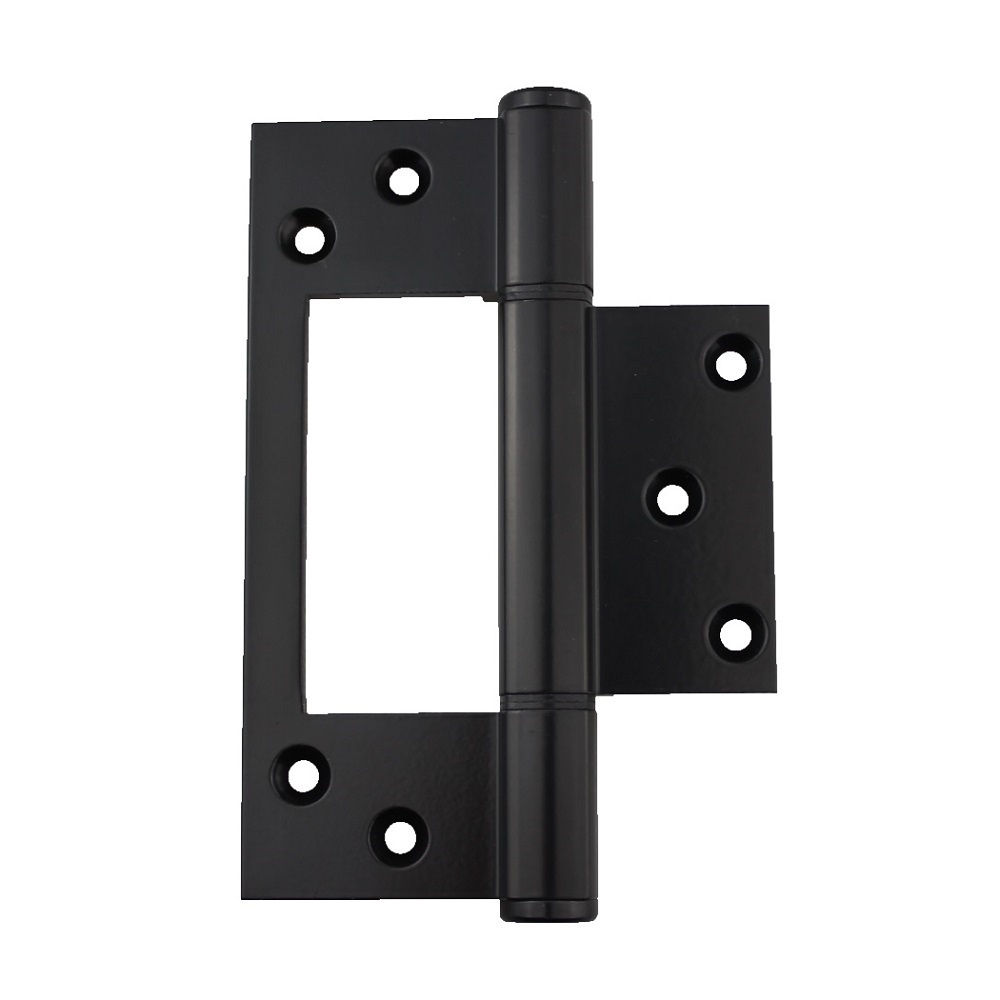

**10 Pack** McCallum Heavy Duty Aluminium Interfold Hinge Black A105BLK A105F

10 Pack McCallum Heavy Duty Aluminium Interfold Hinge Black A105F
A105BLK

• 10 x Hinge w/ screws

Application:

• Suitable for aluminium entrance doors in high usage situation
• Suitable for either centre pocket or front edge glazing systems
• Suitable for some timber door applications
• Pre-drilling of the holes in the timber may be required.

Specifications:

• Alloy: High strength T.6 minimum tensile 254 mpa.
• Pin Dia: 6mm 304 Stainless Steel with machined chamfer both ends
• Bushes: Flanged nylon
• Knuckle: Squareline - Heavy Duty
• Aluminium Endcaps: Pressed-in interference fit
• Maximum Weight Capacity: 80 kg (turn over for further information)
• Finish: Black powder coat

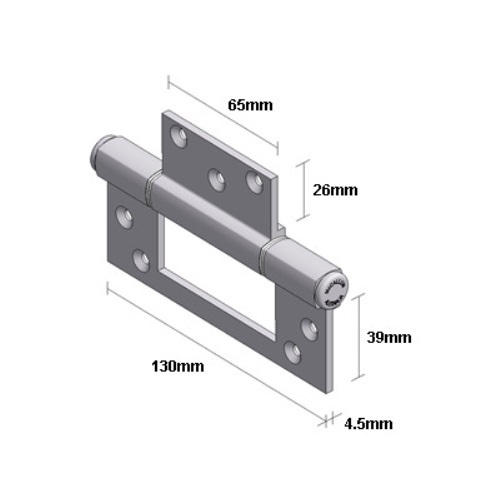

• Size: 130mm

Installation Guide Only:

• Door thickness: Minimum 38mm (due to use of inner leaf size)
• When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible For excessive usage, a fourth hinge may be required.
• Standard Door: 2040 (h) x 820 (W) Oversize Door: Turn over for further information
• Locator allows for fast fixing
• THIS HINGE IS DESIGNED WITH NO OFF-SET, UNLIKE THE PREVIOUS A105F

Fixing

• Fastening screws supplied
• Pop rivets are not recommended
