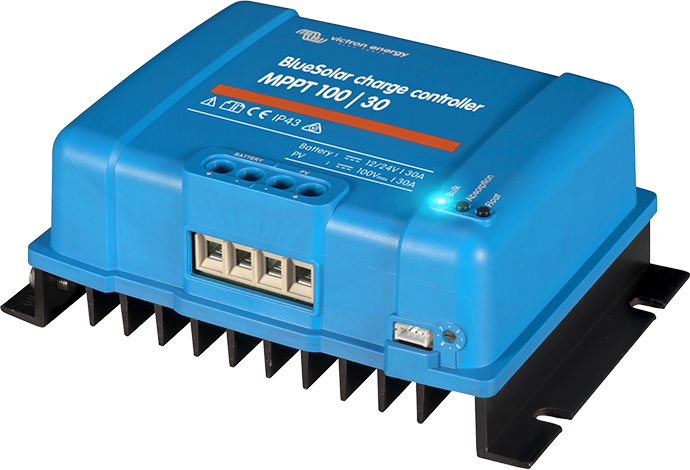

Victron Energy MPPT 100/30 BlueSolar Solar Charge Controller
3x

Victron Energy MPPT 100/30 BlueSolar Solar Charge Controller

Hurry! 4 items left!
Price
$319
Collect 957 Everyday Rewards points
Score 3x points on every order
Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Shipping
Free Shipping

24-48 hour dispatch
Quantity
Maximum item limit (4) has been reached.

  • Charge current up to 30A, and PV voltage up to 100V
  • Automatically adjust to a 12 or 24V nominal battery voltage
  • Ultra-fast Maximum Power Point Tracking (MPPT)
  • Advanced Maximum Power Point Detection in case of partial shading conditions

    Model: BlueSolar MPPT 100/30

    Charge current: 30 A
    Maximum PV Open Circuit Voltage: 100V
    Maximum PV Power: 440W (12V), 880W (24V)
    Battery voltage (nominal): 12 / 24 V auto select

    PV Maximum Voltage: 100V
    Rated charge current: 30A
    Battery Voltage: 12/24V (auto select)

    Ultra-fast Maximum Power Point Tracking (MPPT)

    Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

    Advanced Maximum Power Point Detection in case of partial shading conditions

    If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPT’s tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

    Outstanding conversion efficiency

    Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F).

    Flexible charge algorithm

    Several preconfigured algorithms.
    One user programmable algorithm. Manual or automatic equalisation.
    Battery temperature sensor. Battery voltage sense option.

    Additional Information
      Part Number SCC020030200
      Manufacturer

      Victron Energy



      Downloads
        Datasheet-BlueSolar-charge-controller-MPPT-100-30--100-50-EN 1.pdf

      SKU: SCC020030200
