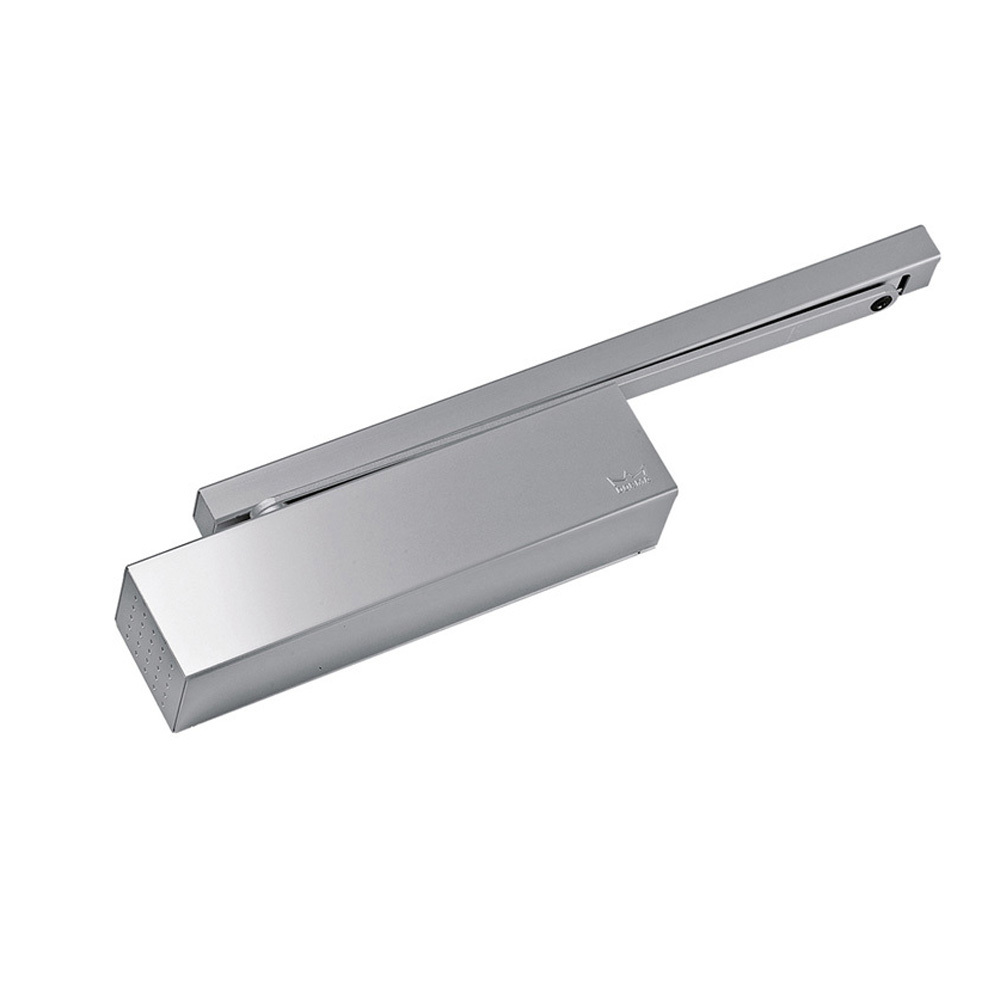

Dormakaba TS93G EN1-5 Cam Action Door Closer Push Side Fire Rated Silver43100501

Dormakaba TS93G EN1-5 Cam Action Door Closerer
43100501

Note: Angle brackets are sold separately.

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Includes:

• 1 x Dormakaba TS93G EN1-5 Door Closer Push Side Silver (43100501)
• 1 x Dormakaba 93GN Slide Arm and Channel Silver (64010001)

Features:

• Non-handed modular system including a heart-shaped cam suiting a number of door designs & fixing positions
• Closing force adjustable with a screw and closing speed adjustable with a valve
• The latching speed, backcheck and delayed action is also adjustable at the valve
• Has a slide channel arm assembly
• Special model for push-side door leaf fixing/pull-side transom fixing
• Suitable for fire and smoke check doors where the cushioned limit stay is also used

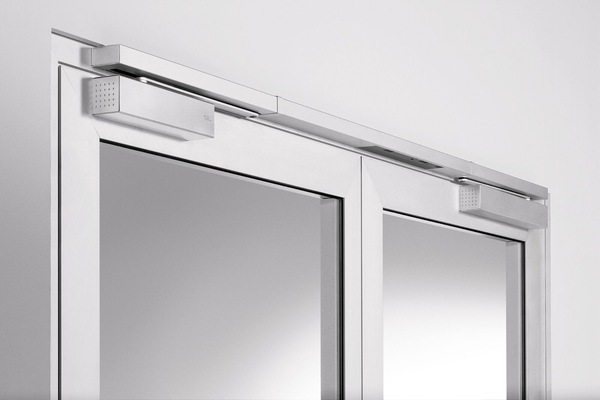

• Suitable for single and double doors installation up to 1250 mm (W)
• EASY OPEN Cam action technology enables doors to be manually operated with less effort than that required for conventional closers. When considering doors are used every day by the elderly, children or disabled the TS 93 constitutes an ideal solution when it comes to fulfilling the requirements of Australian Standard AS1428 and the access to premises standards.

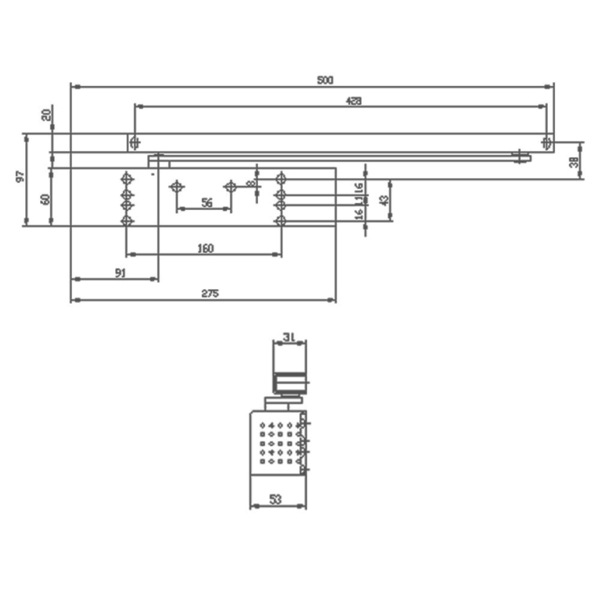

Specifications:

• Length: 275mm
• Width: 53mm
• Height: 60mm
• Weight: 3.5kg
• Adjustable Closing Speed: Yes
• Adjustable Latching Speed: Yes
• Has Backcheck: Yes
• Has Delay Action: Yes
• Has Hold Open: No
• Has Slide Arm: Yes
• Spring Strength: EN1-5
• Suits Push Side Of Door: Yes
• Fire Rated: Yes
• Finish: Silver

Note: For applications involving particularly heavy or wide doors, and doors which have to close against wind resistance, the next highest door closer size should be selected, or the closing force adjusted to a higher setting.
