Area Bond Connector suit 12mm Maximum Rio Bar - WETCON

• AS3000:2007 Update: New requirements for concrete floors in wet areas.
• Bonding Needed: Metal reinforcement in concrete floors of showers, bathrooms, pools, or spas must be connected to the building's earthing system.
• Purpose: This is to prevent electrical potential differences that can be dangerous.

• Specific Clauses: The changes refer to clauses 5.6.2.5 and 5.6.2.6 in the AS3000:2007 standard.

• Quick & Easy Earthing: Provides a fast way to connect steel reinforcing to the earth.
• Designed for Wet Areas: Ideal for showers, bathrooms, pools, and spas.
• Sealed Protection: It is completely sealed to prevent corrosion.
• Shear Bolt Technology: Ensures the connector is installed with the correct tension.
• Pre-terminated Earth Tail: Comes with a 2-meter long, 6mm² earth tail for convenience.

1. Installation on Reinforcing Mesh:

   • Cut the mesh at the wet area.
   • Attach the WETCON™ to one of the cut ends.
   • Use the recommended spanner to tighten the shear bolt until it snaps for proper tension.

2. Conduit Use:

   • Protect the 6mm² pre-terminated earth with conduit.
   • Align it to match up with the location of the bottom plate or wall cavity.

3. Final Connection:

   • At the final fit-off stage, connect the earth bond wire to any part of the earthing system.

We have found that customers are not sure what to type into Google when searching for this product, so we have made some common references and search terms below to help find the Wet area connector.

• Pool earthing kit
• Eearthing concrete slab
• Earthing reo in slabs
• Eearthing of concrete reinforcement
• Reo earth clamp
• AS3000:2007 pool earthing
• Reinforcement earthing
• Concrete earthing
• Pool earthing requirements NSW
• Earth bonding
• Pool earthing
• Bathroom earthing

FEATURES:

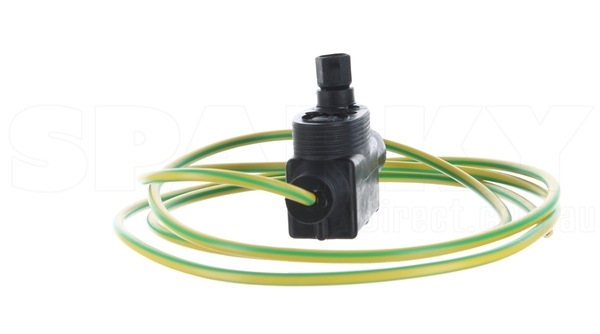

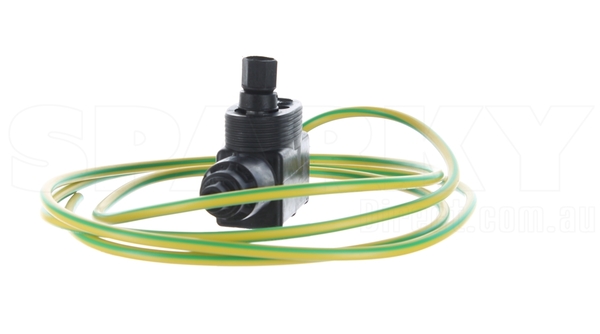

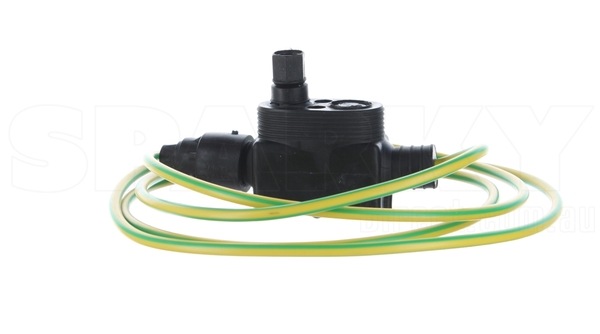

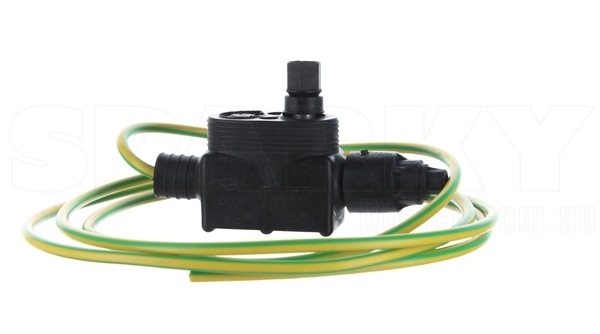

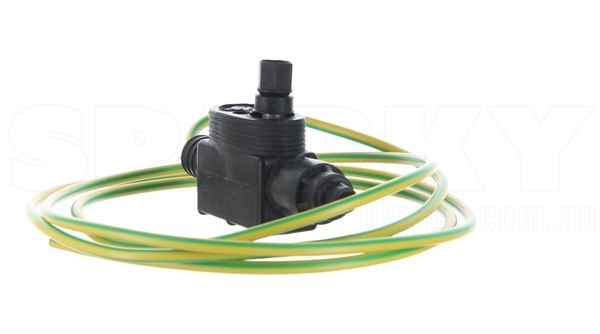

The WETCON™ provides a quick and easy permanent earth connection to steel reinforcing for wet areas such as showers, bathrooms, pools and spas. The connector is completely sealed and provides p protection against corrosion. Shear bolt technology ensures correct installation. Each connector is supplied with a pre-terminated 2-meter-long 6mm2 earth tail.

APPLICATION:
