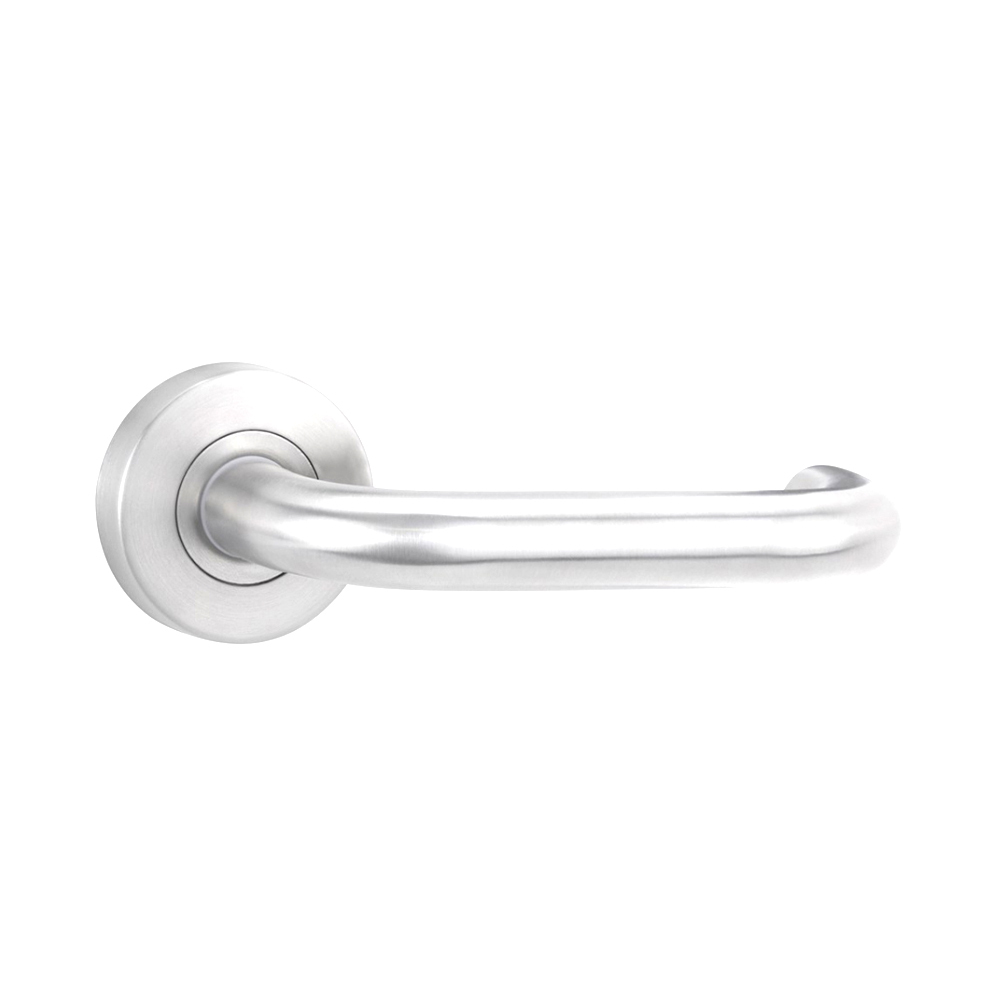

Yale Simplicity S2 Door Lever Handle on Round Rose
YSH1/S2NLSS
Door Lever on Rose can be used on any internal door inside your home. Simply combine the lever on rose door handle with a combination of latches, locks and thumb-turns, depending on the room and requirements.
Door Lever on Rose Function - a door handle where the lever is fixed to a circular plate.
Features:
- Suitable for use in multi-residential developments.
- Designed for use with Simplicity mortice locks as Entrance Sets and Tubular Latches for passage door applications
- Disabled Accessible AS1428.1 Compliant
- A removable stop plate allows these symmetrically designed levers to be handed and set as either an operable or fixed lever on site

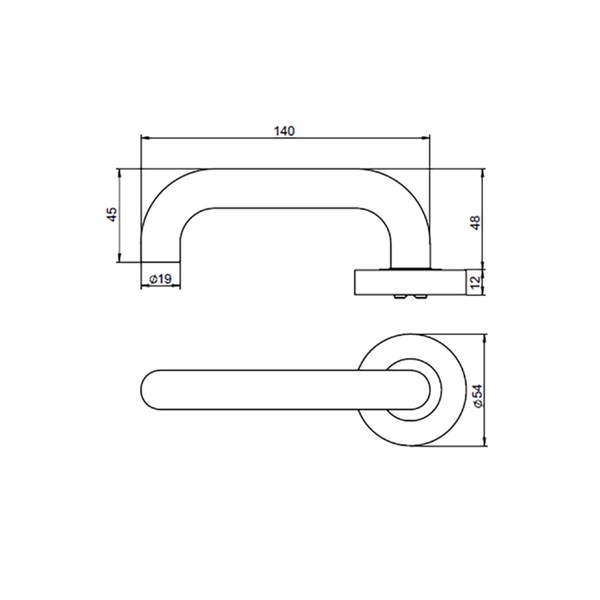

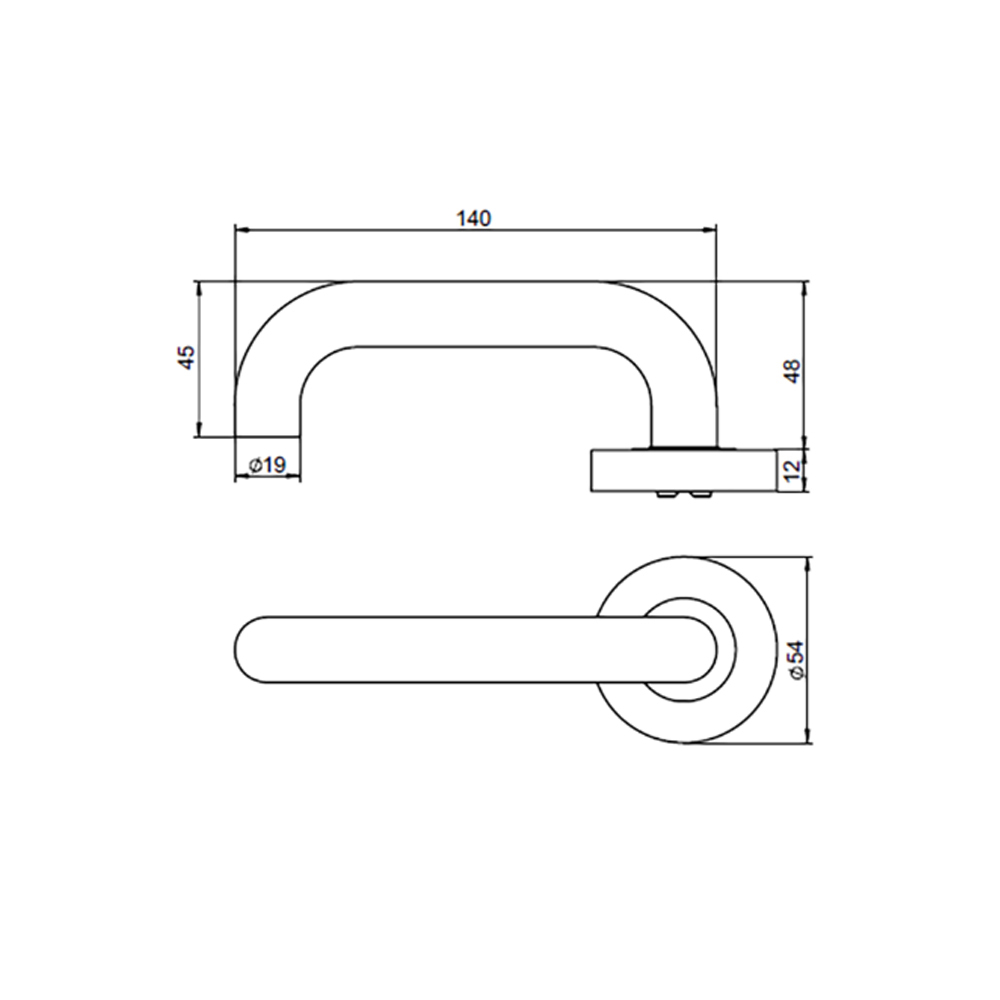

Specifications:
- Door Thickness: 32mm - 45mm
- Length: 140mm
- Projection: 60mm
- Diameter: 54mm
- Finish: Stainless Steel
Compliance:
- Fire Rated: Yale Simplicity Series Leversets have been successfully tested with Yale Simplicity Mortice Locks up to 2 hours with a fire rated Lockwood mortice lock on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets.
- AS1428.1 compliant levers.
With this listing, by answering a couple of short questions, you can create a kit customised to your needs:
For "Passage" doors (e.g. a bedroom that doesn't need locking), you will generally need a Door Handle + a Tube Latch or Mortice lock. If it's a double door, you may also require flush Bolts. If it's a rebated double door you will need a "rebate kit".
Flush Bolts are used to secure Double Doors, You can choose non-lockable and key-lockable option in various lengths.
When using flush bolts:
- We recommend you use one at the top and another at the bottom to keep the door secure and from rattling.
- For taller doors (2100mm and above) most customers prefer to use a 300mm on top of the door and 150mm on the bottom for extra security and protection against the wind. Alternatively, some customer's use a magnetic catch (such a PLS24PRO Magnetic Catch).
For "Privacy" doors (e.g. a bathroom, en suite or a bedroom that you want to lock from the inside by turning a snib or pushing a button) you will generally need a privacy latch or Turnsnib to activate a Mortice lock.
For "Entrance" doors (e.g. a front / back door or any door that you want to lock with a key) you will generally need:
- A Mortice lock (if you have a rebated (slightly overlapping) double door, please add a rebate kit)
- Through the options you can select either a "Key/Key" (lock and unlock with a key from both sides) or a "Key/Turn snib" (meaning you can lock the door from the inside using thumb turn, instead of a key). The choice here is one of personal preference
Flush Bolts
- For double doors, you will also need flush bolts.
- Flush Bolts are used to secure Double Doors, You can choose non-lockable and key-lockable options in various lengths.
- When using flush bolts, most customers prefer to use a 300mm on top of the door (as it's easier to reach) and 150mm on the bottom for extra security and protection against the wind.
Hinges
(Amongst others) we offer Ball Bearing, Fixed Pin and Loose Pin hinges:
- Ball Bearing - We recommend using these for Entrance and heavier doors. This is because the ball bearing reduces friction on the hinge and stops squeaking and wearing of the hinge
- Fixed Pin - Mainly used on internal doors. They can also be used on entrance doors that are not heavy
- Loose Pin - Internal use only. Mostly used on bathroom door so the door can be removed (lifted off) in the locked position (e.g. in case of an emergency)
Depending on the weight of your door, you will generally need 3 hinges for an Entrance door (which are more solid) and 2 hinges for internal doors.
Please use the tables below as a guide on the number of hinges you require, as well as the recommended hinge positioning.
