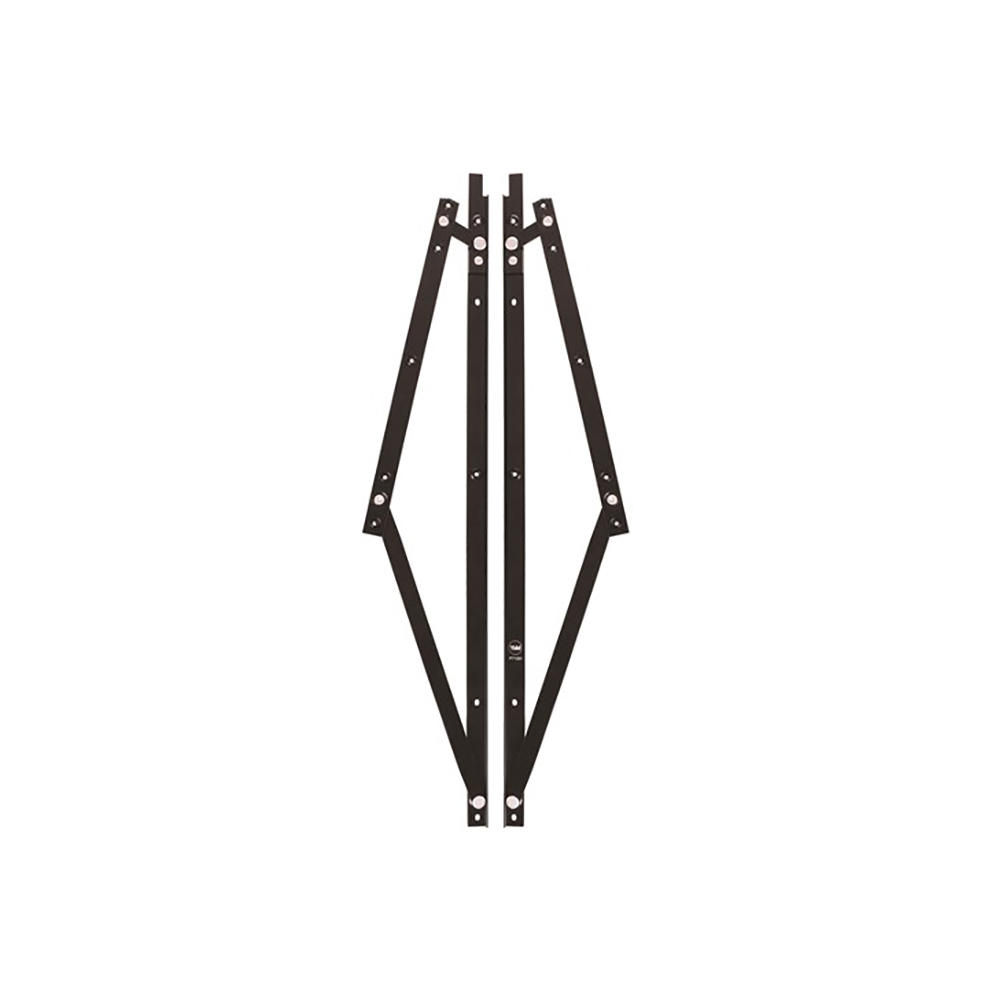

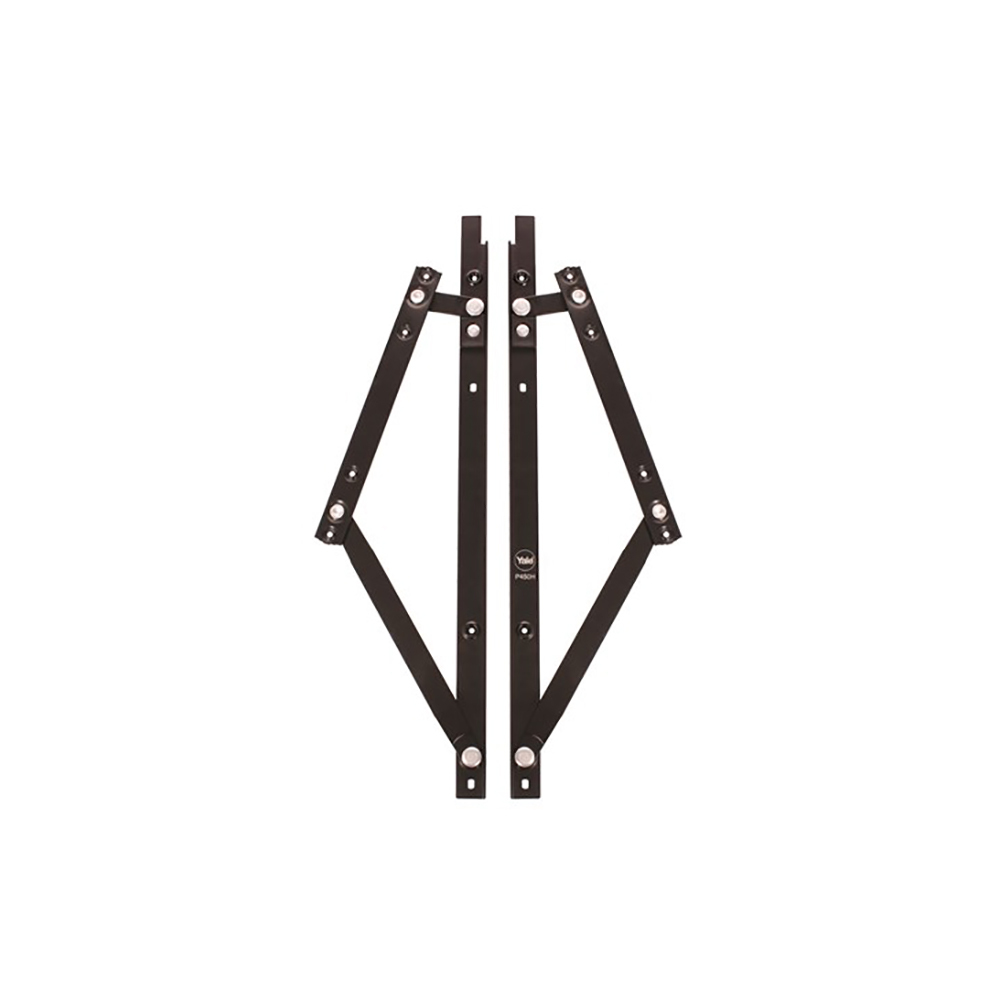

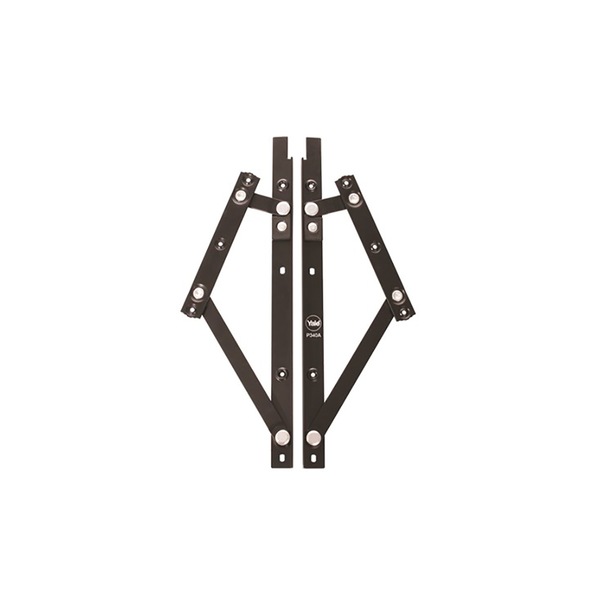

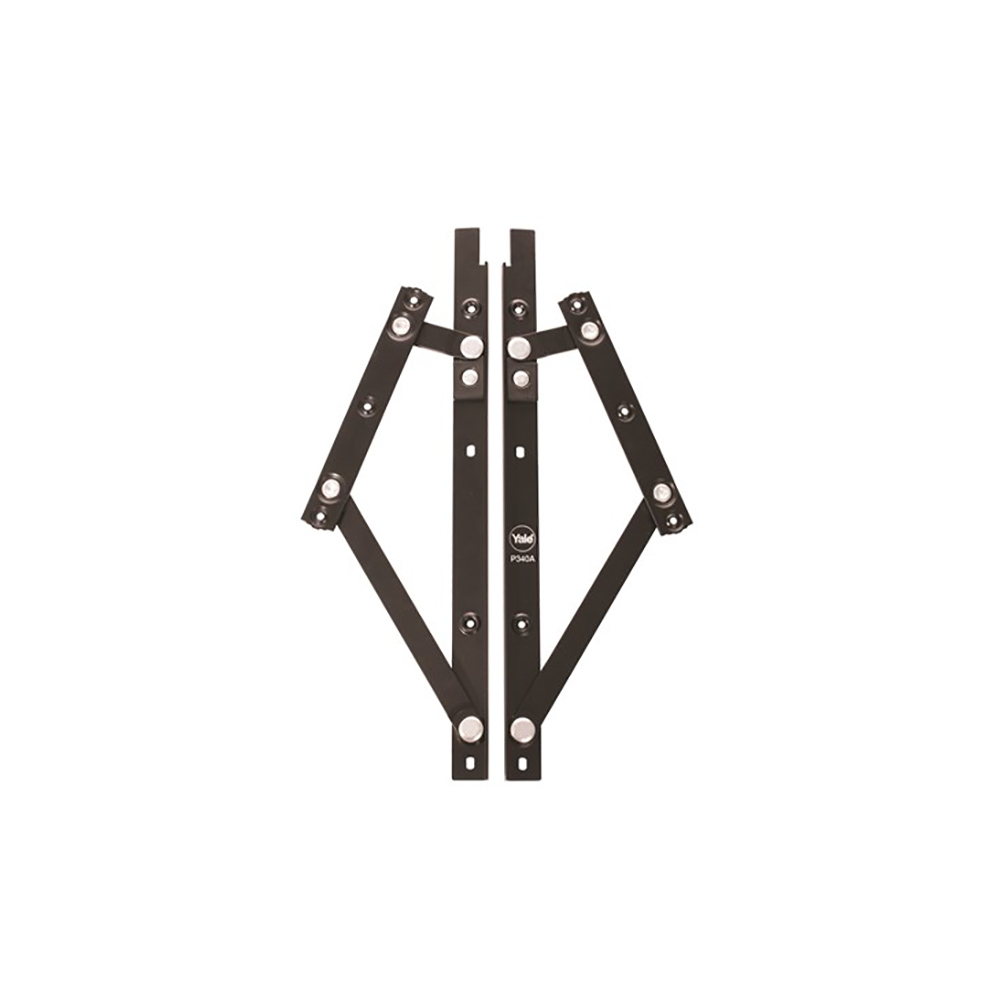

Yale Nexus HCA Windows Stays Black Powdercoat Finish

Yale Nexus HCA Stay Pair Standard Friction Max Sash Height 1000mm Black
P340A

Developed in response to changing market requirements for larger window sashes in projected top hung (PTH) windows, the Nexus range can support window weights of up to 60kg and 2m in height, while still maintaining endurance performance and handle forces, making it the highest capacity aluminium residential window stay on the market.

Features:

• Supports window weights up to 60kg
• For installation into windows up to 2m high
• Patent pending for innovative integrated friction joint
• Geometry optimized for window range
• Manufactured with unique ‘pull-in’ feature
• Identification mark for High Friction versions
• For projected top hung windows
• Complies with requirements in NZ:4211
• Provides compression weather seal
• Made from extruded aluminium with no sliding channels
• Tested to 36,000 cycles

Specifications:

• Sash Height: 700-1000mm
• Opening Angle: 28 Degrees
• Max Sash Weight: 18Kg
• Finish: Black Powedercoat
• Friction Model: Standard Friction
