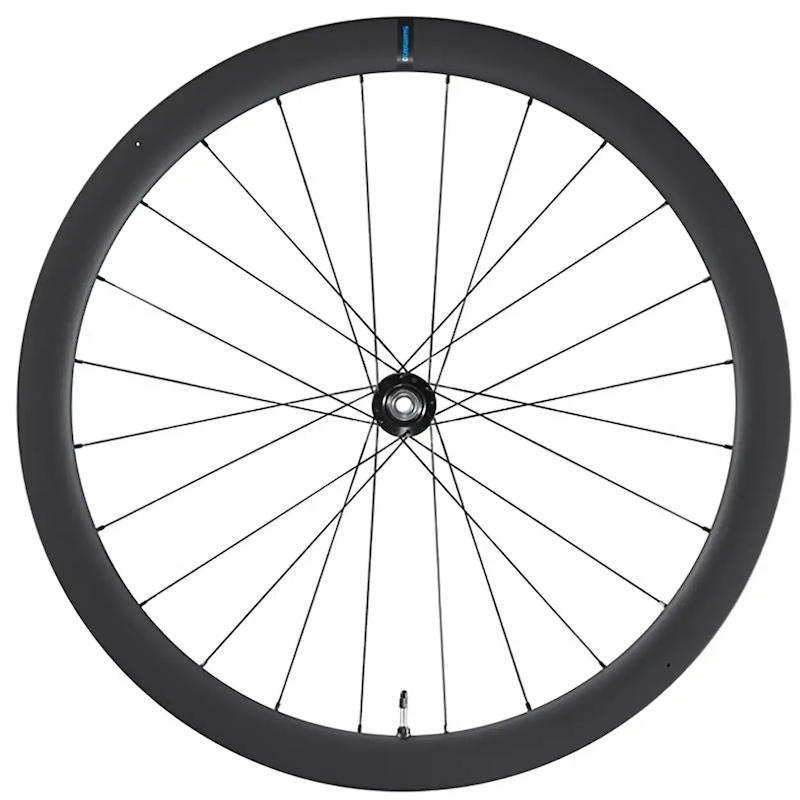

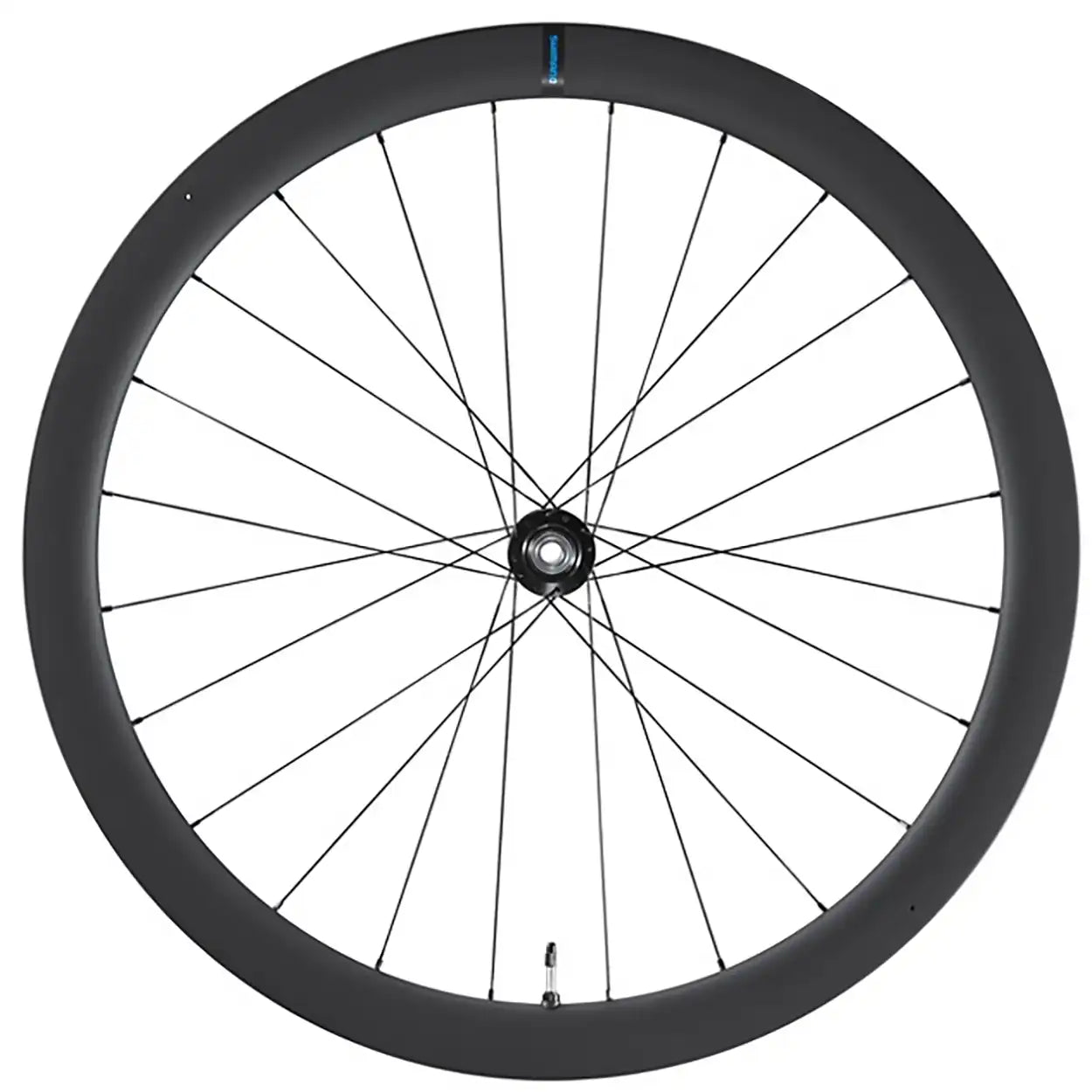

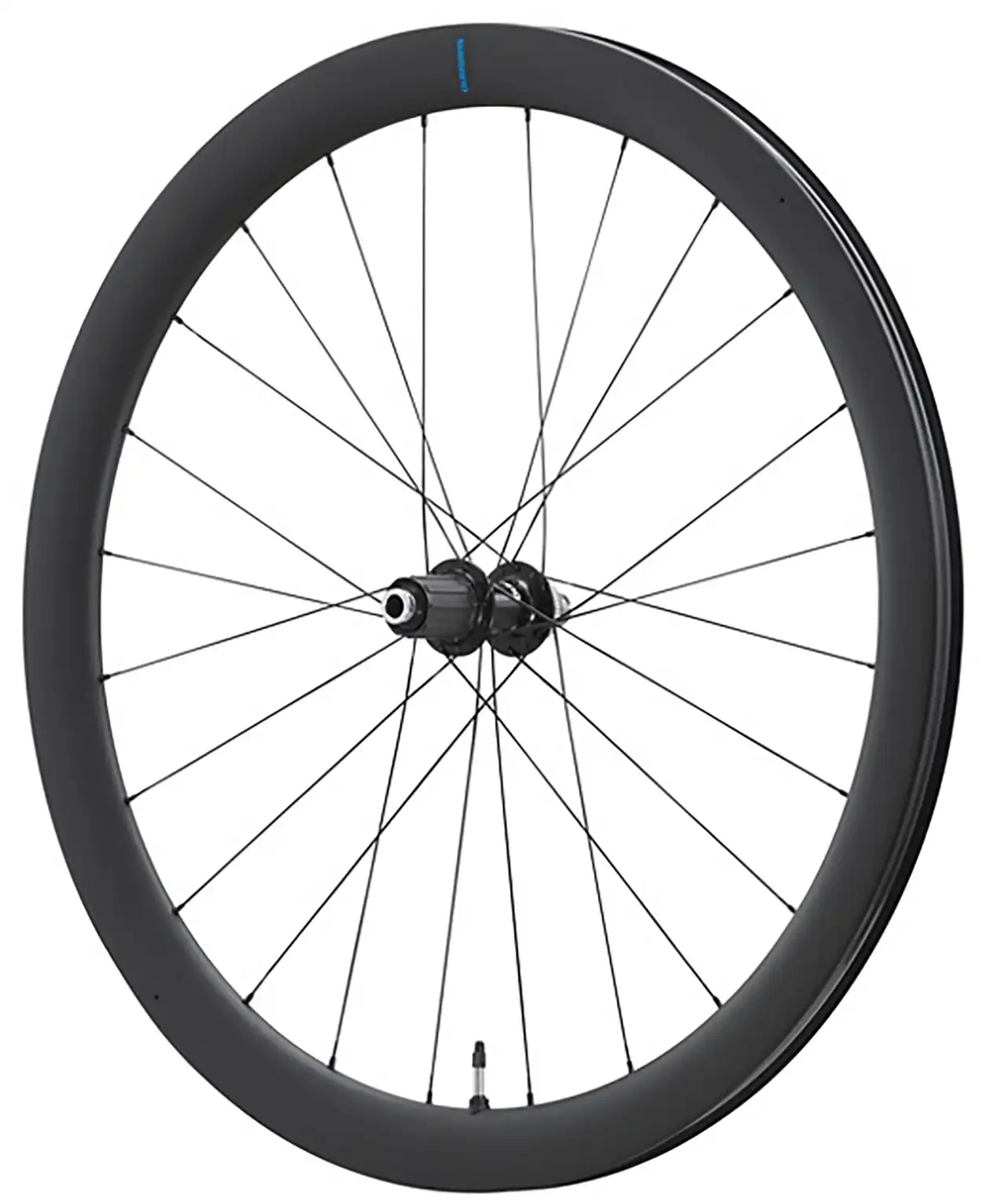

Shimano RS710 C46 Tubeless Carbon Disc Road Wheel

A new level of SHIMANO carbon wheel. Shimano has brought full carbon wheels to a new level. With a development concept shared with DURA-ACE and ULTEGRA, the new full carbon wheels offer balanced performance at a lower price. The C46, with its focus on a great all-rounder model, shares DNA with the C50 DURA-ACE and ULTEGRA wheel options.

• Simple design that can be easily matched to any bike
• Most affordable SHIMANO carbon road wheel
• 46+ mm height full carbon rim
• Internal rim width: 21 mm
• Road 11 & 12-speed compatible

MODEL NO WH-RS710-C32-TL-F
SERIES SHIMANO
Average weight 1612
Model name WH-RS710
Specification C46-TL
Color|1 Hub shell Black
Front/Rear Front
Brake type CENTER LOCK disc brake
Rear speeds 12/11
O.L.D. (mm) 100 / 142
Wheel size 622 x 21C (700C)
Tire|Type Tubeless
Tire|Recommended size 25-622 - 32-622
Rim|Height (mm) 46
Rim|Internal width (mm) 21
Rim|External width (mm) 28
Rim|Requires rim tape
Spokes|Number 24
Spokes|Bladed
Spokes|Butted
Spokes|Diameter (mm) 2.0-1.6-2.0
Axle fixing method 12 mm E-THRU
Thru axle (length x inner diameter ; mm)|100 x 12
Thru axle (length x inner diameter ; mm)|142 x 12
Spline type|HG spline L (ROAD 12/11-speed)
Engagement type Pawl ratchet
Disc mount|CENTER LOCK
Disc mount|140 mm disc brake rotor compatible
D2 rim
Seal|Hub Contact
