ScanGauge II Advanced, Ultra-compact OBDII Vehicle Monitor
Monitor Your Vehicle’s Most Vital Systems in Real Time
ScanGaugeII can help you monitor your vehicle’s most vital systems and provide the kind of real-time information you’ve been missing. Features include more than 15 built-in digital gauges, 5 sets of trip data and an easy-to-use Scan Tool that shows both set and pending trouble codes  all in an ultra compact design that installs in minutes.
Works with 1996 and newer OBDII cars, trucks and hybrids
- Compatible with all OBDII protocols
- More than 15 Built-in Digital Gauges
- Check & Clear Trouble Codes
- Multiple Trip Computers
- X-Gauge programmable gauge system
- Performance Monitor
Vehicle Compatibility
The ScanGauge is designed to plug directly into the OBDII diagnostics connector under the dash of 1996 and new cars and light trucks. Some vehicles built prior to 1996 may also be compatible with ScanGauge products.
Easy to Install No Tools Required
Installs in just minutes without tools. Simply plug the ScanGauge into the diagnostic connection under the dash.
No Batteries Required
The single connection to the diagnostic connector under the dashboard is all that is needed.
Automatic Protocol Determination
ScanGauge automatically determines the protocol your vehicle uses and connects.
6-Foot Cord and Velcro® Attachment
The ScanGauge can be mounted up to 6 feet from the under-dash diagnostic connector. The included Velcro® attachment system allows the ScanGauge to be quickly detached and then used to troubleshoot other vehicles.
User-Friendly Menu-Driven Operation
Simple 5-button operation allows you to quickly and easily access the powerful features of the ScanGauge.
Color Backlight Display
Match your instrument panel for an integrated look.
English & Metric Units
The Digital Gauges and Trip Computer information can be shown in either English or Metric units of measure, including Kilometers, Liters, Celsius, and kPA.
Digital Gauges

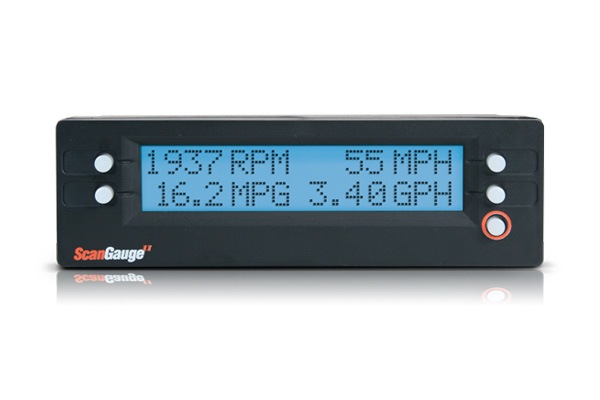

ScanGaugeII provides real-time gauges to show you what is going on “under the hood†with more than 15 built-in digital gauges. The gauge screen allows you to select and display 4 gauges at a time, so you can monitor the current operating conditions of your vehicle in real-time.
In addition to the standard set of gauges, ScanGaugeII also includes the exclusive X-Gauge technology. With XGauge, you can add additional vehicle specific gauges.
| Digital Gauge | Name |
|---|
CLSD LP
OPEN LP | Fuel System Loop Status |
MAP
BST | Manifold Absolute Pressure
Boost |
MPG
KPG
MPL
LHK
KPL | Miles Per Gallon
Kilometers Per Gallon
Miles Per Liter
Liters Per 100Km
Kilomteres Per Liter |
MPH
KPH | Miles Per Hour
Kilometers Per Hour |
| RPM | Revolutions Per Minute |
| TPS | Throttle Position Sensor |
FWT
CWT | Water Temperature |
| AVG | Average Fuel Economy |
| TFC | Trip Fuel Cost |
| CPM | Cost Per Mile |
| VLT | Battery Voltage |
FIA
CIA | Intake Air Temperature |
| FPR | Fuel Pressure |
GPH
LPH | Gallons Per Hour
Liters Per Hour |
| IGN | Ignition Timing |
| LOD | Engine Loading |
| HPR | Horsepower |
Learn to Improve Your Gas Mileage
The US government has put out a report that says driving habits can change fuel-economy by up to 33%. ScanGauge provides real-time data about your vehicle’s instant and average fuel economy, fuel used, cost of fuel used for each trip, cost per mile, gallons per hour and more!
There are many ways to reduce your fuel usage and increase fuel economy. Real time feedback like what the ScanGauge provides is one of the most effective.
Driving More Efficiently With ScanGauge Can Save Up to:
33%
Removing Excess Weight and Drag can save up to:
17%
Simply Observing the Speed Limit can save up to:
14%
Avoiding Excessive Idling can save up to:
2%
Real-Time Fuel Economy Gauges
- Instant Fuel Economy
- Average Fuel Economy
- Gallons/Liters per Hour
- Cost per Mile
- Trip Fuel Cost
Exclusive Programmable Gauge System
The ScanGaugeII features the exclusive X-GAUGE™ programmable gauge system; you can monitor parameters such as transmission temperature, trip data and fuel economy information. X-Gauge™ gives you the ability to customize your ScanGaugeII by adding additional vehicle specific digital gauges.
Automatic Trip Computers
With five built-in trip computers, the ScanGauge can keep track of everything from fuel cost to distance traveled and everything in between. Data is stored on the ScanGauge and is retained even when the power is disconnected. Each trip computer starts automatically and information is available anytime during the trip.
Time & Distance Trip Computers
The ScanGauge includes three trip computers based on time and distance. They include the Current Trip, Today Trip and Previous Day Trip. Each trip computer starts automatically and tracks the following parameters:
- MPG
- Fuel Used
- Max Coolant Temperature
- Miles Driven
- Max RPM
- Hours Driven
- Max MPH
- Average MPH
- Fuel Cost
Fuel & Tank Trip Computers
The ScanGauge includes two trip computers based on the current tank of fuel. They include the Current Tank and Tank to Empty. Each trip computer starts automatically when you tell ScanGauge you have filled your tank.
- MPG for current tank
- Fuel Used on current tank
- Tank to Empty
- Distance Driven
- Distance Until Empty
- Hours driven on current tank
- Hours to Empty
- Average Speed
- Fuel Used Cost
Performance Monitor
The ScanGaugeII features the all-new Performance Monitor™ for real-time performance measurements. The Performance Monitor gives you the ability to track your vehicle’s performance over short periods of time, distance and acceleration.
Monitor various aspects of your vehicle’s performance such as:
- Track your quarter-mile times and speeds at the track.
- Determine your vehicle’s 0-60 time.
- Measure your vehicle’s braking performance.
- Save and Recall performance runs.
- Monitor specific Digital Gauges.
- and much more…
| Available Performance Data Parameters |
|---|
| Parameters | Description |
| Time | The amount of elapsed time at each data point from the beginning of the Performance Run to the end of the run |
| Speed | The speed of the vehicle at each data point |
| Distance | The total distance traveled at data point |
| Monitored Gauge | Use the Monitor Function to select a built-in digital gauge to monitor. Data will be recorded for the selected gauge. |
Performance Monitor Home
Provides access to all the Performance Monitor Features
Arming the Performance Monitor
Arm the ScanGaugeII Performance Monitor just before you’re ready to record your run. The ScanGaugeII will automatically start recording when it detects change in speed.
Performance Recording Screen
Once the ScanGauge begins recording, it will display your time and speed in real-time. You can stop the recording at any time by pressing the STOP button
Performance Data Screen
You can step through the recorded data. ScanGaugeII can store up to 10 individual runs.
Turn off That Check Engine Light!
The ScanGaugeII can check for Diagnostic Trouble Codes (DTCs) and if found, can display how many there are and the Trouble Codes themselves. Using the internet or repair manuals, these can be translated to the failed component and repairs can be made.
Clear Trouble Codes
Data captured when the Trouble Code was set can be recalled to help troubleshoot the problems (was the temperature hot or cold, speed high or low, etc.). The ScanGauge II can be used to clear the trouble codes and data which will turn off the warning lamp.
Is Your Vehicle Ready for Emissions Testing?
Some states now require that before running emissions checks, the vehicle self-tests have to be completed and cleared. The ScanGaugeII reports this “Readinessâ€ÂÂÂ.
Read & Clear Pending Trouble Codes
If no codes are found and your Check Engine light is still on, your vehicle may be storing pending codes. The ScanGaugeII provides a method to force clear any detected or undetected Trouble Codes with just a few button pushes.
