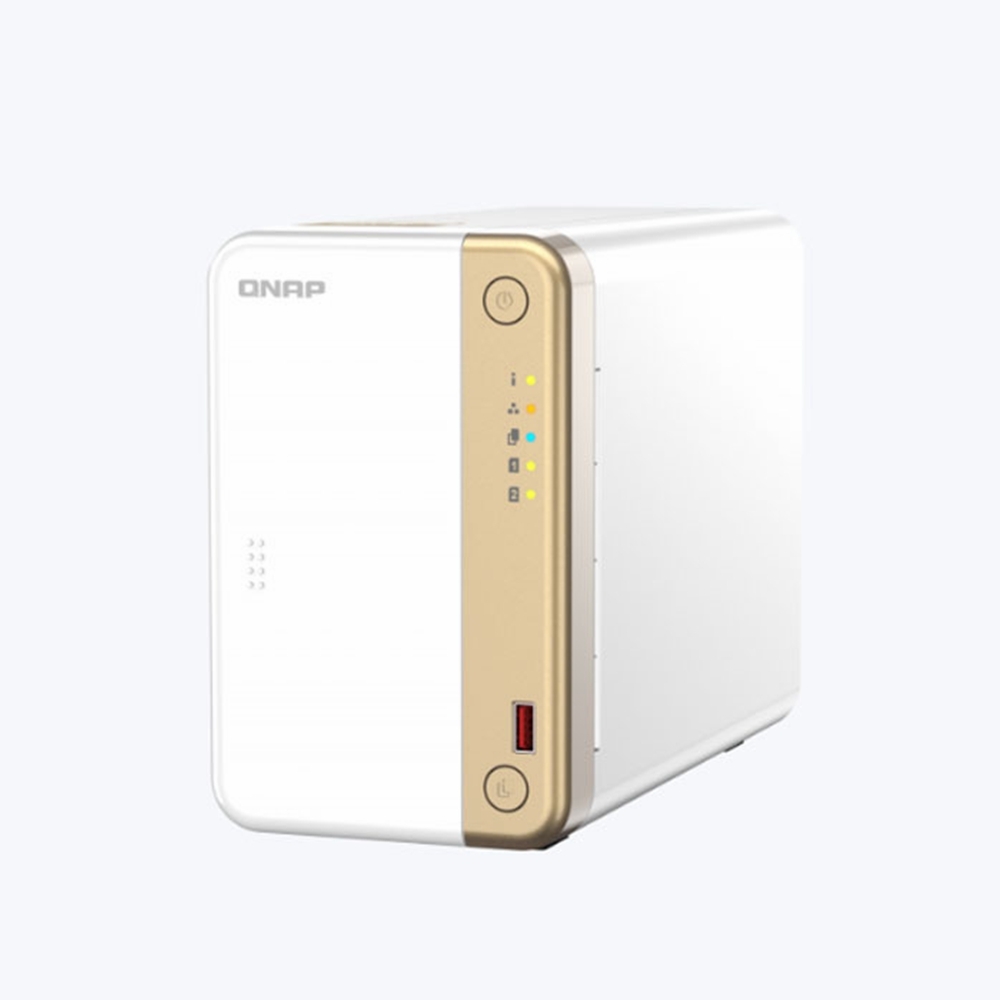

QNAP TS-262 Multimedia NAS

QNAP TS-262 2 Bay Multimedia NAS Intel Celeron N4505 Dual Core 2.9GHz 4GB 2.5Gbe 2x 3.5/2.5" SATA 2x M.2 2280 Nvme Expansion

A fast and vast private cloud storage with a range of multimedia and file management applications, the TS-262 is ideal for home users to maximize their digital lifestyle. Files, data and multimedia saved on the TS-262 can be accessed from all your connected devices, including phones, computers and smart TVs. A 2.5GbE port and HDMI™ 2.1 port come as standard, allowing you to enjoy lag-free multimedia streaming throughout your home and directly on your TV. The TS-262 can be geared up to fit future needs, supporting two M.2 PCIe slots for Qtier auto-tiering storage technology, and can be easily expanded to fit growing data needs. The TS-262 also supports Edge TPU, allowing you to easily organize your photos based on facial and object recognition with the QuMagie app.

Features:

• 2.5GbE port
  Immediately multiply your network speed by 2.5 times while using existing CAT5e cables.
• Dual M.2 PCIe slots
  Attain greater NAS performance by installing M.2 2280 NVMe PCIe SSDs (sold separately).
• HDMI™ port
  4K media playback and real-time transcoding; directly watch videos using HDMI™ 2.1 (4K @60Hz) output.
• PCIe slot
  Install a PCIe Gen3 x2 card to expand the core functionality of the TS-262, including a Multi-Gig 10GbE/5GbE network card, a USB 3.2 Gen 2 (10Gbps) card, or a Wi-Fi 6 network card.
• AI-powered image recognition
  Supports Edge TPU (optional purchase) for supercharged AI-powered image recognition.
• Expand storage capacity
  Flexibly scale your total storage capacity by connecting USB expansion enclosures (please see the compatibility list).

Specifications:

• CPU: Intel® Celeron® N4505 2-core/2-thread processor, burst up to 2.9 GHz
• CPU Architecture: 64-bit x86
• Graphic Processors: Intel® UHD Graphics
• Floating Point Unit: Yes
• Encryption Engine: Yes (AES-NI)
• Hardware-accelerated Transcoding: Yes
• System Memory: 4 GB RAM
• Maximum Memory:  4 GB
• Flash Memory: 4GB (Dual boot OS protection)
• Drive Bay: 2 x 3.5-inch SATA 6Gb/s
• Drive Compatibility
  3.5-inch SATA hard disk drives
  2.5-inch SATA solid state drives
• Hot-swappable: Yes
• 2.5 Gigabit Ethernet Port (2.5G/1G/100M): 1 (2.5G/1G/100M/10M)
• 5 Gigabit Ethernet Port (5G/2.5G/1G/100M): Optional via PCIe expansion card
• 10 Gigabit Ethernet Port: Optional via PCIe expansion card
• Wake on LAN (WOL): Yes
• Jumbo Frame: Yes
• PCIe Slot: 1
  Slot 1: PCIe Gen 3 x2
  Card dimensions for PCIe slot：190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches.
• USB 2.0 port: 2
• USB 3.2 Gen 2 (10Gbps) Port: 2 x Type-A
• IR Sensor: (Optional QNAP RM-IR004 remote control)
• HDMI™ Output: 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz)
• Form Factor: Tower
• LED Indicators: Power/Status, LAN, USB, HDD1-2
• Buttons: Power, USB copy, Reset
• Dimensions (HxWxD): 165 × 105 × 226.5 mm
  Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
• Weight (Net): 2.61 kg
• Weight (Gross): 2.61 kg
• Operating Temperature:  0 - 40 °C (32°F - 104°F)
• Storage Temperature: -20 - 70°C (-4°F - 158°F)
• Relative Humidity:  5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
• Power Supply Unit: 60W adapter, 100-240V
• Power Consumption: HDD Sleep Mode    8.198 W
• Power Consumption: Operating Mode, Typical    12.448 W
  Tested with drives fully populated.
• Fan: 1 x 70mm, 12VDC
• System Warning: Buzzer
• Kensington Security Slot: Yes
• Max. Number of Concurrent Connections (CIFS) - with Max. Memory: 1500
