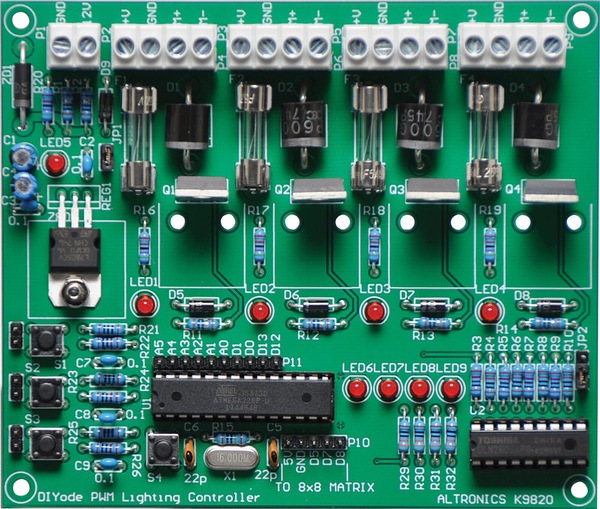

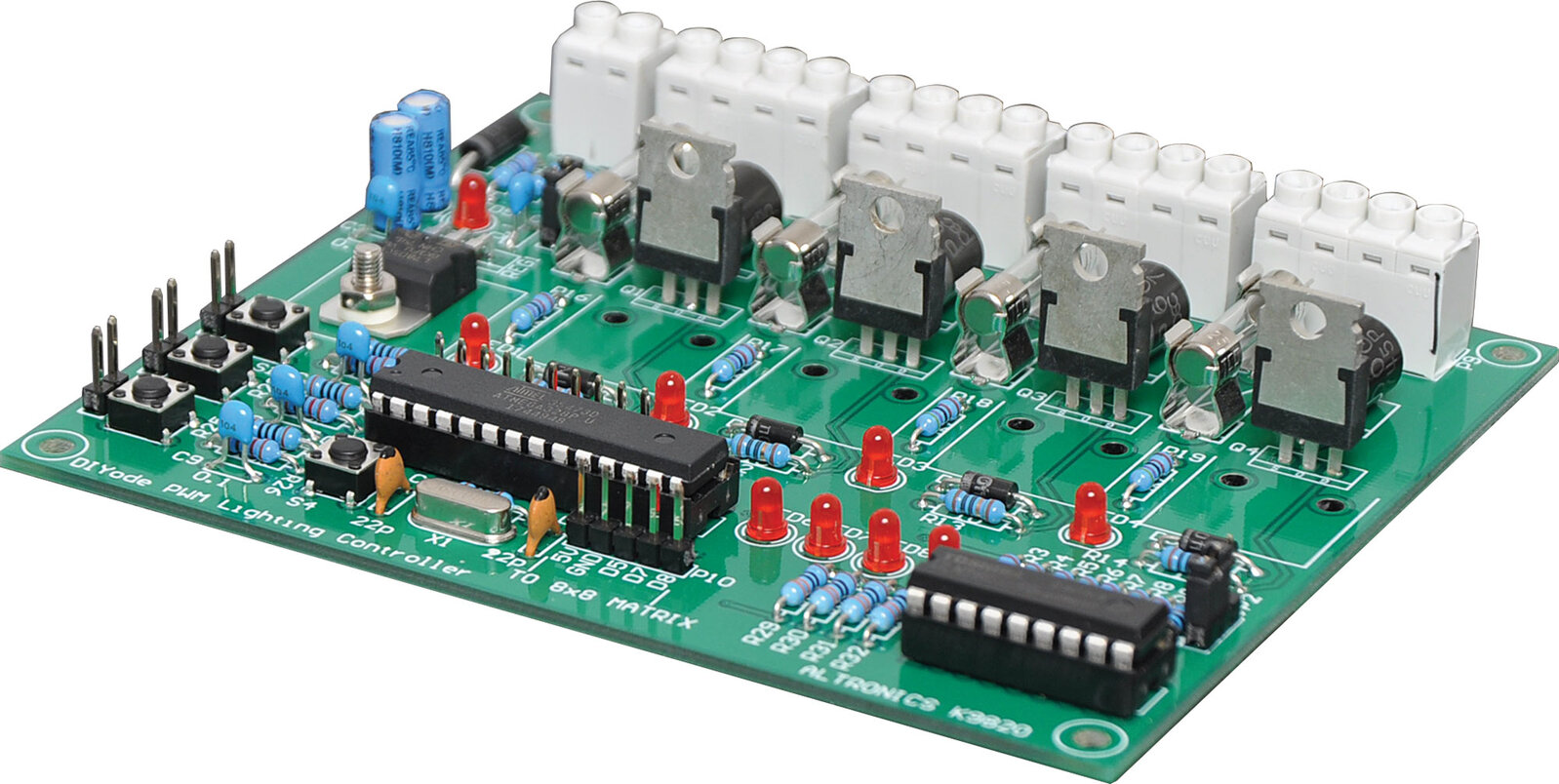

PWM DC Lighting Controller Kit On-Board ATmega328p Easy Open Source Programming

• (DIYODE Sept ‘18) Provides four 5A channels of DC powered lighting such as LED strips and lamps.
• Each channel is independently powered and protected allowing for a very compact and easy to wire design.
• Utilises an ATmega328p controller (on board) to provide smooth adjustment to brightness levels.
• Buttons provide channel selection and up/down brightness control.

Features

• 4 channels of lighting control rated to max 5A each.
• 3 button control for brightness and channel selection.
• On-board atmega328p for easy open source programming.
• Control brightness of LED strip lighting for better control of room ambience.

Important Note For Kit Buyers:

• This product is supplied in component form and requires soldering, drilling, and assembly.
• We recommend users are familiar with at least basic electronic principles and have the ability to solder.

warranty

• We offer 12 months warranty on this product from its date of purchase.
