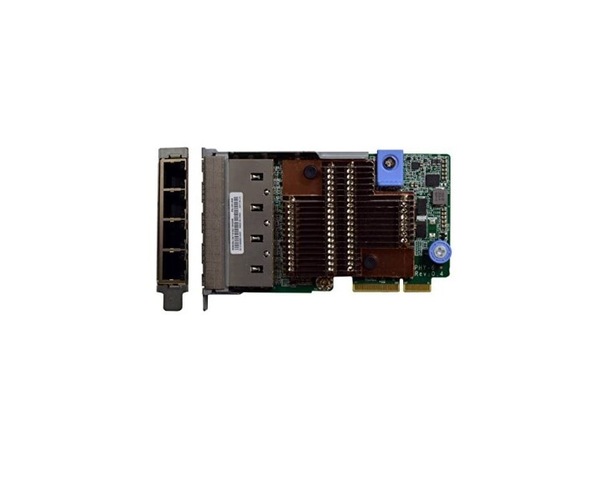

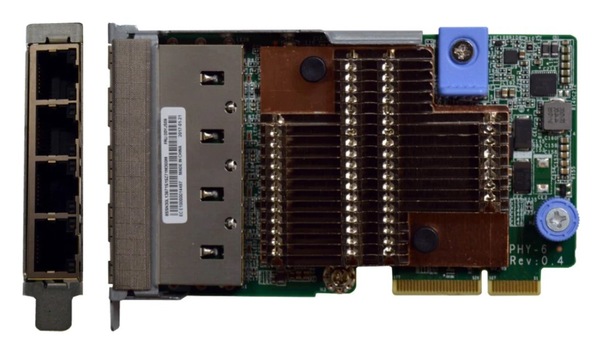

LENOVO ThinkSystem 1Gb 4-port RJ45 Gigabit Ethernet LOM for SR630/SR650 Rackmount Servers

'The ThinkSystem 1Gb 4-port RJ45 LOM is based on the Intel Ethernet Connection X722 and has the following specifications:

• Adapter connectors: RJ45 connectors
• Host interface:
  • PCI Power Management/ACPI Extensions
  • TLP Processing Hint (TPH) Support
  • MSI-X Support - up to 1168 MSI-X vectors
• Management features:
  • Advanced filtering capabilities (IPv4, IPv6)
  • SNMP
  • RMON statistic counters
  • Wake on LAN support (first port only)
  • NC-SI for XClarity Controller (XCC) shared management port connectivity only through port 1
  • Intel PROSet Utility for easy configuration and management
• Additional features:
  • IPv4 and IPv6 support
  • Jumbo Frame Support: 9728 bytes
  • VLAN support
  • Flow Control
  • 1588 Time Synchronization Support
  • Data Plane Development Kit (DPDK) support

For additional information including virtualisation and teaming features, please refer to the Product Guide using the link below.
