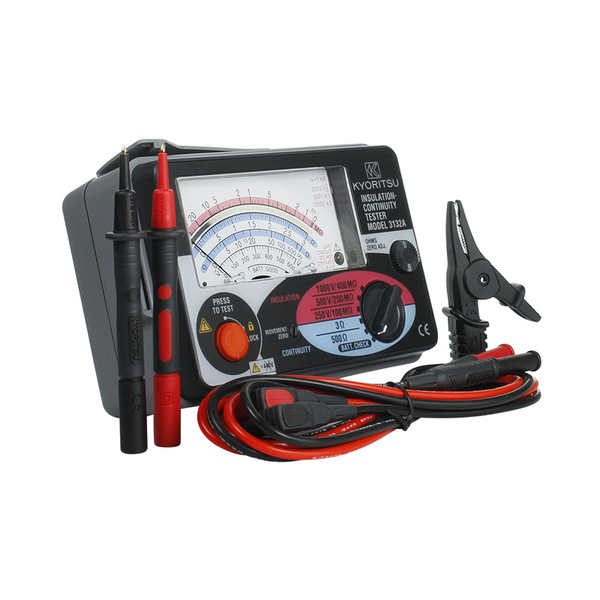

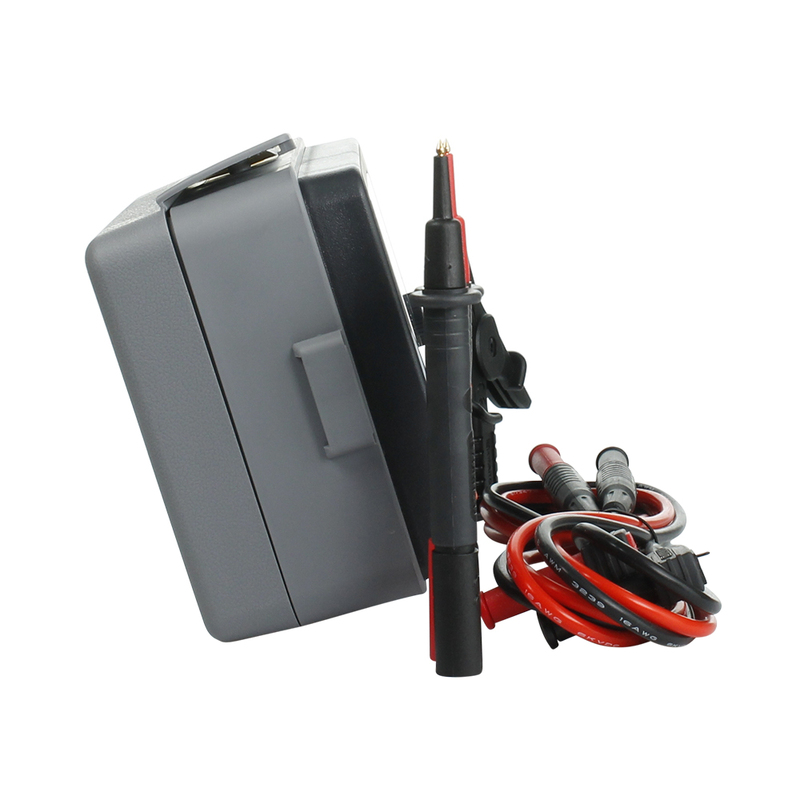

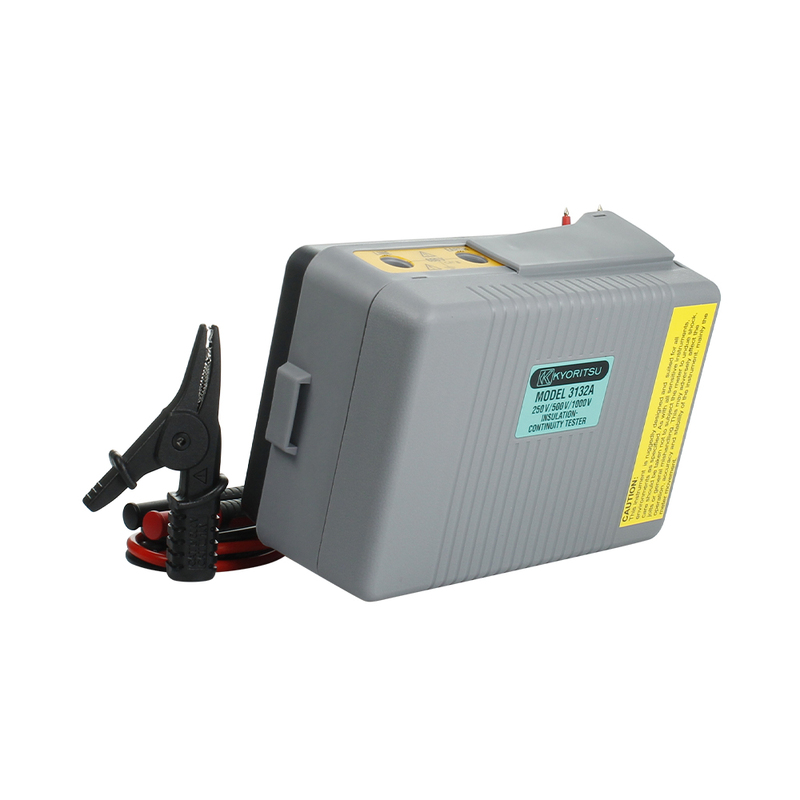

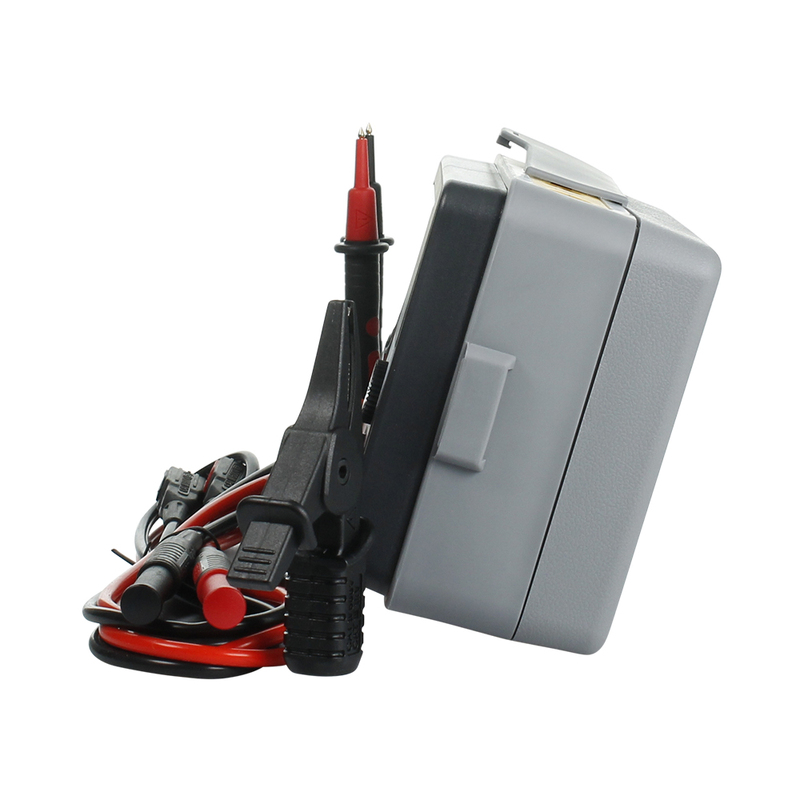

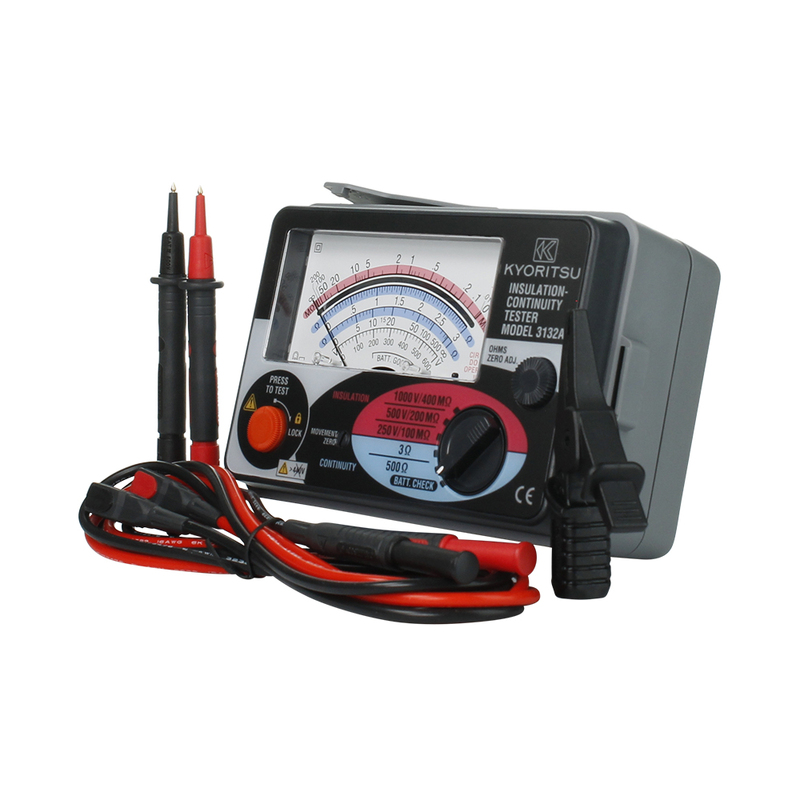

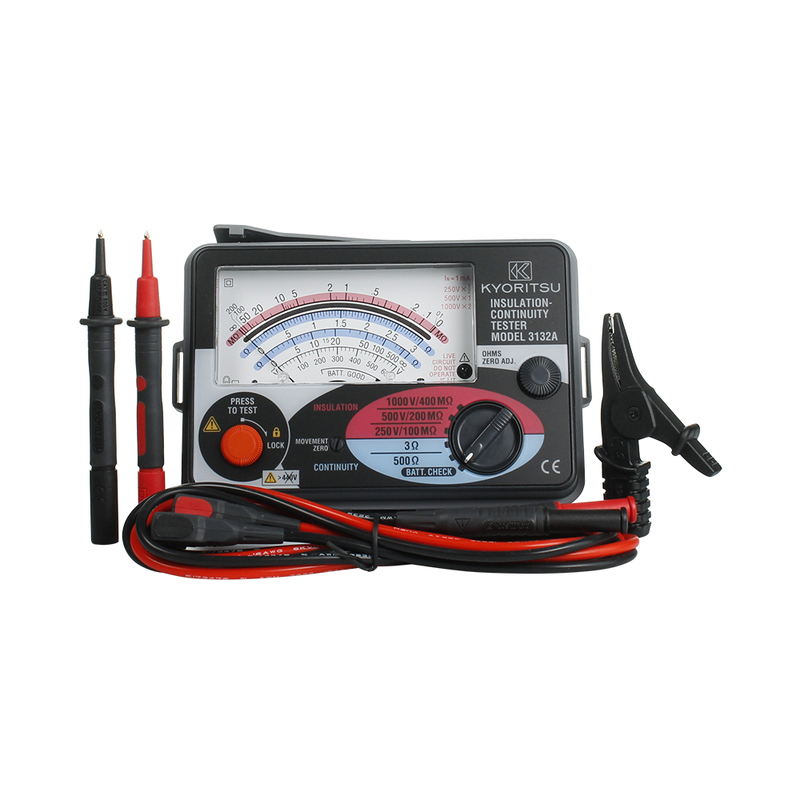

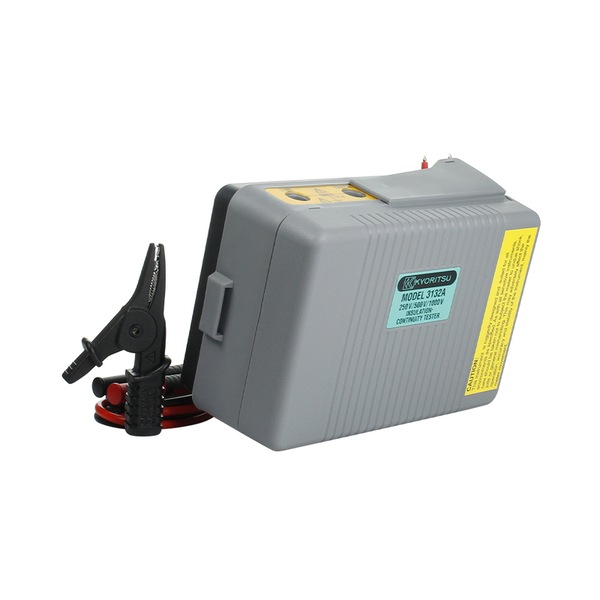

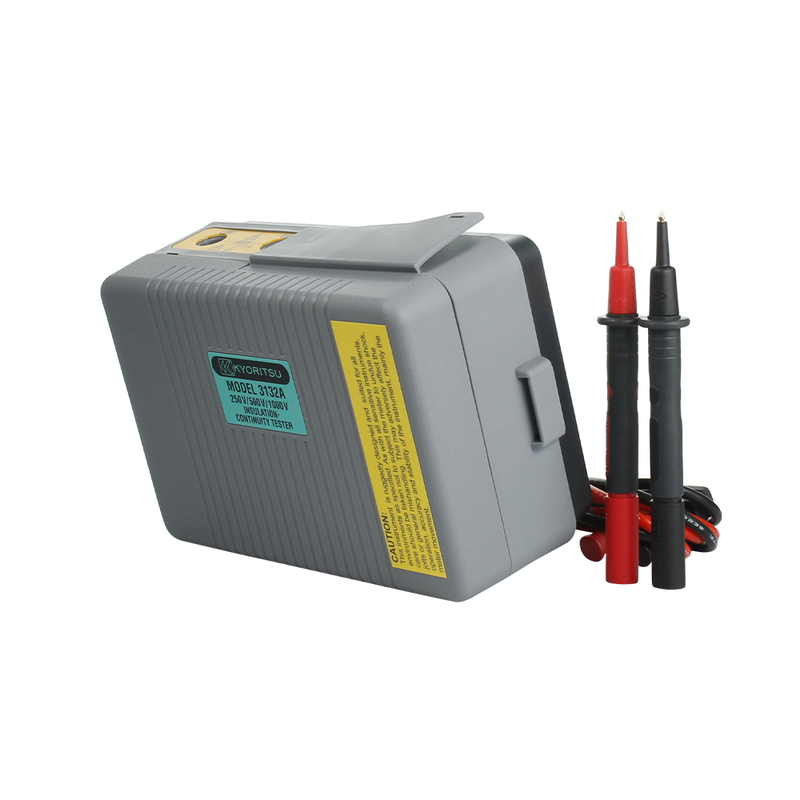

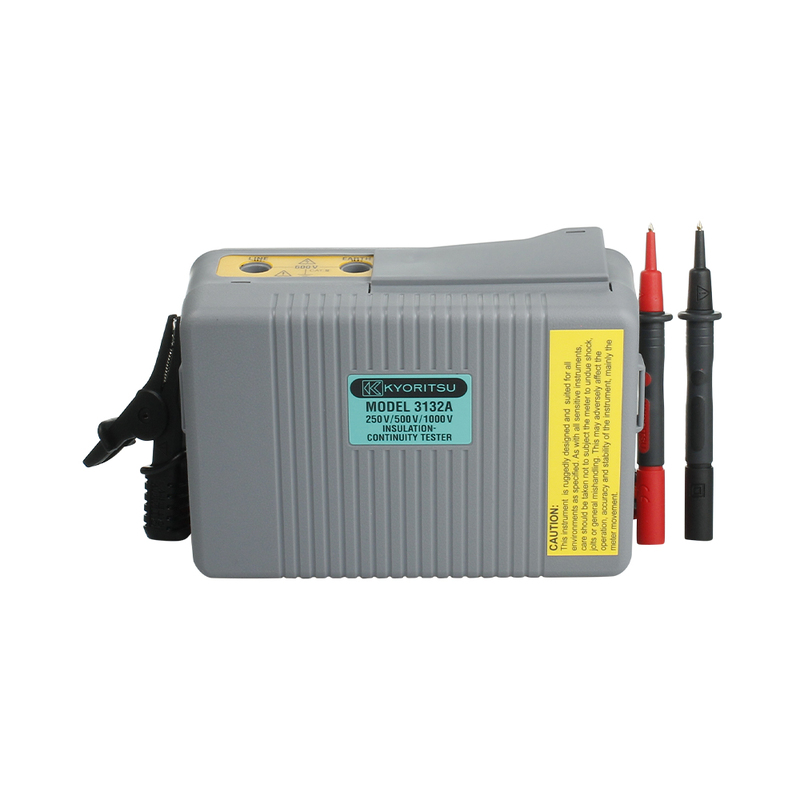

Kyoritsu 3132A Insulation & Continuity Tester | Compact Safety Tool | Kyoritsu Megger

The Kyoritsu Model 3132A is the meter of choice for the professional electrician. It is the gold standard for insulation and continuity testing.

This compact, user-friendly tester is engineered in compliance with IEC61010-1 safety standards, boasting an IP54 rating for exceptional durability in challenging conditions. Its design facilitates a trio of 1000V, 500V and 250V insulation test ranges, a 3 Ω continuity range and an extended 500 Ω resistance range, ensuring comprehensive coverage for various testing needs.

Customers love this meter - read two of over 69 reviews at Sparky Direct (More below):

Emily:
A Reliable Workhorse: Kyoritsu 3132A
"The Kyoritsu 3132A Insulation & Continuity Tester is a fantastic tool. It's easy to use, highly accurate, and versatile. This tester has improved my work efficiency and the quality of my results. I highly recommend it to professionals in the field."

Nathan S:
Good meter.

"A good meter. Reliable, accurate and reasonably priced is all you can ask for. Every electrician should own one of these".

Details:

  • Dust and drip-proof construction. (designed to IEC 60529 IP54)
  • Designed to meet IEC 61010-1 and IEC 61557 safety standards.
  • 1mA rated test current at the minimum resistance.
  • 200mA measuring current on continuity testing
  • Automatic discharge of circuit capacitance.
    (Any charge stored in the circuit under test will be automatically discharged after testing.)
  • Live circuit warning buzzer and neon lamp.
  • Small and lightweight. Shock-resistant new case material.
  • AC voltmeter with linear, easy-to-read scale.
  • Operates on AA, R6 × 6 dry batteries.
  • Often referred to as a "Kyoritsu Megger"
FAQ:

Q: What environments is the Kyoritsu 3132A Tester suitable for?
A: The Kyoritsu 3132A is designed for challenging conditions, with an IP54 rating ensuring dust and drip-proof performance. It's ideal for industrial settings, construction sites, and outdoor use.

Q: How does the Kyoritsu 3132A enhance electrical safety during testing?
A: This tester adheres to stringent IEC safety standards, features an automatic discharge of circuit capacitance post-testing, and includes a live circuit warning system, ensuring maximum safety during operation.

Q: Is the Kyoritsu 3132A Tester easily transported and used in various locations?
A: Absolutely. Its compact, lightweight design and shock-resistant casing make it highly portable and durable for use in different field conditions.

Q: Can the Kyoritsu 3132A perform tests on all types of electrical installations?
A: Yes, the Kyoritsu 3132A offers a range of testing capabilities, including three insulation test ranges and a 3 Ω continuity range, making it versatile for a wide array of electrical installations and appliances.



Specifications:

Insulation Resistance

  • Test voltage:250V/500V/1000V
  • Measuring ranges:100MΩ/200MΩ/400MΩ
  • (Mid-scale value):(1MΩ) (2MΩ) (4MΩ)
  • Output voltage on open circuit: Rated test voltage+20%, -0%
  • Nominal current: 1mA DC min.
  • Output short circuit current:1 - 2mA DC
  • Accuracy: 0.1 - 10MΩ/0.2 - 20MΩ/0.4 - 40MΩ (Accuracy Guaranteed Ranges) ±5% of indicated value

Continuity

  • Measuring ranges: 3Ω/500Ω
  • (Mid-scale value): (1.5Ω) / (20Ω)
  • Output voltage on open circuit: 4.1V DC approx.
  • Measuring current: 210mA DC min.
  • Accuracy: ±1.5% of scale length

AC Voltage

  • AC Voltage: 0 - 600V AC
  • Accuracy: ±5% of scale length

General

  • Safety Standard: IEC 61010-1 CAT III 600V Pollution Degree 2, IEC 61010-2-031, IEC 61557-1/2/4
  • IP Rating: IEC 60529-IP54
  • EMC Standard: IEC 61326-1
  • Power source: R6 (AA) (1.5V) × 6
  • Dimensions: 106(L) × 160(W) × 72(D)mm
  • Weight: 560g approx.
  • Included Accessories: 7122B (Test leads) Pouch for test leads, 8923 (F500mA/600V fuse) × 2, R6 (AA) × 6, 9121 (Shoulder Strap), Instruction Manual

Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

GTIN: 4560187065989
