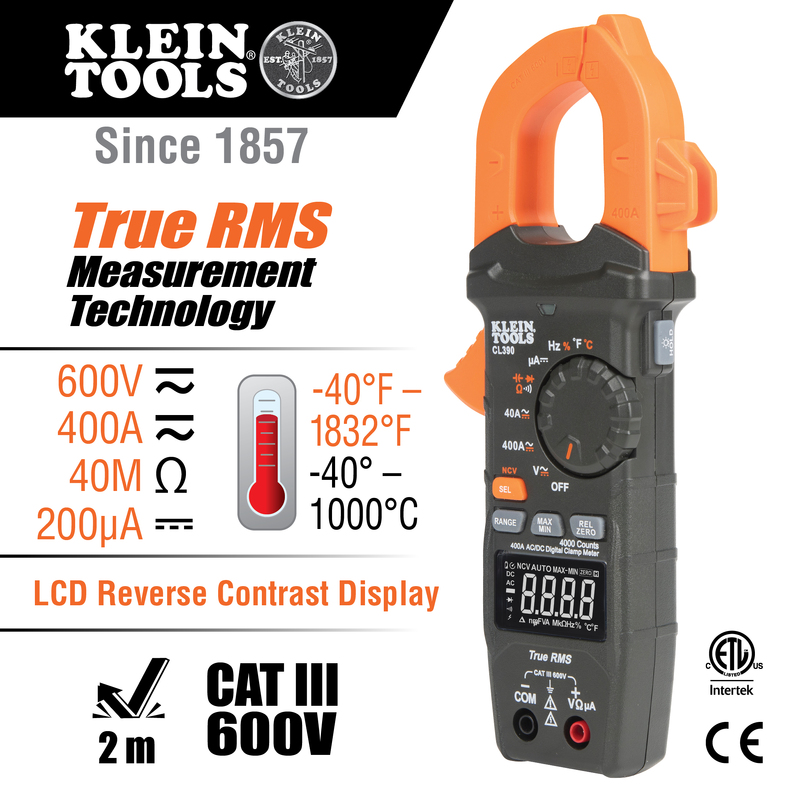

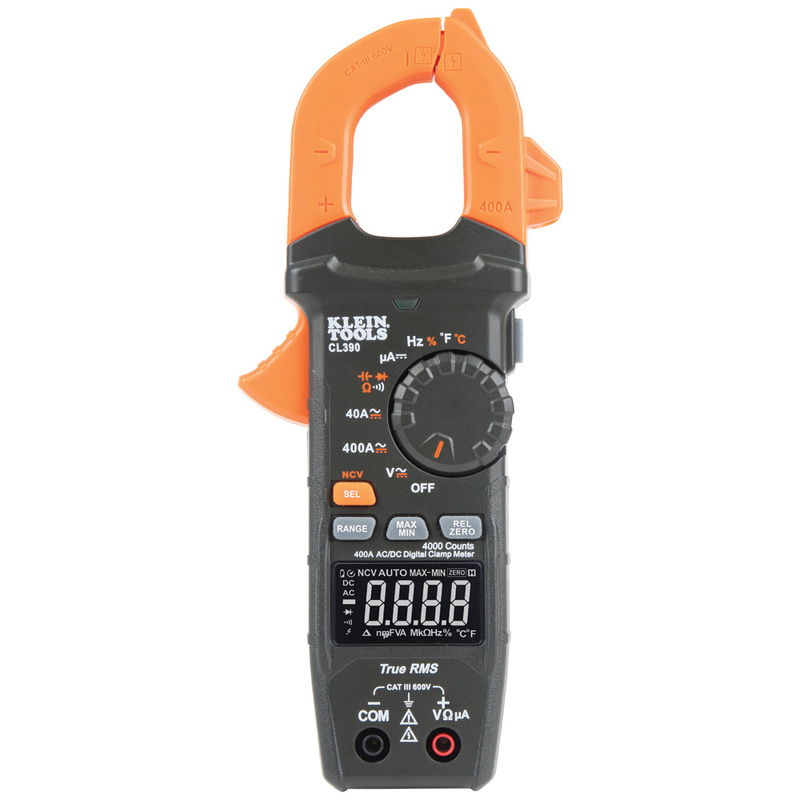

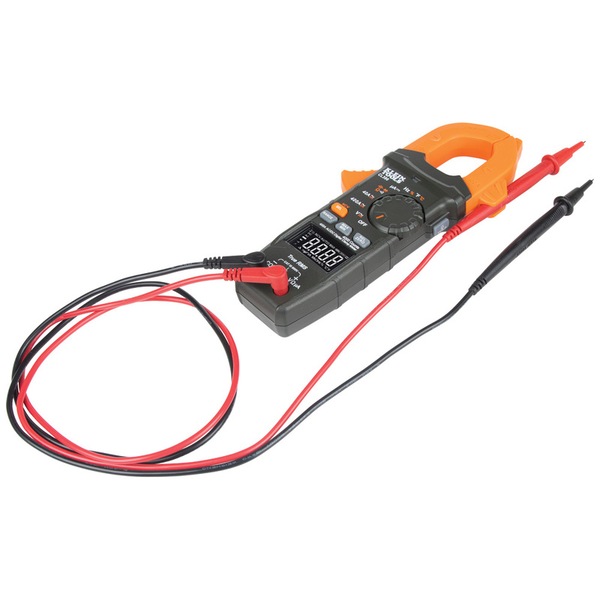

Klein Tools CL390 | AC/DC Digital Clamp Meter 400A Auto-Range

The Klein Tools CL390 is a versatile AC/DC digital clamp meter designed for electricians, offering precise and reliable measurements. Featuring automatically ranging true root mean squared (TRMS) technology, this meter measures AC/DC current and NCVT via the clamp, as well as AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads.

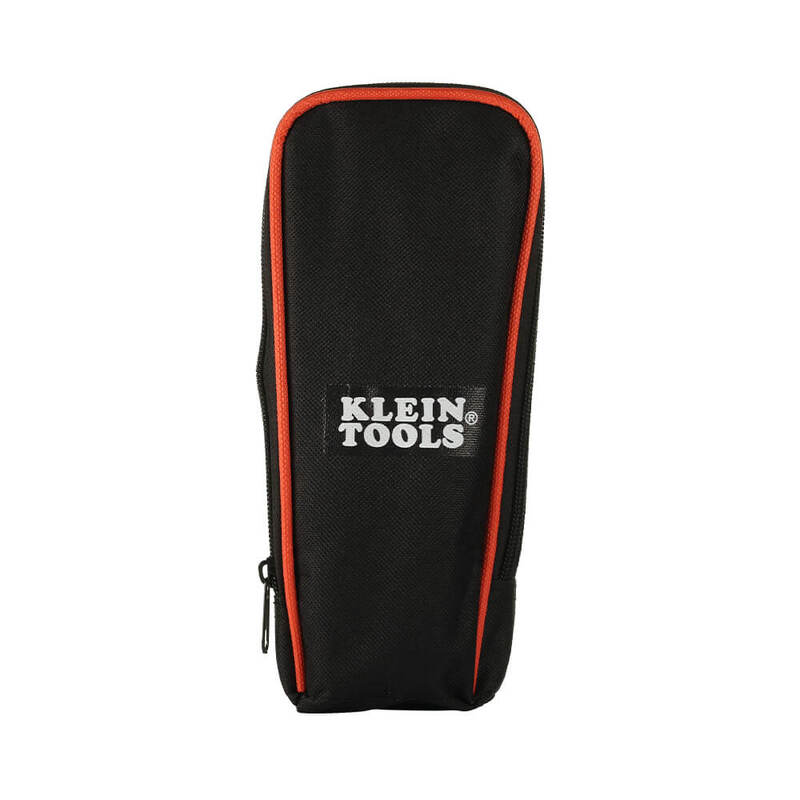

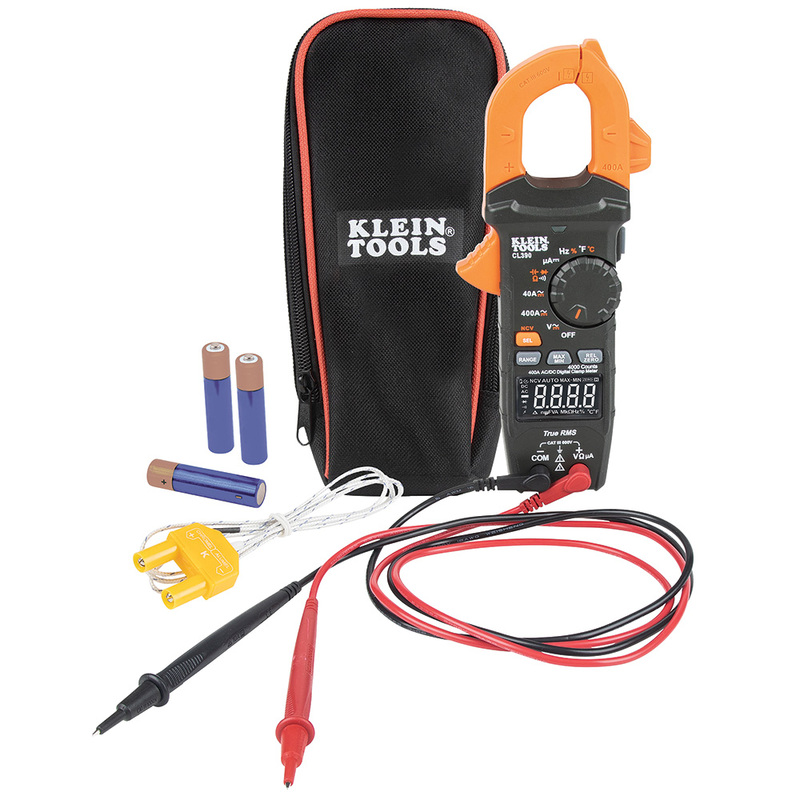

It also measures temperature using a K-type thermocouple probe. The high-visibility reverse contrast LCD display ensures clear readings in all lighting conditions. Built to withstand a 6.6' drop, it includes a carrying case, test leads with safety caps, a thermocouple, instructions, and 3 x AAA batteries.

AC/DC Digital Clamp Meter Features:
  • TRMS Technology: Automatically ranging true root mean squared measurements for accuracy.
  • Comprehensive Measurements: AC/DC current, NCVT, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, diodes, and temperature.
  • High Visibility: Reverse contrast LCD display for clear readings in any lighting.
  • Durable Design: Built to withstand drops up to 6.6 feet (2 meters).
  • Integrated NCVT: Non-contact voltage tester in the clamp jaw for added convenience.
  • User-Friendly: Auto power-off feature to conserve battery life and a low-battery indicator.
  • Safety Rated: CAT III 600 V, Class 2, double insulation, CE certified.
CL390 FAQ:

Q: What types of measurements can the Klein Tools CL390 perform?
A: It measures AC/DC current, NCVT, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, diodes, and temperature.

Q: Does the clamp meter include a non-contact voltage tester?
A: It features an integrated non-contact voltage tester in the clamp jaw.

Q: Is the display easy to read in different lighting conditions?
A: Yes, it has a high-visibility reverse-contrast LCD display that improves readability in both dark and bright environments.

Specifications:

Specification Details
Type AC/DC Current TRMS Clamp
Material ABS/Electronics
Batteries 3 x AAA
Auto Shut Off Yes
Jaw Size 4.1 cm
Drop Protection 2 m
Display 4000 Count Reverse Contrast LCD
Functions TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC Microamps, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test and Temperature
Voltage 600 V AC/DC
Frequency 10 Hz to 60 kHz for 8 V to 220 V AC RMS
Current 400 A AC/DC
Capacitance 4000 µF
Ohms (Resistance) 40 MΩ
AC Voltage 600 V
DC Voltage 600 V
DC Polarity Indicator Yes
DC Microamp 200 µA
Temperature Range -40 °C - 1,000 °C
Standard CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified
Included Clamp Meter; Carrying Case; Instructions; Test Leads; Thermocouple; Batteries
Overall Length 21.5 cm
Overall Height 3.8 cm
Overall Width 8.9 cm
Weight 314 g



Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

GTIN: 092644692871
