5GHz 10dBi Point-to-Point Wireless Bridge, 867 Mbps, Pre-Paired Pack
Ruijie Reyee Series RG-EST310 V2 is an 802.11ac wireless bridge for video surveillance backhaul or remote wireless transmission in scenarios such as elevators, tower cranes, factories, campuses, and construction sites. Operating at 5GHz, RG-EST310 V2 supports two spatial streams (2x2 MIMO technology) and provides up to 867Mbps throughput, which can fully meet the data link bandwidth requirements of various services.

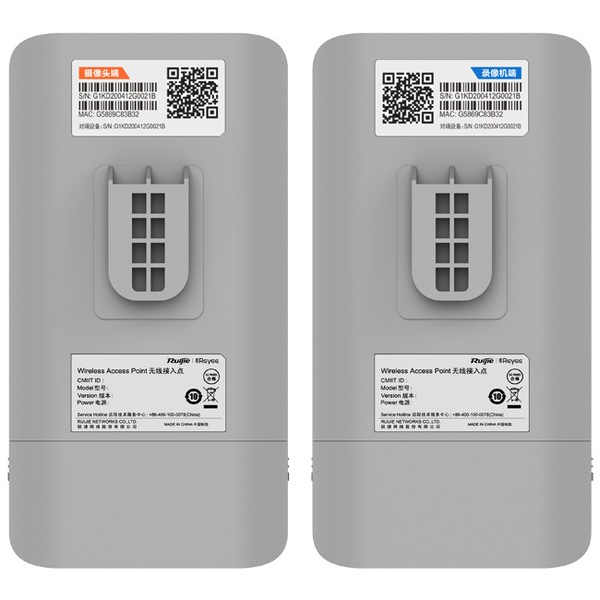

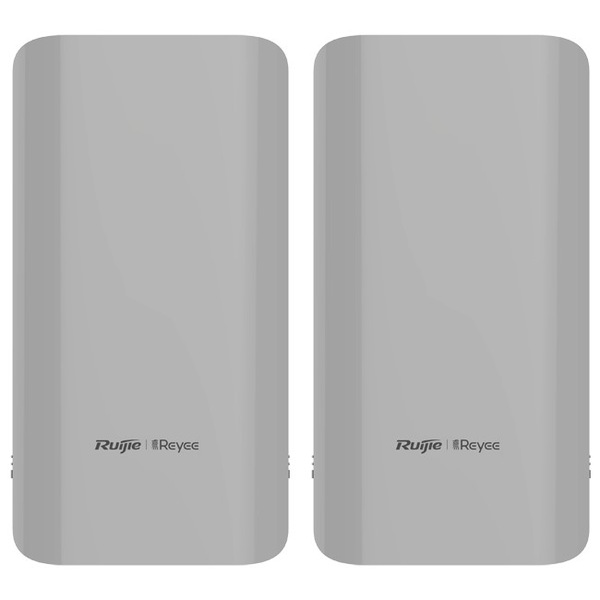

RG-EST310 V2 consists 2 devices, including the recorder-end and camera-end device. They are paired by default and can be deployed without requiring any configurations. When used for video surveillance backhaul, it is recommended to connect a switch or hard disk recorder to the recorder-end and connect a network camera to the camera-end. R
G-EST310 V2 can be managed via the app, including viewing the network topology and modifying configurations, which has completely revolutionized the conventional contact-type bridge configuration method. Bridge maintenance no longer requires working at heights, reducing the difficulty of maintaining bridges to an unprecedented level.

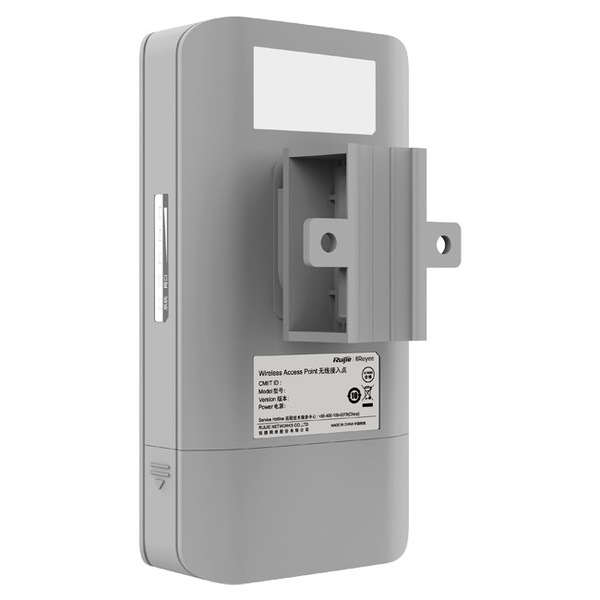

With the four-sided curved edges design, RG-EST310 V2 fully utilizes the compact size and offers an exquisite exterior design. Straps are provided for easy equipment installation. The casing of the device is optimized to deliver better dustproof and waterproof performance, providing IP54 protection. The weather-resistant materials enable the casing to stay robust for a long time under harsh conditions such as exposure to the sun, wind, acid and alkali corrosion. Moreover, the wide temperature range of the industrial materials adopted for the device fully guarantee the reliability and durability of the device under various complex environments such as hot and humid weather, dry and cold weather, sun exposure, rain, strong winds, etc. The device is capable of effectively withstanding the impact of bad weather or harsh environments, offering high stability while significantly reducing construction and installation difficulties.
The device is built-in with wireless product management software. Users can view all wireless bridge information and the topology by logging in to any bridge device.
Highlight:
- 5GHz single-band dual-stream chip.
- 867Mbps wireless transmit rate.
- Paired by default and can be used without requiring any configurations
- One Click Set-Up & Management via the free Ruijie Cloud App.
- Eliminate site visits.
- PTMP Supportted Bridging (ie. 1 recorder, multiple cameras).
- High Durability: IP54 rating provides dust, water and heat protection for outdoor environments.

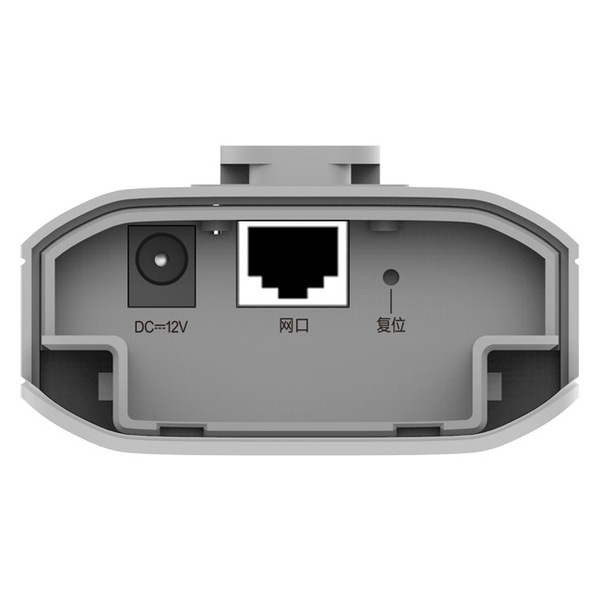

- Power Supply Redundancy Support (12v and/or 24v)
- V-0 Flame-retardant Material
| Model | Antenna angle | Distance
(m) | Signal strength
( dbm ) | Negotiation speed
( Mbps ) | Throughput
( Mbps ) | 3M camera
( 200w | H.265) | 4-5M camera
( 300w | H.265) | 6-7M camera
( 300w | H.265) |
| RG-EST310 V2 | Horizonta 60° Vertical30° Gain10dbi | 100 500 1000 2000 | -52 -65 -68 -75 | 400 400 240 120 | 90 90 80 40 | 16 16 16 6 | 10 10 10 4 | 7 7 7 3 |
Weight: 1.319
