[EAP613] Omada AX1800 Ceiling Mount WiFi 6 Access Point

Image 1
Image 2
Image 3
$131.73

Sold Out

Notify me when this product is back in stock

To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.

Shop More Products
Sold & shipped by Best Deal Computers

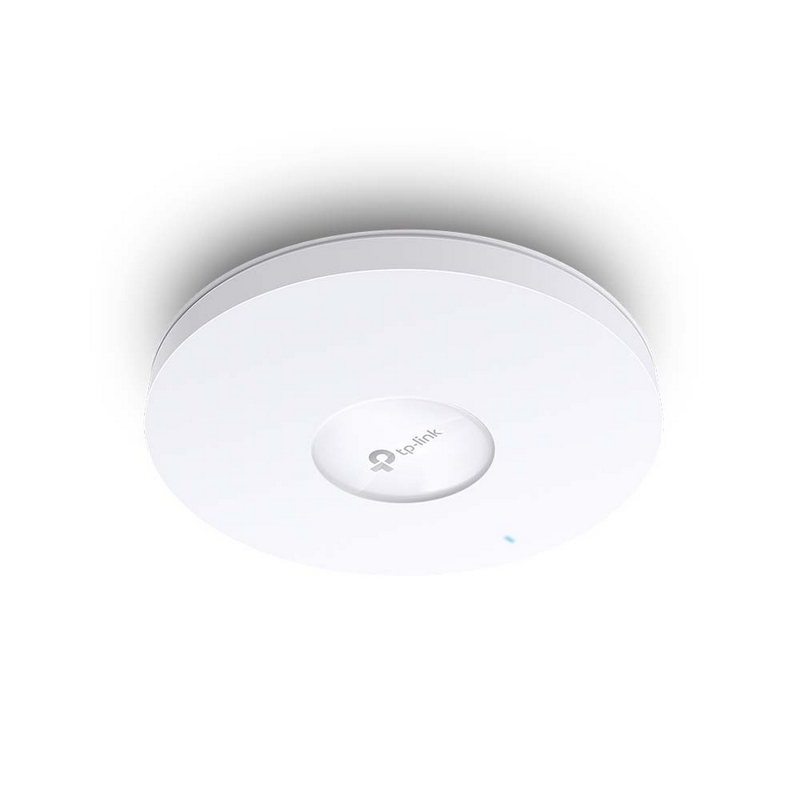

TP-Link EAP613, AX1800 Ceiling Mount WiFi 6 Access Point

Features:
  • Ultra-Fast WiFi 6 Speeds:Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
  • Centralised Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
  • PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations.
  • Ultra-Slim Design: ?160 mm x 33.6 mm elegant design brings more agility.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.§
  • Learn more about Omada Wi-Fi 6>?
  • Learn more about Omada Cloud SDN>?
Specifications:

HARDWARE FEATURES

  • Interface :1x Gigabit Ethernet (RJ-45) Port
  • Button :Reset
  • Power Supply :802.3at PoE
    48 V Passive PoE
    12 V / 1 A DC (Power Adapter IS NOT included)
  • Power Consumption :11.0W (For PoE);
    9.9W (For DC)
  • Dimensions ( W x D x H ) :V2 and above: 6.3 x 6.3 x 1.3 in (160 x 160 x 33.6 mm)
  • Antenna Type :Internal Omni Antenna
    2.4 GHz: 2x 4 dBi
    5 GHz: 2x 5 dBi
  • Mounting :Ceiling /Wall Mounting (Kits included)
    Junction Box Mounting

WIRELESS FEATURES

  • Coverage :115?(1250 ft²)***
  • Wireless Client Capacity :250+**
  • Concurrent Clients :250+**
  • Wireless Standards :IEEE 802.11ax/ac/n/g/b/a
  • Frequency :2.4 GHz and 5 GHz
  • Signal Rate :5 GHz: Up to 1201 Mbps
    2.4 GHz: Up to 574 Mbps
  • Wireless Functions :1024-QAM
    4x Longer OFDM Symbol
    OFDMA
    Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
    Enable/Disable Wireless Radio
    Automatic Channel Assignment
    Transmit Power Control (Adjust Transmit Power on dBm)
    QoS(WMM)
    MU-MIMO
    Seamless Roaming§
    Omada Mesh§
    Band Steering
    Load Balance
    Airtime Fairness
    Beamforming
    Rate Limit
    Reboot Schedule
    Wireless Schedule
    Wireless Statistics based on SSID/AP/Client
  • Wireless Security :Captive Portal Authentication§
    Access Control
    Wireless Mac Address Filtering
    Wireless Isolation Between Clients
    SSID to VLAN Mapping
    Rogue AP Detection
    802.1X Support
    WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
  • Transmission Power :CE:
    <20 dBm(2.4 GHz, EIRP)
    <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)
    FCC:
    <25 dBm (2.4 GHz)
    <25 dBm (5 GHz)

MANAGEMENT

  • Omada App :Yes
  • Centralized Management :Omada Cloud-Based Controller
    Omada Hardware Controller OC300
    Omada Hardware Controller OC200
    Omada Software Controller
  • Cloud Access :Yes, through
    OC300
    OC200
    Omada Software Controller
    Omada Cloud-Based Controller
  • Email Alerts :Yes
  • LED ON/OFF Control :Yes
  • Management MAC Access Control :Yes
  • SNMP :v1, v2c, v3
  • System Logging Local/Remote Syslog :Local/Remote Syslog
  • SSH :Yes
  • Web-based Management :HTTP/HTTPS
  • L3 Management :Yes
  • Multi-site Management :Yes
  • Management VLAN :Yes
  • Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

  • Certification :CE, FCC, RoHS
  • Package Contents :EAP613
    Ceiling/ Wall Mounting Kits
    Installation Guide
  • System Requirements :Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
  • Environment :Operating Temperature: 0-40 ? (32-104 ?)
    Storage Temperature: -40-70 ? (-40-158 ?)
    Operating Humidity: 10-90% RH non-condensing
    Storage Humidity: 5-90% RH non-condensing
