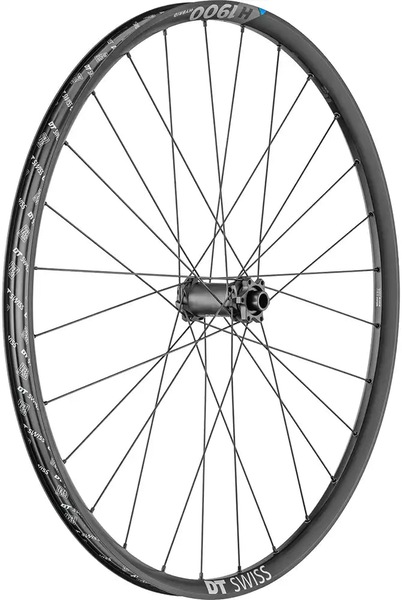

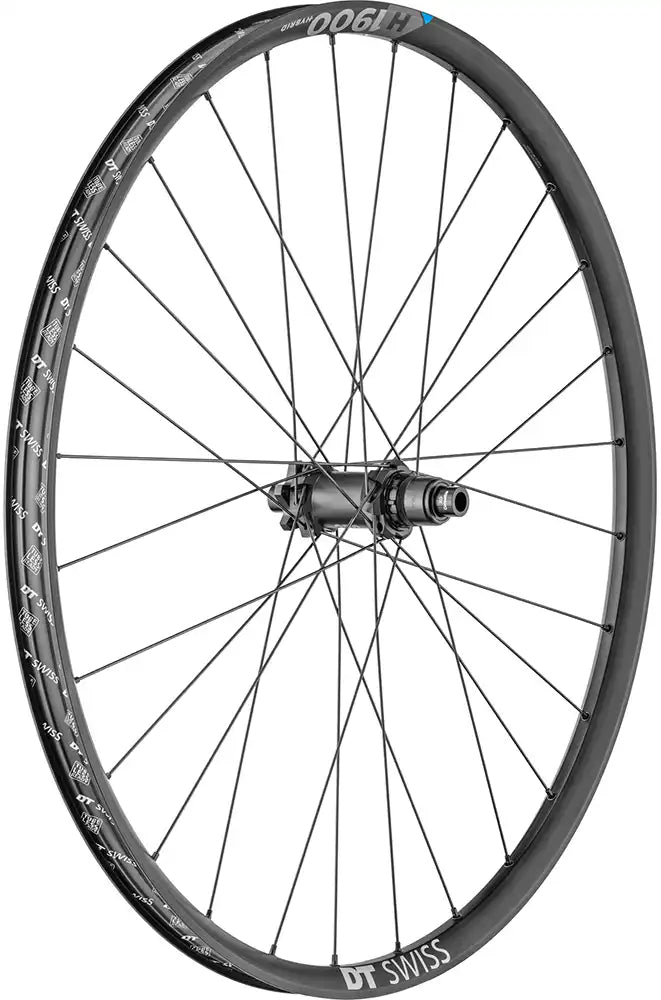

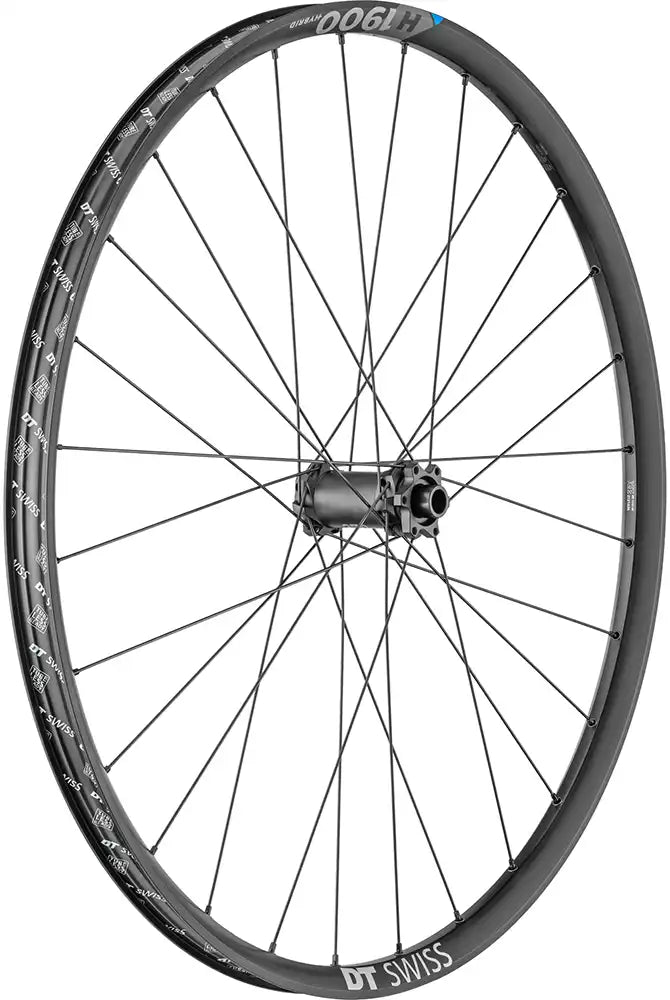

DT Swiss H 1900 Spline 30 Tubeless Disc eMTB Wheel

DT Swiss H 1900 Spline 30 Tubeless Disc eMTB Wheel

Hurry! 12 items left!

Price	From $379.99
	Collect 1137 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Size	Please select an option
Shipping	$14.00 Australia-wide
	See delivery details

Quantity

Add to wishlist

A reliable aluminum wheelset now with Ratchet LN Technology for extended eMTB tours.

When motor assistance and leg power meet, the range of terrain a bike can conquer grows almost exponentially. The H 1900 SPLINE is designed for this, now upgraded with the famous DT Swiss Ratchet technology. The Ratchet LN system distributes the combined forces from the rider and the motor over a larger area than the previous pawl freehub systems, increasing the systems' durability thanks to lower load peaks. The 370 hub enables full power transmission to the ground with reinforced hybrid spokes laced to a resistant aluminum rim, available in two inner widths.

	REAR WHEEL	FRONT WHEEL	REAR WHEEL	FRONT WHEEL
GENERAL
NET WEIGHT	1161g	1026g	1109g	973g
RECOMMENDED SYSTEM WEIGHT MAX	150kg	150kg	150kg	150kg
ASTM CLASSIFICATION	4	4	4	4
RECOMMENDED FOR eBikes	Yes	Yes	Yes	Yes
RIM
MATERIAL	Aluminium	Aluminium	Aluminium	Aluminium
RIM JOIN	Sleeve Joint	Sleeve Joint	Sleeve Joint	Sleeve Joint
TYRE INTERFACE	Hooked / Crotchet tubeless TC	Hooked / Crotchet tubeless TC	Hooked / Crotchet tubeless TC	Hooked / Crotchet tubeless TC
VALVE HOLE	Presta	Presta	Presta	Presta
RIM DIAMETER	29" / 700C	29" / 700C	27.5" / 650B	27.5" / 650B
RIM HEIGHT	20mm	20mm	20mm	20mm
INNER WIDTH	30mm	30mm	30mm	30mm
OUTER WIDTH	35mm	35mm	35mm	35mm
HUB
HUB TYPE	370	370	370	370
AXLE SYSTEM	12 mm Thru Axle	15 mm Thru Axle	12 mm Thru Axle	12 mm Thru Axle
BUILT-IN DIMENTION	148mm Boost	110mm Boost	148mm Boost	110mm Boost
BRAKE INTERFACE	Disc IS (6 Bolt)	Disc IS (6 Bolt)	Disc IS (6 Bolt)	Disc IS (6 Bolt)
CASSETTE INTERFACE	Sram XD	-	Sram XD	-
FREEHUB BODY	SRAM XD Steel (SSRAM)	-	SRAM XD Steel (SSRAM)	-
FREEHUB SYSTEM	Ratchet LN 18	-	Ratchet LN 18	-
SPOKES & NIPPLES
SPOKES LEFT	DT hybrid 1 Straightpull	DT hybrid 1 Straightpull	DT hybrid 1 Straightpull	DT hybrid 1 Straightpull
SPOKES RIGHT	DT hybrid 1 Straightpull	DT hybrid 1 Straightpull	DT hybrid 1 Straightpull	DT hybrid 1 Straightpull
SPOKE PATTERN	Three-cross (1:1)	Three-cross (1:1)	Three-cross (1:1)	Three-cross (1:1)
NIPPLES	DT ProLock Squorx ProHead alu	DT ProLock Squorx ProHead alu	DT ProLock Squorx ProHead alu	DT ProLock Squorx ProHead alu
INCLUSIVE
	Tubeless tape 32 mm	Tubeless tape 32 mm	Tubeless tape 32 mm	Tubeless tape 32 mm
	Tubeless valve MTB 32 mm	Tubeless valve MTB 32 mm	Tubeless valve MTB 32 mm	Tubeless valve MTB 32 mm
