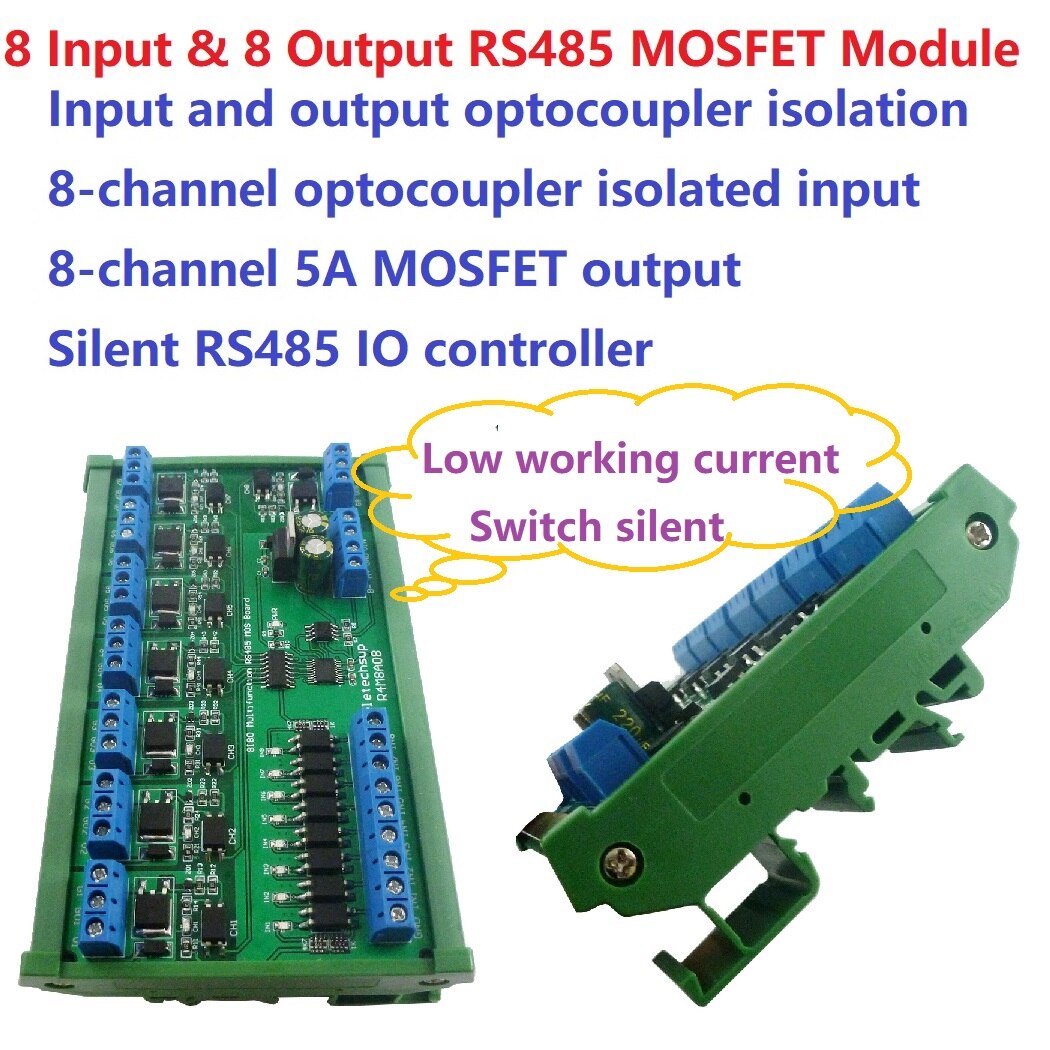

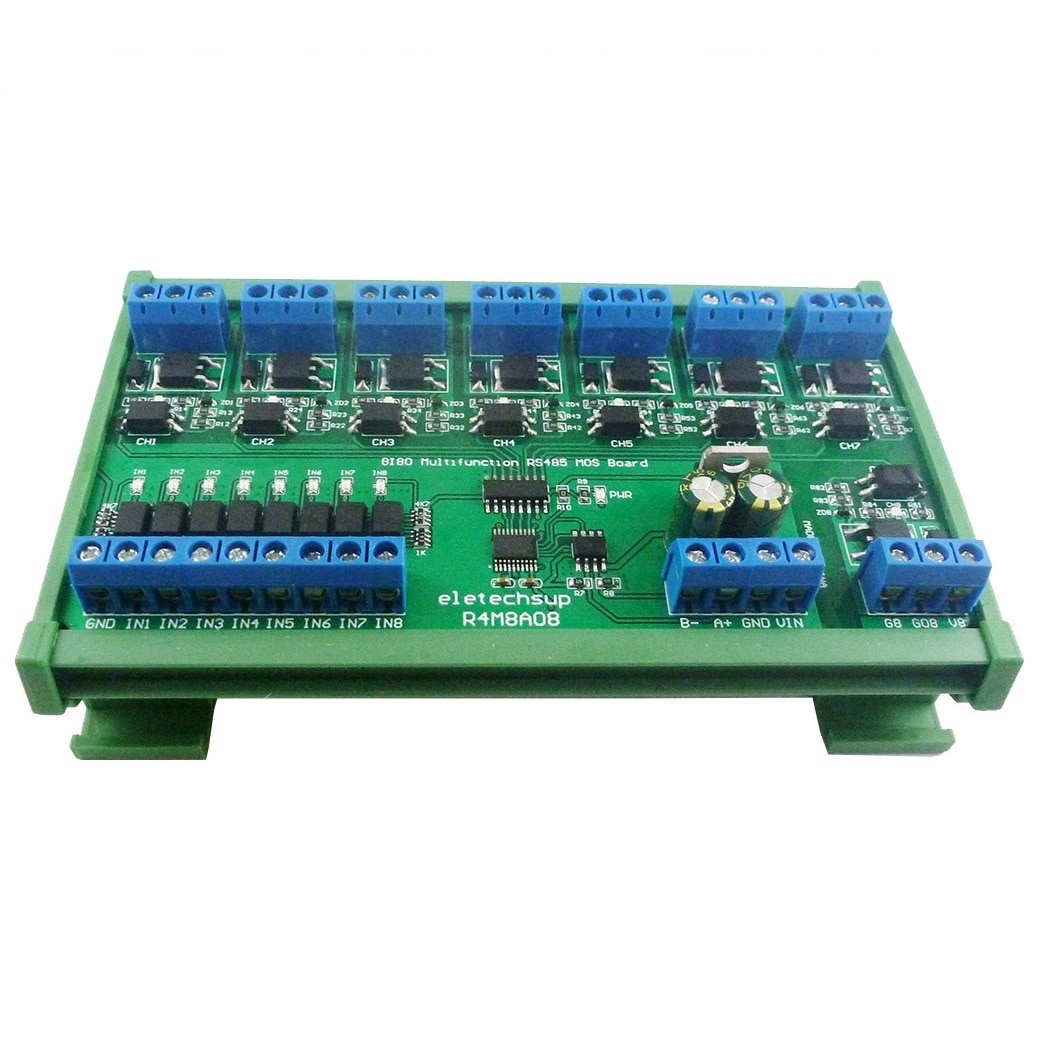

DC 12V 24V 8 Isolated IO DIN35 C45 Rail Box UART RS485 MOSFET Module

DC 12V 24V 8 Isolated IO DIN35 C45 Rail Box UART RS485 MOSFET Module

Price	$54.08
	Collect 54 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:

1: Working voltage: DC12V (Range 6-25V)
2: Working current: 8-10MA(12V)
3 8 photoelectric isolation Input ports (NPN low level active ), the input and output relationship can be set to associated (default) and non-associated through commands.
4: 8 photoelectric isolated output ports,''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
5: MODBUS RTU command, Support 03 06 16 function code
6: Under the ''Delay'' command ,the maximum delay is 255 seconds;
7 MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;

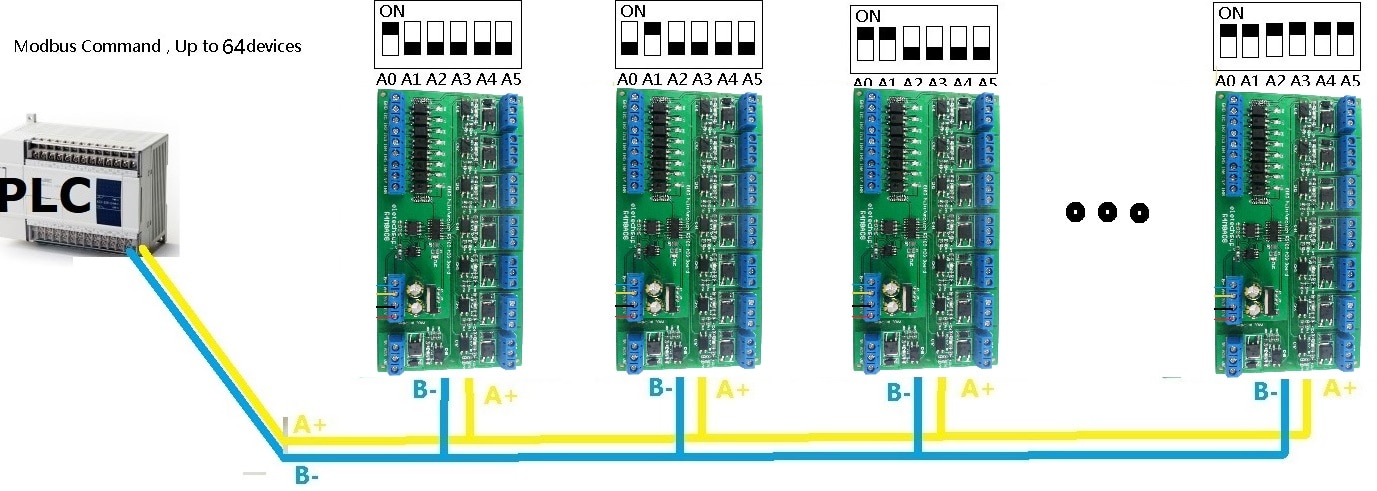

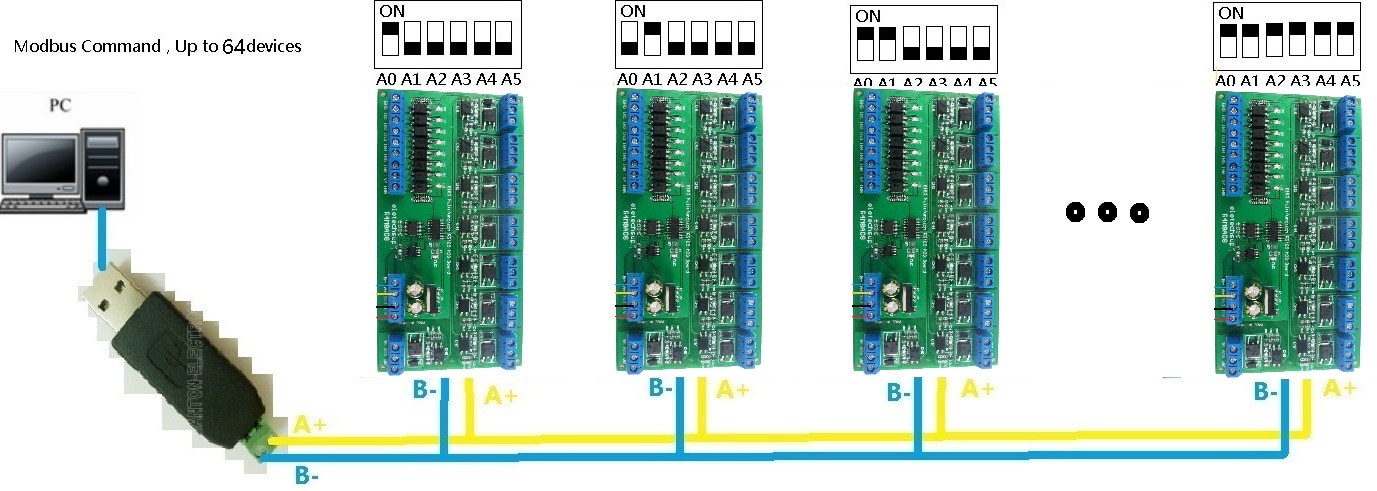

8 Under the MODBUS command mode, it can support up to 64 devices in parallel
9 The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS
10 Size: 140 * 88* 40mm(with Din Rail Box)
11 Weight:175g(with Din Rail Box)
12 MOSFET load: 3.5-5V is 2A; 5-9V is 4A; 9-30V is 5A

V1(V2-V8): Load input positive
GO1 (GO2-GO8): load output negative
G1 (G2-G8): load input negative

Note: The output indicator(CH1/2...8 LEDs) is only valid when there is load power

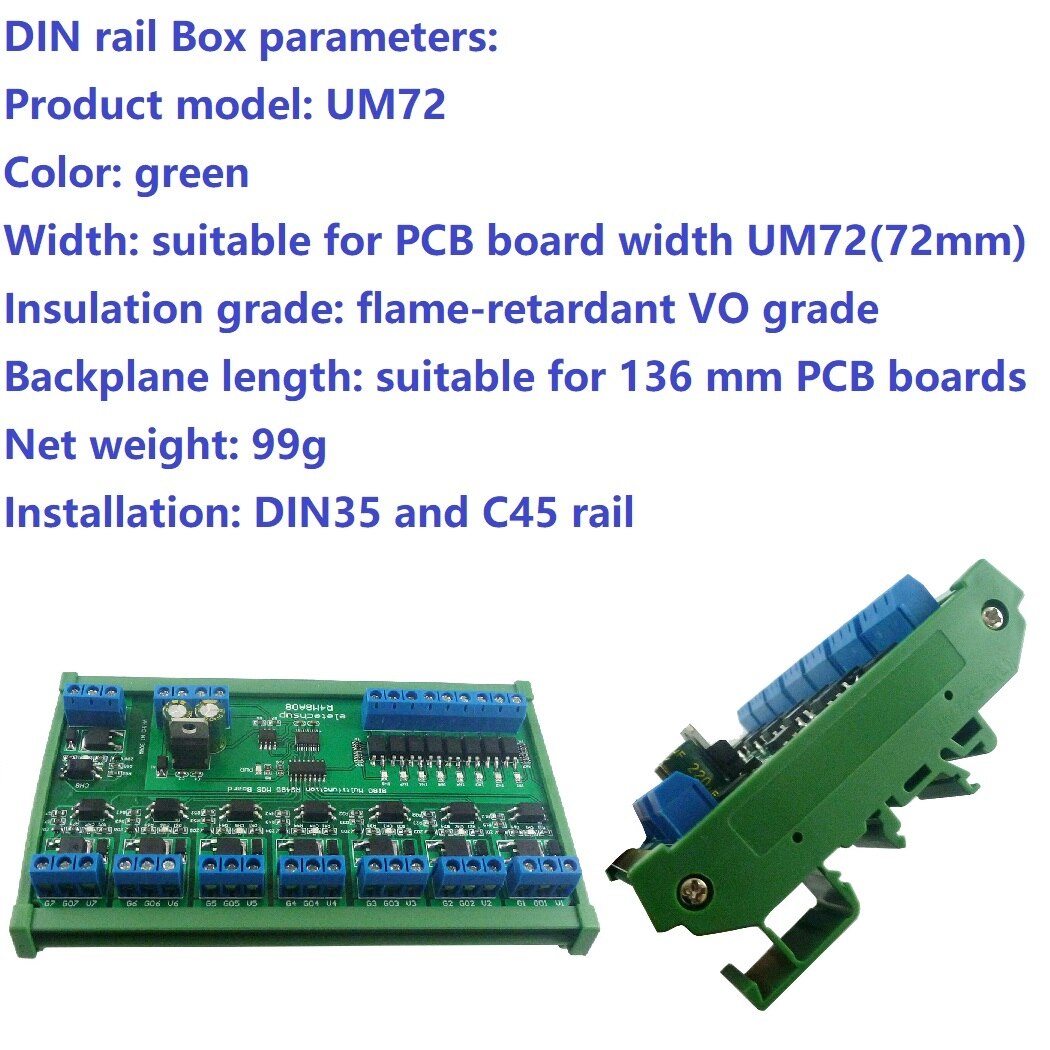

DIN rail Box parameters:
Product model: UM72
Color: green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 136 mm PCB boards
Net weight: 99g
Installation: DIN35 and C45 rail

Application
PLC IO expansion board
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
Motor FW & BW
Automatic curtain control

Package inlcuded:1PCS DC 6-25V 8 Input & 8 Output RS485 MOSFET Module

GTIN: 774048924429
