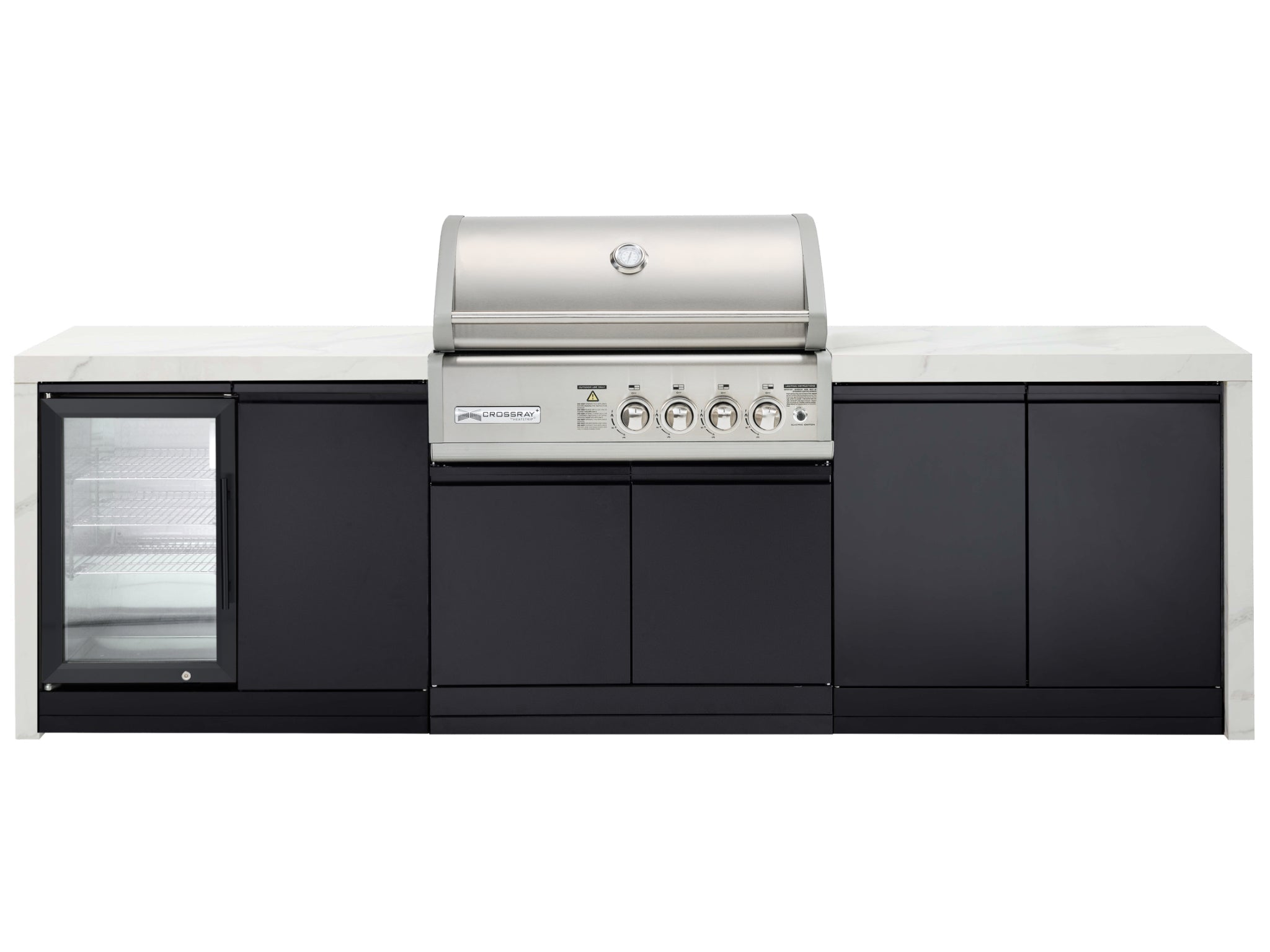

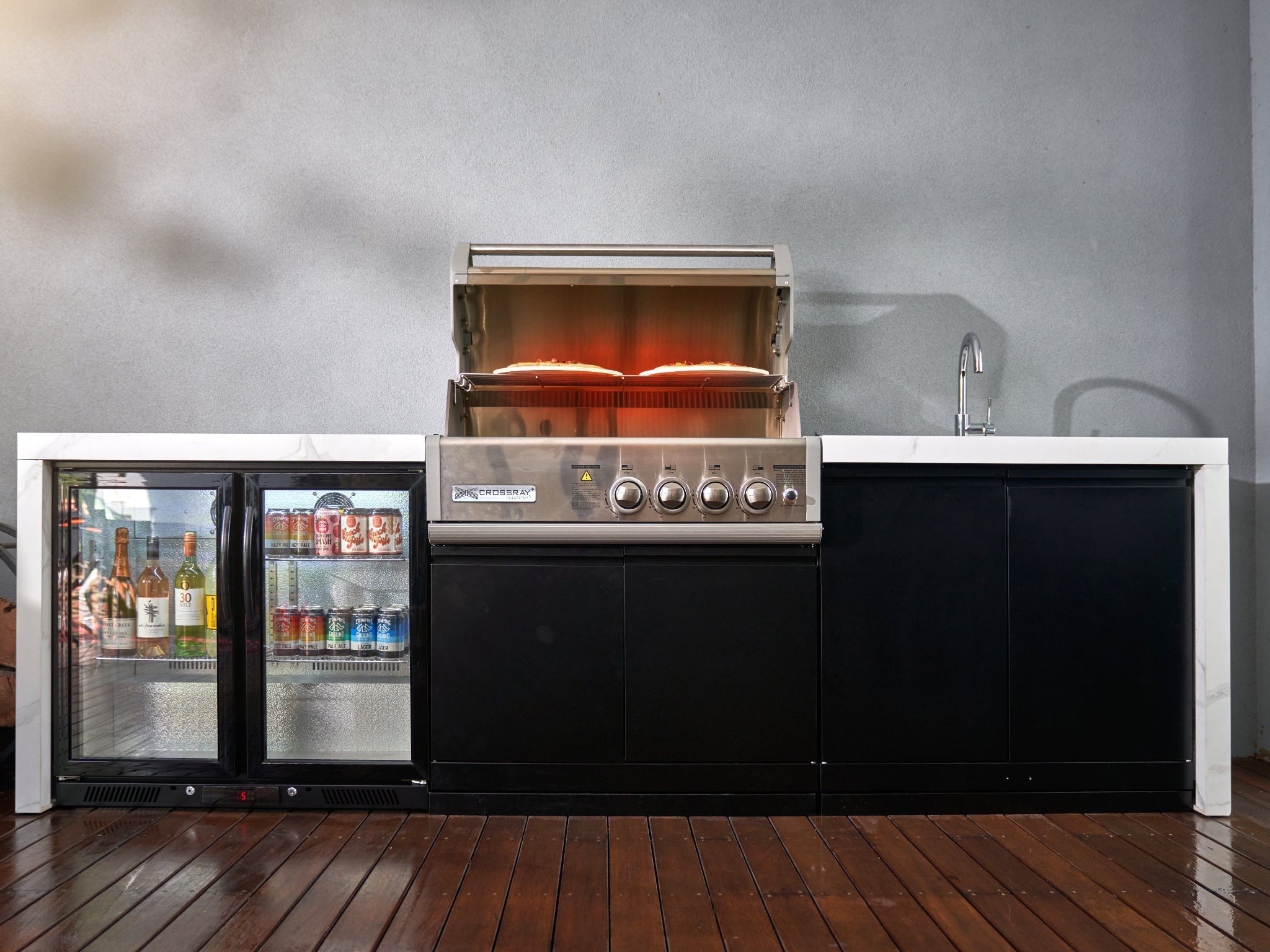

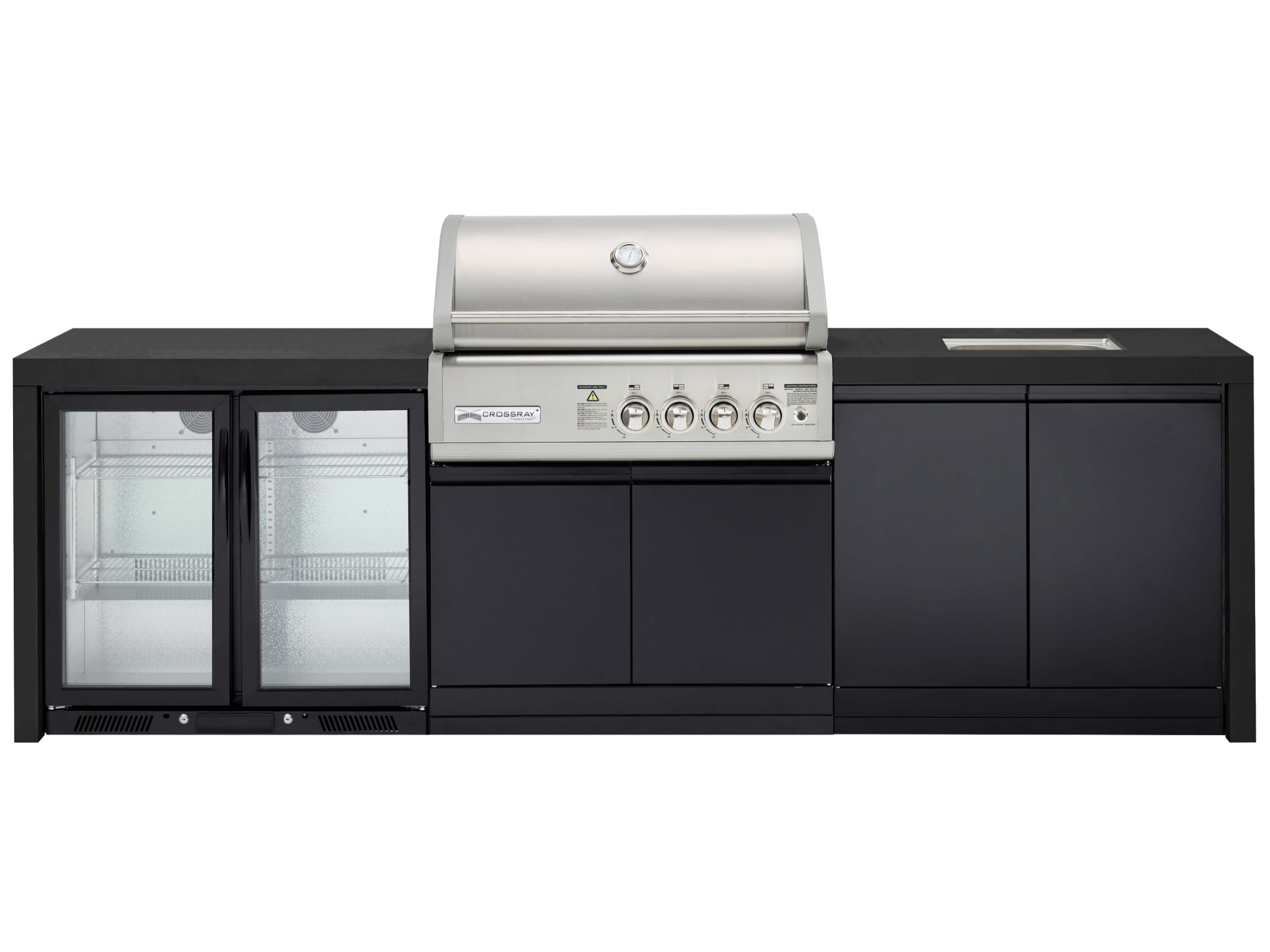

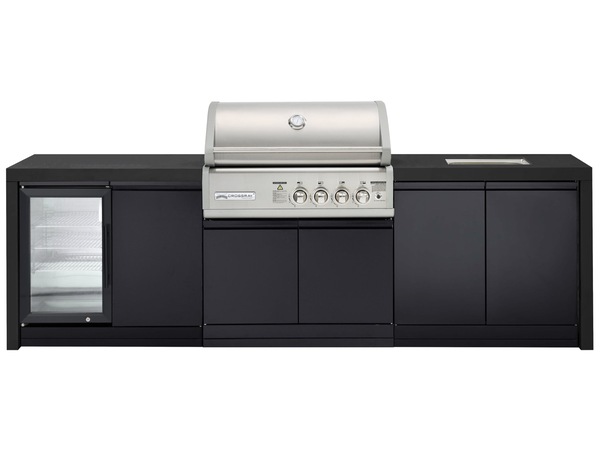

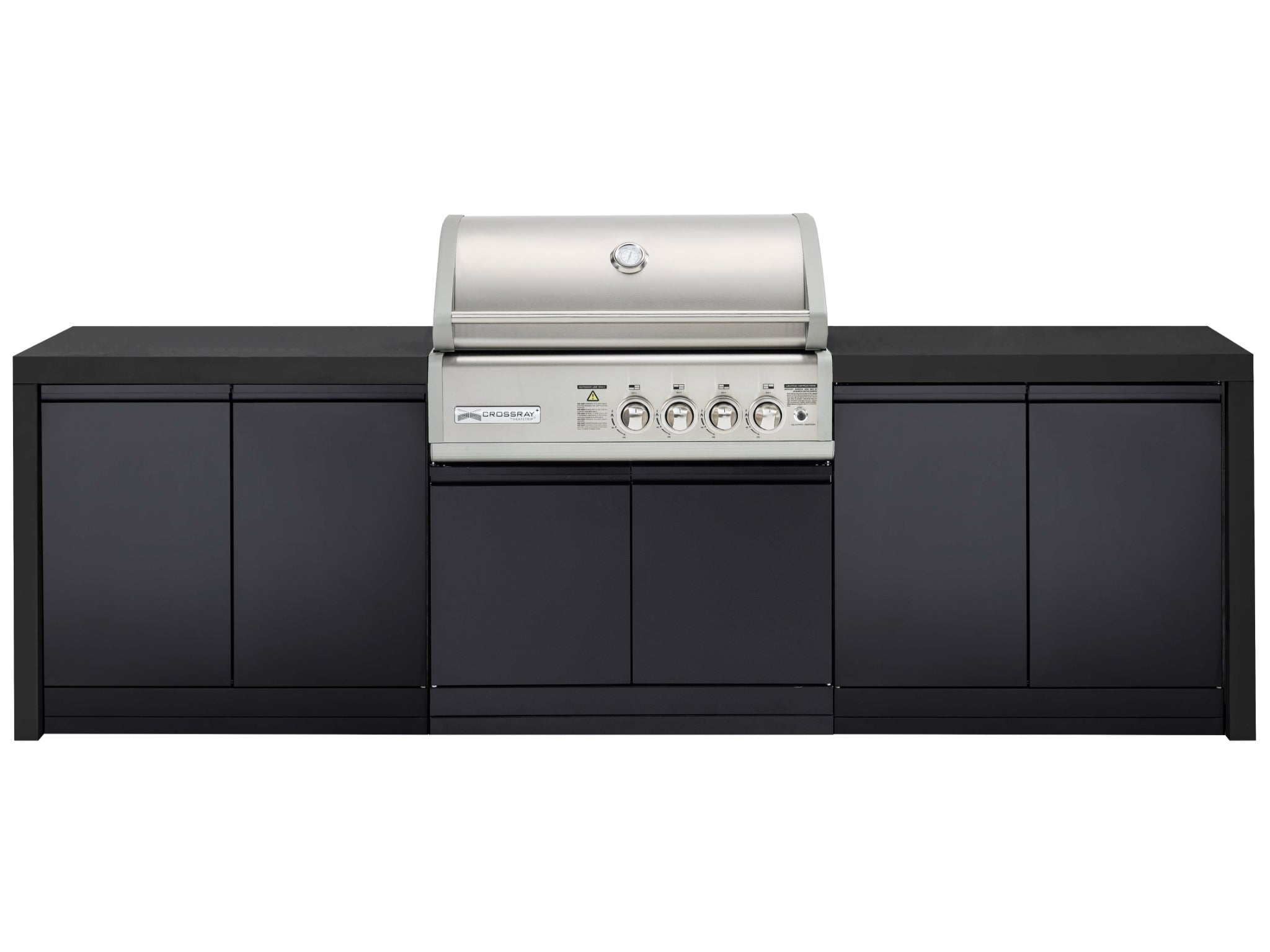

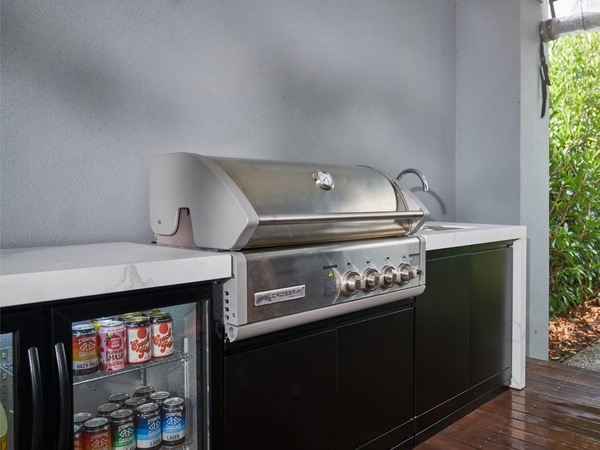

CROSSRAY Premium 4-Burner BBQ Outdoor Kitchen
Overview

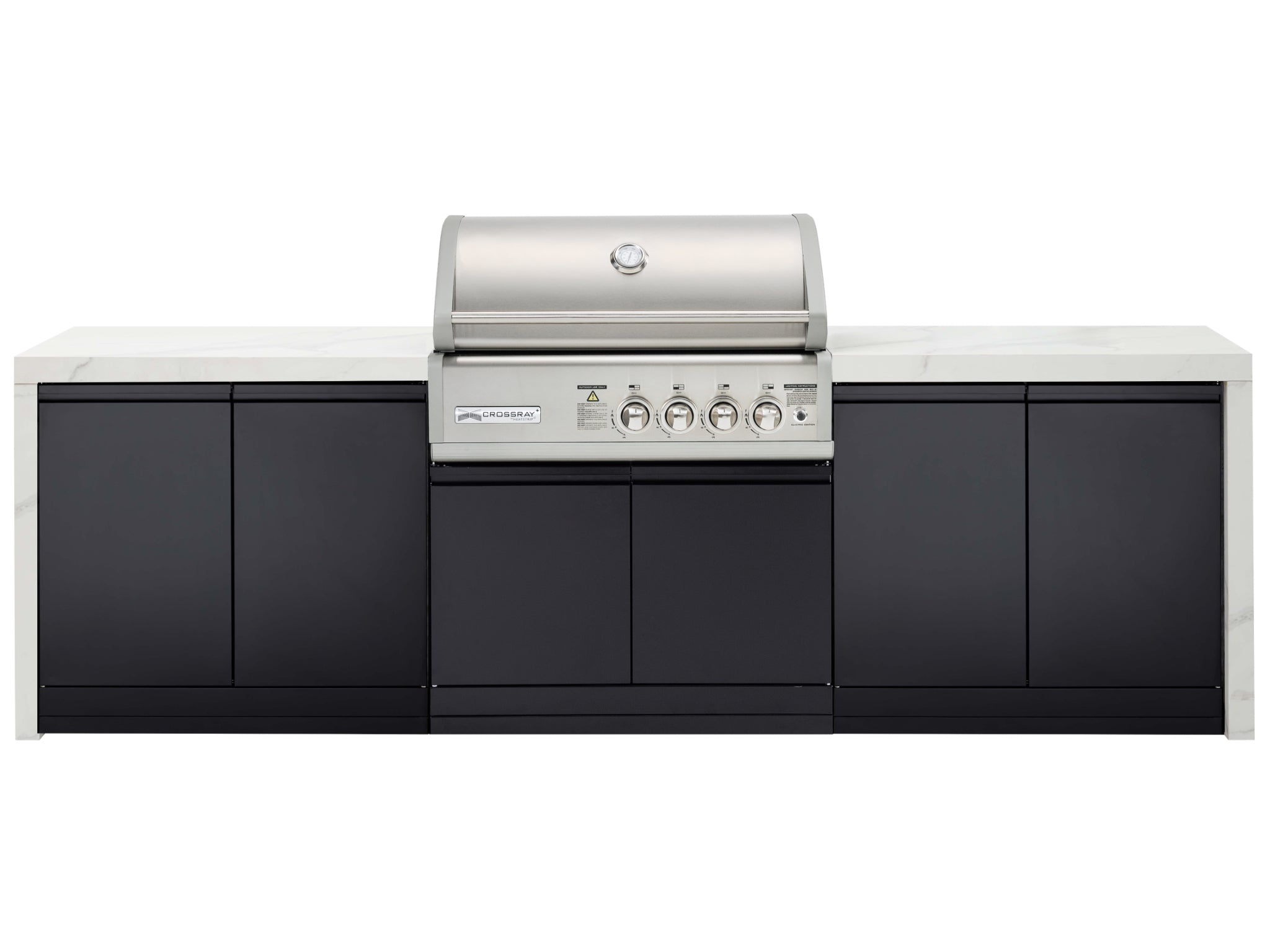

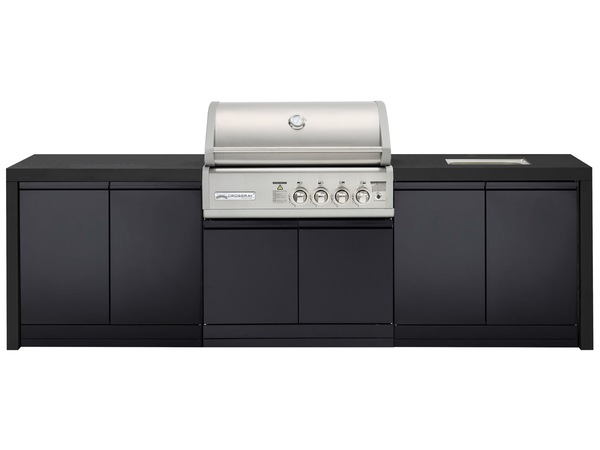

The new CROSSRAY Premium 4-Burner BBQ Outdoor Kitchen sets a new standard for outdoor kitchens. Black all-weather zinc-coated and powder-coated cabinets provide the perfect platform for the luxurious white or black sintered stone benchtop with stylish waterfalls that is supplied as standard with all models. Designed to perfectly match the award-winning CROSSRAY 4-Burner Inbuilt Gas BBQ, it is ideal if you love cooking and entertaining outdoors, in style. With a variety of options to choose from, you can find an outdoor kitchen that is perfect for you and your outdoor area.
Front kickboards are supplied as standard with all models. Tap not included.
Highlights

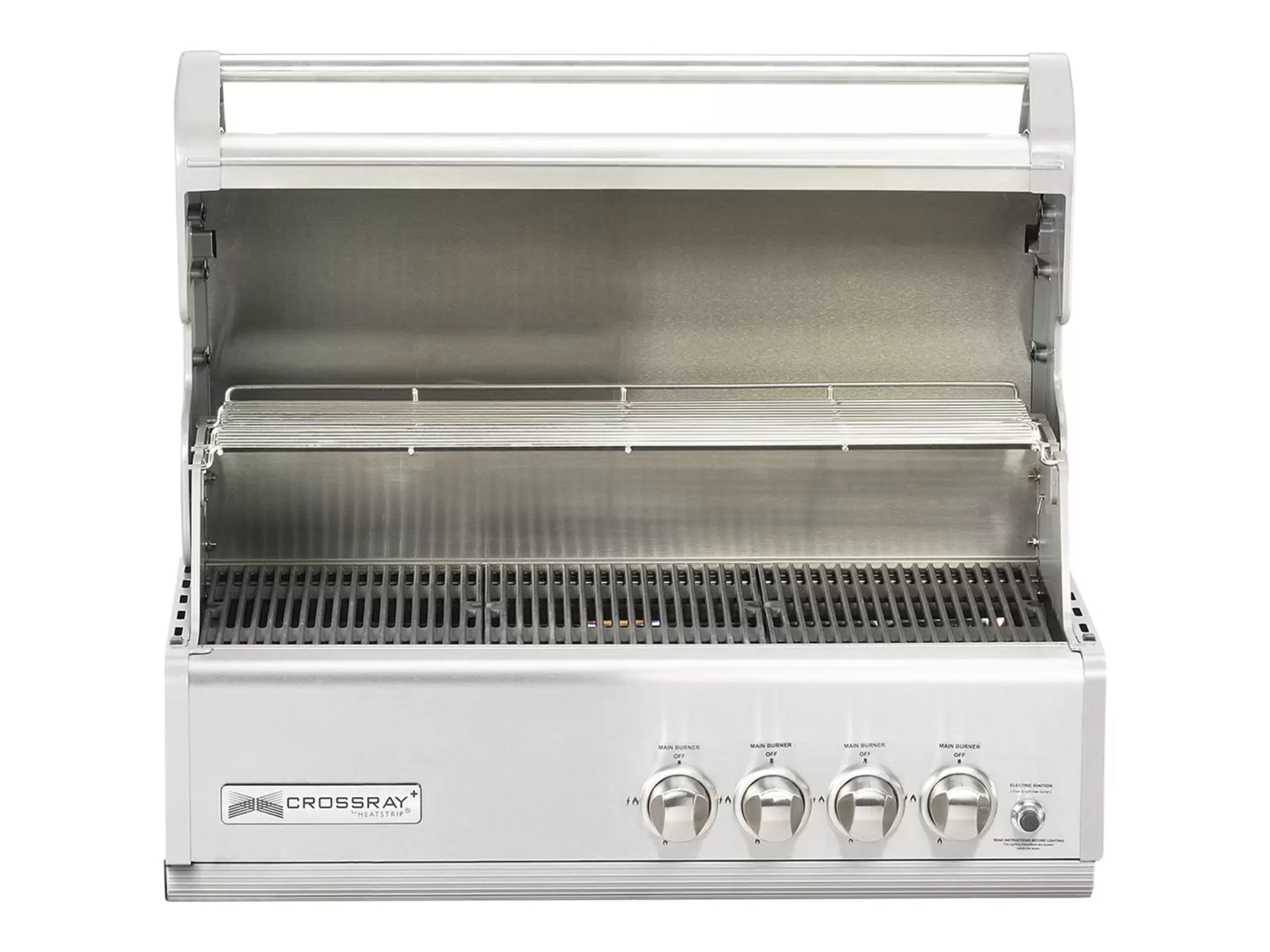

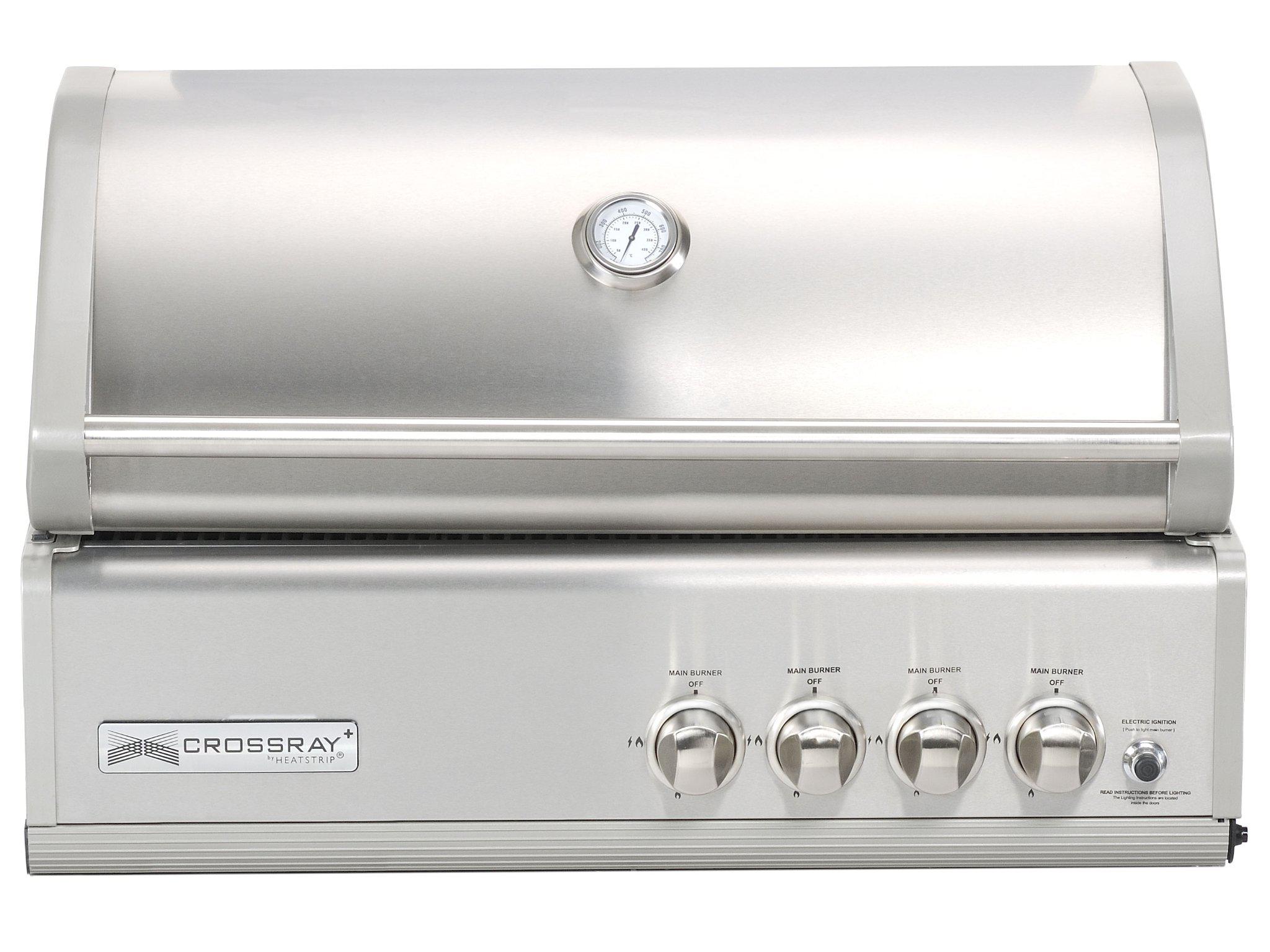

Includes a CROSSRAY 4-Burner Inbuilt Gas BBQ

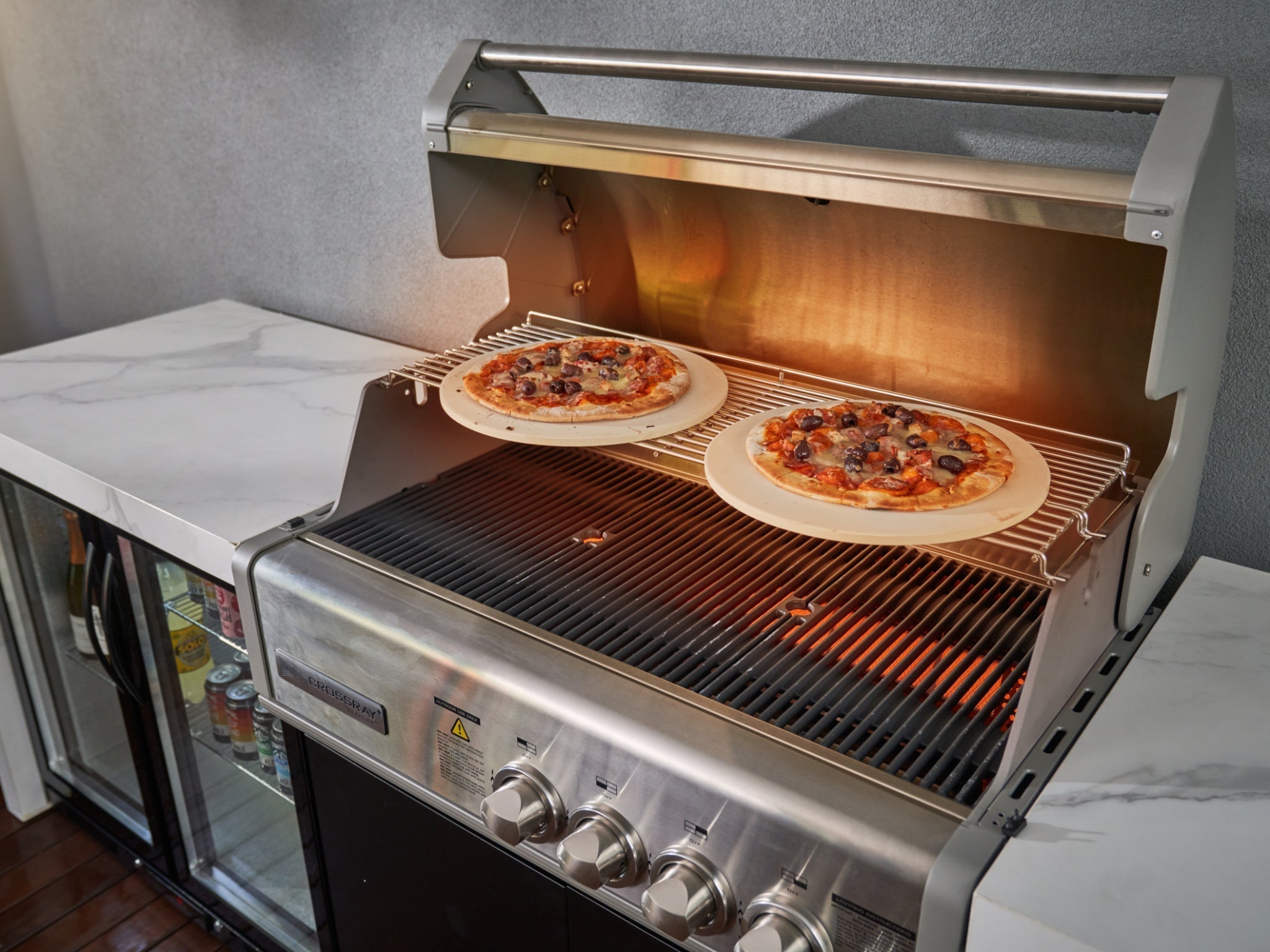

BBQ in world-class 304 stainless steel construction, controllable even heat from 110oC to 350oC+ and huge cooking area with secondary upper-level cooking zone

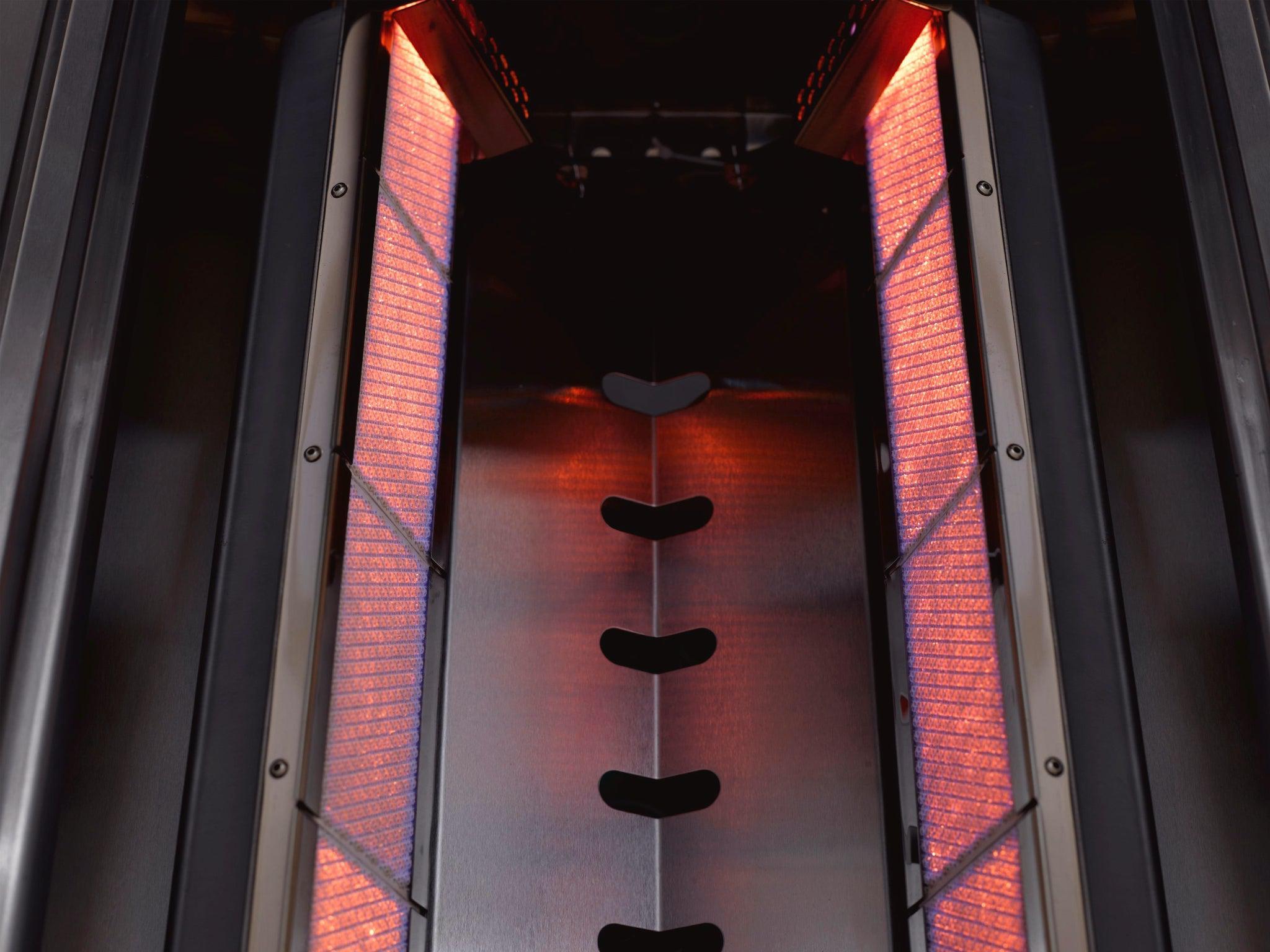

High intensity ceramic infrared burners with patented and proven infrared technology
Want to use a frying pan or wok? No need for a side burner, you can cook directly on the grill
LPG as standard but fully convertible to natural gas
Substantial sintered stone benchtop and stylish waterfall edges with 60 mm edge & quartz effect as standard on all options, providing an extremely durable & robust, UV-, moisture-, heat-, scratch- & stain-resistant surface
Cabinets are now corrosion-free and have been upgraded to a zinc-coated & powder-coated mild steel construction. Suitable for exposed and coastal applications
Cabinetry designed to custom fit your award-winning CROSSRAY BBQ. Plenty of preparation and storage space available
Adjustable feet & castor wheels included on all cabinets
What's in the Box
CROSSRAY Premium 4-Burner BBQ Outdoor Kitchen
Quick start guide
Tech Specs
Dimensions
BBQ cabinet
Width: 92 cm
Depth (BBQ hood open & closed): 61.5 cm
Height (without BBQ): 65 cm
Height (with BBQ): 122.4 cm
Side cabinet / double fridge with benchtop
Width: 96.5 cm
Depth: 60 cm
Height: 90 cm
Overall
Width: 285 cm
Depth: 61.5 cm
Height (benchtop): 90 cm
Height (with BBQ): 122.4 cm
Burner capacity: 13 MJ/hr each
Cooking area: 5382 cm2
Burners: Four surface combustion ceramic infrared burners

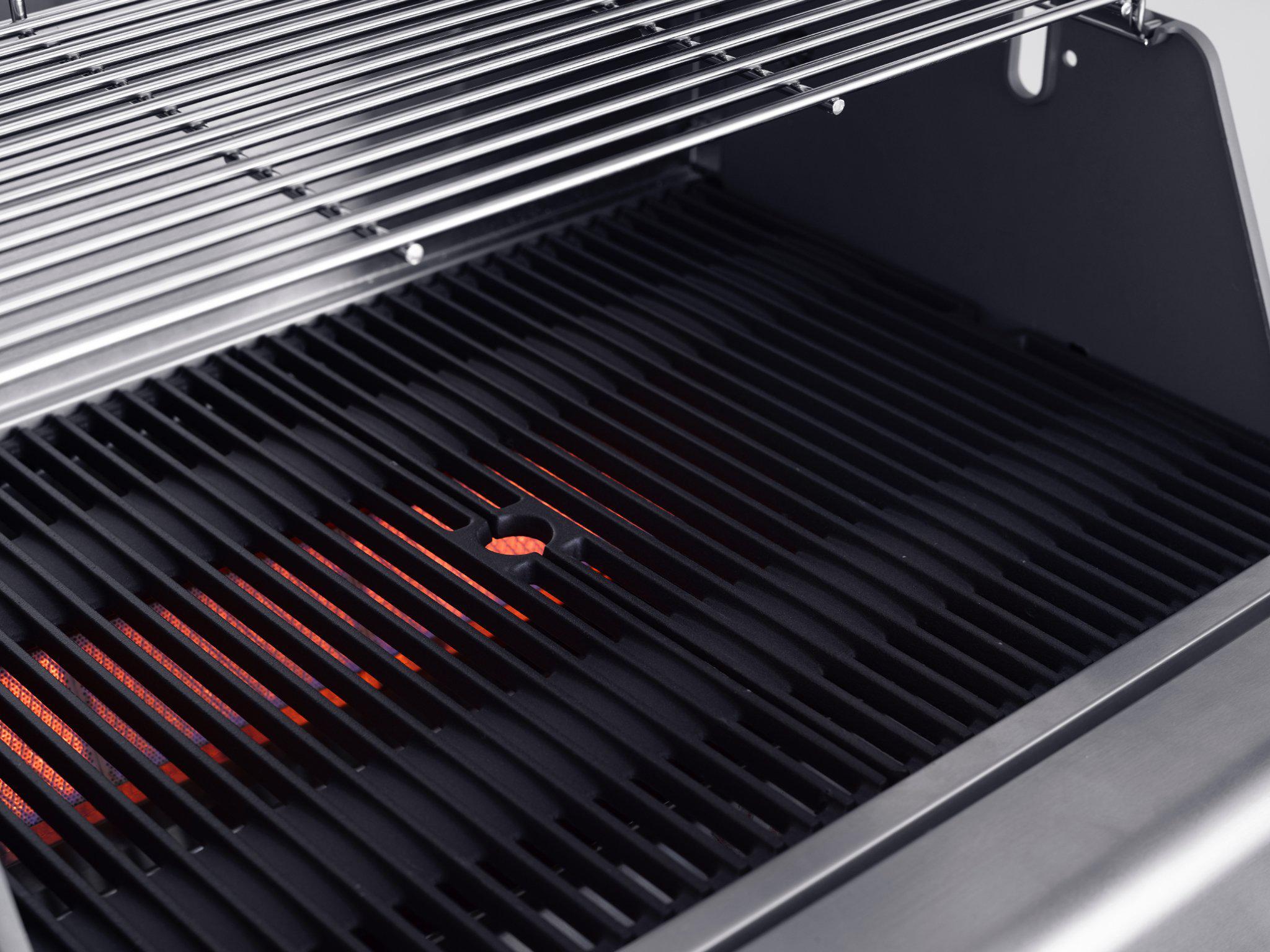

Grills: Three BBQ grills and two-piece upper cooking rack
Gas type: Universal LPG, convertible to natural gas (kit sold separately)

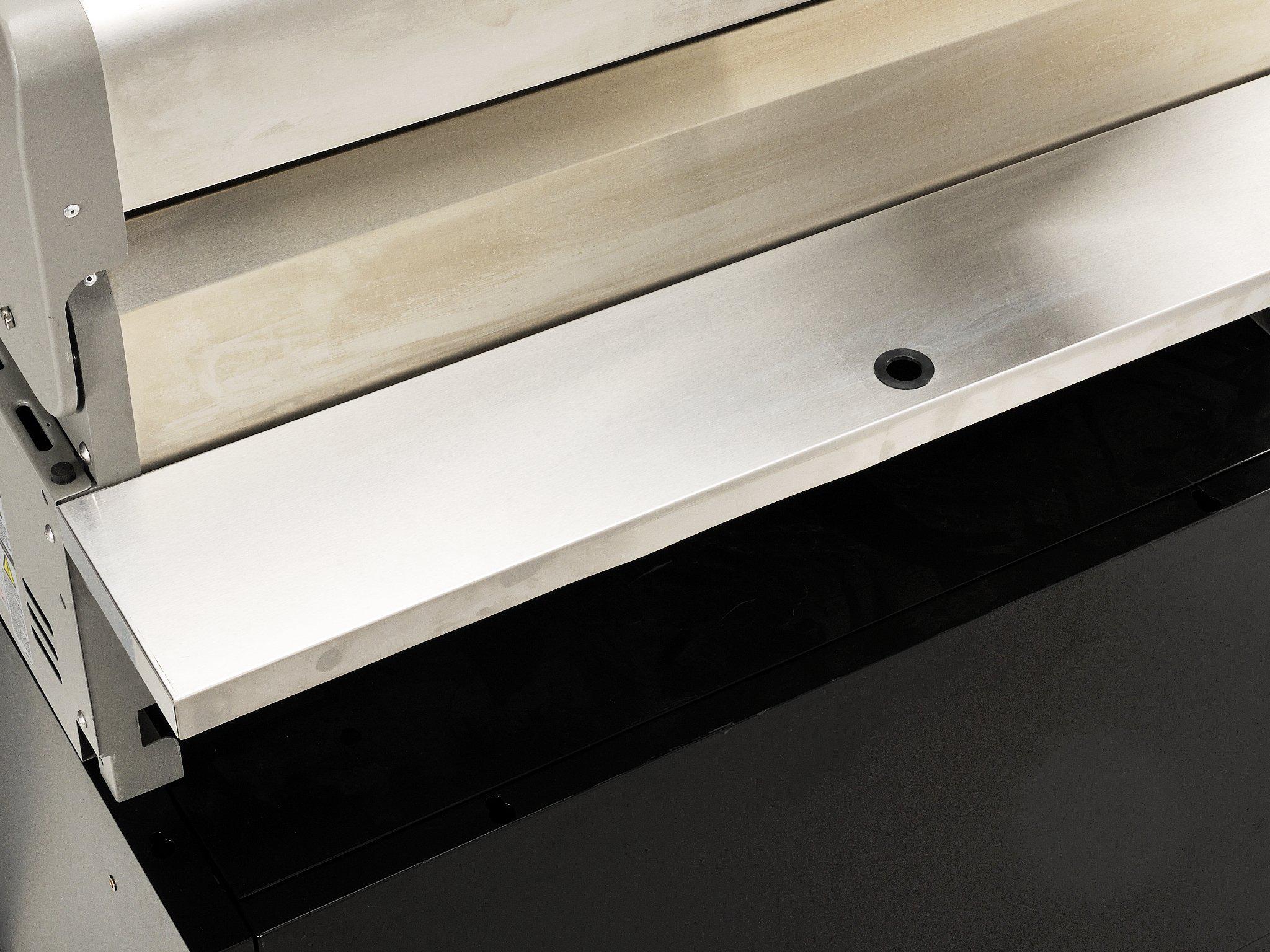

Tray: Front oil collection tray

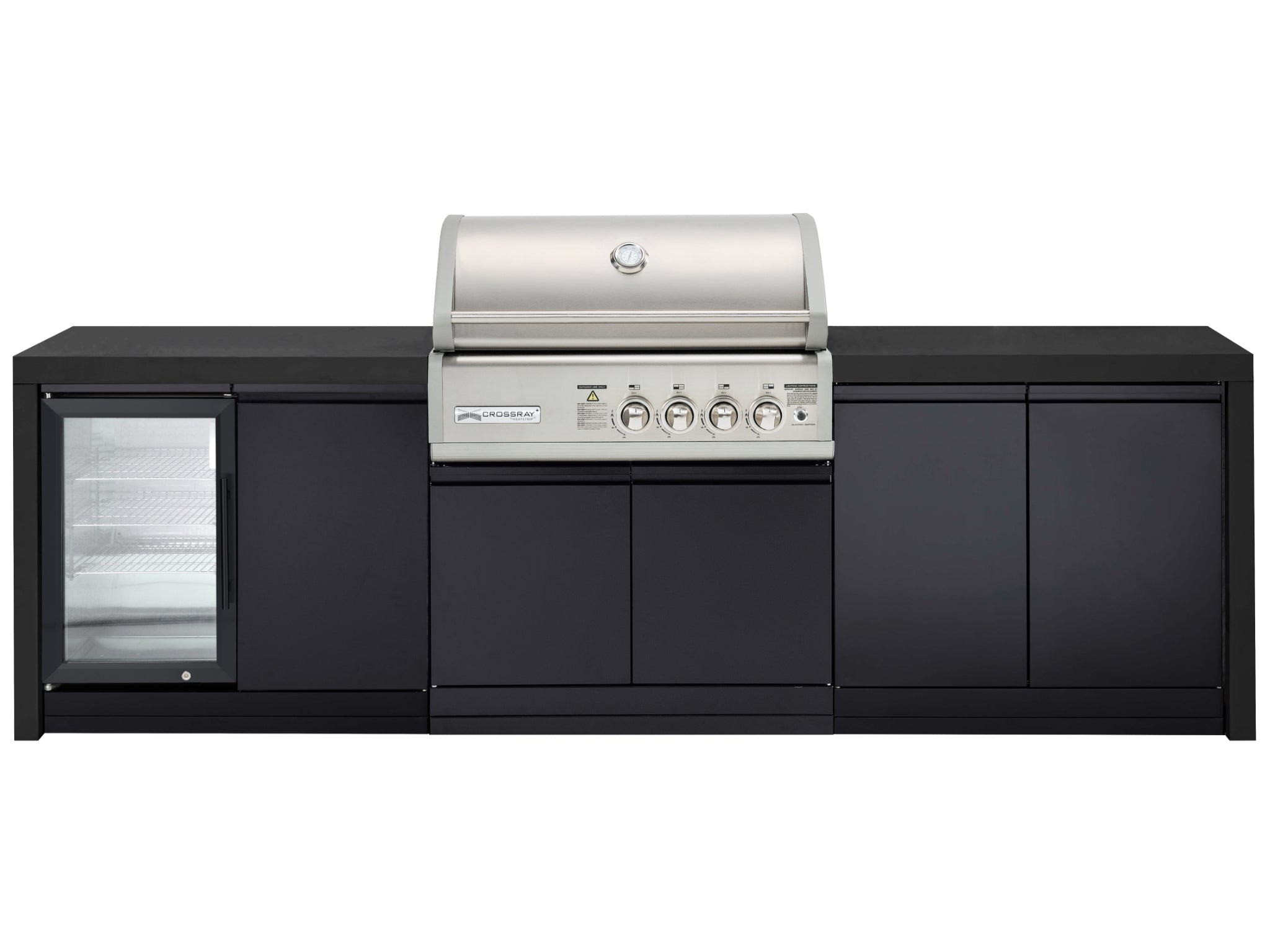

Single fridge: 63L capacity, with temperature control, triple glazed lockable door & blue LED back-lighting

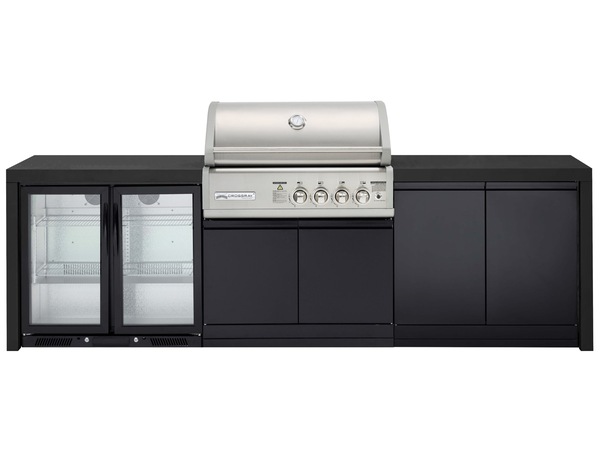

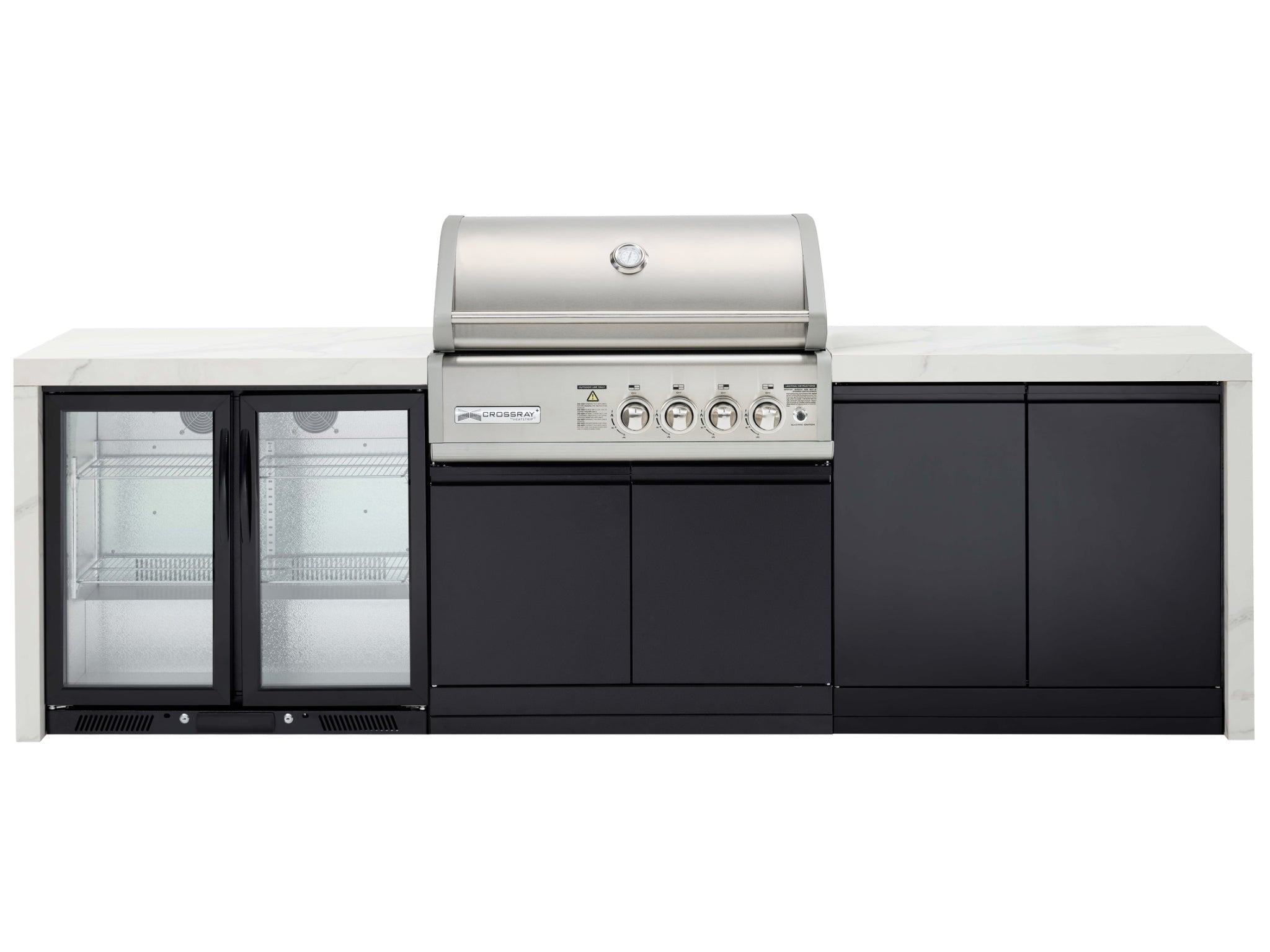

Double fridge: 208L capacity, with digital temperature control, double glazed lockable doors & white LED back-lighting
Materials
Cabinets: Zinc-coated & powder-coated mild steel with double-skinned doors & magnetic closure
Benchtop: Sintered stone
Single fridge: 304 stainless steel, triple glazed door
Double fridge: Zinc-coated & powder-coated mild steel, double glazed doors

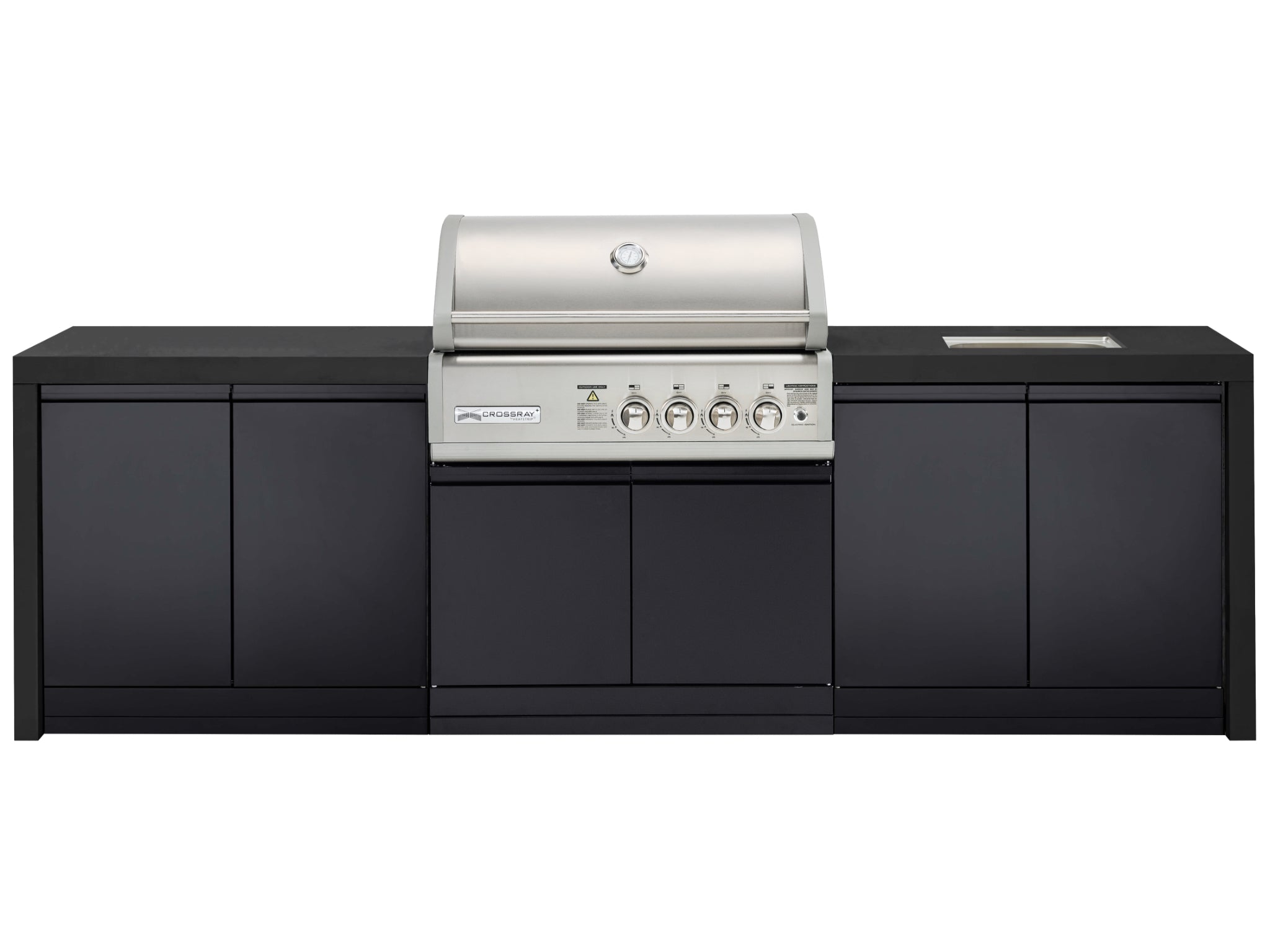

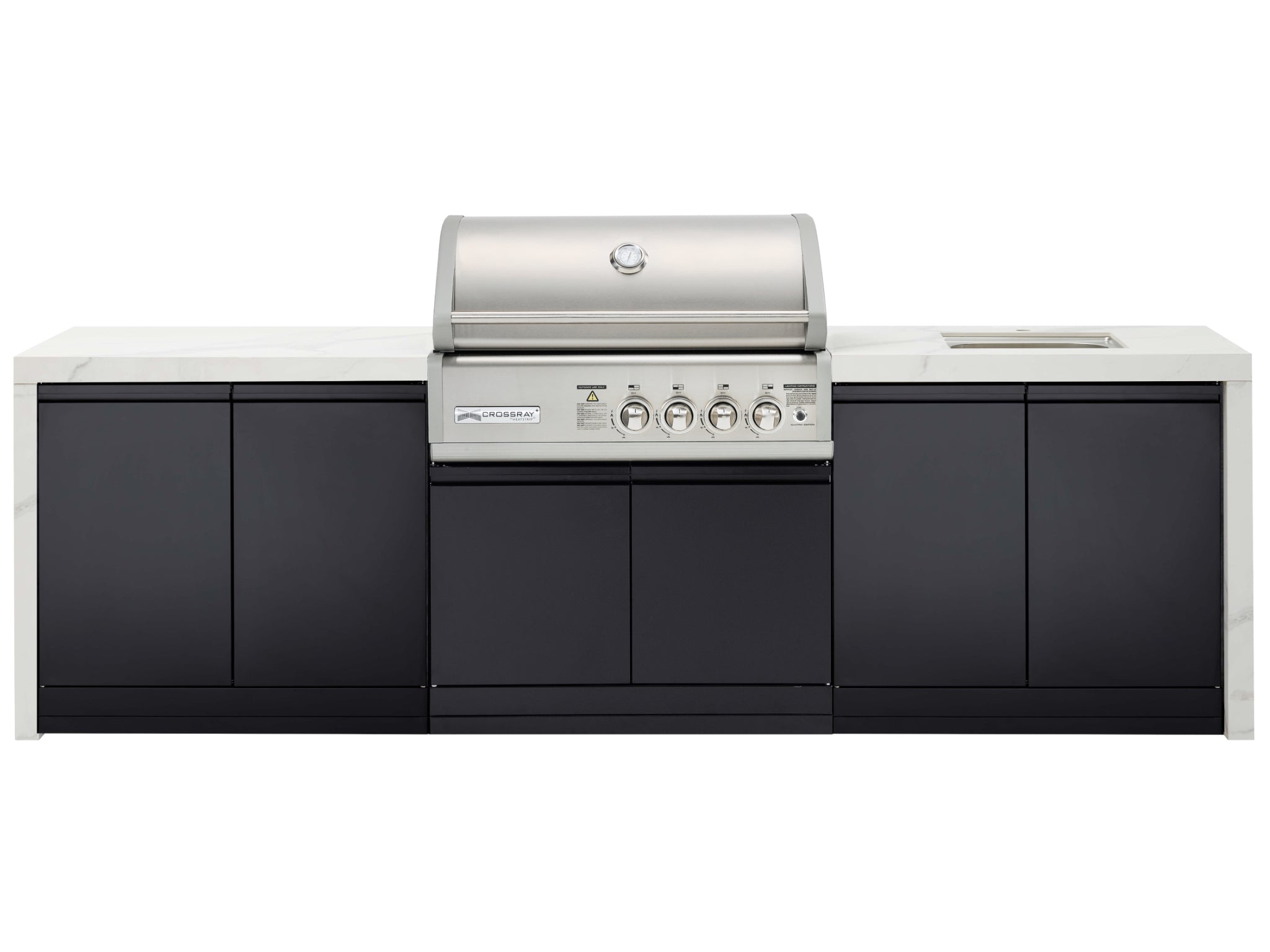

Sink: 304 stainless steel
BBQ front and rear panels & lid: 304 stainless steel
BBQ side and end panels: Die-cast aluminium
BBQ burners: Ceramic
Grill plates: Ceramic-coated cast iron
Assembly
Requires assembly
Manufacturer Information
Part Number
White/No Sink/No Fridge: TC4KP-11
White/One Sink/No Fridge: TC4KP-12
White/No Sink/Single Fridge: TC4KP-13
White/One Sink/Single Fridge: TC4KP-14
White/No Sink/Double Fridge: TC4KP-15
White/One Sink/Double Fridge: TC4KP-16
Black/No Sink/No Fridge: TC4KB-17
Black/One Sink/No Fridge: TC4KB-18
Black/No Sink/Single Fridge: TC4KB-19
Black/One Sink/Single Fridge: TC4KB-20
Black/No Sink/Double Fridge: TC4KB-21
Black/One Sink/Double Fridge: TC4KB-22
Warranty
This product comes with 2-year warranty provided by the product manufacturer. Please see the product box and literature for details. Rights under the product manufacturer's warranty are in addition to any rights you have under Australian consumer law.
Documents
View product manual
View installation manual
View user guide book
