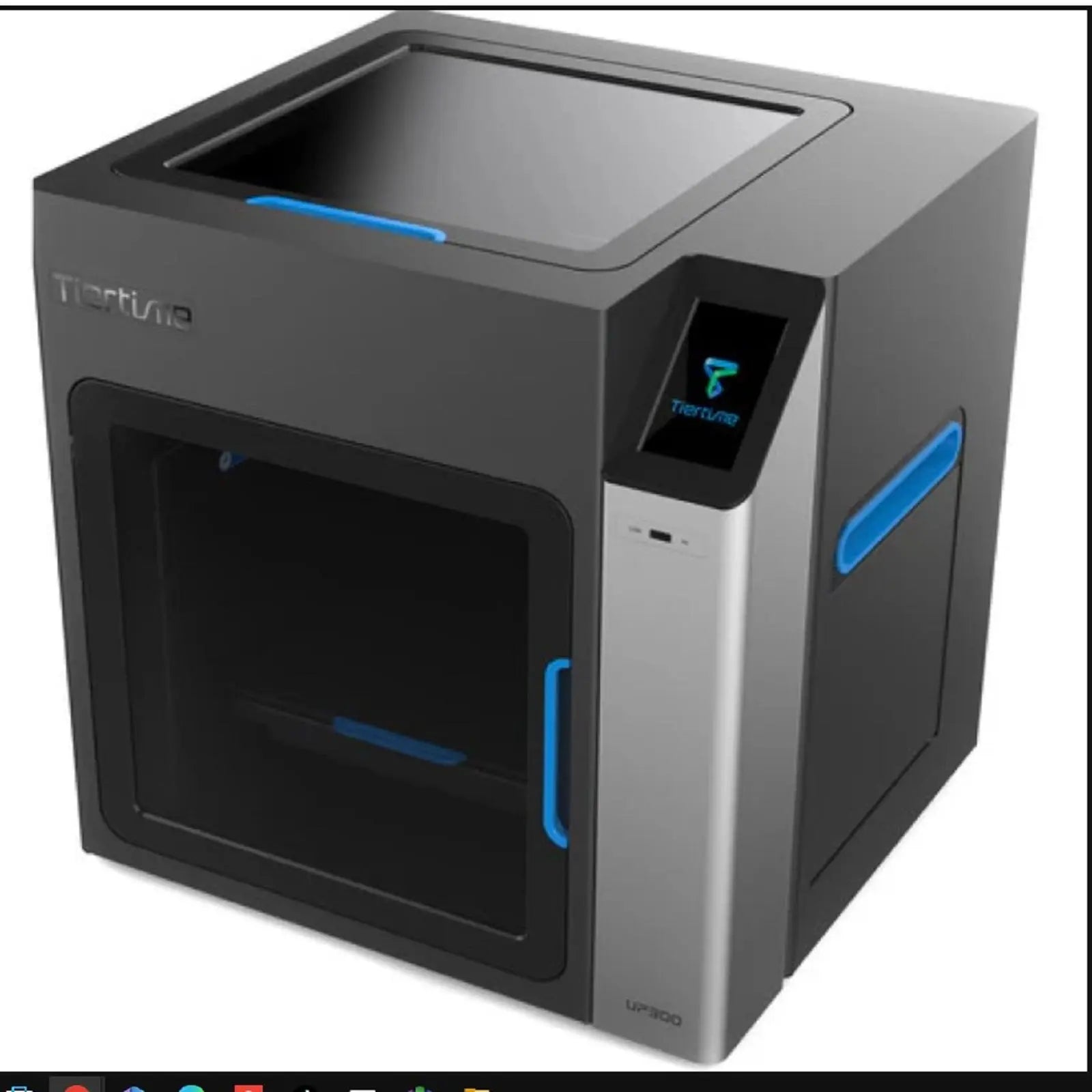

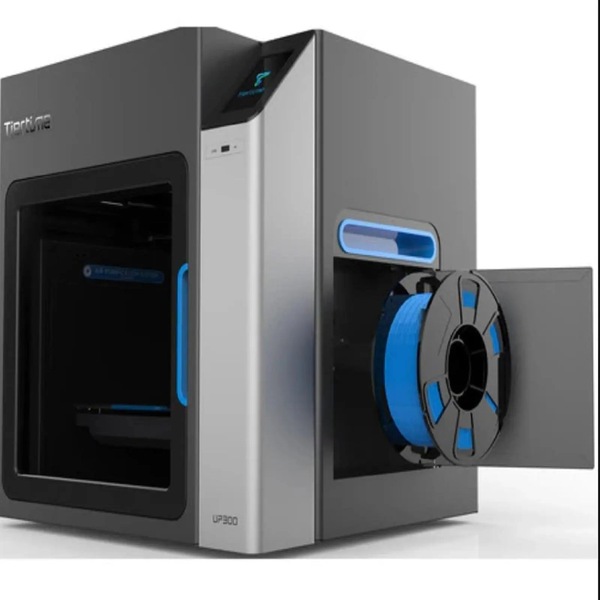

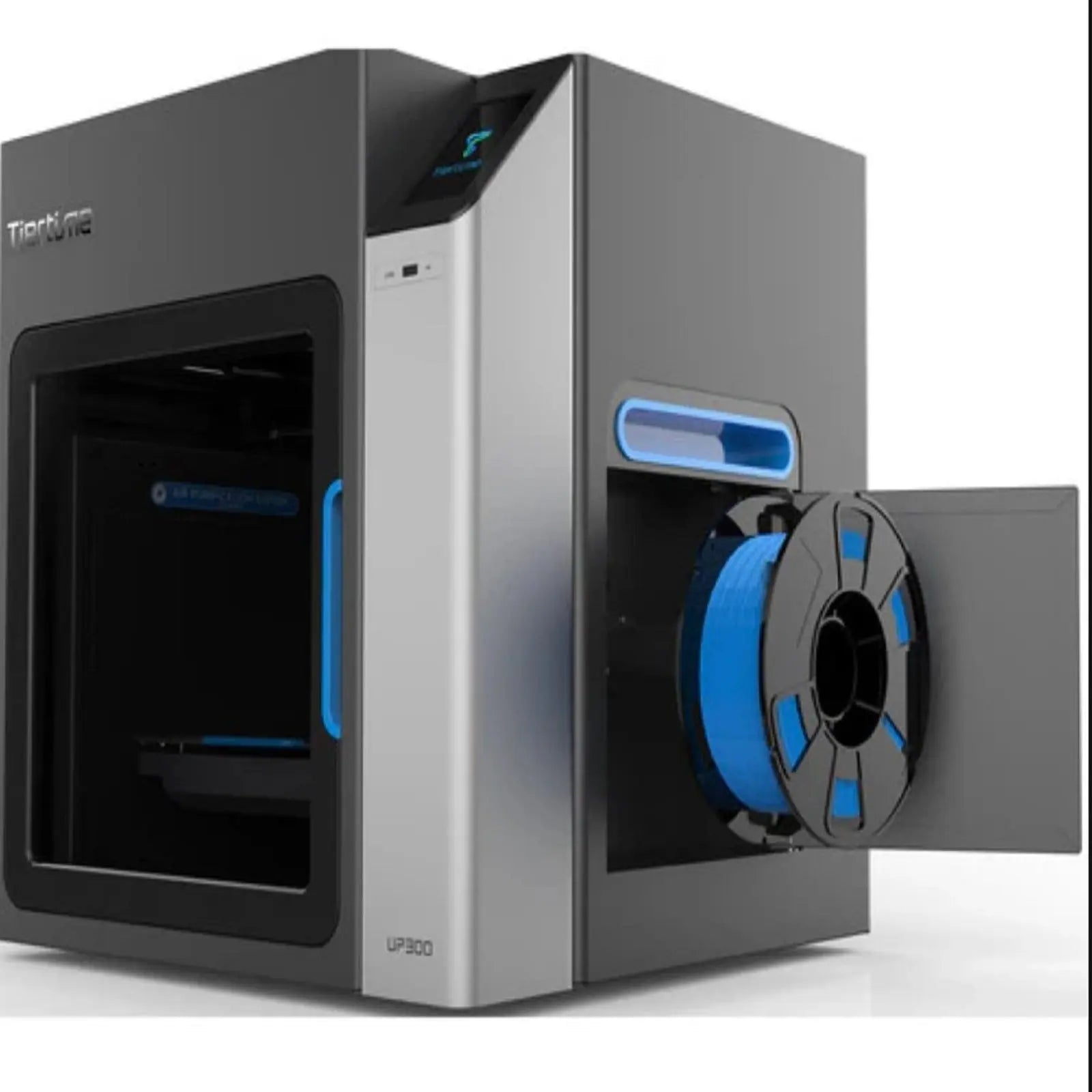

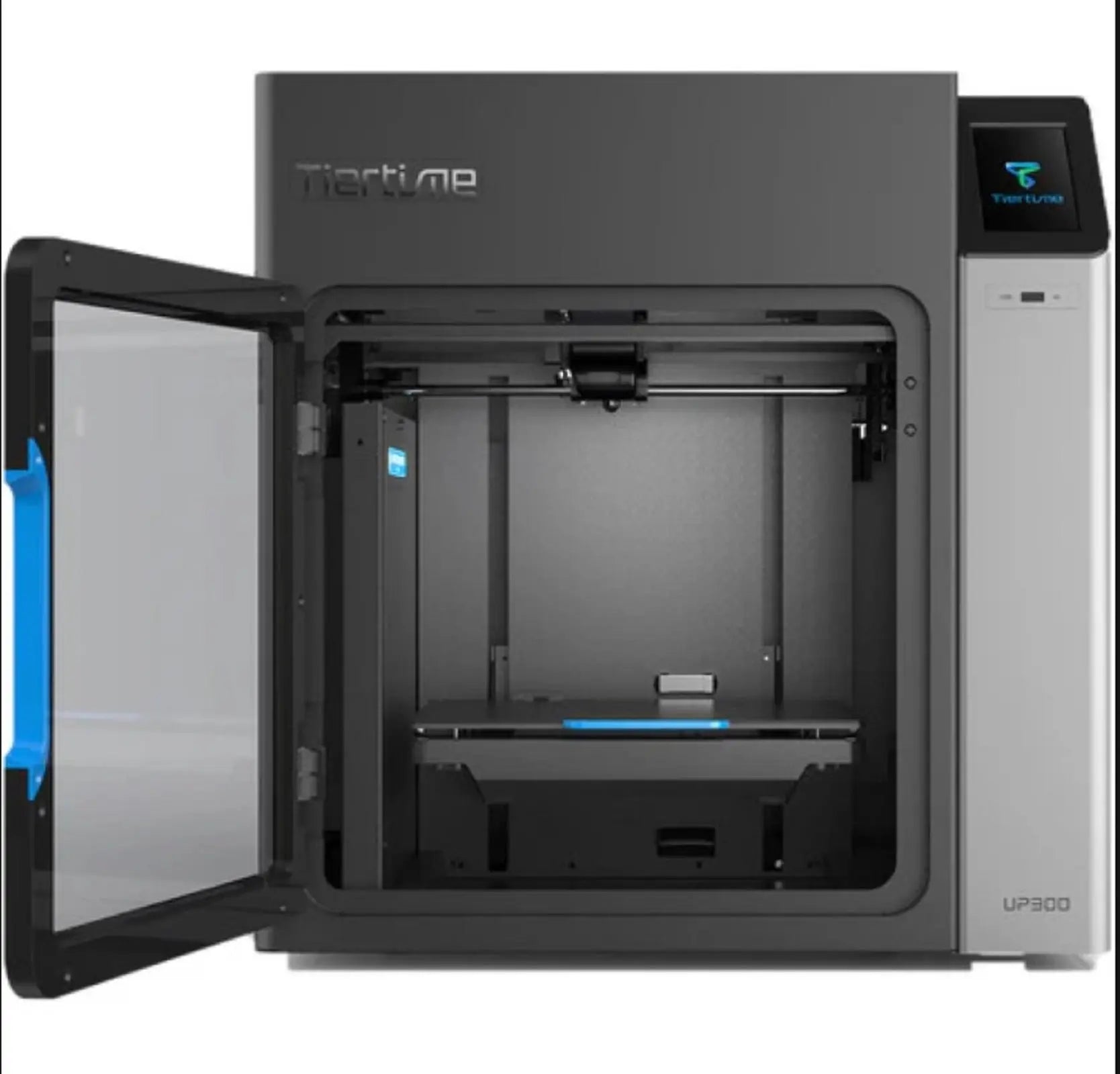

UP300 3D Printer.
Features and description:
Each extruder is designed specifically for a matching material type. One is for ABS and other high-temperature filaments, one for lower temperature filaments such as PLA, and the other is for TPU, a flexible polyurethane.
Both PLA and ABS are “high emitters“ of UFP and VOC and it is essential for Health & Saftey compliance that you have a safe enviorment to print in. Manufacturing with plastic doesn’t have to be unhealthy. The X5 includes Tiertime’s 2018 air filtration system, specifically designed for large build chambers. Air is recirculated through separate HEPA and activated carbon filters, radically reducing toxic UFP and VOC emissions.
A 4.3-inch, full color, LCD touchscreen puts Tiertime Print Queue, print job settings and print job status right at your fingertips. Software-updateable, it can be enhanced for future features.
A removable waste collection tray is positioned below the build platform to make cleaning the bottom of the printer’s enclosure a breeze.
Tiertime’s new Print Queue allows multiple users to stack print jobs into a queue, accessible from the printer’s touchscreen and from Tiertime’s software. Any user on the network can become the queue’s administrator, controlling and re-ordering the print queue.
The 2018 Tiertime line of 3D printers includes a spare USB port for loading print tasks from a USB memory stick. A print task is a sliced 3D model file with print settings embedded.
In addition to Wi-Fi, the UP300 includes a LAN Port for those preferring to work in a more secure, hard-wired network environment.
Printing Technology |
MEM (Melted Extrusion Modelling) |
Extruder |
Single |
Build Volume |
205 × 255 × 225mm (XYZ) |
Nozzle Diameter |
0.2mm, 0.4mm, 0.6mm |
Layer resolution |
0.05/0.1/0.15/0.2/0.25/0.3/0.35/0.4 |
Extruder Maximum temperature |
299℃ |
Extruder Maximum travel speed |
200 mm/sec |
XYZ accuracy XYZ |
2, 2, 0.5 micron |
Connectivity |
USB cable, Wi-Fi, LAN and USB Stick |
Touch Screen |
4.3″ LCD |
Printed object accuracy |
±0.1mm/100mm |
Build plate maximum temperature |
100℃ |
Calibration and Leveling |
Automatic Nozzle Height and Automatic Leveling |
Print Surface |
Perf Glass or Flex Glass, Heated |
Enclosure |
Full |
Dual Filtration System |
HEPA and active carbon filters |
Print Resume on Power Interrupt |
Yes |
Pause to change the type of filament |
Yes |
Out of filament detection |
Yes |
Filament Compatibility |
UP Fila ABS, ABS+, PLA , TPU, and more |
Filament Diameter |
1.75mm |
Filament Spool Compatibility |
500g - 1000g |
Print queue |
Yes |
Compatible with 3rd Materials |
Yes |
|
Physical dimensions |
Machine dimensions |
500x523x460 mm (19.6″ x 20.5″ x 18.1″) |
Net weight |
30KG |
|
Power requirements |
Input |
110-240VAC,50-60Hz,90W |
Extra USB Input for add-on |
5V, 1A |
|
Software |
Software |
UP Studio |
Supported OS |
Windows 7/8/10, Mac OS X, iOS 8.x/9.x |
Importable file formats |
up3, .ups, .stl, .obj, .3mf, .ply, .off, .3ds, .gcode |
Preview support structures |
Yes |
Editable support structures |
Yes |
