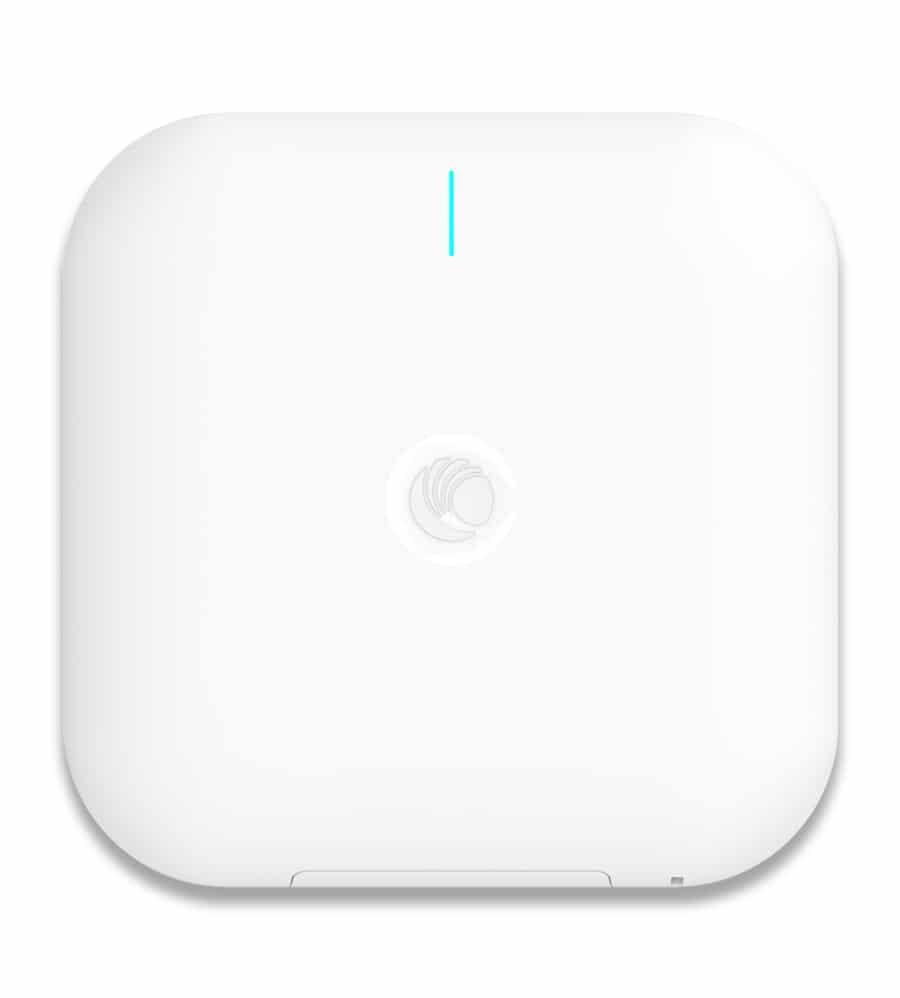

Cambium Networks XV3-8X00A00-RW wireless access point 4804 Mbit/s White

Cambium Networks XV3-8X00A00-RW wireless access point 4804 Mbit/s White

Hurry! 8 items left!

Price	$1703.68
	Collect 1703 Everyday Rewards points Create a MyDeal Account or Login to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

2.40 GHz, 5 GHz - MIMO Technology - 2 x Network (RJ-45) - Gigabit Ethernet - Wall Mountable, Ceiling Mountable, T-bar Mount
High-density architecture reduces the equipment required while leveraging automation to deliver SLA. XV3-8 includes seamless roaming, fast roaming, automatic RF optimization and interference avoidance to automatically optimize performance to specific local needs. This Software-Defined 8×8 Multi-Radio AP is equipped with dedicated scanning radio and BLE, WPA3 secure public access, Application Control and 802.3bz Ethernet optimized for high density deployments.

Designed for High Density and Edge Services

The XV3-8 features a total of five (5) radios to deliver a next generation network with edge services with high capacity and high density. Three data radios can be configured as two 5 GHz 4×4 plus one 2.4 GHz 4×4, or the two 5 GHz radios can be combined into a single 5 GHz 8×8 radio with the maximum power and performance of the 802.11ax standard. A dedicated network scanning radio provides continuous network monitoring to enhance security protocols, detailed network reports, and automatic RF optimizations. Add the Bluetooth Smart 4.1 IoT radio for BLE-based location services and you get a multi-radio, high capacity Wi-Fi 6 AP designed for the most demanding networks in enterprise, education, retail, and public venues.

Optimized Wi-Fi for All Client Devices

For networks dominated by legacy 802.11ac client devices, the dual 5 GHz 4×4 mode will double network capacity to maintain high-bitrate services as density increases. As the devices migrate to the new Wi-Fi 6 standard based on 802.11ax, the XV3-8 SDR can be quickly converted into full 8×8 operating mode via a simple configuration change. No firmware change is required to support this mode.

Cloud and On-Premises Management

XV3-8 operates with either the Cambium XMS cloud management or cnMaestroTM cloud and on-premises. Choose the cloud management system that best fits your business and use the latest technology from Cambium Networks.

What’s in it for you?

High-density Wi-Fi with software-defined radios (SDR)

Five-radio architecture for edge services

6 Gbps aggregate data rate

Dedicated scanning sensor, dual band

Application policy control

Specifications:

Ports & interfaces	Ethernet LAN (RJ-45) ports: 2
Weight & dimensions	Width: 235 mm Depth: 235 mm Height: 42 mm Weight: 1,25 kg
Power	Power consumption (typical): 35 W
Operational conditions	Operating temperature (T-T): 0 - 50 °C Storage temperature (T-T): -20 - 70 °C
Protocols	Supported network protocols: VHT MCS rates, 16/64/256/1024-QAM, 20/40/80/160 MHz, TWT, Long OFDM Symbol, Transmit beamforming, Airtime Fairness, AMSDU, AMPDU, RIFS, STBC, LDPC, MIMO Power Save, MRC, BPSK, QPSK, CCK, DSSS, OFDM, OFDMA, UL/DL MU-MIMO, IEEE 802.11 a/ac/ax/b/d/e/g/h/i/j/k/n/r/s/u/v/w
Security	Security algorithms: 802.1x RADIUS, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-CCMP, WPA2-EAP, WPA2-Enterprise, WPA3
Packaging content	Number of products included: 1 pc(s)
Antenna	Antenna type: Internal Antenna gain level (max): 6,7 dBi
Design	Placement: Ceiling, Wall Product colour: White Cable lock slot: ✔ Cable lock slot type: Kensington LED indicators: ✔ Certification: Wi-Fi Alliance 802.11 a/b/g/n/ac/ax, PP2.0, FCC, IC, CE, EN 60601-1-2, EN 60950-1, IEC 62368-1 Safety, EN 60601-1-2Medical, EN 61000-4-2/3/5 Immunity, EN 50121-1 Railway EMC, EN 50121-4 Railway Immunity, IEC 61373 Railway Shock & Vibration, UL 2043 Plenum,EN 62311 Human Safety/RF Exposure, WEEE & RoHS
Features	2.4 GHz: ✔ 5 GHz: ✔ Maximum data transfer rate: 4804 Mbit/s Maximum data transfer rate (2.4 GHz): 1147 Mbit/s Maximum data transfer rate (5 GHz): 4804 Mbit/s Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11s, IEEE 802.11u, IEEE 802.11v, IEEE 802.11w

MPN: XV3-8X00A00-RW
