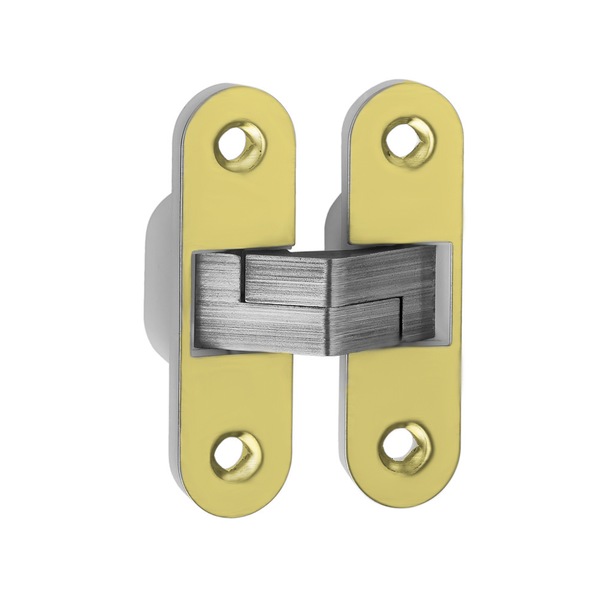

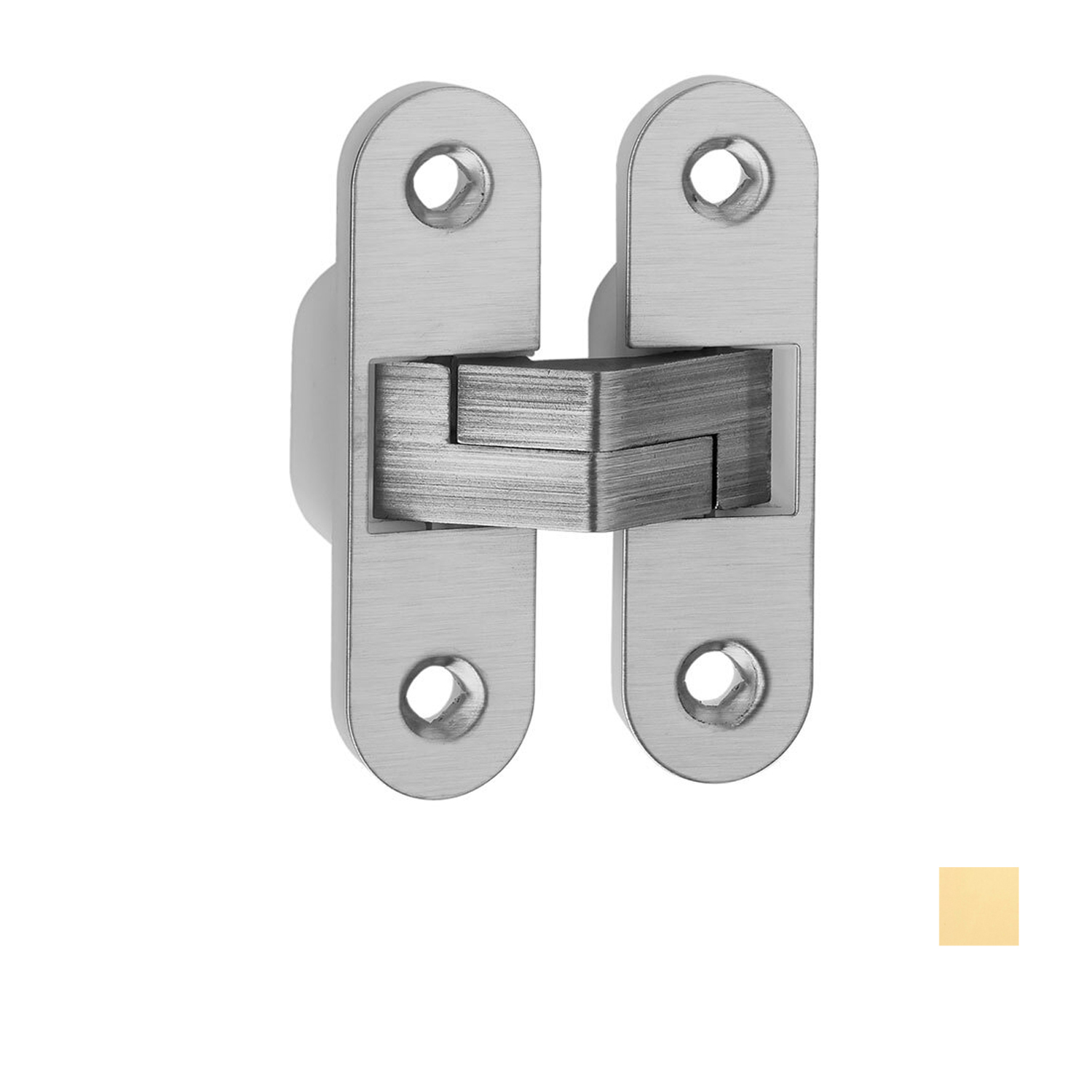

Bellevue Ceam Invisible Concealed Door Hinge 60kg BAC2010

Bellevue Ceam Invisible Concealed Door Hinge
BAC2010PB

Ceam 3D Invisible Concealed Door Hinge is commonly used in residential homes, offices, hotels, and other architectural projects where a sleek and unobtrusive appearance is desired.

Ceam 3D Invisible Concealed Door Hinge Function - recessed into the door and door frame, so when the door is closed, the hinge is completely concealed. This creates a seamless and streamlined appearance without visible hardware.

Features:

• Manufactured in industrial nylon & stainless steel AISI 304L
• 100% made in Italy for over 50 years
• Router template available for easy installation and slot symmetry
• Suitable for internal & external (under cover) locations
• Suitable for residential, commercial & industrial locations

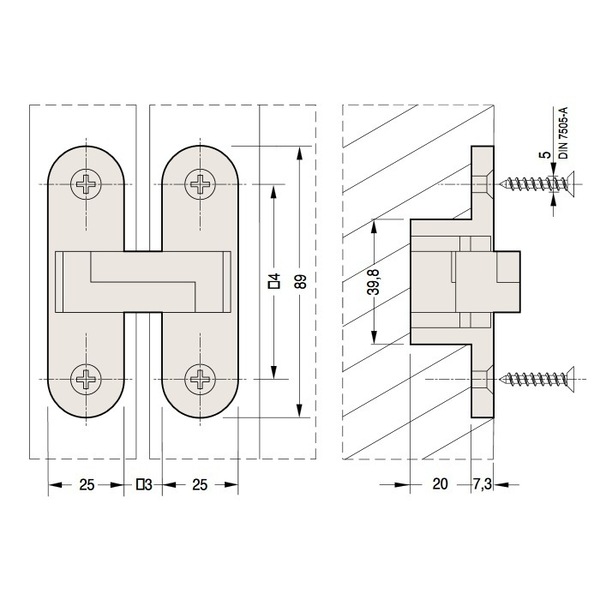

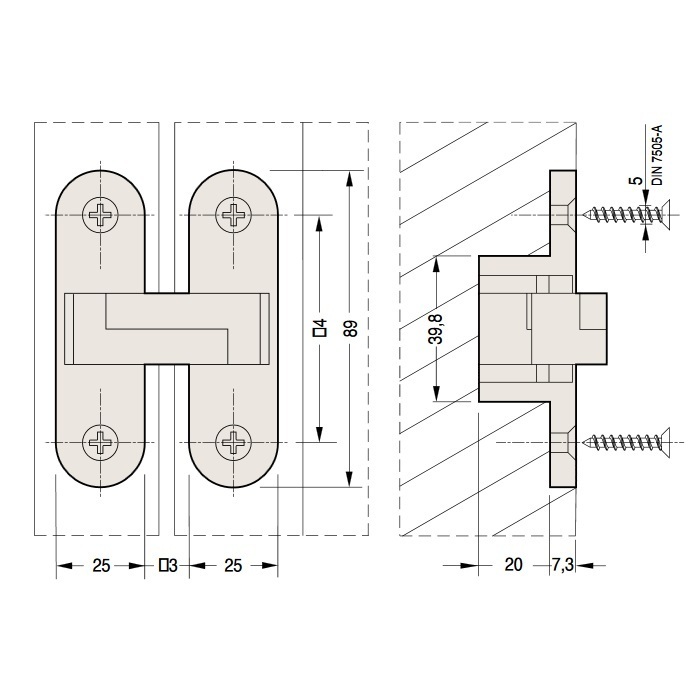

Specifications:

• Length: 89mm
• Depth: 27.5mm
• Minimum Door Thickness:: 31mm
• Suitable For Doors: Wood, Alluminium, Steel
• 3D Adjustable: No
• Load Capacity: Up to 60 kg @ 850mm wide door
  • 2 Hinges = 40 Kg. Max
  • 3 Hinges = 60 Kg. Max
  • 4 Hinges = 60 Kg. Max 2100mm + High
• Finish: Polished Brass
• Sold as Single
