2 Port DVI VGA Dual Monitor KVM Switch USB with Audio
The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.
With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.
Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.
Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
Hardware
Number of Monitors Supported: 2
PC Interface: USB
PC Video Type: DVI+VGA
Rack-Mountable: No
Indicators
LED Indicators: Green - PC Detected : Green - Power : Red - PC Indicator
Packaging Information
Package Height: 72 mm [2.8 in]
Package Length: 19.9 cm [7.8 in]
Package Width: 29.5 cm [11.6 in]
Shipping (Package) Weight: 1.3 kg [2.8 lb]
Performance
DVI Support: Yes - Single Link
Hot-Key Selection: Yes
IP Control: No
Maximum Digital Resolutions: 1920 x 1200
Maximum Number of Users: 1
MTBF: 64,691 Hours
On-Screen Display: No
Port Selection Support: Push Button and Hotkeys
Physical Characteristics
Color: Black
Material: Steel
Product Depth: 100 mm [3.9 in]
Product Height: 5.7 cm [2.2 in]
Product Length: 16.3 cm [6.4 in]
Product Width: 16 cm [6.3 in]
Weight of Product: 779 g [27.5 oz]
Power
Center Tip Polarity: Positive
Input Current: 0.8A
Input Voltage: 100 - 240 AC
Output Current: 1.5A
Output Voltage: 12V DC
Plug Type: M
Power Consumption (In Watts): 18
Hardware
KVM Ports: 2
Daisy-Chain: No
Cables Included: No
Audio: Yes
Environmental
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 80% RH
Connector(s)

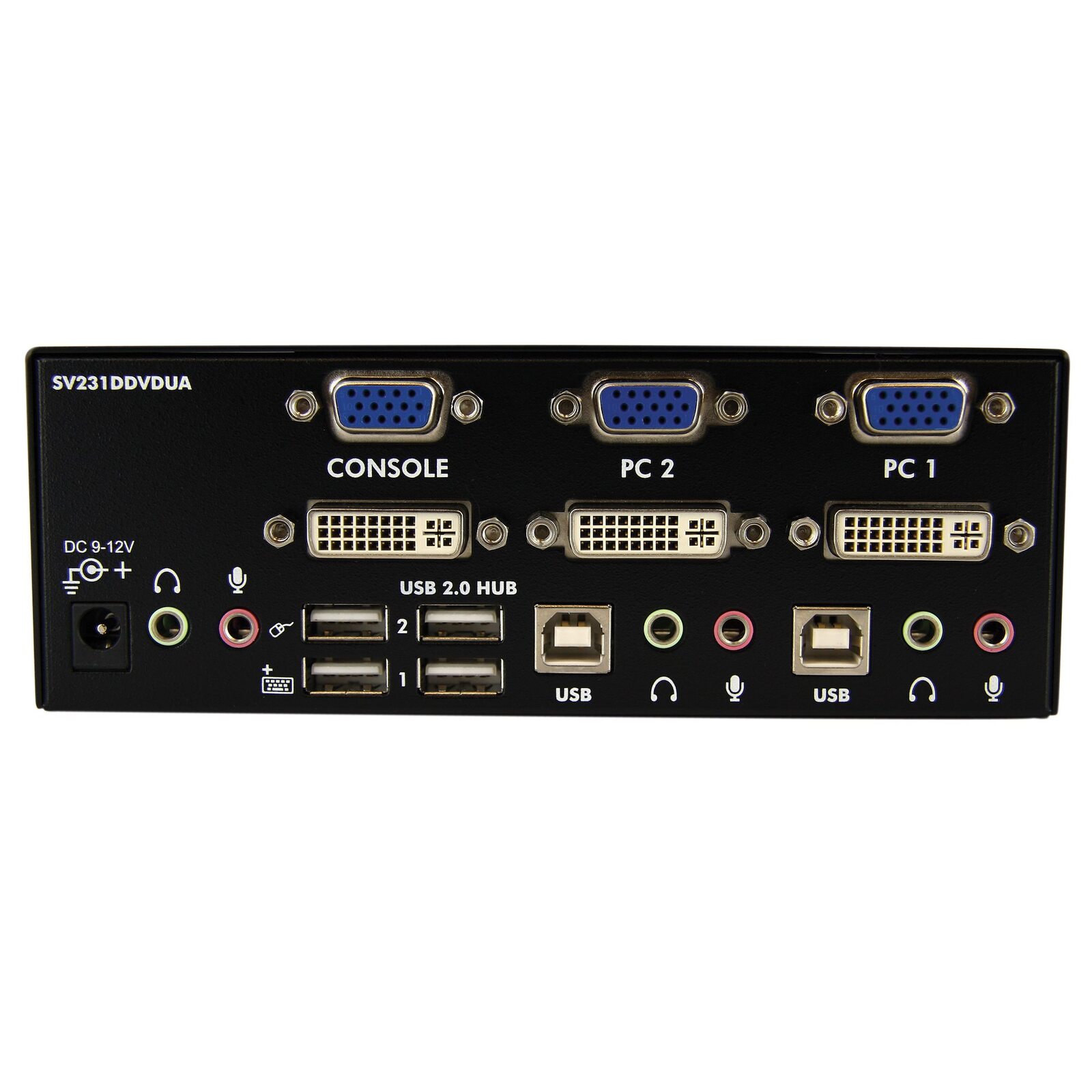

Host Connectors: VGA (15 pin, High Density D-Sub) Female : USB B (4 pin) Female : DVI-I (29 pin) Female : 3.5 mm Mini-Jack (3 Position) Female
Console Interface(s): VGA (15 pin, High Density D-Sub) Female : USB Type-A (4 pin) USB 2.0 Female : DVI-I (29 pin) Female : 3.5 mm Mini-Jack (3 Position) Female
Power
Power Source: AC Adapter Included
Prominence
Description CDW 75 - 1st Line: StarTech.com 2 Port DVI VGA Dual Monitor KVM Switch USB with Audio
Software
OS Compatibility: OS independent; No software or drivers required
Special Notes / Requirements
Note: This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.
What's in the Box
Included in Package: 2-port KVM switch : foot pads : instruction manual : universal power adapter (NA/EU/UK/AU)
This item comes with a 36 months warranty
