Elmo MO-2 Smart Visualiser Visual Presenter 1080P HDMI Document Camera Miracast

Intuitively designed for the most immersive STEM experience, the MO-2 STEM-CAM opens up a world of endless learning possibilities in the K-12 classroom. The MO-2 is our first Android-based document camera, giving users the ability to browse the web and access educational apps over Wi-Fi or using a wired network connection

The MO-2 comes with built-in Miracast wireless display connectivity and a built-in battery that enables educators to move about the classroom to directly engage with students without having to be tethered to their desk.

16x Zoom in Full HD

The MO-2 offers 16x digital zoom at 1080p Full HD.

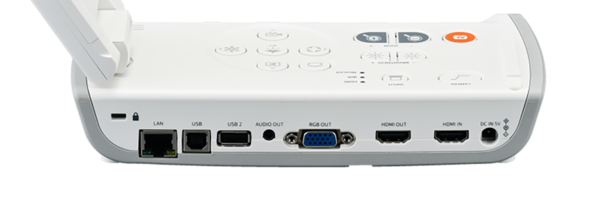

Multiple Connectivity Options

The MO-2 comes with HDMI out(Type A), HDMI In (Type A), RGB Out (D-sub 15p), USB (Type A) x 2, USB (Type B), Ethernet (RJ-45), Audio Out (3.5mm Stereo), Audio In (3.5mm Stereo), W-Fi (IEEE 802.11 a/b/g/n - 2.4GHz & 5GHz) and Miracast wireless display technology.

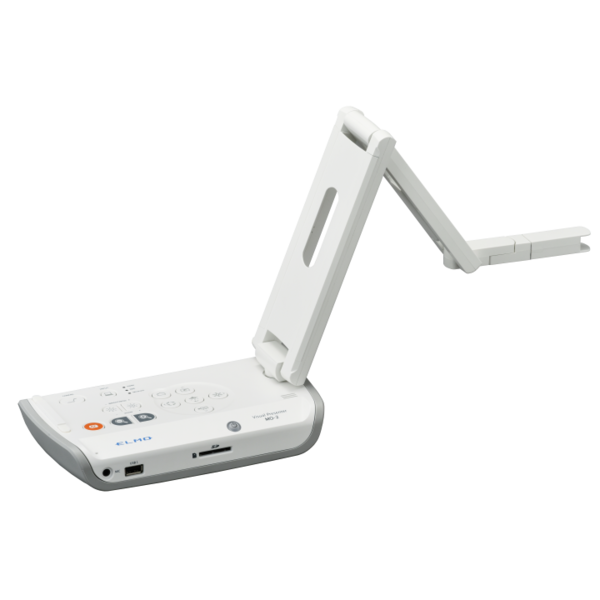

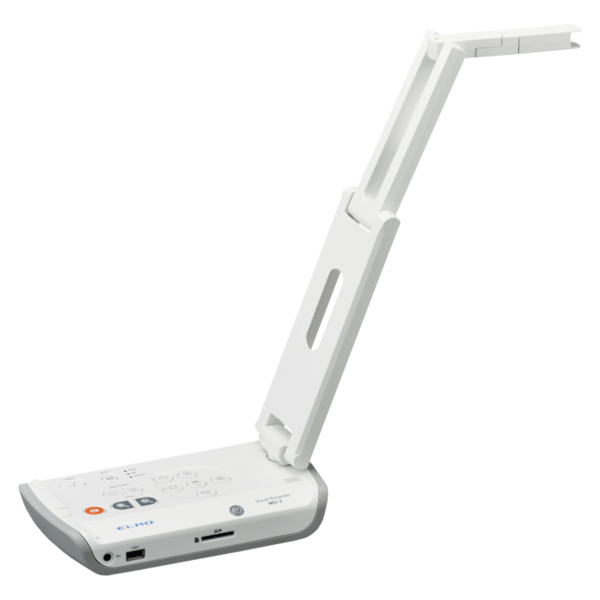

Flexible

The MO-2 is equipped to twist, bend, and fold, making it one of the most flexible document cameras in the ELMO lineup.

Powered by Android(TM)

The MO-2 is powered by Android(TM) to offer support for a wide range of educational apps, opening up a world of learning without ever needing additional equipment. Android is a trademark of Google LLC.

Built-in Battery

With 3hrs of continuous battery life you'll never have to worry about charging during a lesson.

Specs:

Sensor

- Sensor: 1/3.2" CMOS

- Zoom: 16x (Digital)

- Aperture: f/2.0

- Frame Rate: 1920 x 1080 @ 30 fps

- Effective Pixels: 3280 x 2464 (4:3)

- Output Resolution: 1280 x 720

- Minimum Focus Distance: 3.9" / 100.0 mm

General

- Video Connections

1 x HDMI Input

1 x HDMI Output

1 x HD15 Output

- Audio Connections

1 x 1/8" / 3.5 mm Headphone Output

1 x 1/8" / 3.5 mm Microphone Input

- I/O Connections

2 x USB Type-A USB 2.0

1 x USB Type-B USB 2.0

1 x RJ45

- Media Card Slots: SD

- Horizontal Resolution (TV Lines): 1000 TVL

- Wi-Fi: Wi-Fi 4 (802.11n), 802.11a/b/g; Dual-Band (2.4 & 5 GHz)

Adjustments

- Aspect Ratio: 16:9, 4:3

- Image Rotation: 90o, 180o

Convenience

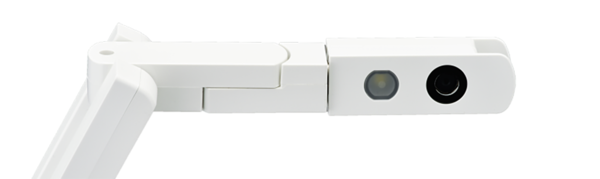

- Built-In LED Lighting: 1 (Arm)

- Built-In Mic: Yes

- Focus Modes: Auto

- Exposure Modes: Auto, Manual

- White Balance: Auto

- Remote Control: Yes

Compatibility

- Operating System Support: Android, ChromeOS, Windows

- Supported File Formats: BMP, DOC, JPEG, JPG, MP4, PDF, PNG, XLS

Electrical

- Power Source: Power Adapter

- Power Consumption: 15 W

- DC Input Power: 5 VDC

Environmental

- Operating Temperature: 32 to 104oF / 0 to 40oC

Operating Humidity: 30 to 85%

Physical

- Kensington Lock Slot: Yes

- Dimensions: 8.7 x 4.5 x 2.2" / 220.0 x 115.0 x 57.0 mm (Folded), 13.5 x 8.7 x 4.5" / 343.0 x 220.0 x 115.0 mm (In-Use)

- Weight: 2.09 lb / 950 g

In the Box:

- Elmo MO-2 Stem Cam

- AC Adapter

- International Power Adapter Set
