Ambulant Disabled Door Privacy w/ Indicator Bolt Latch & Lever Set Matt Black

Ambulant Disabled Door Privacy w/ Indicator Bolt Latch & Lever Set Matt Black

Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

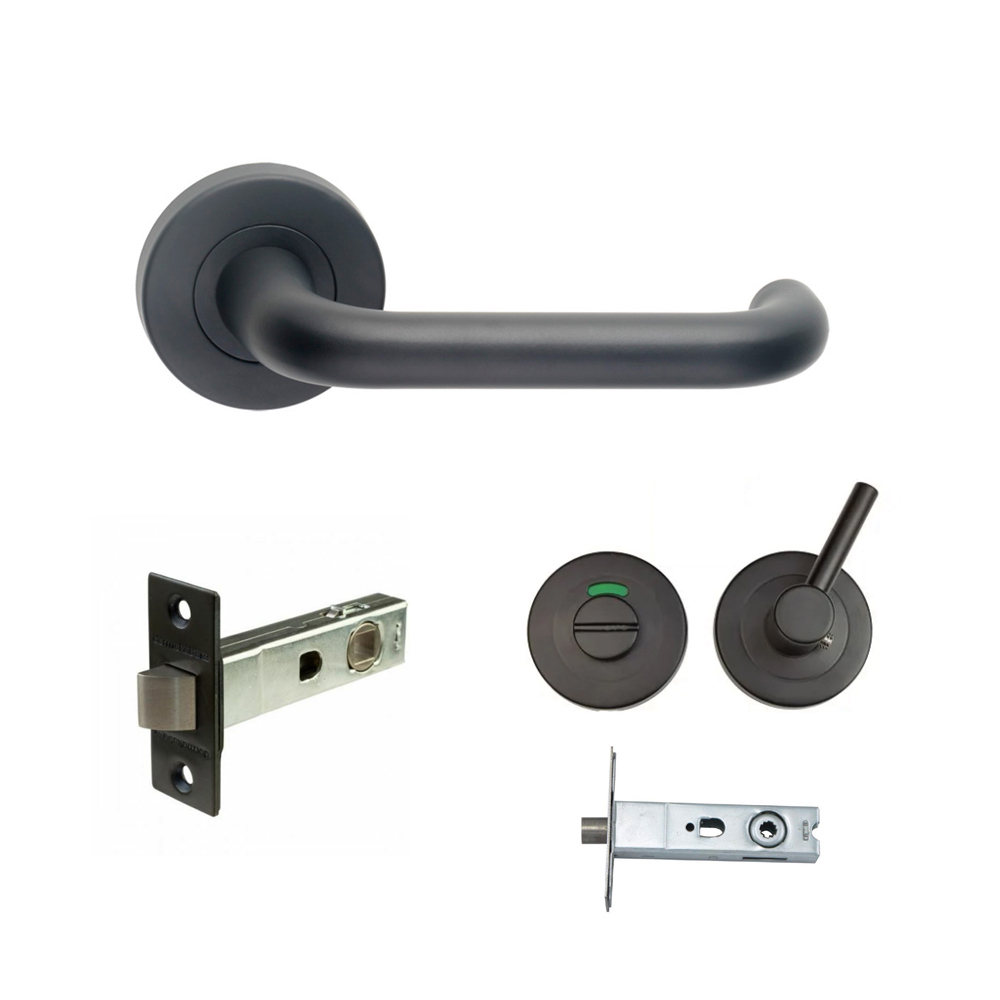

Includes:

• 1 x Dormakaba Vision Door Lever Handle on Round Rose Passage Black (8300/18BLK)
• 1 x Dormakaba 2202BLK Tubular Latch Through Fix 60mm Matte Black (9400000200209)
• 1 x Mappas Disabled Privacy Indicator Bolt Morticed 60mm Backset Matt Black (DIBBLK)

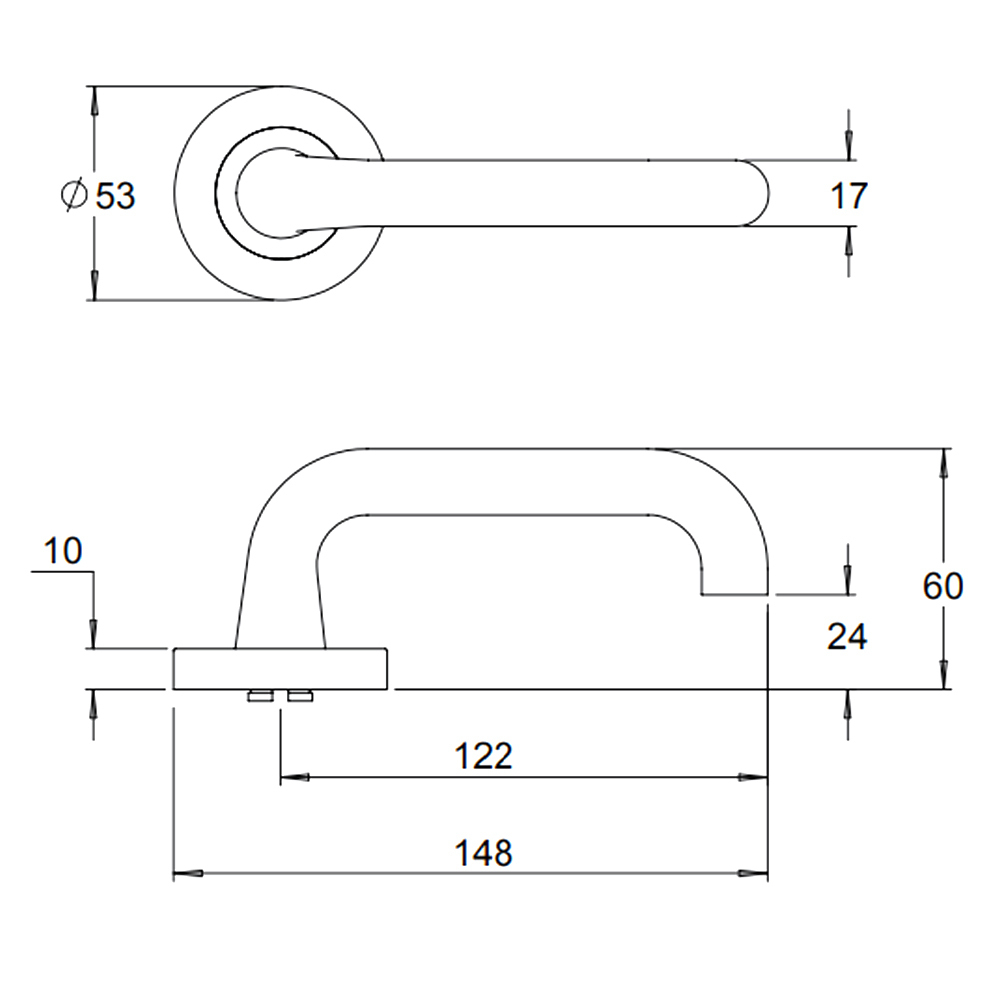

Dormakaba Vision Round Passage Door Handle Leverset
8300/18BLK

Features:

• High quality cost effective range of handles for light commercial and domestic applications
• Well suited for residential applications where aesthetics and contemporary appeal is desired
• Levers are fitted onto a 53mm rose mounting plate which has a slim 10mm projection of the door face
• Constructed using a die cast rose and lever and is designed to suit dormakaba passage mortice locks and tubular latches but can be equally compatible with other Australian tubular latches

Specifications:

• Material: Die-cast zinc
• Diameter Rose: 53mm
• Thickness: 10mm
• Fixing Centres: 41mm
• Fixings: Designed with a through fixing and perforated screws to allow a quicker installation. Fixings can be in a horizontal or vertical pattern.
• Handing: Roses are non-handed and in most cases can be reversed (refer to lever designs for more information).
• Fire Rating: Vision 8000 series furniture is fire rated and comply with AS1905.1.
• Function: Passage
• Finish: Black
• Sold as Pair

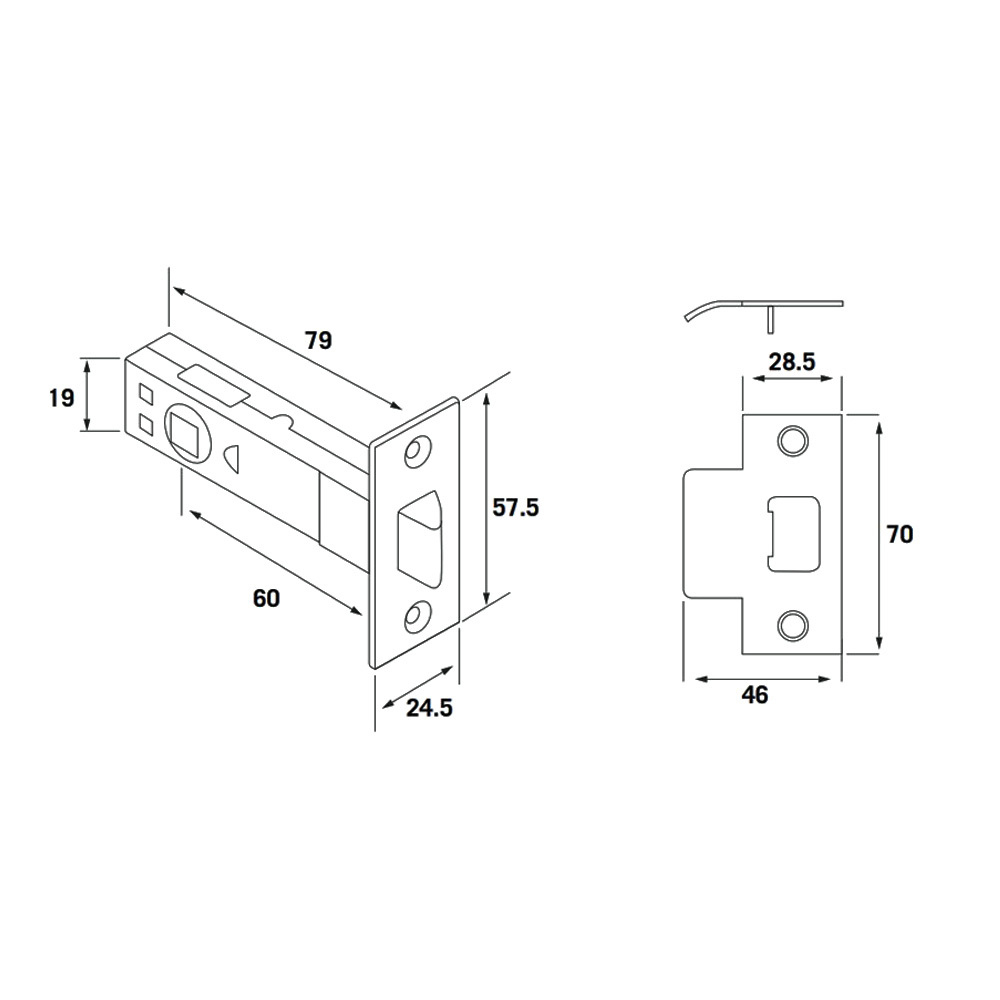

Dormakaba 2202BLK Tubular Latch Through Fix
9400000200209

• Suitable for residential and office applications

Features:

• Zinc plated steel housing with stainless steel latch bolt, face plate and strike plate as standard
• Solid 7.6mm stainless steel spindle hub for added strength and designed to suit horizontal fixed door furniture with 41mm fixing centres
• Strike plate with anti rattle feature

Specifications:

• Passage Latch: Yes
• Faceplate Width: 24.5mm
• Backset: 60mm
• Spindle Type: 7.6mm Square
• Material: Zinc plated steel housing and Stainless Steel latch
• Finish: Matt Black

Mappas Disabled Privacy Indicator Bolt
DIBBLK

Features:

• For commercial and residential facilities
• Emergency release with disibilty turn
• Disabled compliant
• Extended lever

Specifications:

• Door Thickness: 35mm - 45mm
• Backset: 60mm
• Finish: Matt Black
