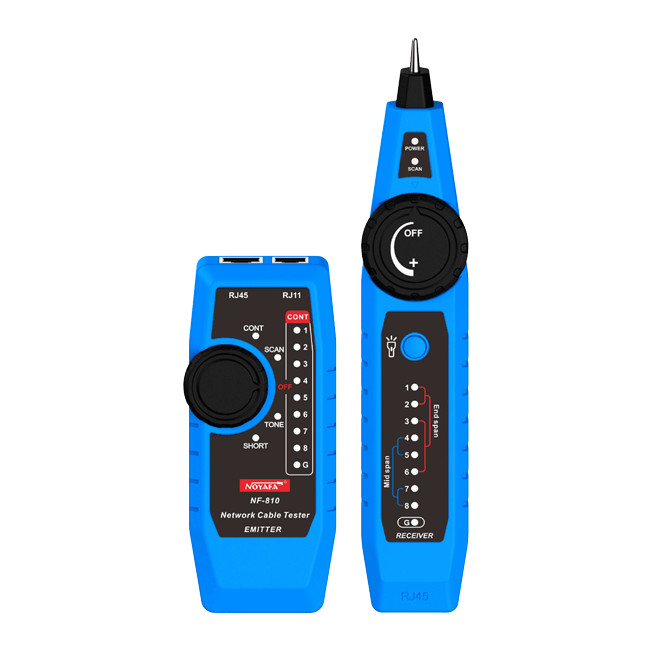

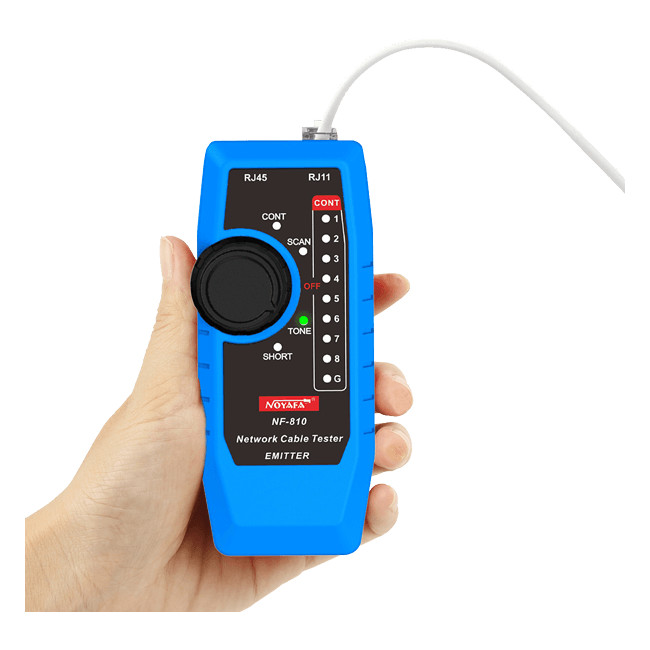

NOYAFA NF810 Multifunction Cable Detector Cable Tracer LAN Tester Blue

NOYAFA NF810 Multifunction Cable Detector Cable Tracer LAN Tester Blue

Be the first to review this product

Limited Stock!

Price	$42.95
	Earn 3x points and collect 126 Everyday Rewards points. Promotion ends 16/05/2024. Create a MyDeal Account or Login to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Multi-Function Network Tester, NF810

RJ11 Tracing / RJ45 Tracing / Electronic wire Tracing / PoE Tracing / Wiremap/ Against 60V / PoE Testing / TEL Testing / Lighting / Earphone.

Features

Multi-Function Testing Mode_

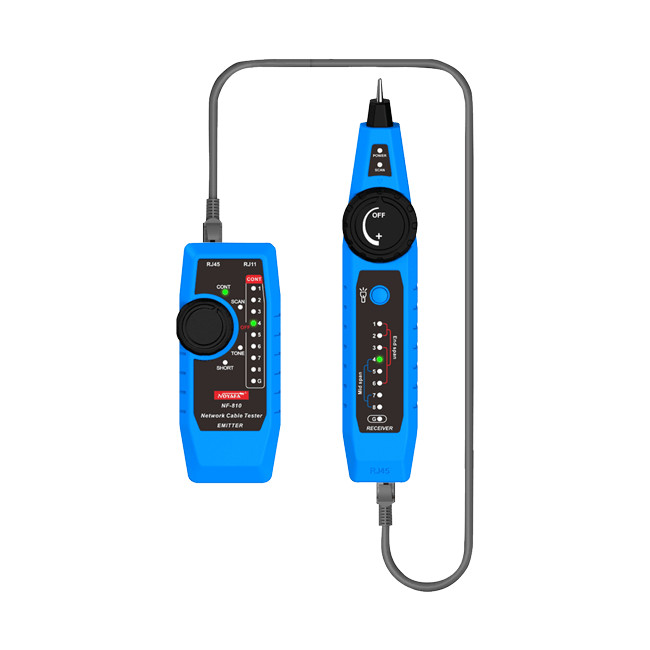

Wiremap function__ Mainly used to detect the wire sequence, short circuit, open circuit, and cross of the network cable includes the STP cable and displays the test results in the form of wire sequence lights.
POE Switch Testing Identify which pins are providing power. when D1 D2 lighting, it means the Pin 1 and Pin2 supply power._

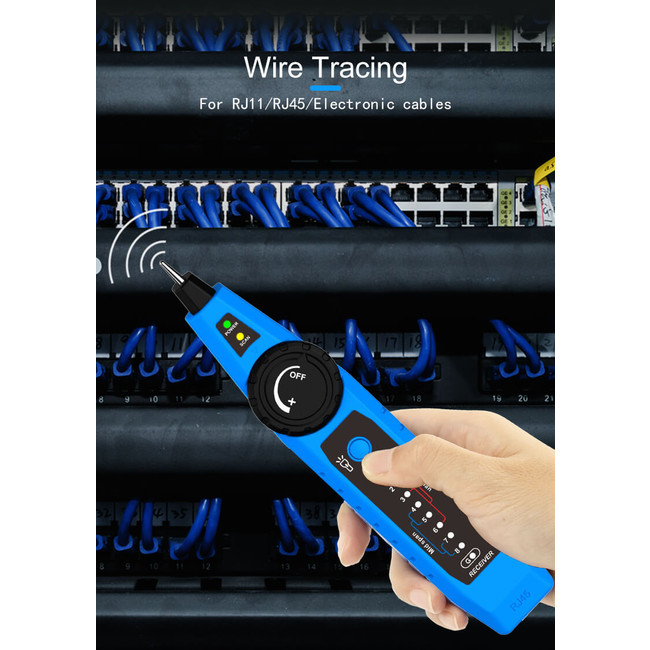

Wire Tracing Looking for RJ11/RJ15/Electronic cables through the sound of the receiver and the yellow-green signal indicator, the target line position can be easily located.

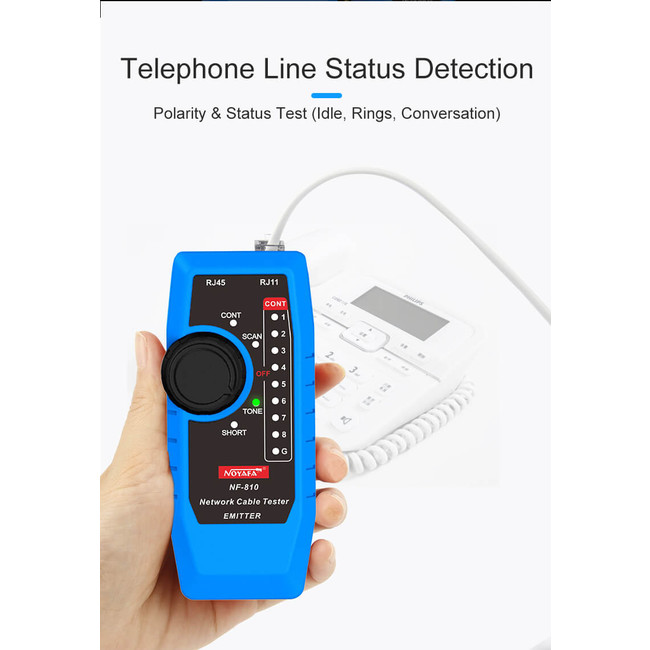

Telephone Line Status Detection_Tests the polarity and on-off of the telephone line and detects the status of the telephone line, such as idle, ringing, and conversation._
LED Lighting Easy to work in a dark environment.
External Earphone Function Helps you to work well in a noisy environment._

Specifications

Power specification	9V Battery x2 (included)	_
Applicable network cable	CAT5&CAT6/Telephone cable	_
Interface withstand voltage	60V	_
Transmitter	Wiremap function	Wiremap interface	RJ45
Wiremap status light	YES
Cross circuit,Result	9 line sequence LED green lights
Wire sequence and fault test	YES
Wire shielded / unshielded	YES
Short circuit prompt	YES
Switch to line	Switch to line RJ45 main interface + directly connected to the switch
short circuit prompt	YES
Applicable cable	Network cable, Telephone line
Scanning function	scanning interface	RJ45,RJ11
Signal transmission format	Dual tone pulse
Signal transmission distance	≤1km
Test interface	RJ11
Short circuit / channel test	YES
Short circuit status indicator	YES
Telephone line polarity state test	YES
Maximum working current	<70mA
_	Size	2014527 ( mm)
Receiver	Scanning Receiving Function	YES
Sensitivity adjustment	YES
Signal strength reminder	YES
Headphone function	YES
Tracking working current	≤40mA
POE switch test	YES
Wiremap function	YES
LED lighting	YES
Size	1252845.3( mm)

What is in the box?

NF810 transmitter x1pc
NF810 receiver x 1pc
Earphone x 1pc
Short RJ45 cable x 1pc
Short RJ11 cable x 1pc
Alligator clip adapter cable x 1pc
Pouch x 1pc
9V Battery x 2pcs
Manual x 1pc

Weight: 0.408
