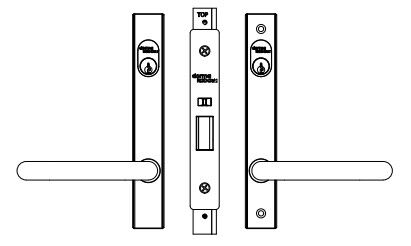

Dormakaba Lockpack 30mm Backset Double Cylinder Keyed Alike SB2312KIT01SSKA

Dormakaba Lockpack 30mm Backset Double Cylinder
SB2312KIT01SSKA

Double Cylinder is designed to offer a high-security level commonly used in commercial and domestic applications.

Double Cylinder Function - a key will be required to turn the lock both on the inside of the door and the outside.

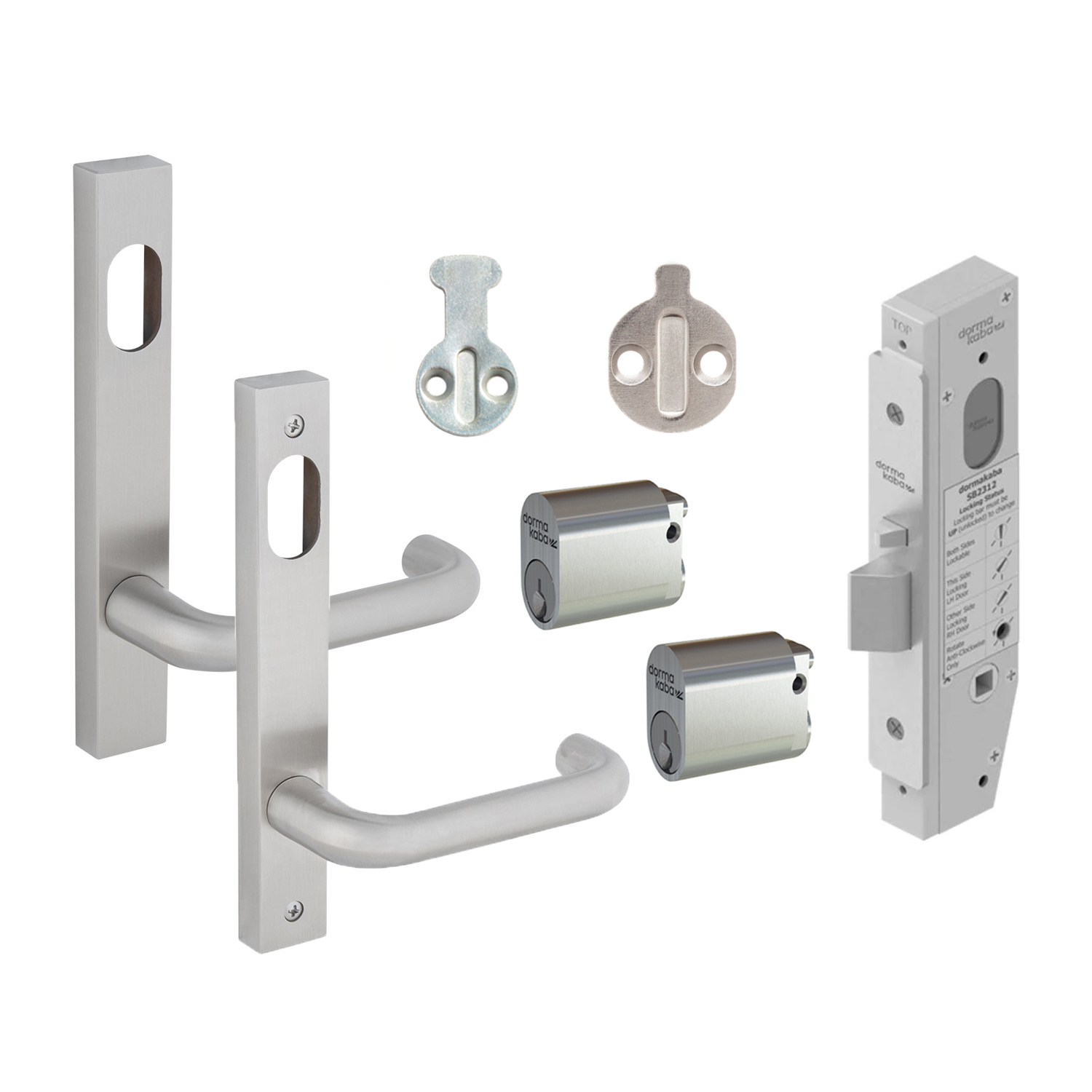

Includes:

• 1 x Dormakaba Mortice Door Lock 30mm Short Backset Includes Turn Snib (SB2312SSS)
• 1 x Kaba Narrow Style Plate w/ Cylinder Hole Lever Satin Stainless Steel (6400/30GSSS)
• 1 x Kaba Narrow Style Plate w/ Cylinder Hole Lever Satin Stainless Steel (6401/30GSSS)
• 1 x Dormakaba Cam KX Retract Latchbolt Suit 2600 & 2900 Series Locks (CAMKX)
• 1 x Dormakaba Cam KZ Lock & Unlock Locking Bar Suit 2600 & 2900 Series Locks (CAMKZ)
• 2 x Dorma 130 Series C4 Oval Cylinder 6 Pin - Keyed Alike (130C4KA1SCP)

Dormakaba Mortice Door Lock 30mm Short Backset Includes Turn Snib
SB2312SSS

Features:

• Operated by key or handle outside or by turnsnib, key or handle inside
• Cylinder or handle retracts the latch
• 15 mm stainless steel reversible latchbolt
• Stainless steel faceplate and strike
• Easily adapted to most function
• Supplied with turn snib adaptor
• Supplied less cylinder
• Compatible to most restricted keying systems
• Electric strike compatibility

Specifications:

• Door Thickness: 32mm - 50mm
• Anti-lockout Function: No
• Compatible With Most Restricted Keying Systems: Yes
• Holdback Function Built-in: No
• Lock Grade: Commercial
• Backset: 30mm
• Finish: Satin Stainless Steel

Kaba Narrow Style Plate w/ Cylinder Hole Lever
6400/30GSSS

Features:

• Plates are designed to fit back to back
• External plates are supplied with fixing screws to suit door thickness between 32 and 50mm
• Plates are not handed; levers may be reversed by removing the stop screw
• The Noosa 30 lever is Council/Building Code compliant as it meets NZ Standard 4121:2001 requiring Accessible doors with locks or latches to have a lever action and the end of the handle shall be returned towards the door

Specifications:

• Material: 316 grade Stainless Steel
• Height: 185mm
• Width: 26mm
• Projection: 12.7mm
• Screw Fix Spacing: 159mm
• Door Thickness: 32-50mm
• Finish: Satin Stainless Steel

Kaba Narrow Style Plate w/ Cylinder Hole Lever
6401/30GSSS

Features:

• Plates are designed to fit back to back
• External plates are supplied with fixing screws to suit door thickness between 32 and 50mm
• Plates are not handed; levers may be reversed by removing the stop screw
• The Noosa 30 lever is Council/Building Code compliant as it meets NZ Standard 4121:2001 requiring Accessible doors with locks or latches to have a lever action and the end of the handle shall be returned towards the door

Specifications:

• Material: 316 grade Stainless Steel
• Height: 185mm
• Width: 26mm
• Projection: 12.7mm
• Screw Fix Spacing: 159mm
• Door Thickness: 32-50mm
• Finish: Satin Stainless Steel

Dormakaba Cam KX Retract Latchbolt Suit 2600 & 2900 Series Locks
CAMKX

Features:

• Dormakaba "KX" cam retracts latchbolt
• Retracts latchbolt, suits MS2600, MS2900, SB2212 and SB2312 series locks

Dormakaba Cam KZ Lock & Unlock Locking Bar Suit 2600 & 2900 Series Locks
CAMKZ

Features:

• Dormakaba "KZ" cam locks and unlocks locking bar
• Lock and unlock locking bar, suits MS2600, MS2900, SB2212 and SB2312 series locks

Dorma 130 Series C4 Oval Cylinder
130C4KA1SCP

Features:

• Anti-bump and Anti-drill protection
• Excellent tolerances
• SSS springs as standard
• Mushroom top pin
• Suits restricted profiles
• Solid brass construction
• Pre-drilled for construction keying

Specifications:

• Keying: Keyed Alike
• Pin: 6 pin C4 keyway
• Finish: Satin Chrome Plate
