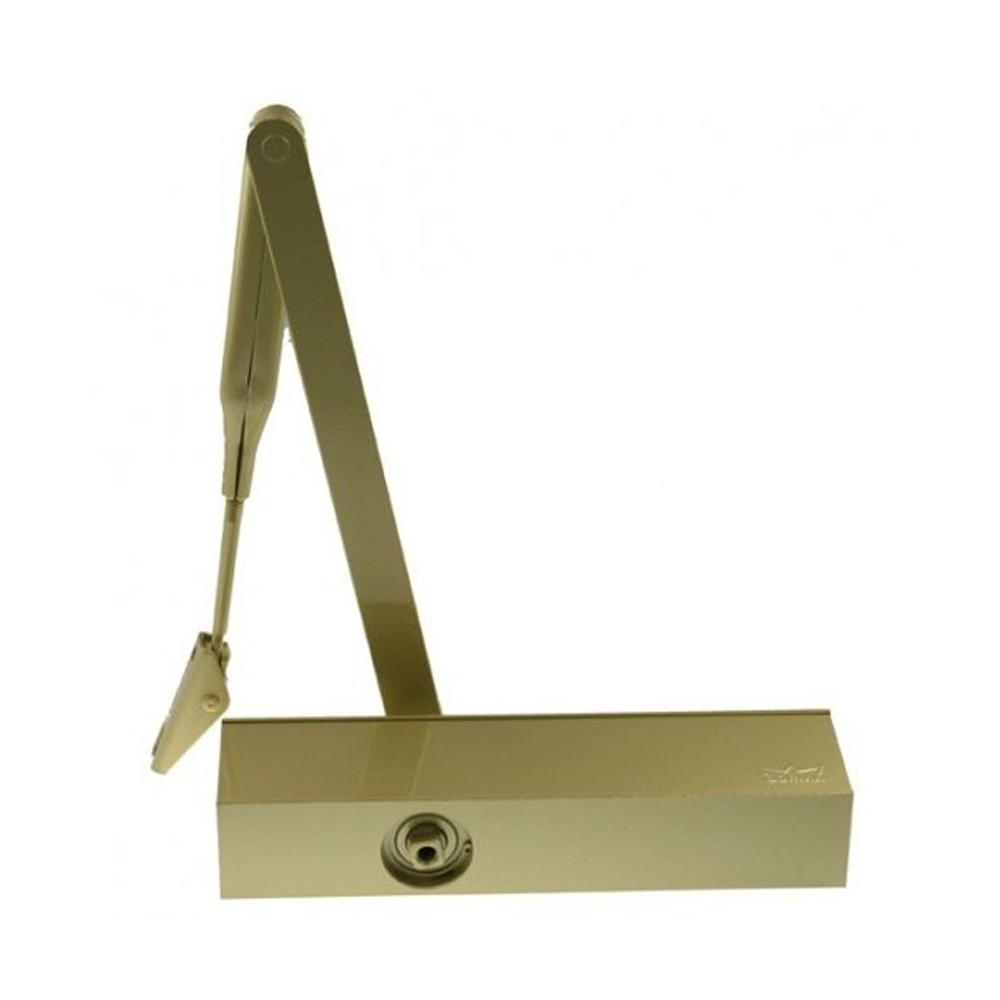

Dorma TS73 EN1-4 Door Closer Non Handed Fire Rated Gold 37023302

Dorma TS73 EN1-4 Door Closer
37023302

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

• Ideal for commercial applications
• Non-handed closer suited to internal doors including fire doors.

Features:

• Overhead surface mounted door closer
• Power adjustable with a screw, closing speed (180 degrees - 15 degrees) and latching speed (15 degrees - 0 degrees) adjustable with separate valves with final adjustment by standard arm.
• Adjustable latching action by valve
• Adjustable delay action
• Includes parallel arm bracket
• Parallel arm mounting doors up to 950mm
• Standard arm assembly

Specifications:

• Closing Force: EN1-4
• Backcheck: Self regulating or adjustable by valve
• Standard Doors: Up to 1100mm

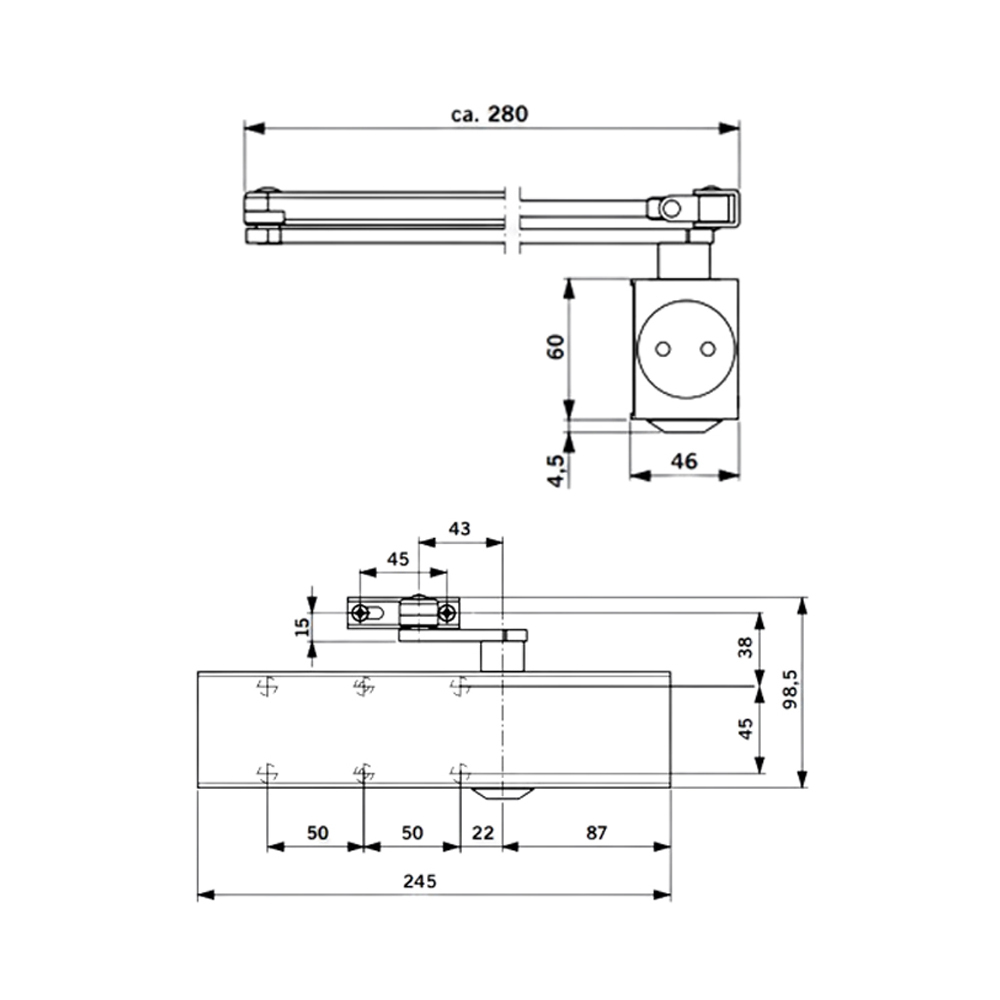

• Length: 245mm
• Width: 46mm
• Height: 60mm
• Weigth: 1.7kg
• Finish: Gold

Protection:

• Fire Rated: Approved to AS1905 Part 1 Fire Resistant Doors. Tested to EN1154
